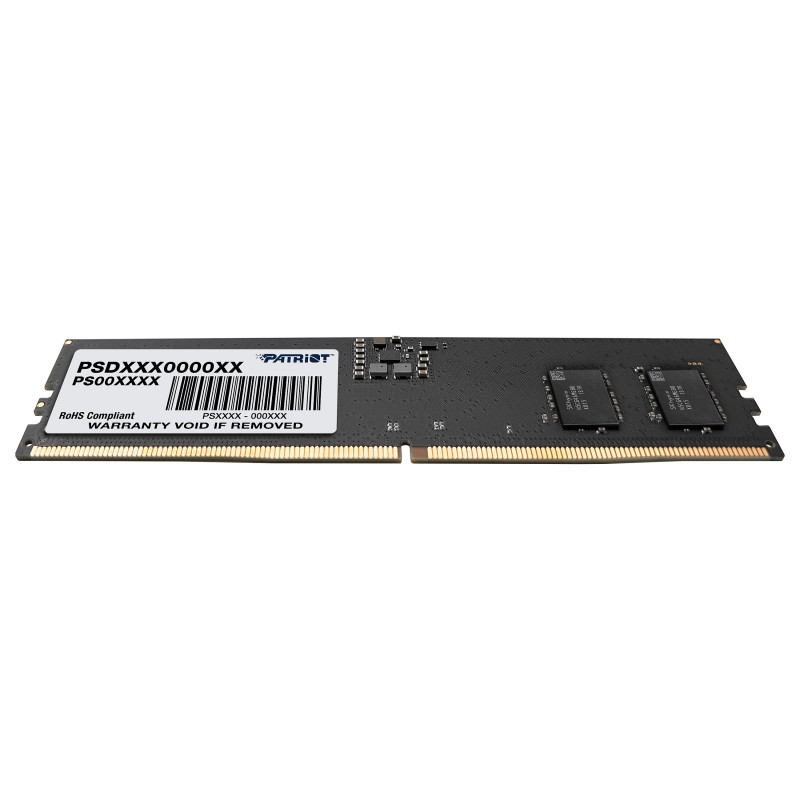

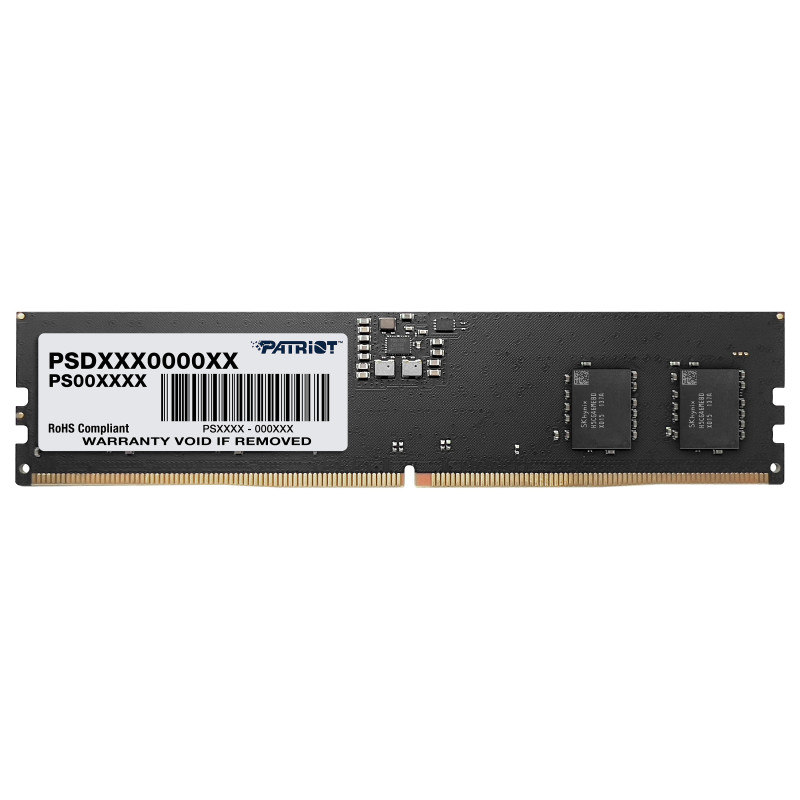

Patriot Memory Signature Line PSD516G560081 memory module

Patriot Memory Signature Line PSD516G560081. Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.

Features

Buffered memory type: Unregistered (unbuffered)
Feature: On-Die ECC
CAS latency: 46
Internal memory: 16 GB
Memory layout (modules x size): 1 x 16 GB
Internal memory type: DDR5
Memory clock speed: 5600 MHz
Component for: PC
Memory form factor: 288-pin DIMM
Memory voltage: 1.1 V

Operational conditions

Operating temperature (T-T): 0 - 85 °C

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 133 mm
Depth: 2 mm
Height: 32 mm
Weight: 17 g

Packaging data

Package width: 61 mm
Package depth: 12 mm
Package height: 170 mm
Package weight: 29 g
Package type: Blister
