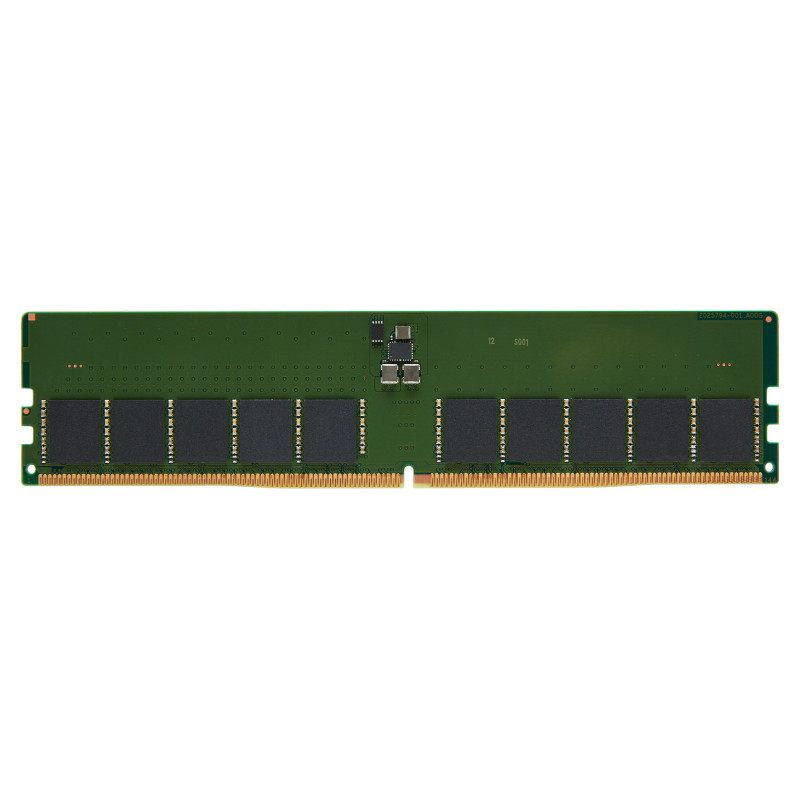

Kingston Technology KSM56E46BD8KM-32HA memory module

Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features

Feature: On-Die ECC
CAS latency: 46
Internal memory: 32 GB
Memory layout (modules x size): 1 x 32 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: Server
Memory form factor: 288-pin DIMM
Feature: ECC
Buffered memory type: Unregistered (unbuffered)
Memory ranking: 2
Memory voltage: 1.1 V
Module configuration: 4096M x 72
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: SPD profile
Programming power voltage (VPP): 1.8 V
Product colour: Black, Green
Lead plating: Gold
Feature: JEDEC standard

Operational conditions

Operating temperature (T-T): 0 - 95 °C
Storage temperature (T-T): -55 - 100 °C

Sustainability

Feature: Sustainability compliance
Compliance certificates: RoHS

Weight & dimensions

Width: 133.3 mm
Height: 31.2 mm

Other features

Doesn't contain: Halogen
