Raid Controller - Broadcom 9540-8i PCI Express x8 4.0 12 Gbit/s
Product reference:
14-830343007677
The Broadcom 9540-8i RAID controller supports up to 32 devices and provides data transfer speeds of up to 12 Gbit/s, guaranteeing reliability and compatibility with RAID levels 0, 1, and 10.
Raid Controller - Broadcom 9540-8i PCI Express x8 4.0 12 Gbit/s
Product reference:
14-830343007677
The Broadcom 9540-8i RAID controller supports up to 32 devices and provides data transfer speeds of up to 12 Gbit/s, guaranteeing reliability and compatibility with RAID levels 0, 1, and 10.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

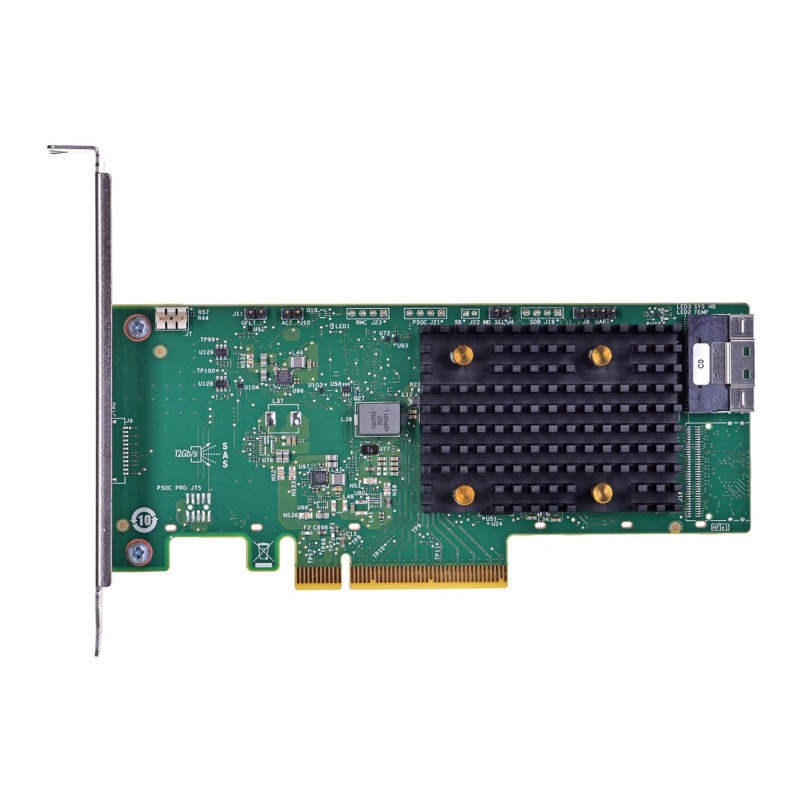

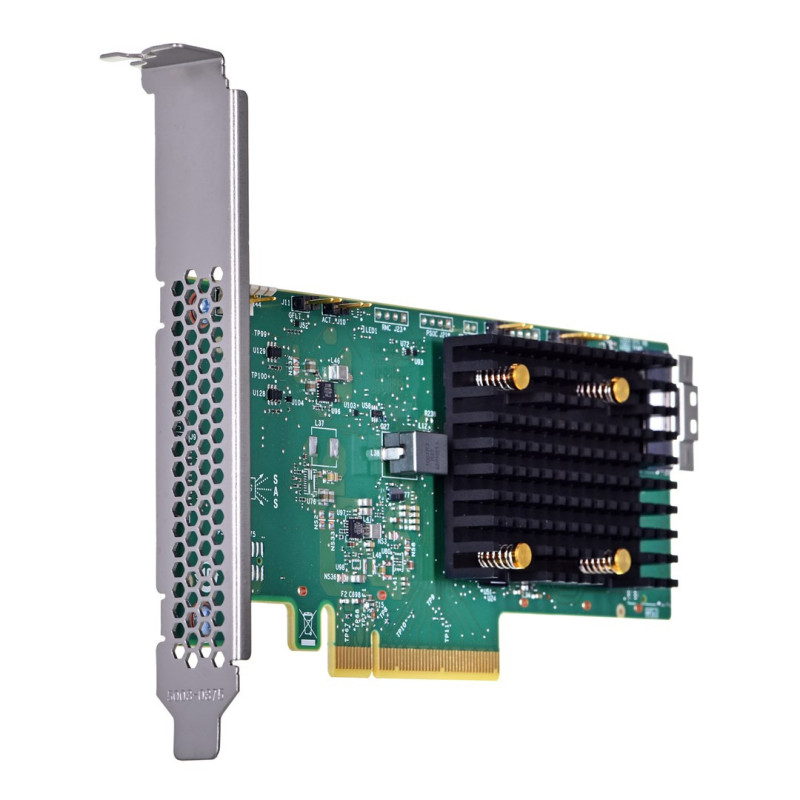

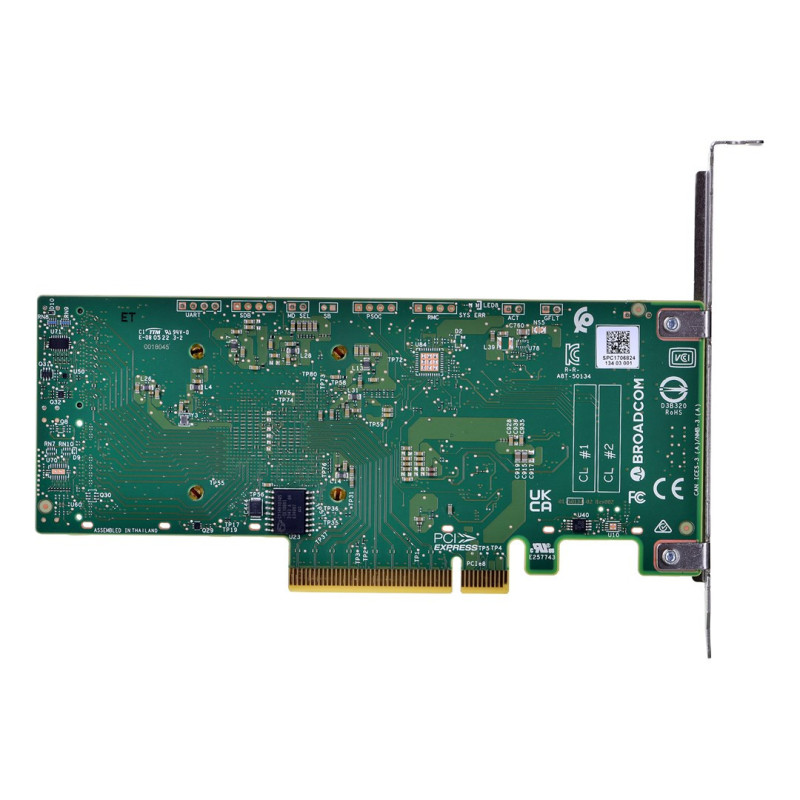

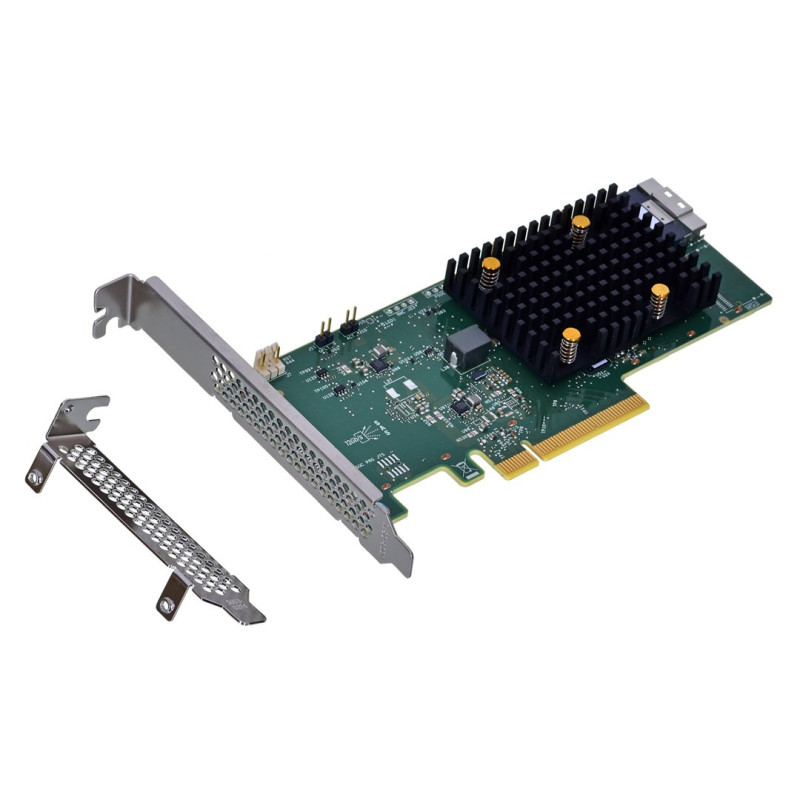

RAID controller - Broadcom 9540-8i
The Broadcom 9540-8i RAID controller is a high-end PCI Express x8 card designed for demanding storage applications. It supports advanced storage features and delivers high data transfer rates of up to 12 Gbit/s.
Main features
- Supports up to 32 devices
- Data transfer speed - 12 Gbit/s
- Compatible with RAID levels 0, 1 and 10
- SMART support enabled
Operating temperature: 0 - 55 °C; Storage temperature: -45 - 105 °C.
Operating conditions | |
|---|---|
| Operating temperature (OT) | 0 - 55 °C |
| Operating relative humidity (HH) | 5 - 90% |
| Storage relative humidity (HH) | 5 - 95% |
| Storage temperature (TT) | -45 - 105 °C |
Weight and dimensions | |
| Height | 68.9 mm |
| Depth | 155.7 mm |
Operation | |
| SMART support | Yes |
| Data transfer speed | 12 Gbps |
| RAID levels | 0, 1, 10 |
| Mean time between failures (MTBF) | 3,000,000 hours |
| Number of supported devices | 32 |
| Chipset | SAS3808 |
Ports and interfaces | |
| Supported storage device interfaces | PCI Express 4.0, SAS, Serial ATA III |
| Host interface | PCI Express x8 |
| Internal SAS ports | 8 |
| PCI Express slot version | 4.0 |
