QuWireless QuMax for Teltonika rutX11

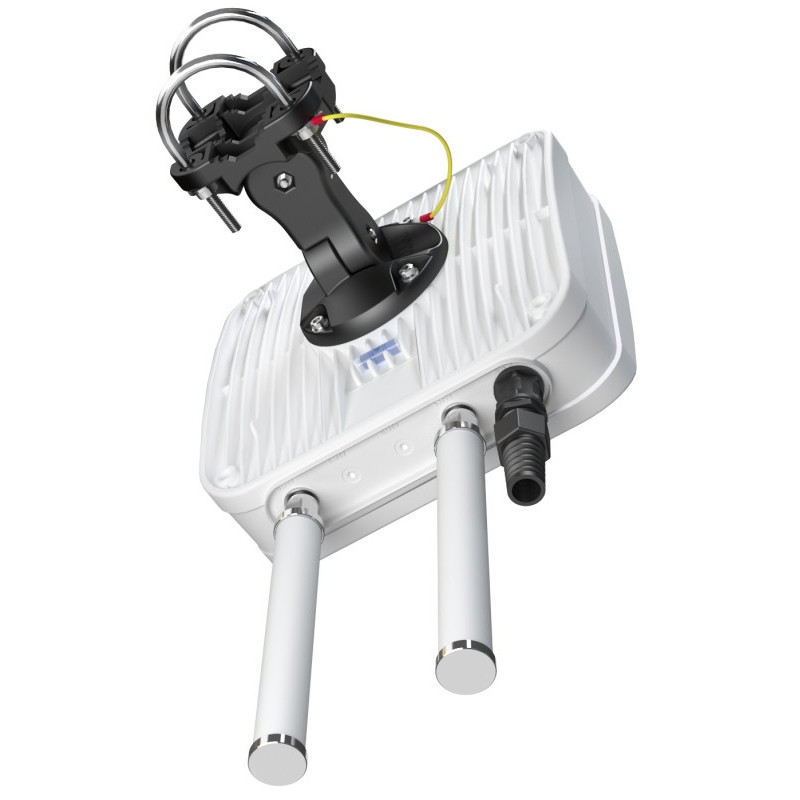

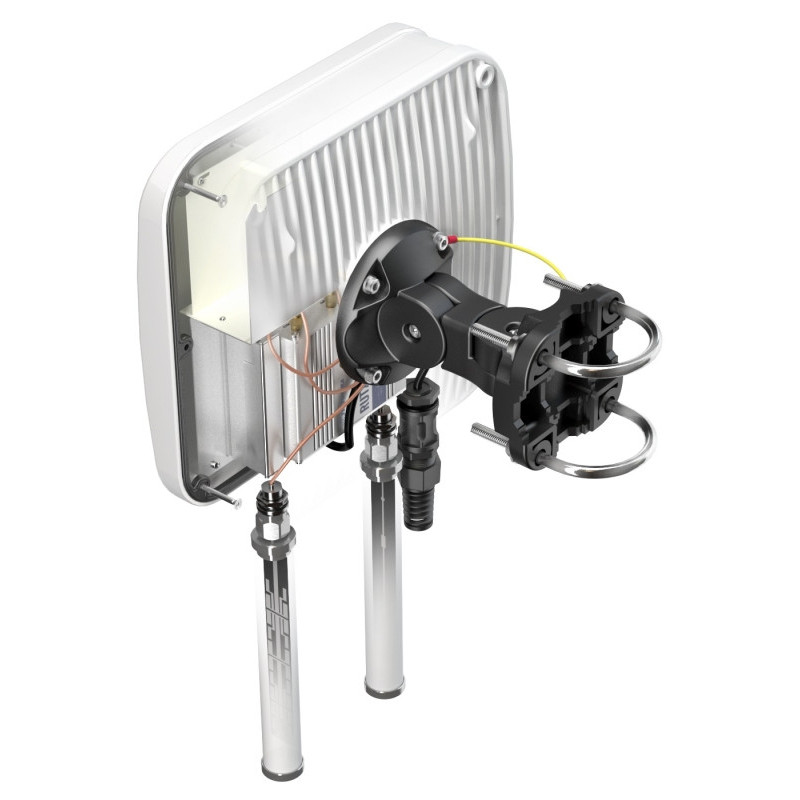

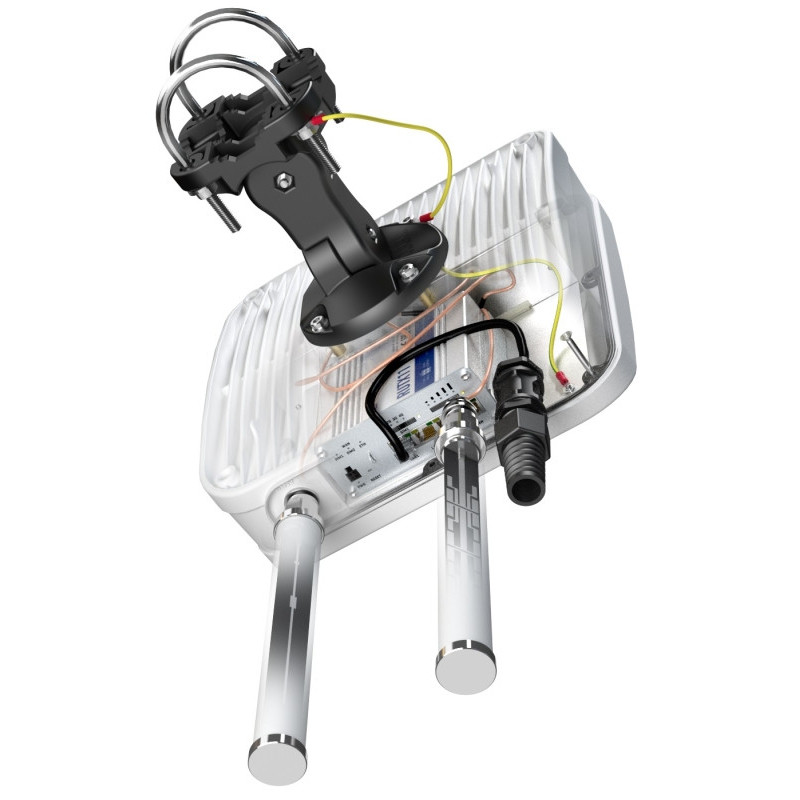

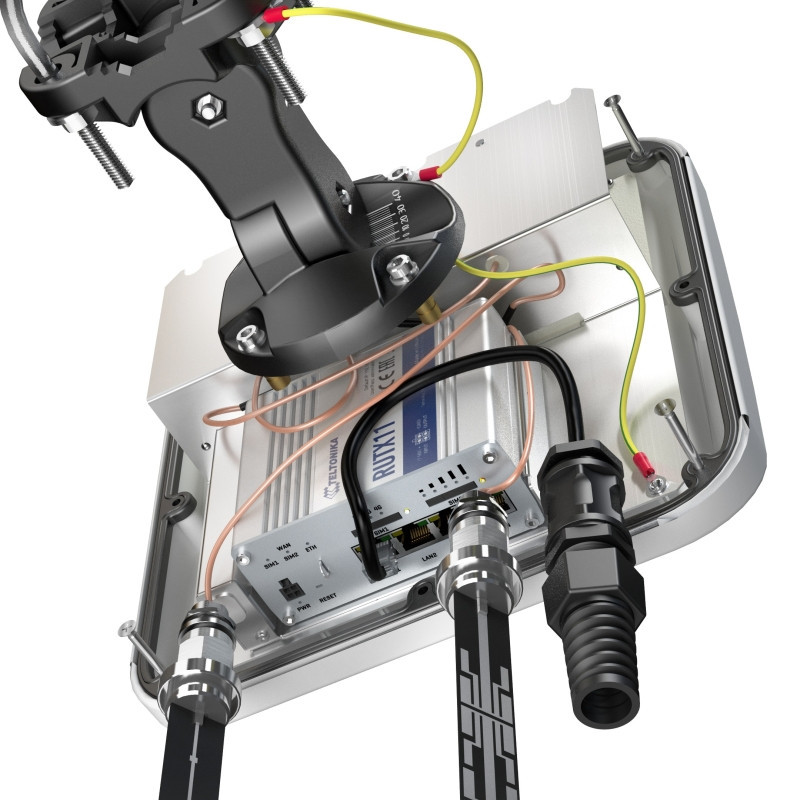

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environments. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 5 GHz omni antennas.

LTE Specifications:• Frequency: * 0.694-0.96 GHz; * 1.7 - 2.2 GHz; * 2.2 - 2.7 GHz; • Gain: * 4 dBi; * 5 dBi; * 6 dBi; • VSWR: * <1.50, max <2.00; * <1.30, max <1.60; * <1.30, max <1.60; • Beamwidth: * 90°/90° +/- 30°; * 90°/90° +/- 30°; * 90°/90° +/- 30°; • Polarization: Vertical; • Impedance: 50 Ω.

Wi-Fi Specifications:• Frequency: * 2.40-2.50 GHz; * 4.70 - 6.00 GHz; • Gain: * 6 dBi; * 7 dBi; • VSWR: * <1.70, max <2.00; * <1.70, max <2.00; • Beamwidth: * 360°/25° +/- 5°; * 360°/25° +/- 5°; • Polarization: Vertical; • Impedance: 50 Ω.

Mechanical Specification:• Materials: ABS, aluminum, PTFE, Fiberglass; • Ingress Protection: IP67; • Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch); • Weight: 1.8 kg (3.97 lbs); • Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
