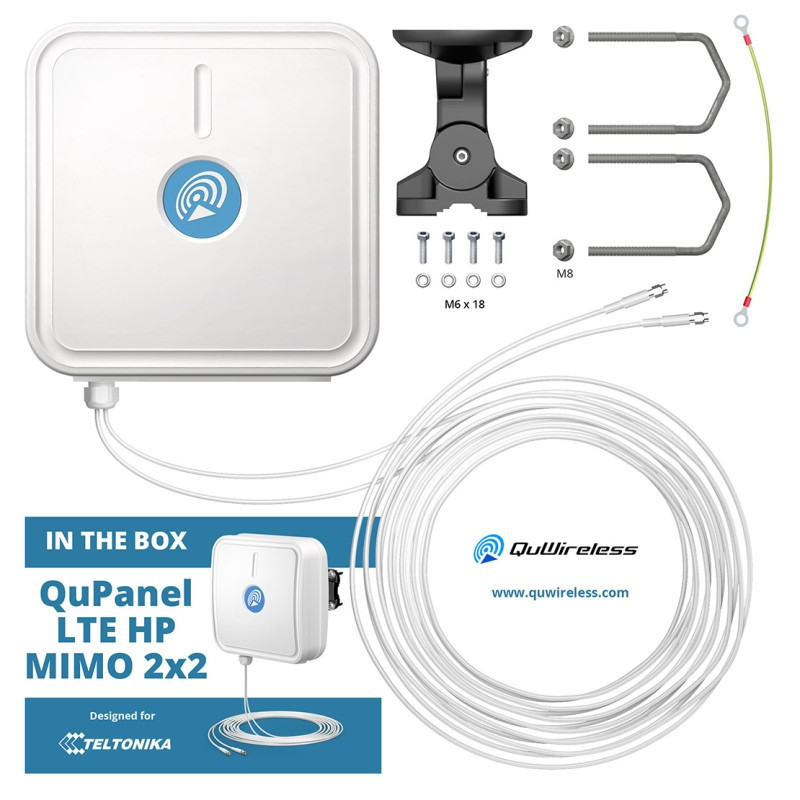

QuWireless Outdoor antenna QuPanel 5G / LTE MIMO 2x2, 5m cables

Product reference: 18-AP5G2

QuWireless Outdoor antenna QuPanel 5G/LTE MIMO 2x2, 5m cables

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

15014 €

Last product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Ask about product

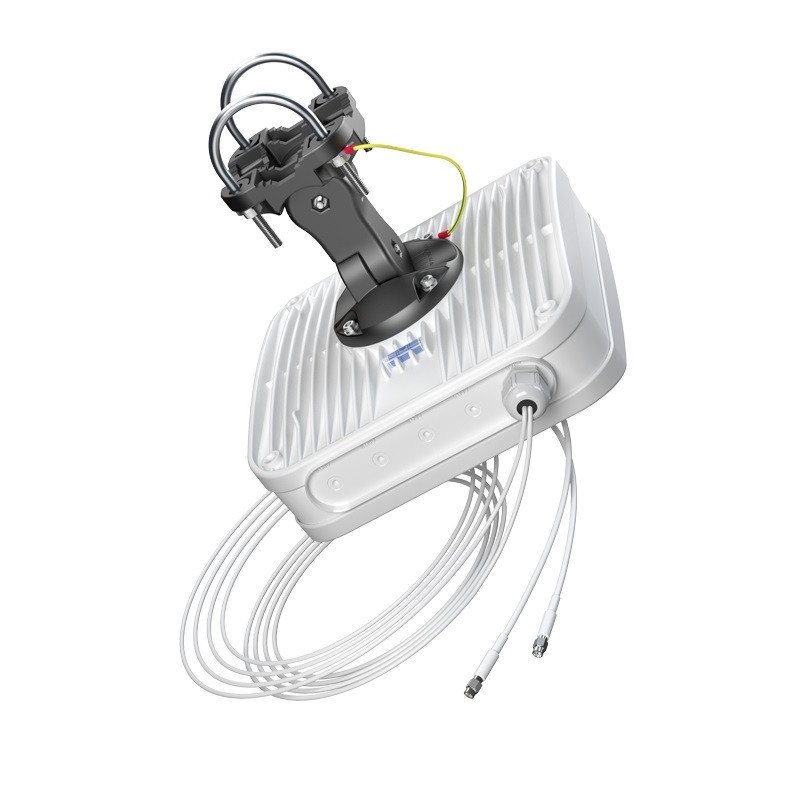

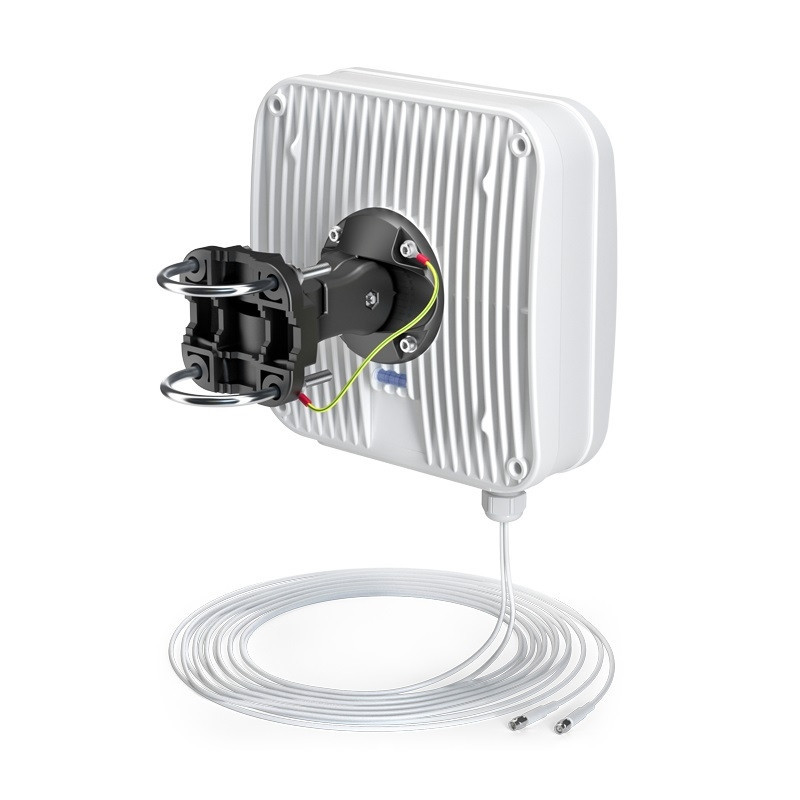

QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It's compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 5G / LTE / 3G / 2G modems and routers.

5G/LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz 3.3 - 3.8 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7.5 dBi 3.3 - 3.8 GHz : 5.5 dBi
Front-to-Back	0.694 - 0.96 GHz : > 10 dB 1.7 - 2.2 GHz : > 12 dB 2.2 - 2.7 GHz : > 14 dB 3.3 - 3.8 GHz : > 17 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67

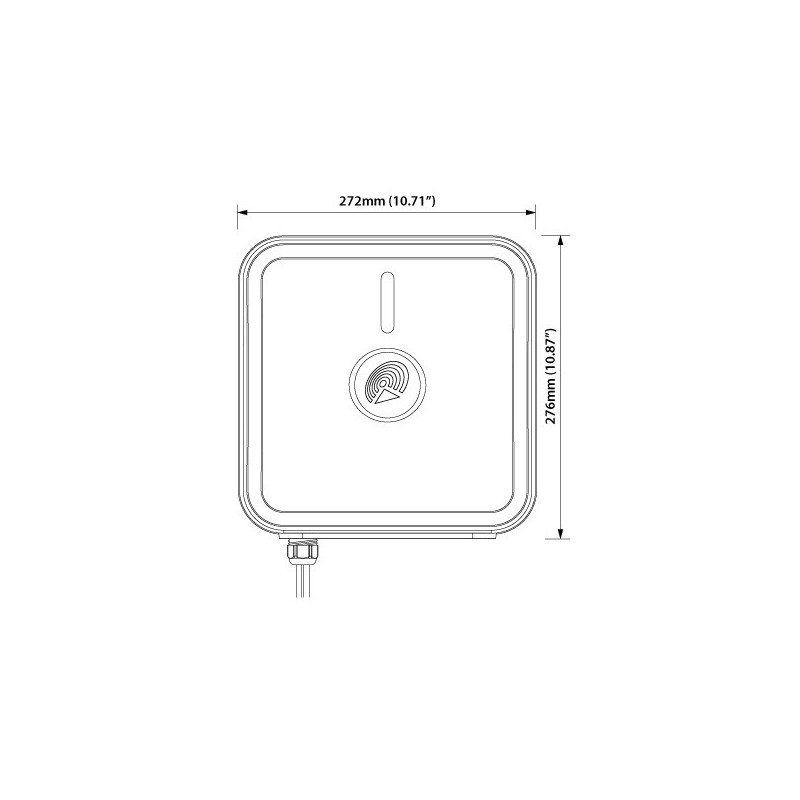

Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
Cable length	5m
Cable type	LMR195 white
Connector type	2x SMA plug
