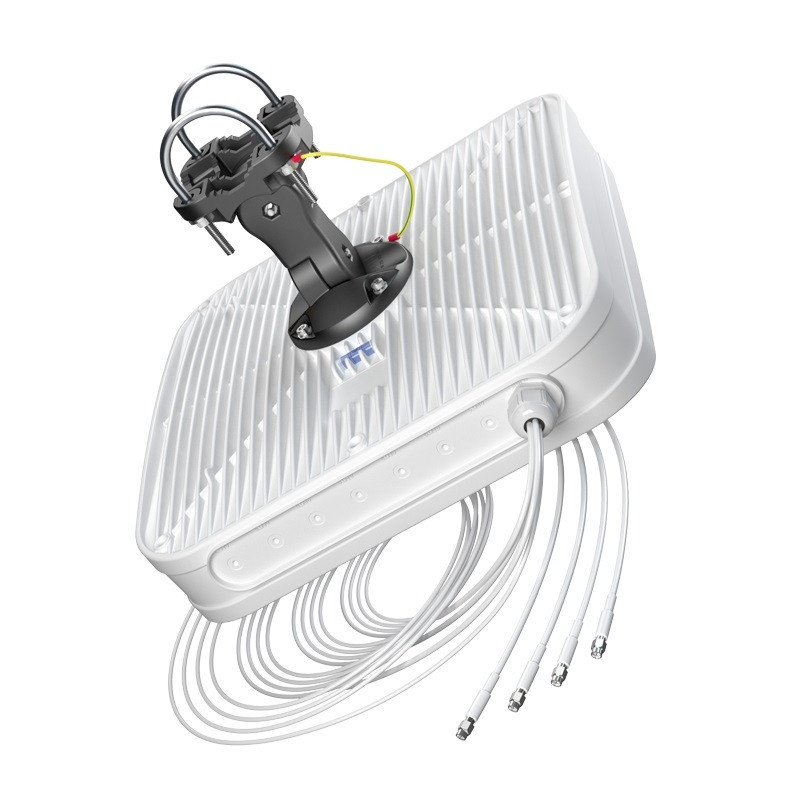

QuWireless Outdoor antenna QuPanel 5G / LTE HP MIMO 4x4, 10m cables

Product reference: 18-AP5G4-1

QuWireless Outdoor antenna QuPanel 5G/LTE HP MIMO 4x4, 10m cables

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

19350 €

Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 3
business days

Ask about product

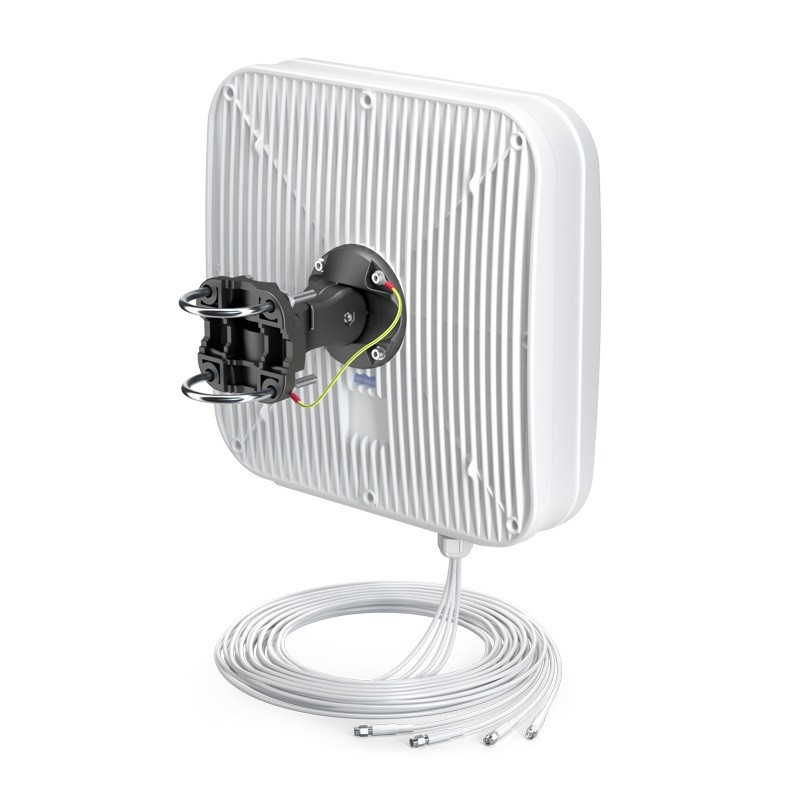

QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It's compatible with Teltonika and other MIMO 4x4 5G / LTE / 3G / 2G modems and routers.

5G/LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz 3.3 - 3.8 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7.5 dBi 3.3 - 3.8 GHz : 5.5 dBi
Front-to-Back	0.694 - 0.96 GHz : > 10 dB 1.7 - 2.2 GHz : > 12 dB 2.2 - 2.7 GHz : > 14 dB 3.3 - 3.8 GHz : > 17 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67

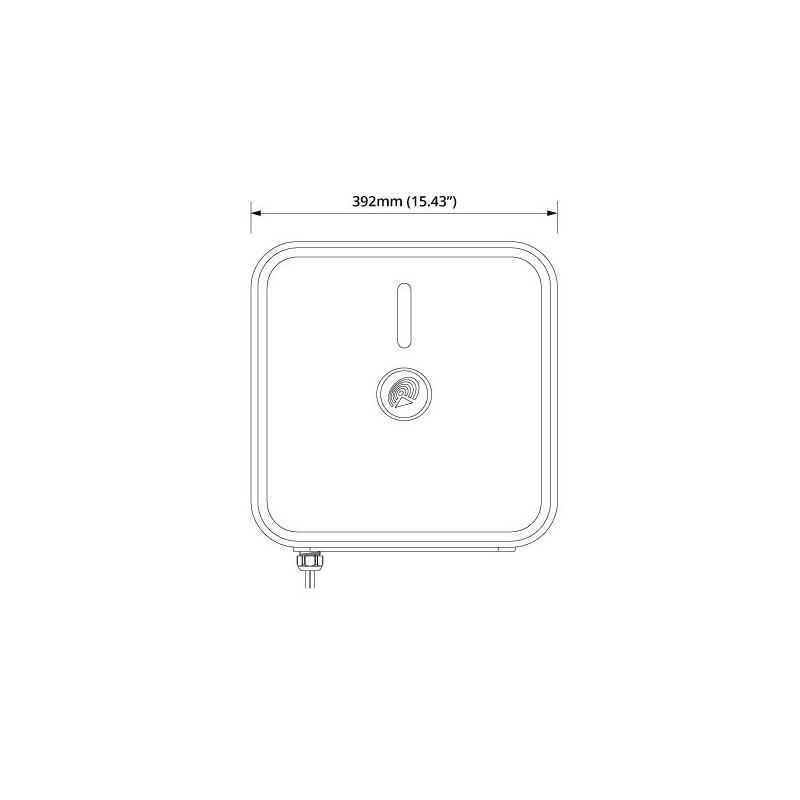

Dimensions	392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch
Weight	3.7 kg 8.16 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
Cable length	10m
Cable type	LMR195 white
Connector type	4x SMA plug
