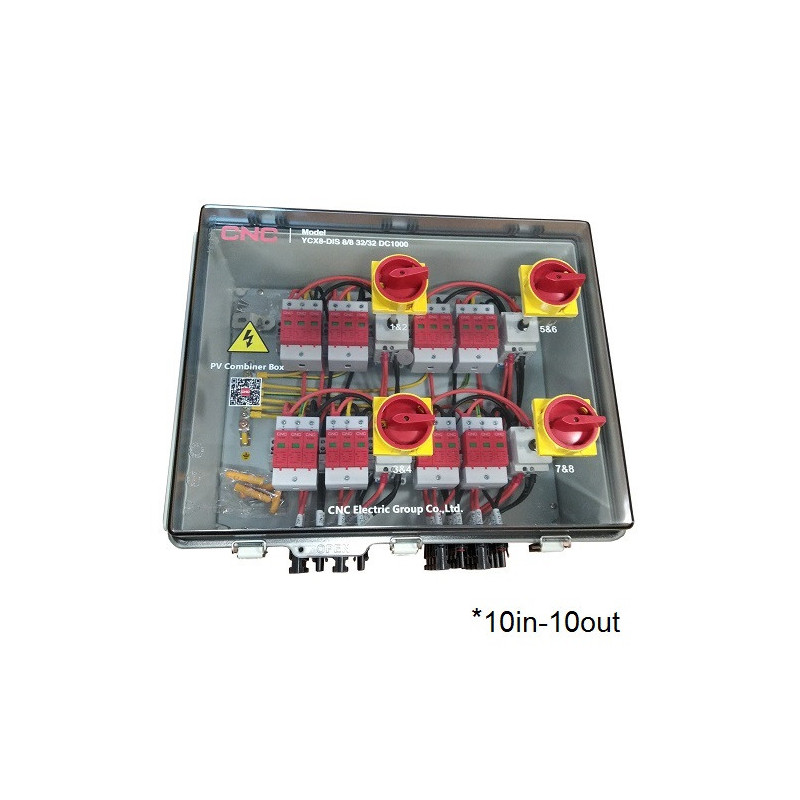

PV disconnect panel, DC 10in-10out, IP66

PV disconnect panel, DC 10in-10out Features: 10 inputs 10 outputs 1000V DC. DC junction box 10 inputs / 10 outputs for PV system. Designed for surge protection and isolation of the DC side of solar power. UV resistant, water and dust resistant IP66, shockproof, flame retardant V0. With MC4 connectors. Box size 528 x 458 x 358 mm, standards IEC60529. DC switches: 1000V DC, 50A. (4pcs.) The DC switch locks the box lid. Patented DC extinguishing chamber. Standards: UL508i, IEC60947-3 Pv2. DC surge arresters SPD: Model: YCX8-DIS. 1000V DC, 40kA. (10pcs.) Designed for the protection of photovoltaic cells. Response time: <25ns. Standards: IEC 61643-31, EN 50539-11+ A1. Technical data: Entrances: 10. Exits: 10. Maximum voltage: 1000 V. DC switch: 1000V, 50A. (4pcs.) DC SPD: 1000V, 40kA. (10pcs.) Short circuit current per input (Isc): 15A-30A (variable). Maximum output current: 50A. Maximum discharge current (Imax): 40 kA. Nominal surge discharge current (In): 20 kA. Trigger voltage (Up): 3.6 kV. Body material: 100% PC (polycarbonate). Safety class: IP66 (water and dust resistant), V0 UL94 (flame resistant). Dimensions: 528 x 458 x 358 mm. Input cable thicknesses: PG09, 2.5-16 mm. Output cable thicknesses: PG21, 2.5-16 mm. Operating temperature: from -20°C to 60°C. Warranty:24 months
