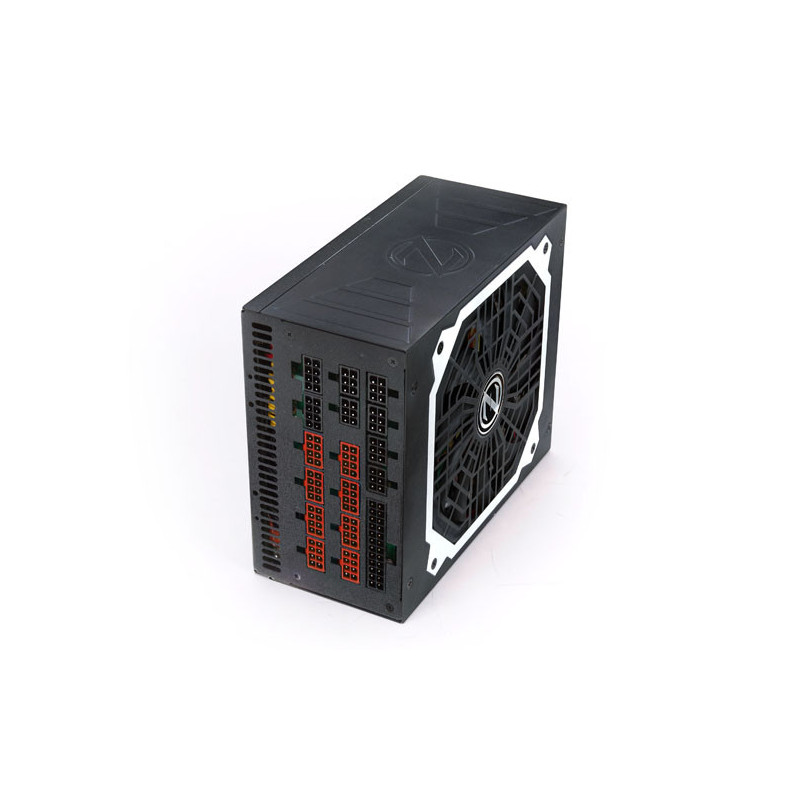

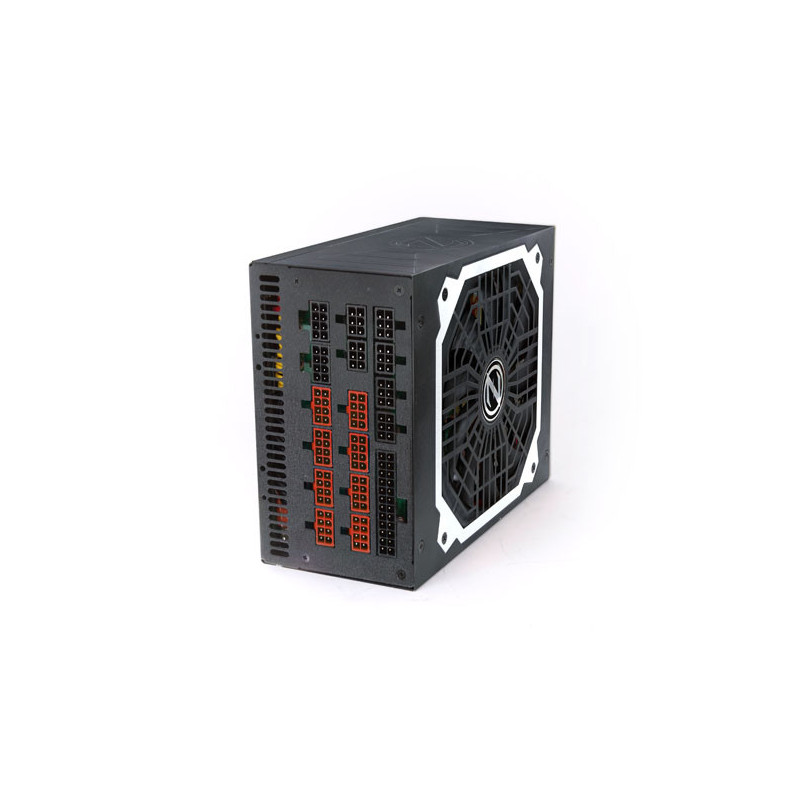

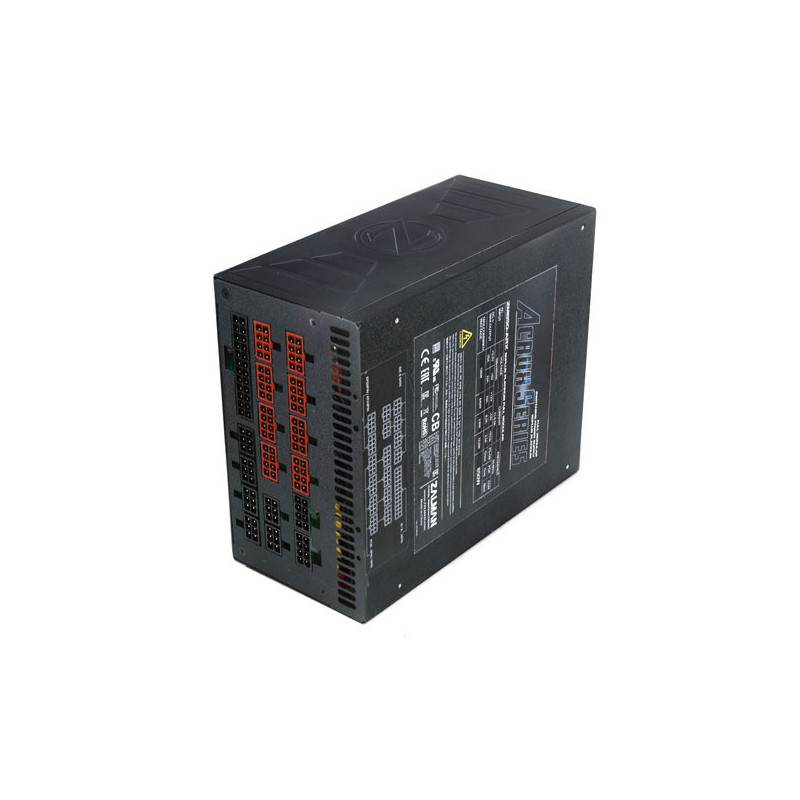

Zalman ZM1200-ARX 1200W 80Plus Platinum
Product reference:
5-ZM1200-ARX
Zalman ZM1200-ARX
Zalman ZM1200-ARX 1200W 80Plus Platinum
Product reference:
5-ZM1200-ARX
Zalman ZM1200-ARX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 7
business days
High quality components
High quality made in Japan 105°C capacitor guarantees Stability at high temperatures, frequencies and currents.
High quality components
Powerful and highly reliable DC-DC module
Active PFC
Built-in Active PFC circuit provides high power factor and efficiency
Single Rail +12V DC output
Single +12V DC output design for stabilized voltage supply
Secondary Protection IC
Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit Protection.
Modular cable type
Neatly organized DC output modular cable help to increase air flow inside the case.
Ultra quiet 135mm for smart cooling
Smart Fan control system optimizes thermal control while minimizing noise levels.
| Power | |
|---|---|
| Total power: | 1200 W |
| AC input frequency: | 50 - 60 Hz |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 996 W |
| Combined power (+5V): | 120 W |
| Max output current (+5V): | 22 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (-12V): | 3.6 W |
| Max output current (+5Vsb): | 2.5 A |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+12V): | 100 A |
| Efficiency: | 94% |
| Max output current (-12V): | 0.3 A |
| Max output current (+3.3V): | 25 A |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin): | 8 |
| Number of SATA power connectors: | 16 |
| Motherboard power cable length: | 60 cm |
| Floppy disk drive connector: | Y |
| CPU power connector (4+4 pin): | Y |
| PCI Express power cable length: | 55 cm |
| CPU power cable length: | 70 cm |
| Motherboard power connector: | 20+4 pin ATX |
| EPS power connector (8-pin): | Y |
| PCI Express power connectors (6+2 pin): | 8 |
| Cabling type: | Modular |
| Performance | |
| 80 PLUS certification: | 80 PLUS Platinum |
| Certification: | UL, FCC, CB, CE, EAC, KC, WEEE |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| Design | |
| Colour of product: | Black |
| Cooling type: | Active |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| Fan diameter: | 13.5 cm |
| Tehniskās detaļas | |
| Sustainability certificates: | RoHS |
| Operational conditions | |
| Storage temperature (T-T): | -20 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Storage relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Depth: | 180 mm |
| Width: | 150 mm |
| Weight: | 3.1 kg |
| Height: | 86 mm |
| Packaging data | |
| Package type: | Box |
| Cables included: | AC |
| Cable storage bag included: | Y |
| Number of straps: | 5 |
| Other features | |
| Screws included: | Y |
| Number of screws: | 4 |
| Cable ties included: | Y |
| Manual: | Y |
