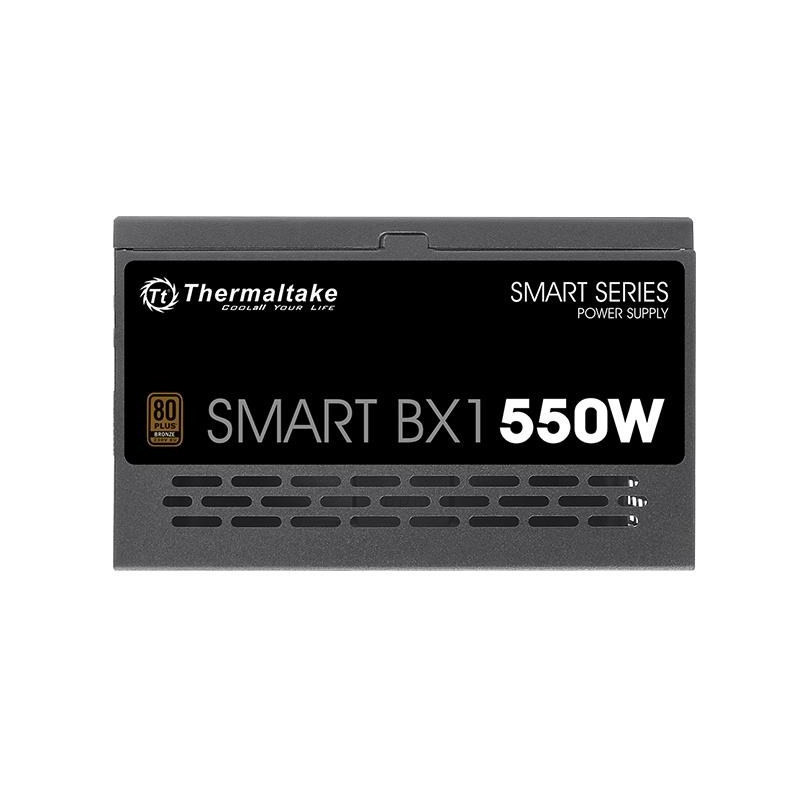

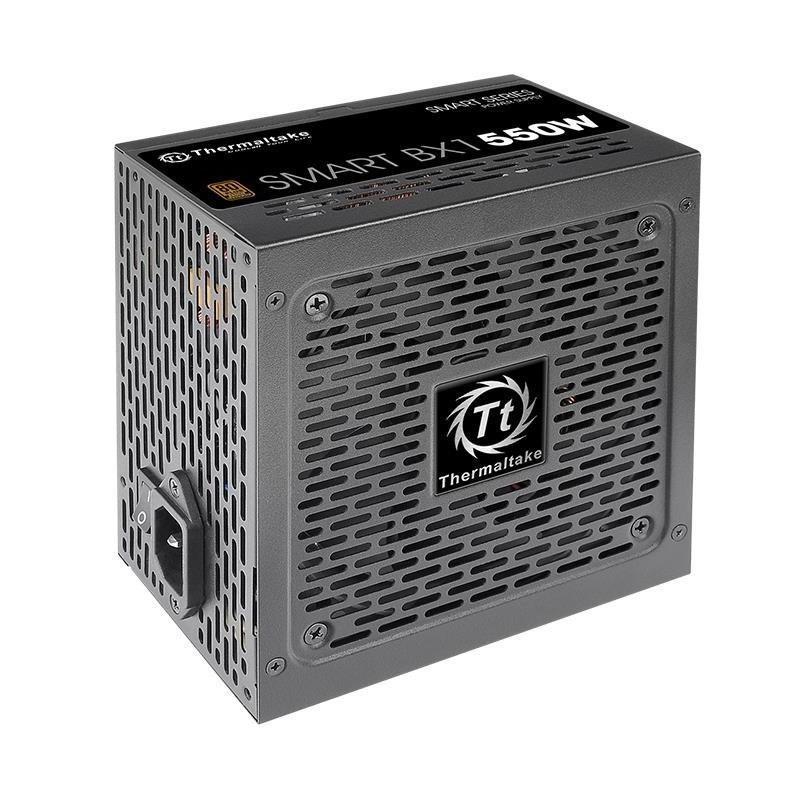

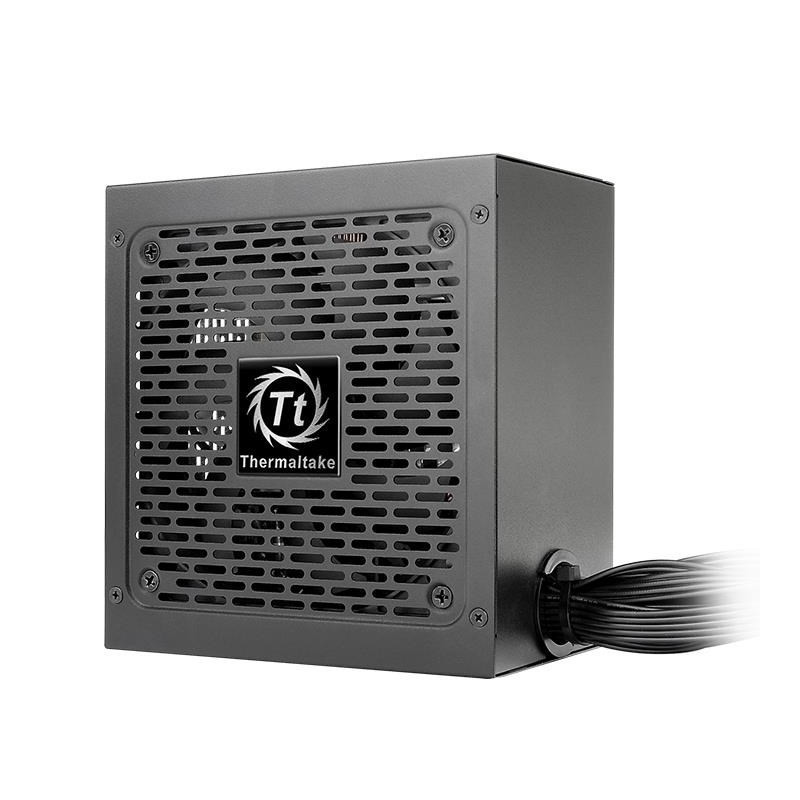

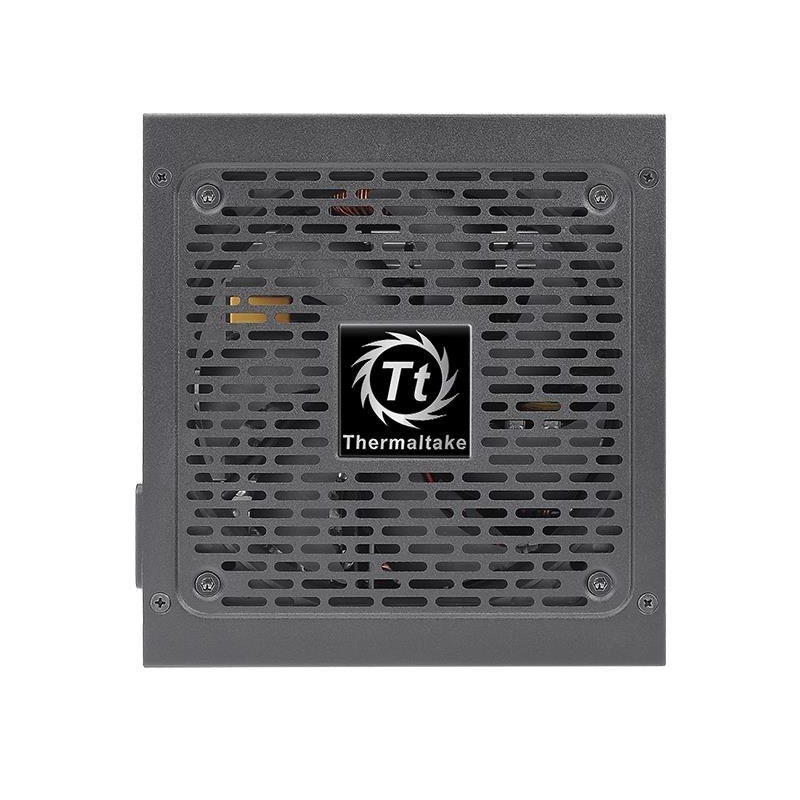

Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black
Product reference:
6-PS-SPD-0550NNSABE-1
Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black
Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black
Product reference:
6-PS-SPD-0550NNSABE-1
Thermaltake Smart BX1 power supply unit 550 W 24-pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| ATX version | 2.3 |
| Cabling type | Non-Modular |
| Combined power (+12V) | 456 W |
| Combined power (+3.3V) | 105 W |
| Combined power (+5V) | 105 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 6 W |
| Cooling type | Active |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 140 mm |
| Efficiency | 88% |
| EPS version | 2.92 |
| Fan diameter | 12 cm |
| Fan location | Top |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Height | 86 mm |
| Hold time | 16 ms |
| Illumination | No |
| Input current | 10 A |
| Max output current (+12V) | 38 A |
| Max output current (+3.3V) | 21 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| Maximum input current (@220V) | 10 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 24-pin ATX |
| Noise level | 37.6 dB |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Peak power | 660 W |
| Peripheral (Molex) power cable length | 150, 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 500 ms |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| Safety | CE, CB, TUV, EAC, RCM |
| SATA power cable length | 150, 500 mm |
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 55 °C |
| Total power | 550 W |
| Width | 150 mm |
