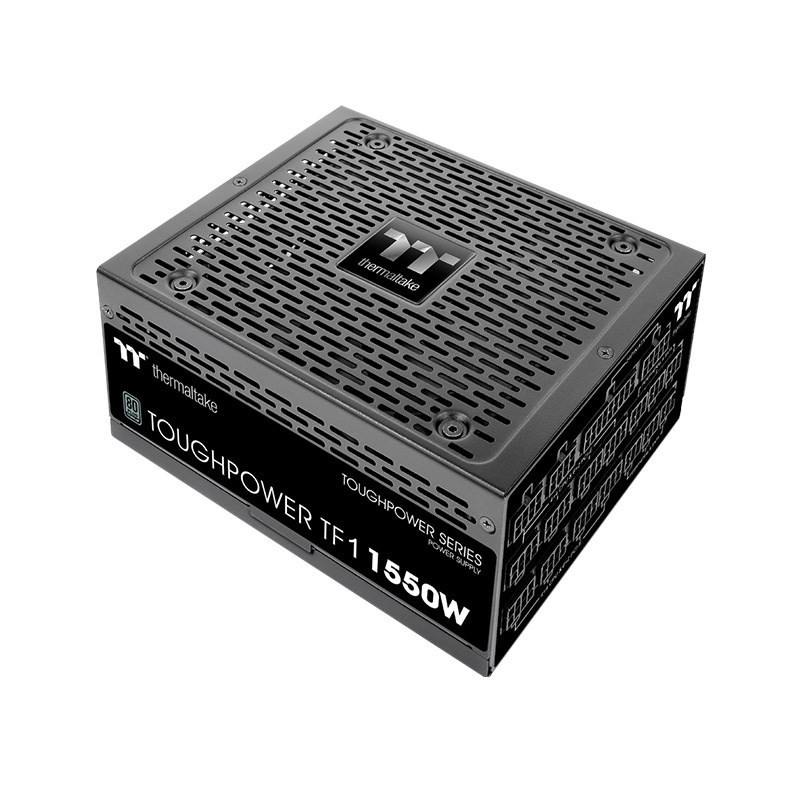

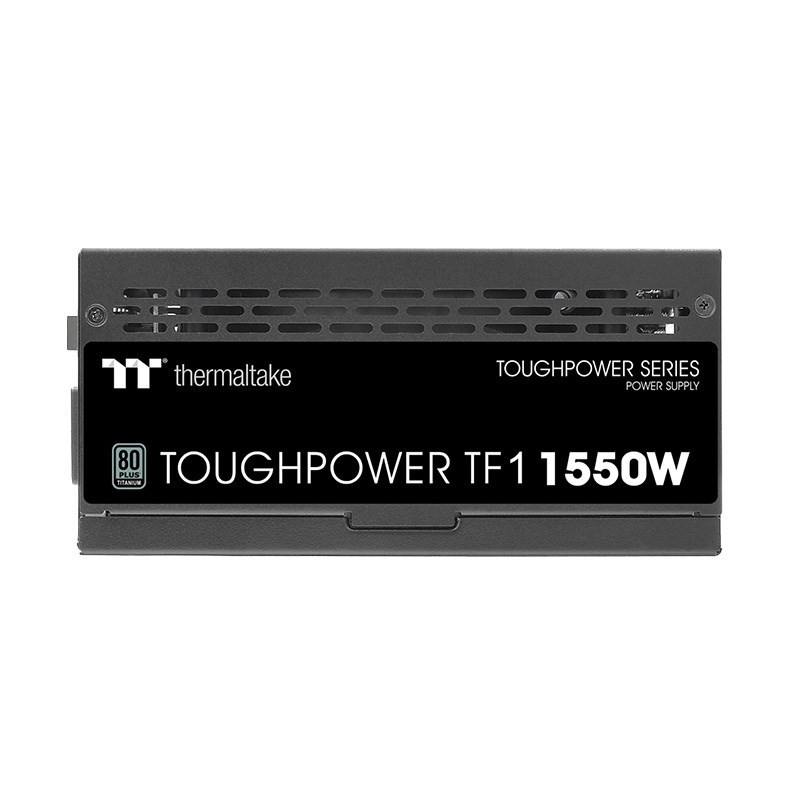

Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black
Product reference:
6-PS-TPD-1550FNFATE-1
Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black
Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black
Product reference:
6-PS-TPD-1550FNFATE-1
Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
120 month
Delivery from Europe in
4 - 8
business days
| 80 PLUS certification | 80 PLUS Platinum |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Cabling type | Fully-Modular |
| Combined power (+12V) | 1549.92 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| CPU power cable length | 7 m |
| CPU power connector (4+4 pin) | Yes |
| Depth | 180 mm |
| Fan diameter | 14 cm |
| Fan location | Top |
| Floppy disk drive cable length | 15 cm |
| Floppy disk drive connector | Yes |
| Harmonized System (HS) code | 84733020 |
| Height | 86 mm |
| Hold time | 16 ms |
| Input current | 18 A |
| Max output current (+12V) | 129.16 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Mean time between failures (MTBF) | 120000 h |
| Motherboard power cable length | 60 cm |

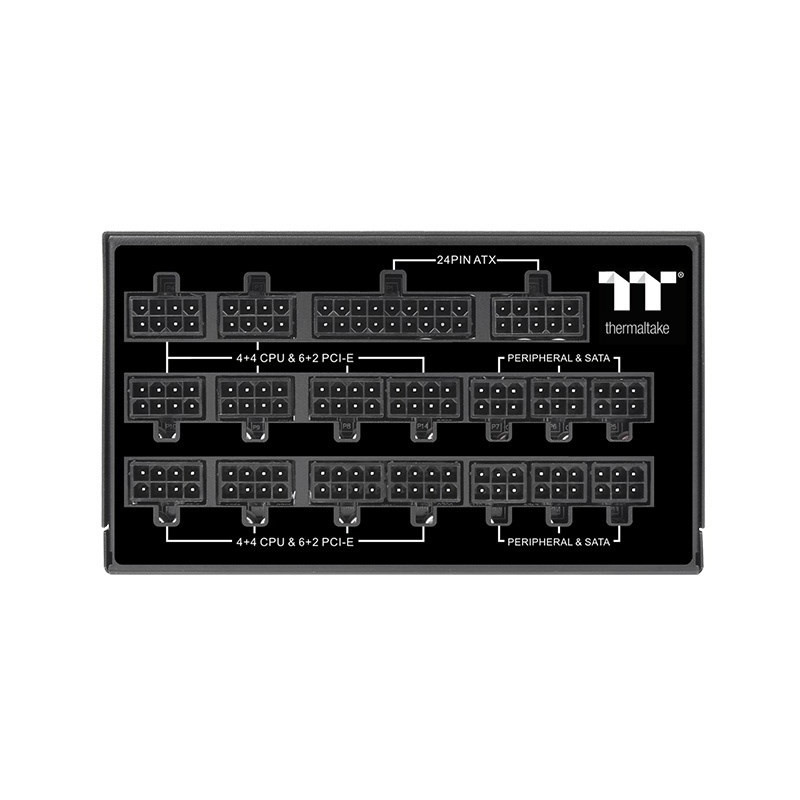

| Motherboard power connector | 24-pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 4 |

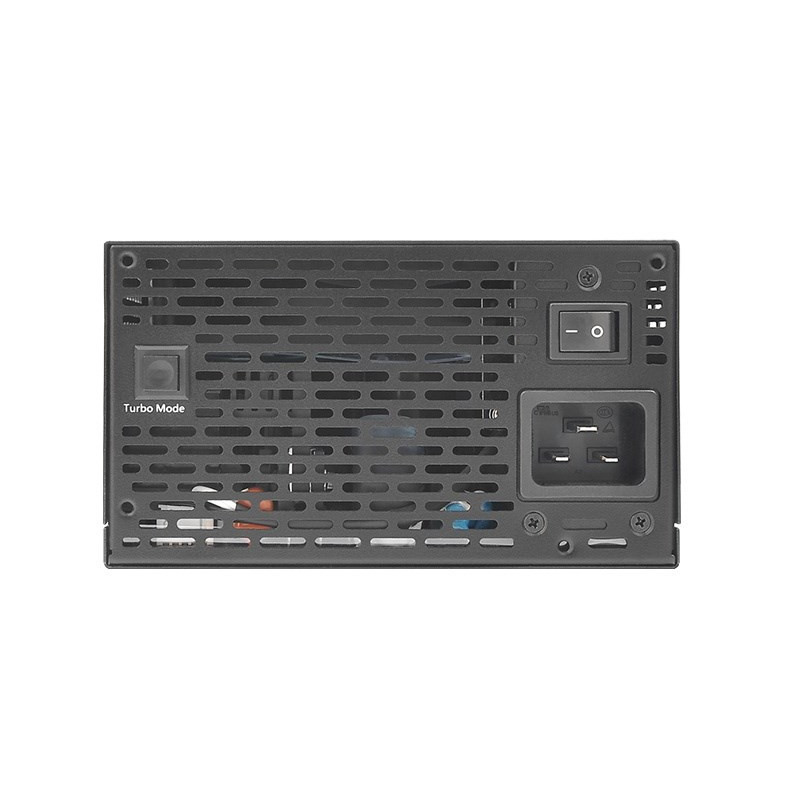

| On/off switch | Yes |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (8-pin) | 4 |
| Peak power | 1860 W |
| Peripheral (Molex) power cable length | 150, 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power Factor Correction (PFC) type | Active |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 150, 500 mm |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Supported motherboard form factors | ATX |
| Total power | 1550 W |
| Weight | 2.4 kg |
| Width | 150 mm |
