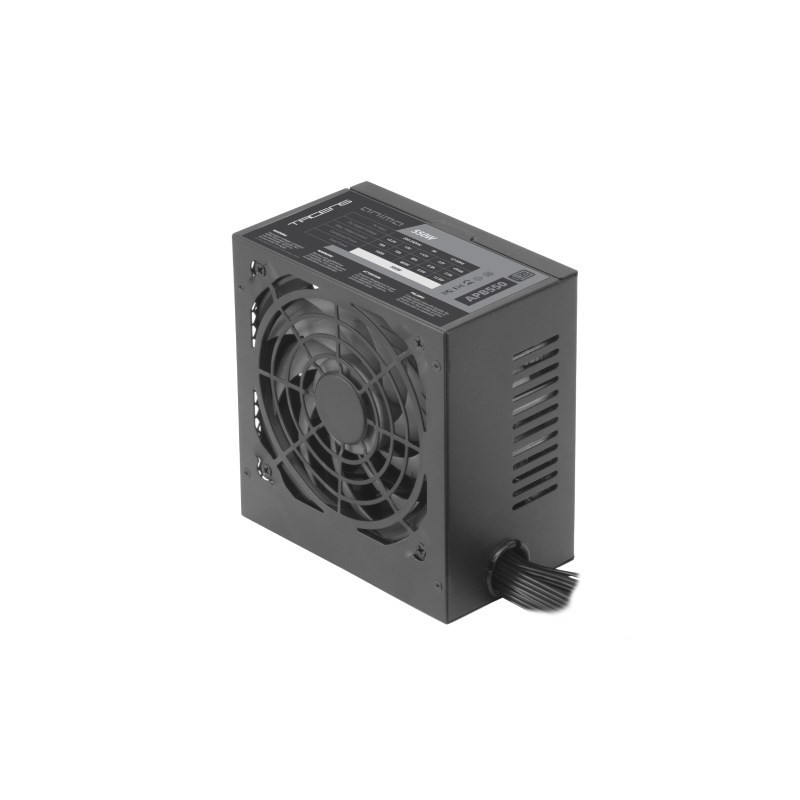

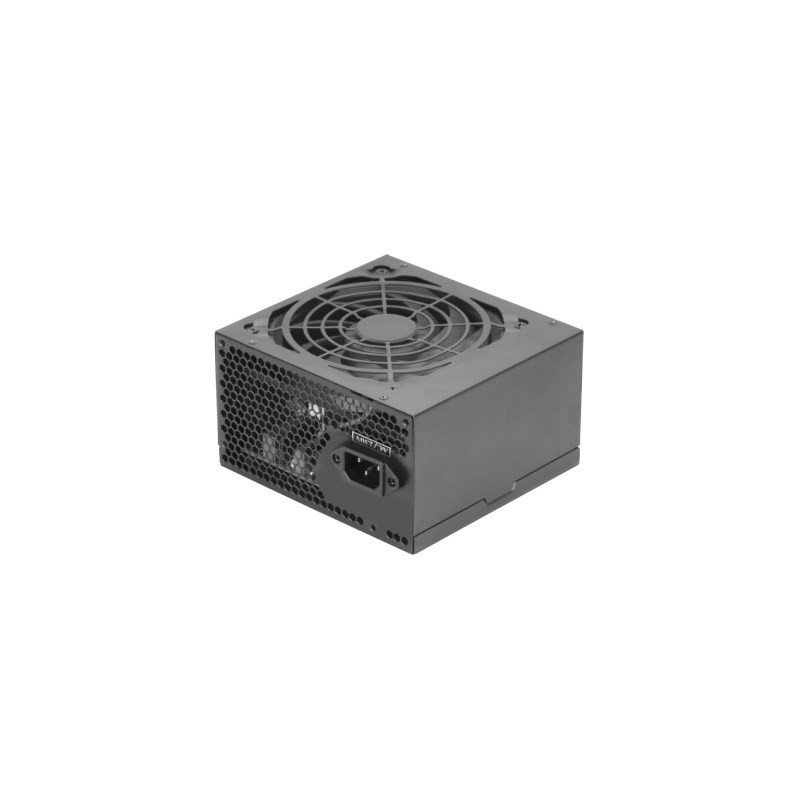

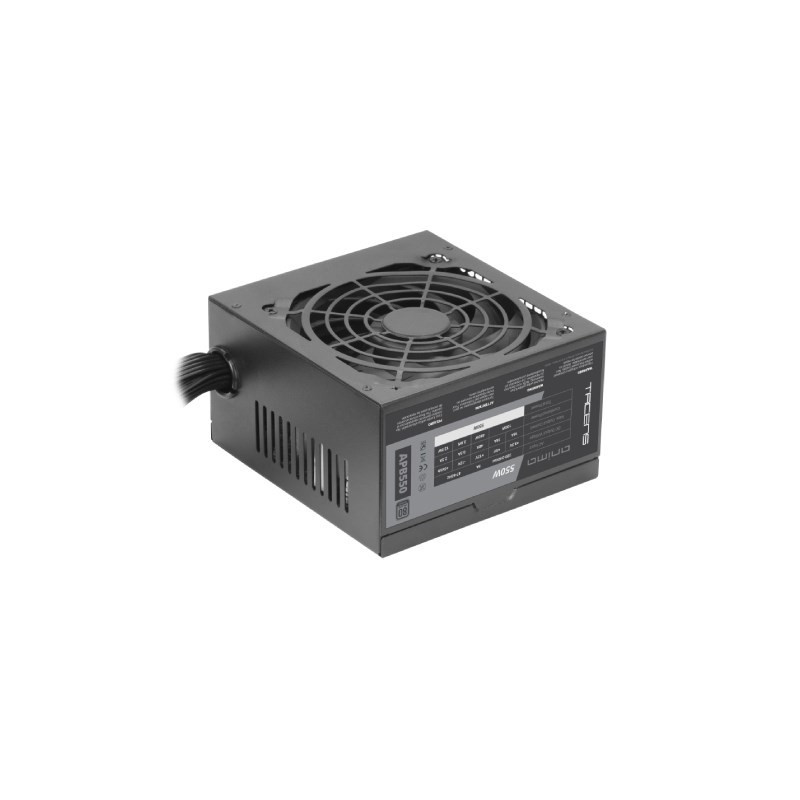

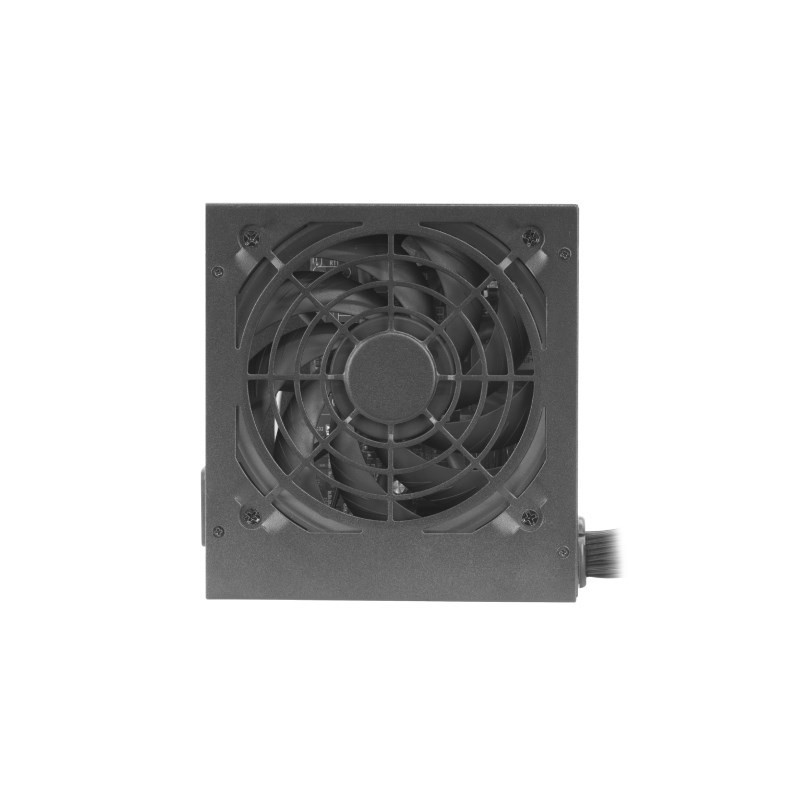

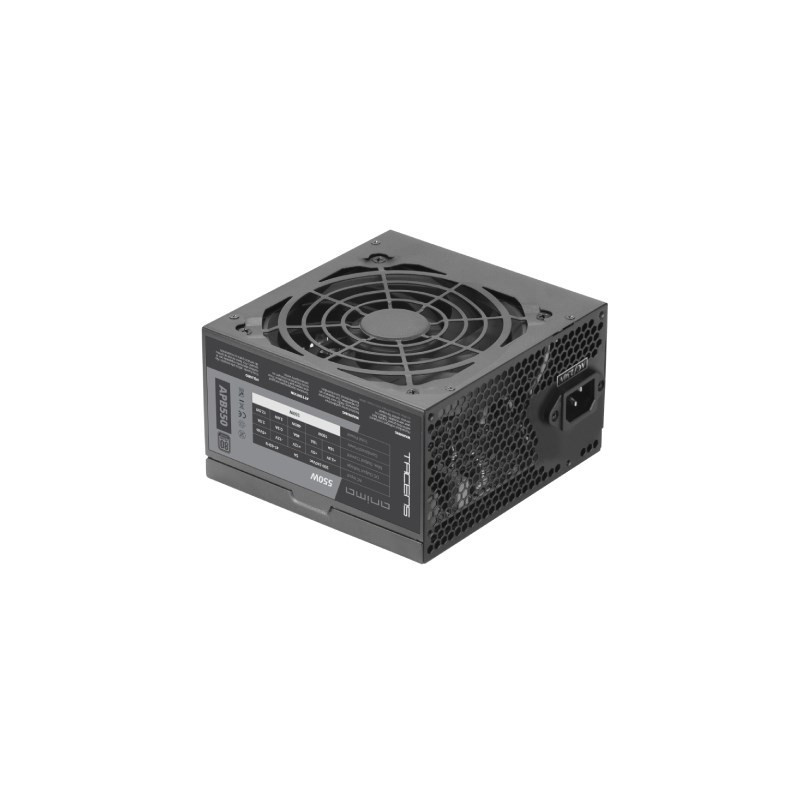

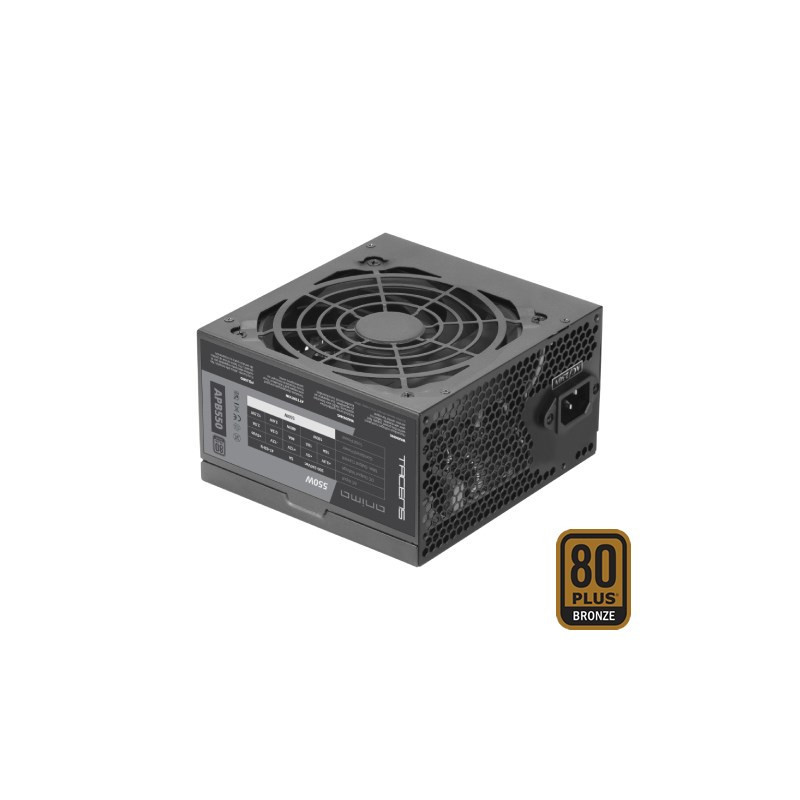

Tacens APB550B power supply unit 550 W 20+4 pin ATX ATX Black
Product reference:
6-TACANIMA-APB550
Tacens APB550B power supply unit 550 W 20+4 pin ATX ATX Black
Tacens APB550B power supply unit 550 W 20+4 pin ATX ATX Black
Product reference:
6-TACANIMA-APB550
Tacens APB550B power supply unit 550 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
Not available
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Product colour | Black |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 18 A |
| AC input voltage | 220 - 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (-12V) | 0.3 A |
| Input current | 5 A |
| Total power | 550 W |
| Max output current (+5V) | 18 A |
| Combined power (+12V) | 480 W |
| Max output current (+12V) | 40 A |
| Combined power (-12V) | 3.6 W |
| Efficiency | 85% |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Under voltage, Short circuit, Over voltage |
| AC input frequency | 47 - 63 Hz |
| Height | 85 mm |
| Weight | 1.35 kg |
| Width | 150 mm |
| Depth | 140 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Noise level | 14 dB |
| PCI Express power connectors (6+2 pin) | 1 |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 3 |
| Motherboard power connector | 20+4 pin ATX |
| EPS power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
