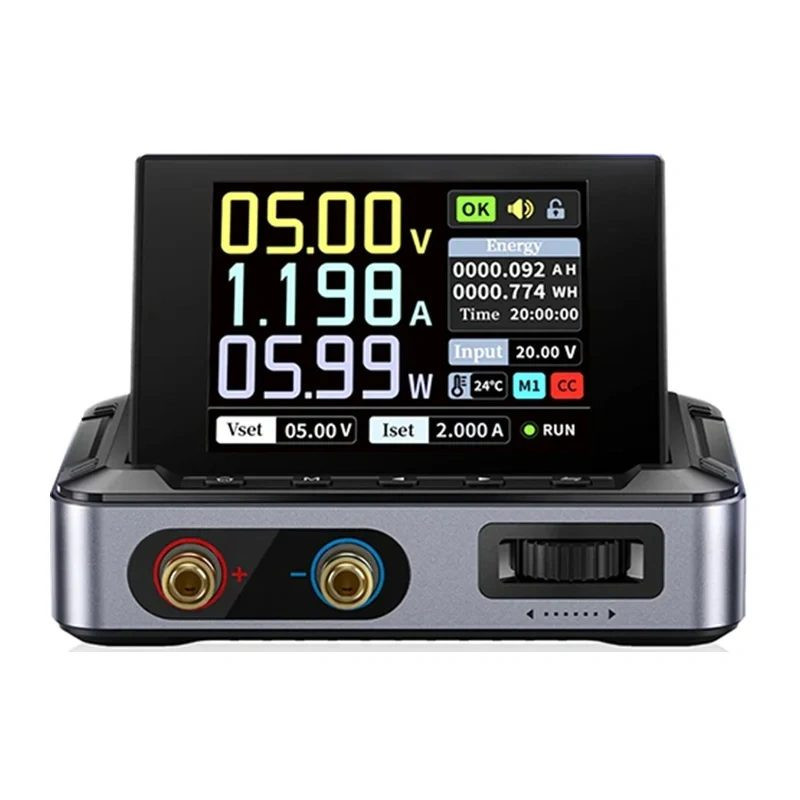

Adjustable Power Supply - FNIRSI DPS150 PD 150 W 0-30 V 5 A
Product reference:
14-5905156107984
The regulated DC power supply provides 0-30 V voltage, up to 5 A current and 150 W power, and also supports constant voltage and constant current modes. 2.8 in. color IPS display, PD/QC/DC inputs, programmable profiles and multiple protection systems ensure convenient and safe use.
Adjustable Power Supply - FNIRSI DPS150 PD 150 W 0-30 V 5 A
Product reference:
14-5905156107984
The regulated DC power supply provides 0-30 V voltage, up to 5 A current and 150 W power, and also supports constant voltage and constant current modes. 2.8 in. color IPS display, PD/QC/DC inputs, programmable profiles and multiple protection systems ensure convenient and safe use.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
FNIRSI DPS150 PD adjustable power supply, 150 W
Regulated DC power supply with 0-30 V output, up to 5 A current and 150 W power. Supports constant voltage and constant current modes. Equipped with a 2.8-inch color IPS display, PD/QC/DC input support, programmable settings and multiple protection systems.
- Adjustable DC output up to 30 V, 5 A and 150 W for powering and testing electronic circuits
- Precise CV/CC operation, 0.01 V and 0.001 A regulation resolution, less than 20 mV ripple
- Supports PD, QC and DC inputs, can save six programmable voltage and current settings
- 2.8-inch color IPS display, adjustable viewing angle, real-time graphs, energy monitoring and multiple protection functions
Product information | |
|---|---|
| Product type | Regulated DC power supply |
| Brand | FNIRSI |
| Model | DPS150 PD |
| Screen | 2.8-inch color IPS display, 320 × 240 pixels |
| Dimensions | 106 × 76 × 28mm |
| Weight | About 178g |
Input and output | |
| Input | DC 5-32 V, 100 mA-5 A; supports PD, QC and compatible external batteries |
| Output voltage | 0-30 V DC |
| Output current | 0-5A |
| Maximum output power | 150W |
| Operating modes | Constant voltage (CV) and constant current (CC) |
| Output connectors | Compatible with 4mm banana plugs, U-shaped terminals and copper wires |
Technical data | |
| Regulation resolution | Voltage: 10 mV; Current: 1 mA |
| Measurement accuracy | Voltage: lt;0,1 % + 5 mV; current: lt;0,1 % + 3 mA |
| Accuracy of readings | Input voltage: lt;0,2 % + 5 mV; output voltage: lt;0,1 % + 10 mV; output current: lt;0,1 % + 10 mA to 3.5 A |
| Load regulation | 0.49% |
| Full load performance | 96.30% |
| Operating conditions | 0-40 °C; 0-75% relative humidity |
Features and protection | |
| Programmable settings | Six storable voltage and current settings |
| Monitoring | Real-time data, performance graphs, energy and capacity monitoring |
| Display functions | Digital or graphical interface, up to 90° adjustable viewing angle, English or Chinese interface |
| Security systems | Protection against overvoltage, overload, incorrect connection, overcurrent, overheating, reverse output current, undervoltage and short circuit |
| Cooling | Thermally conductive silicone and aluminum housing |
Included accessories | |
| The set includes: |
|
Safety warning | |
| Safe use | Use only within the specified input, voltage, current and power limits. Check polarity and connections before use. Do not use a damaged device, protect it from moisture and do not cover the heat dissipation openings. Before changing the connections, disconnect the power supply and keep it out of the reach of children. The device is intended for powering and testing electronic circuits only. |
| Height | 100mm |
| Length | 200mm |
| Weight | 250 g |
| Width | 150mm |
