Power Supply - XPG PROBE 700 BRONZE
Product reference:
14-4711085948618
XPG The PROBE 700 BRONZE power supply has a total power of 700 W and is certified according to the 80 PLUS Bronze standard. It features one 12 cm active cooling fan and multiple connectors, including 5 SATA power connectors and 2 PCI Express power connectors.
Power Supply - XPG PROBE 700 BRONZE
Product reference:
14-4711085948618
XPG The PROBE 700 BRONZE power supply has a total power of 700 W and is certified according to the 80 PLUS Bronze standard. It features one 12 cm active cooling fan and multiple connectors, including 5 SATA power connectors and 2 PCI Express power connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

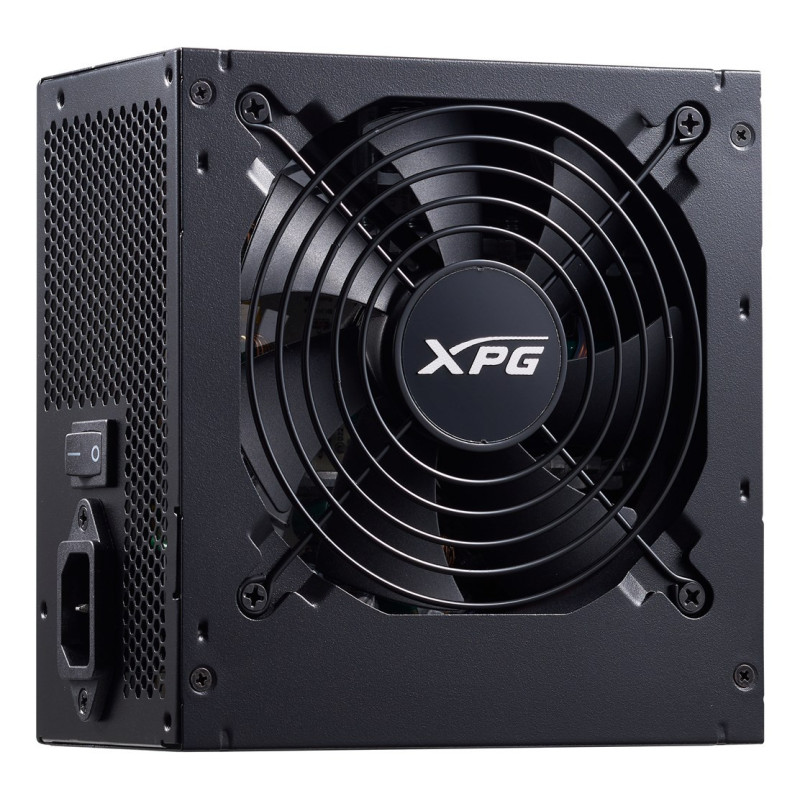

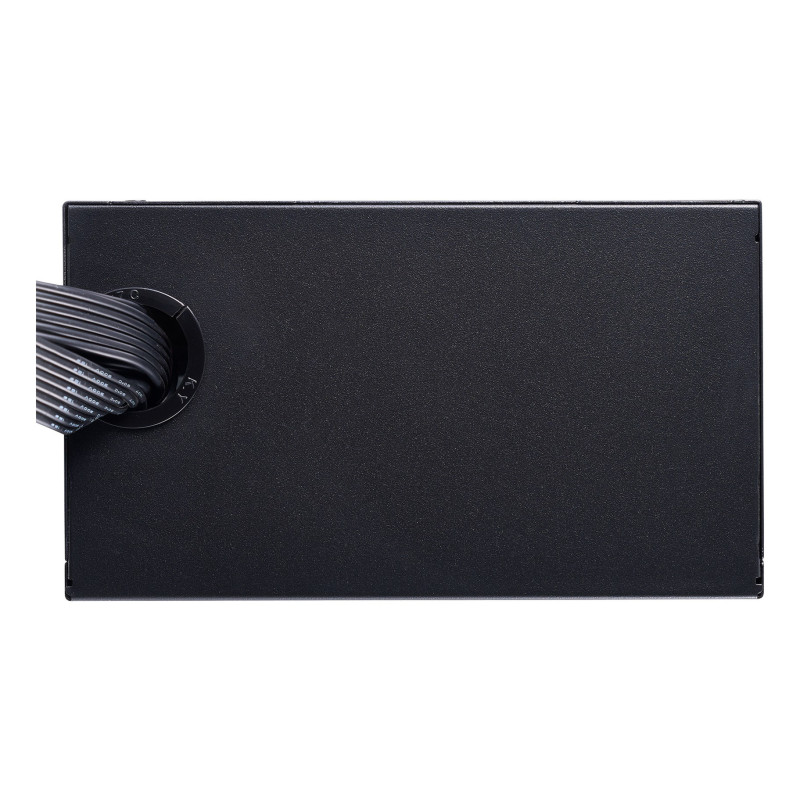

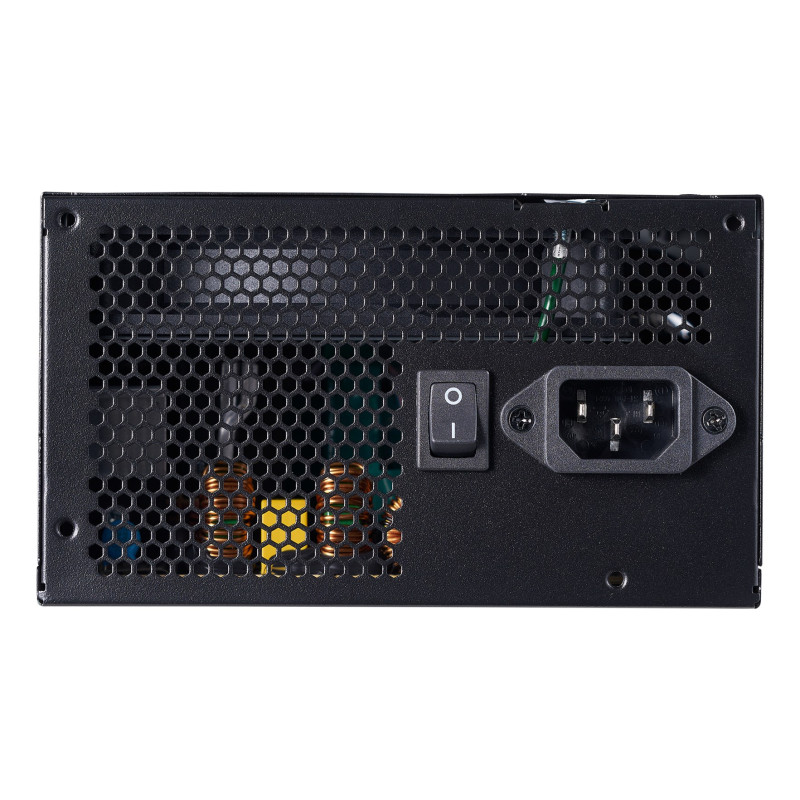

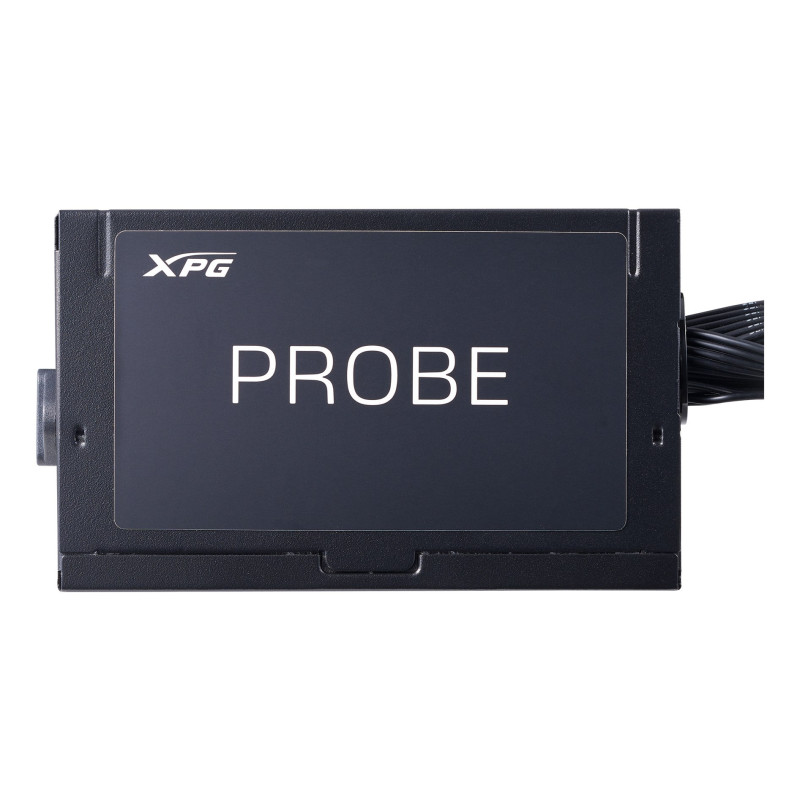

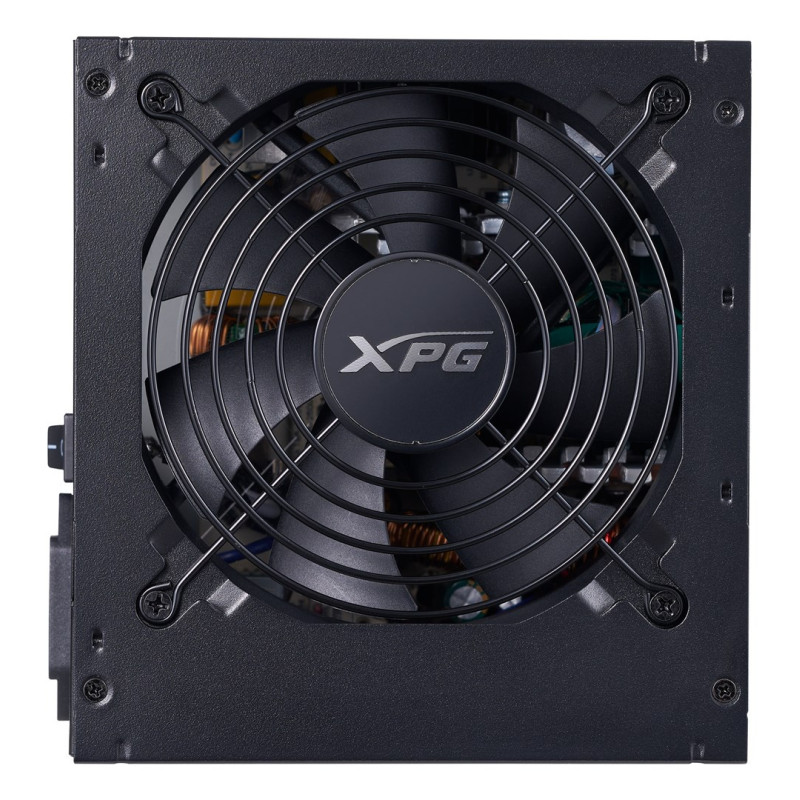

XPG PROBE 700 Bronze 700W Power supply
XPG PROBE 700 BRONZE The power supply has a total power of 700 W and is certified according to the 80 PLUS Bronze standard. It features one 12 cm active cooling fan and multiple connectors, including 5 SATA power connectors and 2 PCI Express power connectors.
- Power supply (PSU) form: ATX
- Total power: 700 W with 80 PLUS Bronze certification
- Active cooling with 1 x 12 cm fan, speed range: 2160 - 2640 RPM
- Multiple power protection functions: Short circuit, Low voltage, High voltage, Over power
- Dimensions: 150 mm (W) x 86 mm (H) x 140 mm (D), Weight: 1.53 kg
Design | |
|---|---|
| Product color | Black |
| Fan speed | 2160 - 2640 RPM |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan |
Power supply | |
| AC input frequency | 47 - 63 Hz |
| Total power | 700W |
| Power factor | 0.99 |
| Maximum output current (+5Vsb) | 2.5A |
| Input current strength | 10 A |
| AC input voltage | 100 - 240V |
| Power protection functions | Short circuit, Low voltage, Explosion and start-up protection, High voltage, Overpower |
| Maximum output current (+3.3V) | 19 A |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+12V) | 54 A |
| Power Factor Correction (PFC) Type | Active |
| Maximum output current (+5V) | 17 A |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
Weight and dimensions | |
| Weight | 1.53 kg |
| Depth | 140mm |
| Height | 86 mm |
| Width | 150mm |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Sleeve |
| Purpose | PC |
| ATX version | 2.52 |
| 80 PLUS certificate | 80 PLUS Bronze |
| Mean Time Between Failures (MTBF) | 100000 hours |
Connectors and interfaces | |
| Wire type | Incompatible |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (24-pin) | Yes |
| Number of SATA power connectors | 5 |
Safety warning | |
| Dangerous symbol | GHS07: Harmful, GHS09: Environmentally hazardous, GHS02: Fire hazardous |
| Height | 200mm |
| Length | 450mm |
| Weight | 2500g |
| Width | 350mm |
