Power Supply - XPG COREREACTOR II VE 850W Black
Product reference:
14-4711085946256
The XPG COREREACTOR II VE 850W power supply features a fully modular design with a total power of 850W and 80 PLUS Gold certification. It features multiple connectors, including three PCI Express power connectors and six SATA power connectors, ensuring compatibility with a variety of computer components.
Power Supply - XPG COREREACTOR II VE 850W Black
Product reference:
14-4711085946256
The XPG COREREACTOR II VE 850W power supply features a fully modular design with a total power of 850W and 80 PLUS Gold certification. It features multiple connectors, including three PCI Express power connectors and six SATA power connectors, ensuring compatibility with a variety of computer components.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

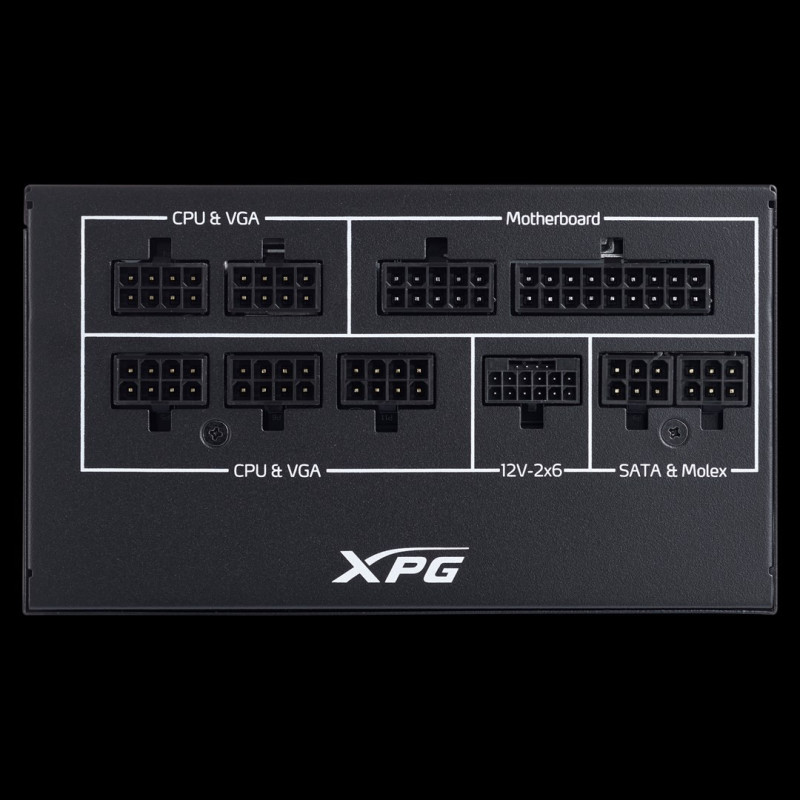

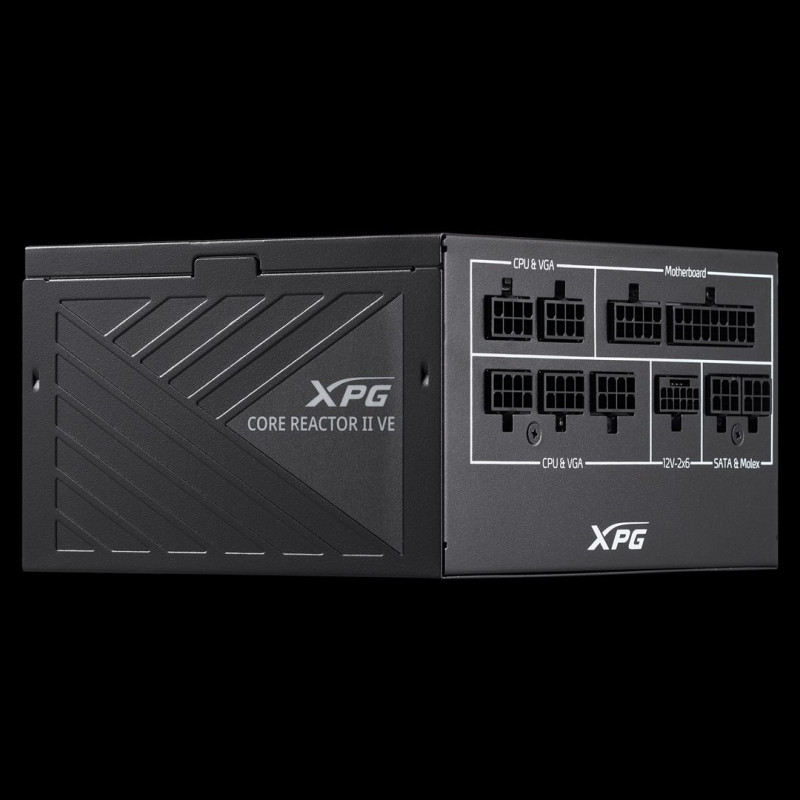

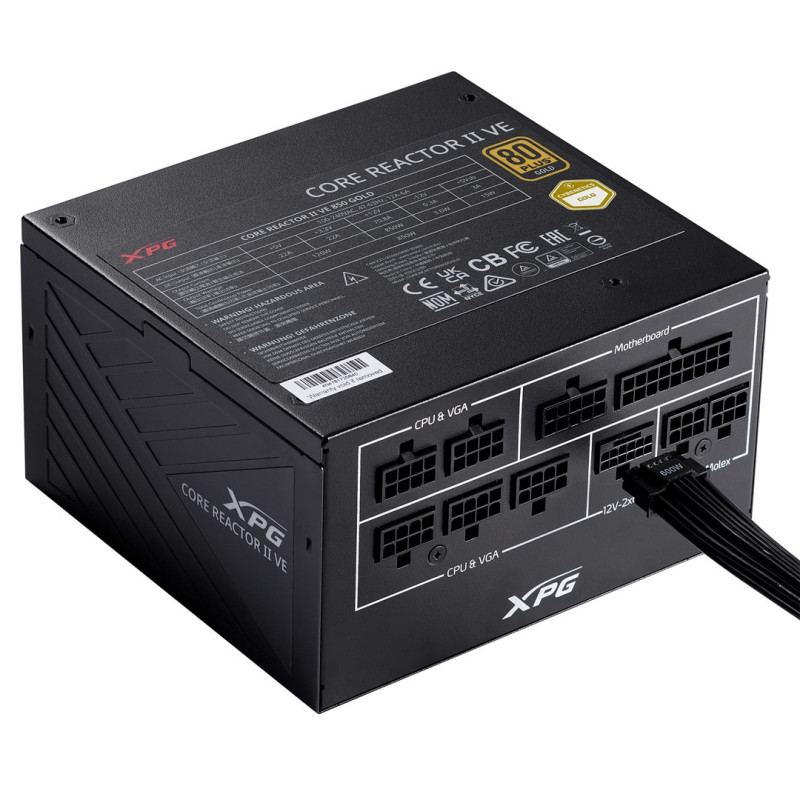

XPG Corereactor II VE 850W Power Supply - Black
XPG COREREACTOR II VE 850W The power supply has a fully modular design, a total power of 850W and 80 PLUS Gold certification. It has multiple connectors, including three PCI Express power connectors and six SATA power connectors, ensuring compatibility with a variety of computer components.
- Power: 850W total power with maximum output current 70.8A on the +12V rail.
- 80 PLUS certification: 80 PLUS Gold certified for high energy efficiency.

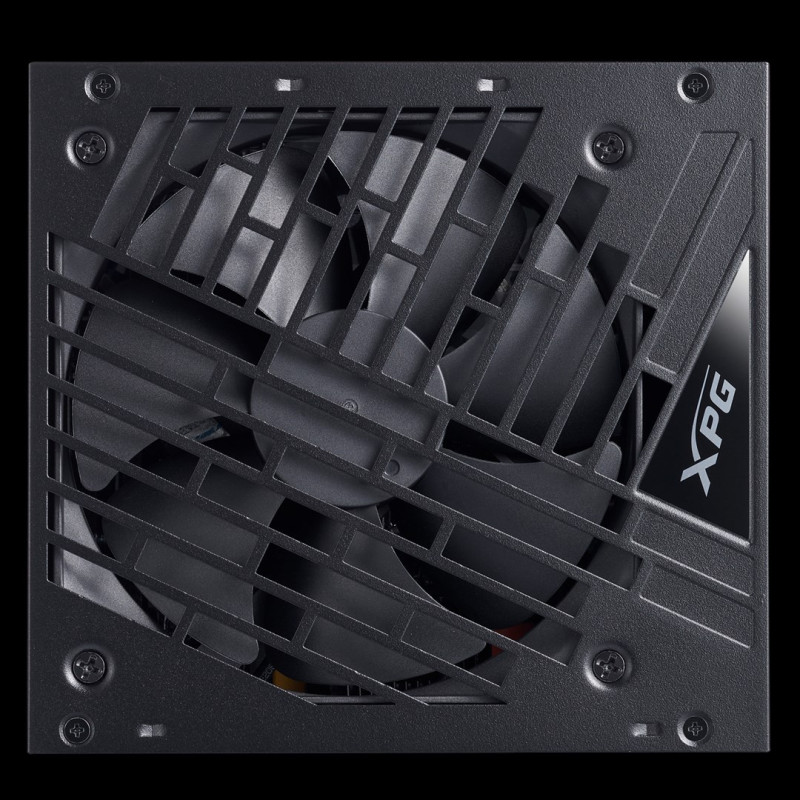

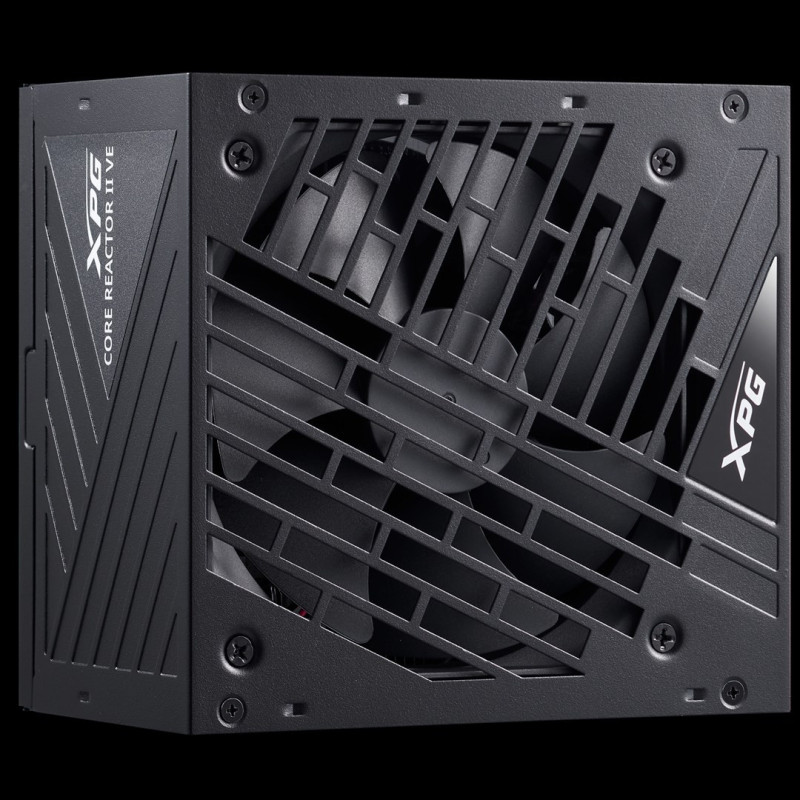

- Cooling system: Active cooling with one 12 cm fan for optimal thermal management.
- Fully modular cables: Allows for easy cable management and customization with 3 PCI Express power connectors and 6 SATA power connectors.
- Protection functions: Comprehensive power protection solution, including overvoltage, undervoltage, short circuit and surge protection.
Design | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan |
| Product color | Black |
| Cooling type | Active |
Power | |
| Power protection functions | Overpower, short circuit, undervoltage, overcurrent, surge and overcurrent protection, overheating, overvoltage |
| Maximum output current (+12V) | 70.8 A |
| Maximum output current (+5Vsb) | 3 A |
| Power factor | 0.99 |
| Maximum output current (-12V) | 0.3A |
| Total power | 850W |
| Maximum output current (+3.3V) | 20 A |
| Maximum output current (+5V) | 20 A |
| AC input voltage | 100 - 240V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 A |
Weight and dimensions | |
| Depth | 140mm |
| Height | 86 mm |
| Width | 150mm |
| Weight | 1.45 kg |
Operation | |
| Bearing technology | FDB |
| ATX version | 3.1 |
| Purpose | PC |
| Mean Time Between Failures (MTBF) | 100000 hours |
| 80 PLUS certificate | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Packaging details | |
| Package weight | 3.03 kg |
Ports and interfaces | |
| Motherboard power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| CPU power cable length | 75 cm |
| SATA power cable lengths | 450, 150mm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| EPS power connector (8-pin) | Yes |
| Wire type | Fully modular |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (12+4 pin) | Yes |
| PCI Express power connector (12+4 pin) cable length | 600mm |
Safety warning | |
| Threat icon(s) | GHS07: Harmful, GHS02: Inflammatory, GHS09: Dangerous for the environment |
| Height | 150mm |
| Length | 350mm |
| Weight | 1800g |
| Width | 250mm |
