Power Supply - XPG COREREACTOR II 850 W ATX 3.0 Fully Modular 80 PLUS Gold
Product reference: 14-4711085944702

XPG COREREACTOR II - a fully modular 850 W ATX desktop power supply unit with 80 PLUS Gold efficiency and ATX 3.0 support. It features a 12+4-pin connector, six PCIe 6+2-pin connectors, eight SATA connectors, and active cooling with a 120 mm FDB fan.

Maitinimo Blokas - XPG COREREACTOR II 850W Juodas
Maitinimo Blokas - XPG COREREACTOR II 850W Juodas
Maitinimo Blokas - XPG COREREACTOR II 850W Juodas

Power Supply - XPG COREREACTOR II 850 W ATX 3.0 Fully Modular 80 PLUS Gold

Product reference: 14-4711085944702

XPG COREREACTOR II - a fully modular 850 W ATX desktop power supply unit with 80 PLUS Gold efficiency and ATX 3.0 support. It features a 12+4-pin connector, six PCIe 6+2-pin connectors, eight SATA connectors, and active cooling with a 120 mm FDB fan.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
161,63 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

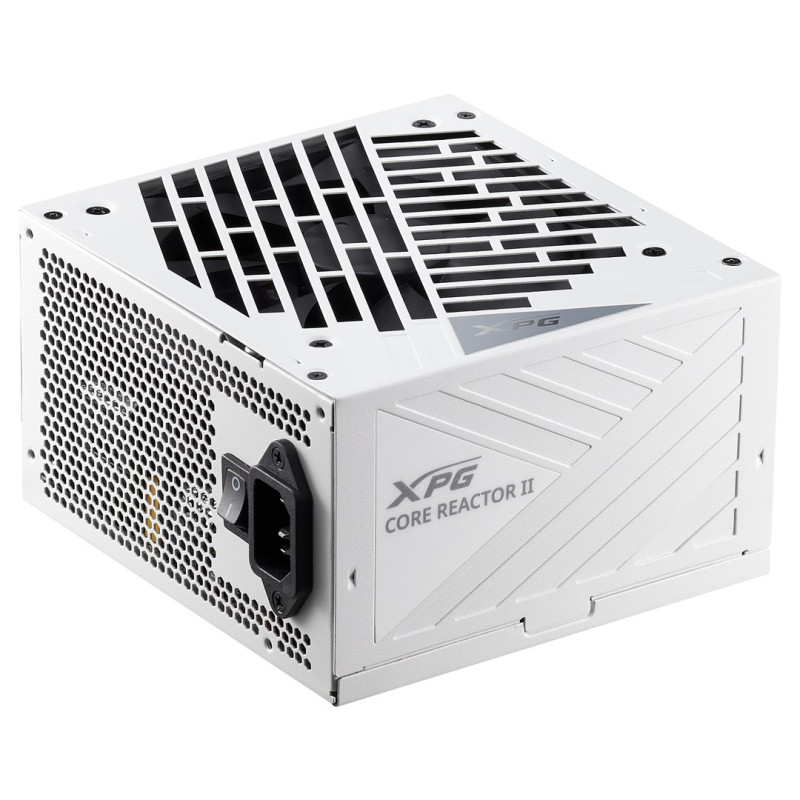

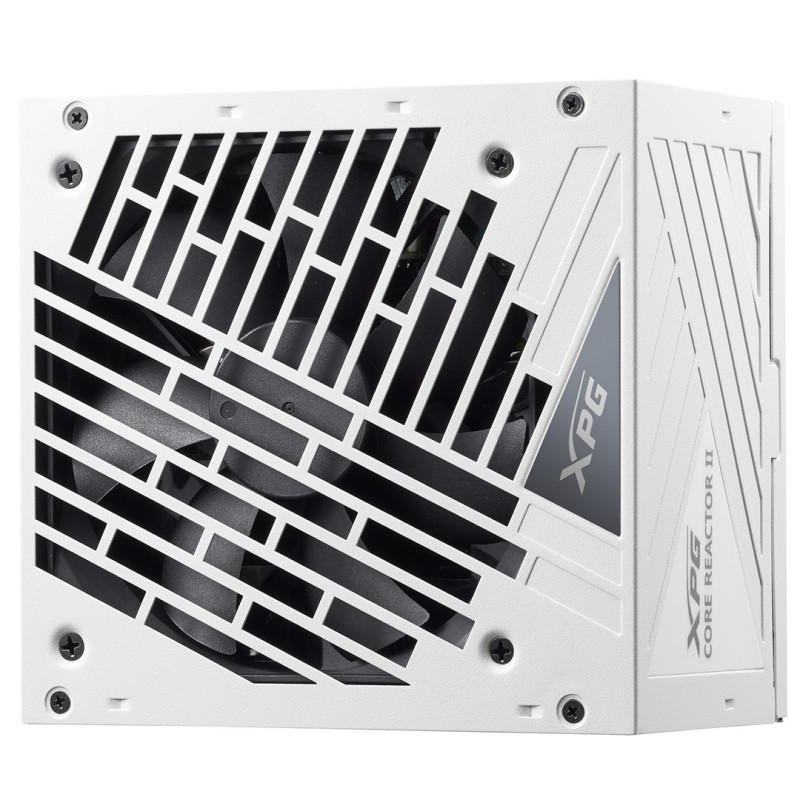

XPG CORE REACTOR II 850 W power supply


XPG CORE REACTOR II - a fully modular 850W desktop power supply with 80 PLUS Gold efficiency and ATX 3.0 support. It features a 12+4-pin connector, six PCIe 6+2-pin connectors, eight SATA connectors, and active cooling with a 120mm FDB fan.


  • 850W fully modular ATX power supply for desktop computers
  • 80 PLUS Gold certification ensures efficient and reliable power supply
  • Complies with the ATX 3.0 standard and has a modern 12+4-pin connector for next-generation graphics cards
  • Active cooling with silent 12cm FDB fan and comprehensive circuit protection

Product information

Product type ATX power supply for desktop computers
Model XPG CORE REACTOR II 850W
Form factor ATX
Purpose Powering desktop computer components
Color White

Electrical specifications

Input AC voltage 100-240V
Input AC frequency 47-63 Hz
Input current 12 A
Power factor 0.99
Maximum +12 V output current 62.5A
Maximum +5 V output current 22 A
Maximum +3.3 V output current 22 A
Maximum +5V standby output current 3 A
Maximum −12 V output current 0.3A

Connectors and cables

Cable type Fully modular
Motherboard connector 20+4 contacts ATX
ATX 12+4 pin connector Yes
EPS 8-pin connector Yes
PCIe 6+2 pin connectors 6
SATA power connectors 8
4-pin Molex connectors 4

Cooling and reliability

Cooling system Active cooling
Fan configuration 1 × 120mm fan
Fan bearing technology Fluid Dynamic Bearing (FDB)
Mean time between failures 100,000 hours
Security features Protection against over-power, under-voltage, over-current, short circuit, over-voltage, surges and inrush current

Compatibility and dimensions

ATX specification ATX 3.0
EPS specification EPS 2.92
Dimensions 140 × 86 × 150 mm (W × H × D)
Product weight 1.6 kg

Safety warning

Warning Use only as a power source for compatible desktop components. Installation and maintenance work must be performed by a qualified technician, with the power disconnected. Do not open, modify, or operate a damaged device, and do not expose it to liquids. Ensure adequate ventilation and use only the cables provided.

Height150mm
Length400mm
Weight1800g
Width250mm
