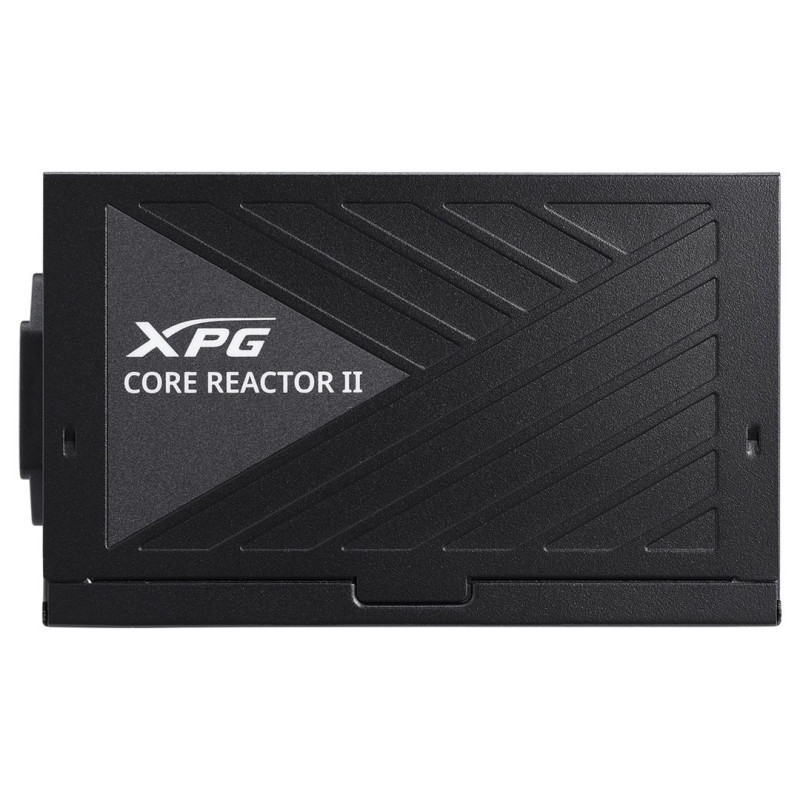

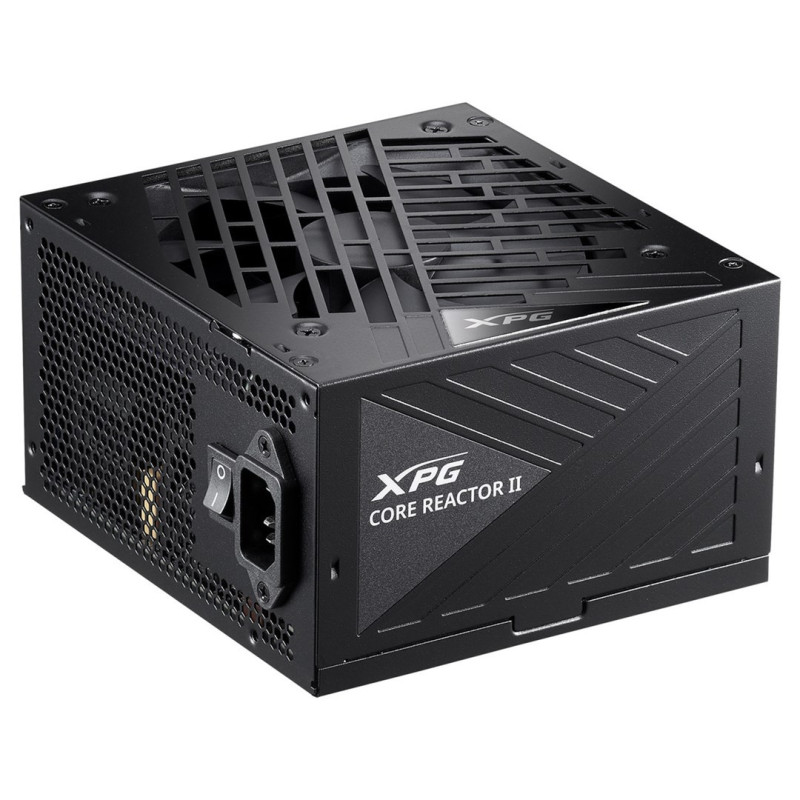

Power Supply - XPG COREREACTOR II 850W Black
Product reference:
14-4711085942388
The XPG COREREACTOR II 850W power supply features a fully modular design, 80 PLUS Gold certification, and maximum 850W power. It features multiple connectors, including 6 PCI Express power connectors and 8 SATA power connectors, as well as active cooling with a 12 cm fan.
Power Supply - XPG COREREACTOR II 850W Black
Product reference:
14-4711085942388
The XPG COREREACTOR II 850W power supply features a fully modular design, 80 PLUS Gold certification, and maximum 850W power. It features multiple connectors, including 6 PCI Express power connectors and 8 SATA power connectors, as well as active cooling with a 12 cm fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
XPG Corereactor II 850W Power Supply - Modular, Black
XPG COREREACTOR II 850W The power supply features a fully modular design, 80 PLUS Gold certification and maximum power of 850W. It features multiple connectors such as 6 PCI Express power connectors and 8 SATA power connectors, as well as active cooling with a 12 cm fan.
- Power supply: 850W total power with 0.99 power factor

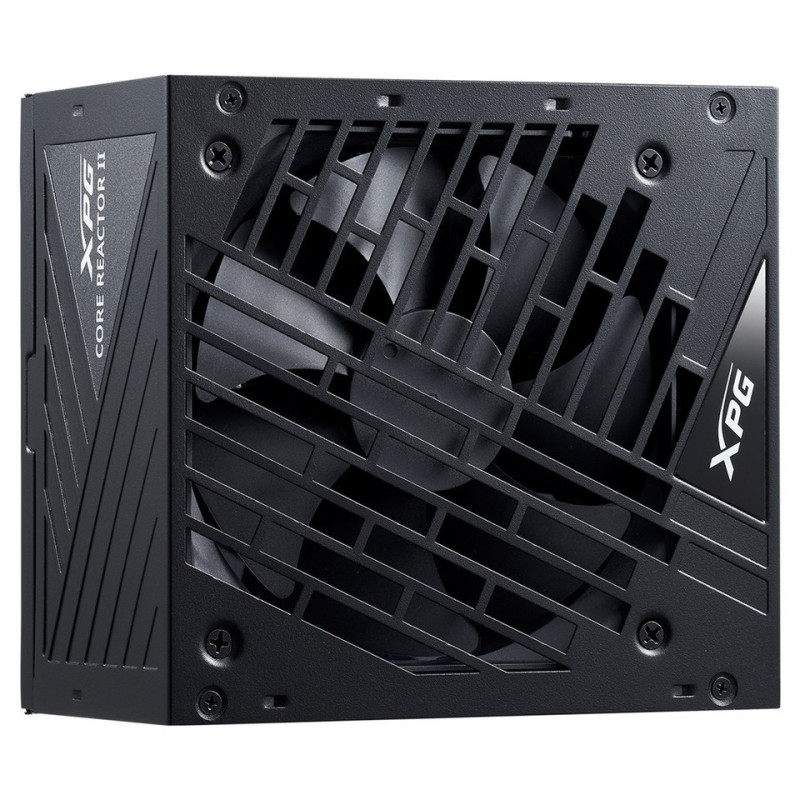

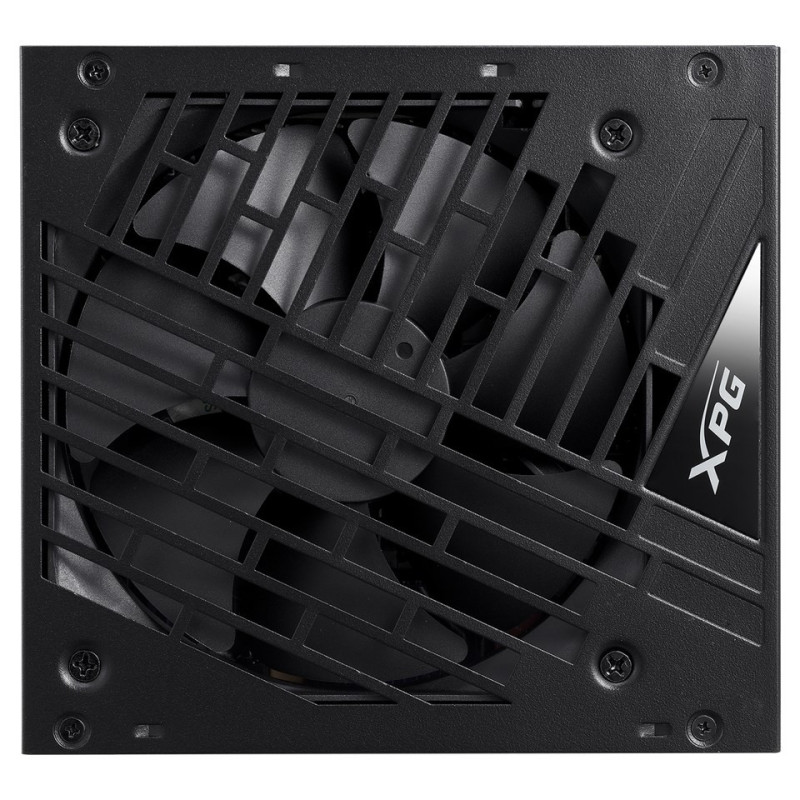

- Cooling system: Active cooling with 12 cm fan for efficient heat dissipation
- Protection functions: Includes over-current protection, short-circuit protection, over-voltage, over-power, under-voltage and over-current protection
- Modular design: Fully modular wiring for easy installation and cable management
- 80 PLUS Certification: 80 PLUS Gold Certified for high energy efficiency
Design | |
|---|---|
| Fan diameter | 12 cm |
| Cooling type | Active |
| Number of fans | 1 fan |
| Product color | Black |
Power supply | |
| Power protection functions | Overcurrent and over-current protection, short circuit, overvoltage, overpower, undervoltage, overcurrent |
| Maximum output current (+5Vsb) | 3 A |
| Power factor | 0.99 |
| Total power | 850W |
| Maximum output current (-12V) | 0.3A |
| AC input frequency | 47 - 63 Hz |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+12V) | 62.5 A |
| Maximum output current (+5V) | 22 A |
| AC input voltage | 100 - 240V |
| Input current | 12 A |
Weight and dimensions | |
| Width | 140mm |
| Depth | 150mm |
| Weight | 1.6 kg |
| Height | 86 mm |
Operation | |
| Mean Time Between Failures (MTBF) | 100000 hours |
| 80 PLUS certificate | 80 PLUS Gold |
| ATX version | 3.0 |
| Purpose | PC |
| Bearing technology | FDB |
| EPS version | 2.92 |
| Power supply unit (PSU) form factor | ATX |
Packaging details | |
| Package weight | 3.1 kg |

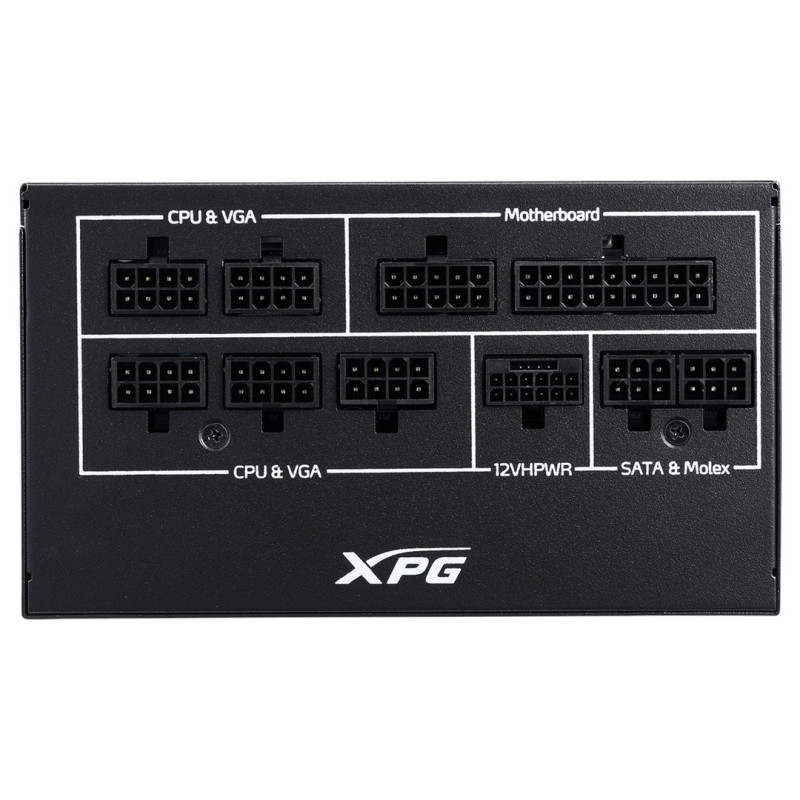

Ports and interfaces | |
| ATX power connector (24-pin) | Yes |
| Wire type | Fully modular |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA power connectors | 8 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (12+4 pin) | Yes |
Safety warning | |
| Danger signs | GHS09: Environmentally hazardous, GHS07: Harmful, GHS02: Fire hazardous |
| Height | 150mm |
| Length | 350mm |
| Weight | 1800g |
| Width | 250mm |
