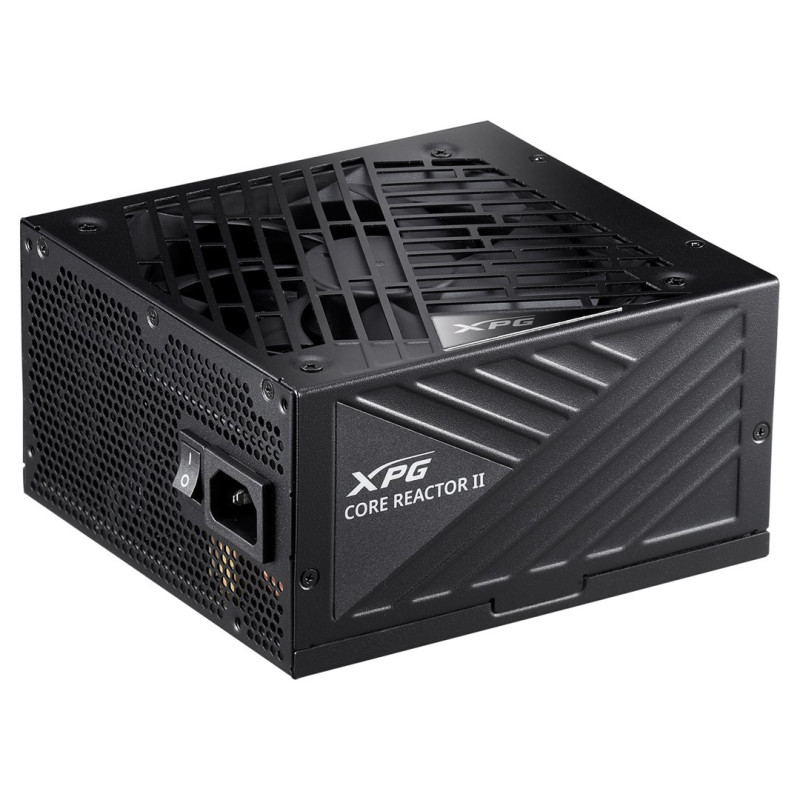

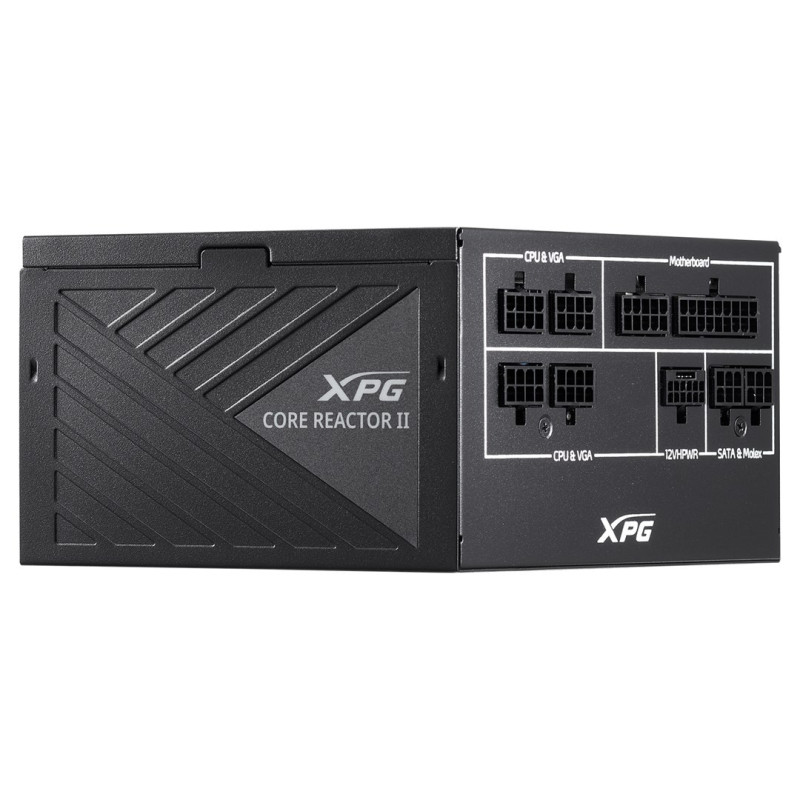

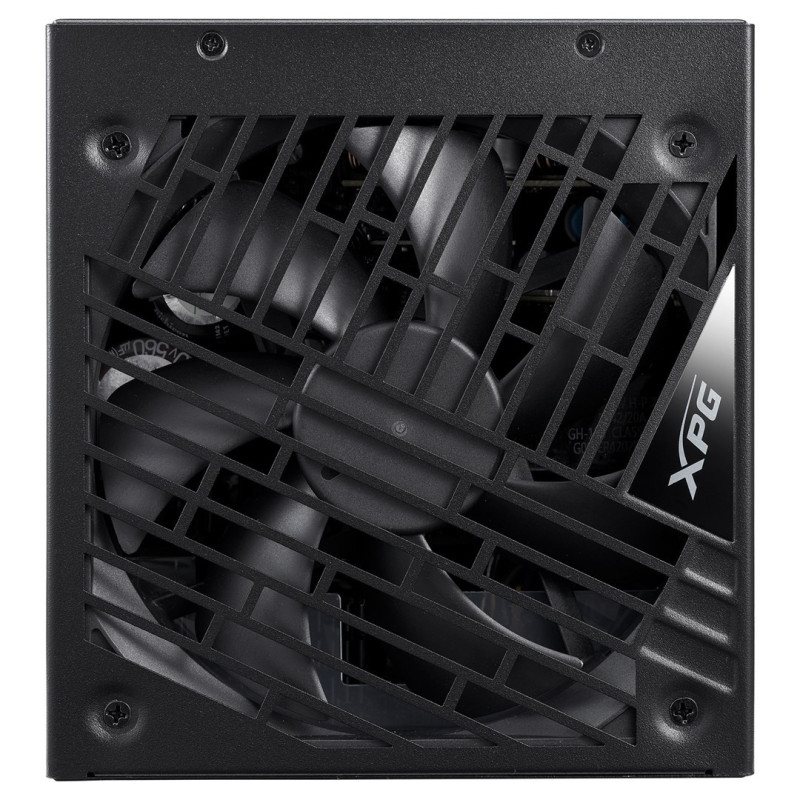

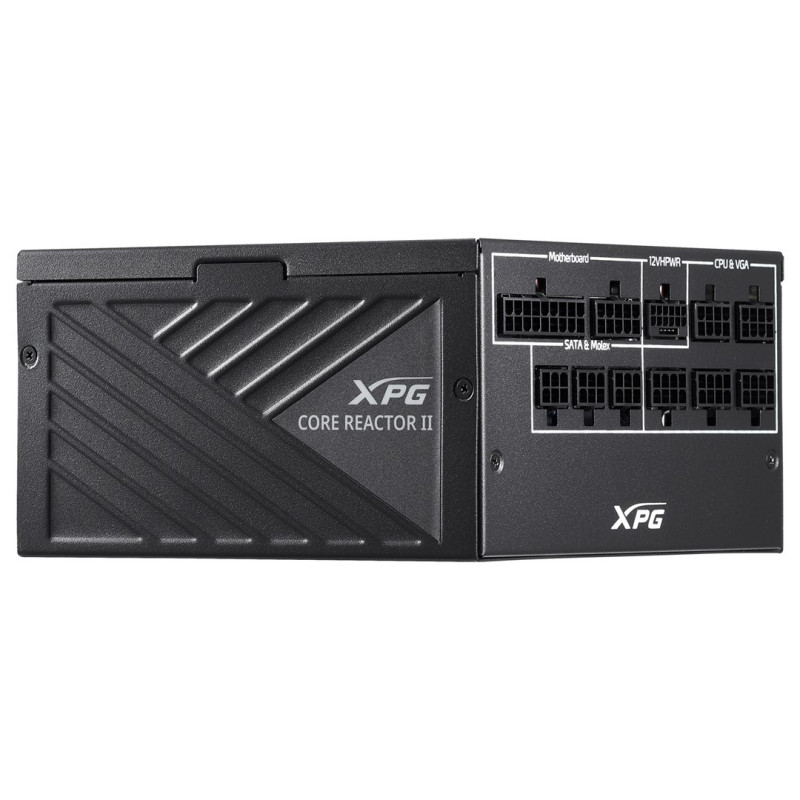

Power Supply - XPG COREREACTOR II 1200W Black
Product reference:
14-4711085942401
1200W power supply with 80 PLUS Gold certification and fully modular cabling system. It features multiple protections and a 13.5 cm diameter fan.
Power Supply - XPG COREREACTOR II 1200W Black
Product reference:
14-4711085942401
1200W power supply with 80 PLUS Gold certification and fully modular cabling system. It features multiple protections and a 13.5 cm diameter fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
XPG Corereactor II 1200W Power Supply - Black
1200W power supply with 80 PLUS Gold certification and fully modular cabling system. Features include multiple protection mechanisms and a 13.5 cm diameter fan.
- Power output: 1200W total power with maximum output current on 100A +12V line.
- 80 PLUS certification: 80 PLUS Gold certified for high energy efficiency.
- Safety features: Includes short circuit, overvoltage, undervoltage, overcurrent, overpower, overcurrent and overheating protection.
- Modular Design: Fully modular cables for easy installation and improved airflow.
- Compliance: Meets multiple international safety standards including RCM, FCC, CE and UKCA.
Technical data | |
|---|---|
| Certificates of conformity | RCM, BSMI, FCC, cTUVus, NOM, CE, CCC, CB, EAC, UKCA |
Design | |
| Fan diameter | 13.5 cm |
| Product color | Black |
Power | |
| Power protection functions | Short circuit, overvoltage, undervoltage, overcurrent, overpower, overcurrent protection, overheat protection |
| Total power | 1200W |
| AC input voltage | 100 - 240V |
| Input current | 15 A |
| Power factor | 0.99 |
| AC input frequency | 50/60Hz |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+12V) | 100A |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+5Vsb) | 3 A |
| Maximum output current (+5V) | 22 A |
Weight and dimensions | |
| Height | 86 mm |
| Width | 160mm |
| Depth | 150mm |
Operation | |
| Purpose | PC |
| 80 PLUS certificate | 80 PLUS Gold |
| Bearing technology | FDB |
| EPS version | 2.92 |
| MTBF | 100000 hours |
| ATX version | 3.0 |
| PSU form factor | ATX |
Packaging details | |
| Package weight | 3.43 kg |
| Package dimensions | 210mm x 157mm x 338mm |
Ports and interfaces | |
| ATX power connector (12+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) connectors (4-pin) | 3 |
| ATX power connector (24-pin) | Yes |
| Cable type | Fully modular |
| PCI Express connectors (6+2 pin) | 8 |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 9 |
Safety warning | |
| Hazard symbols | GHS02: Flammable, GHS07: Harmful, GHS09: Environmentally hazardous |
| Height | 200mm |
| Length | 450mm |
| Weight | 3500g |
| Width | 350mm |
