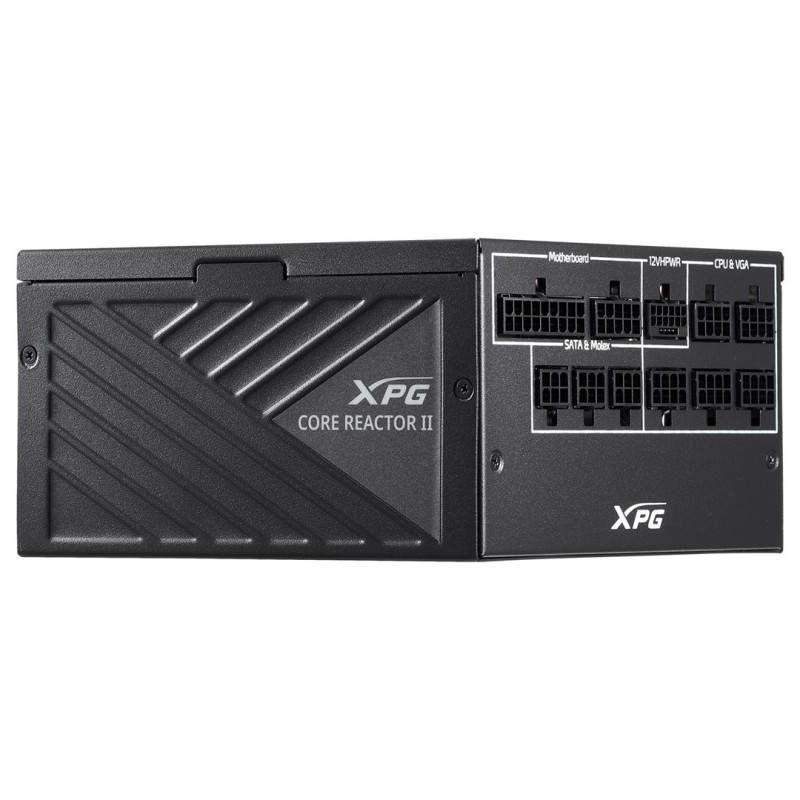

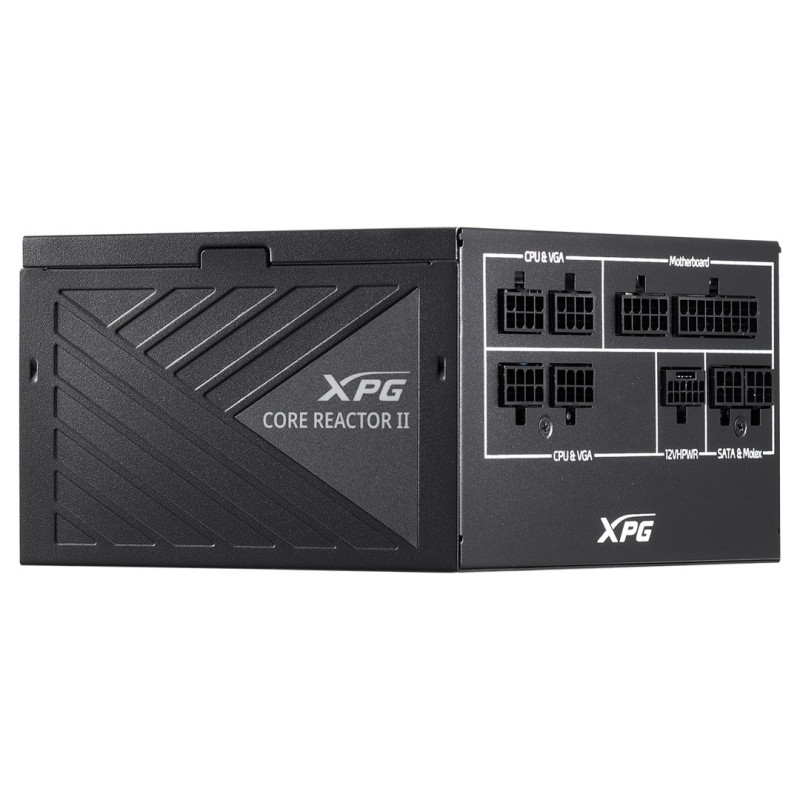

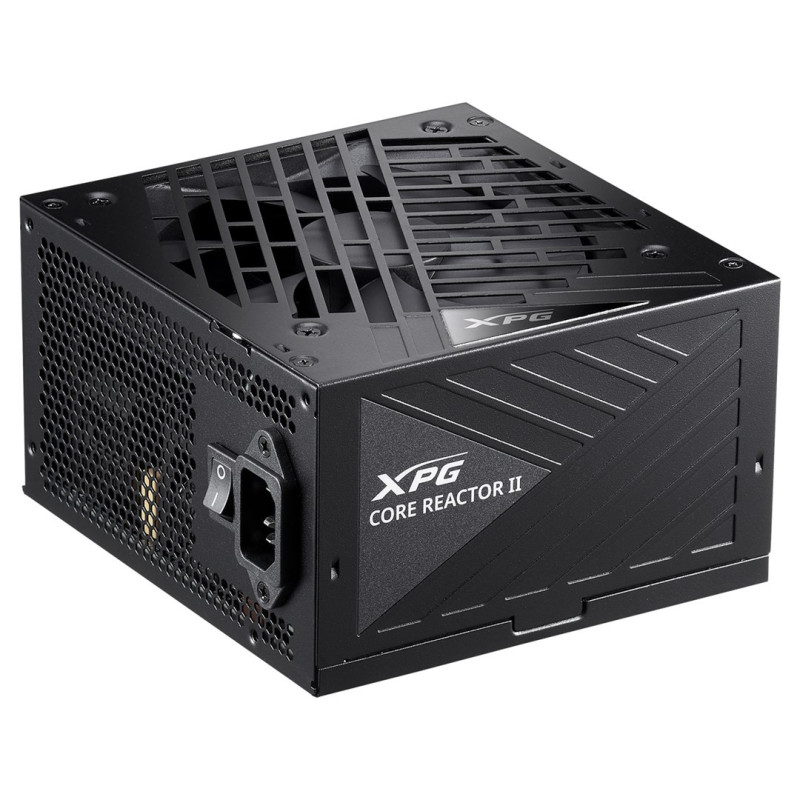

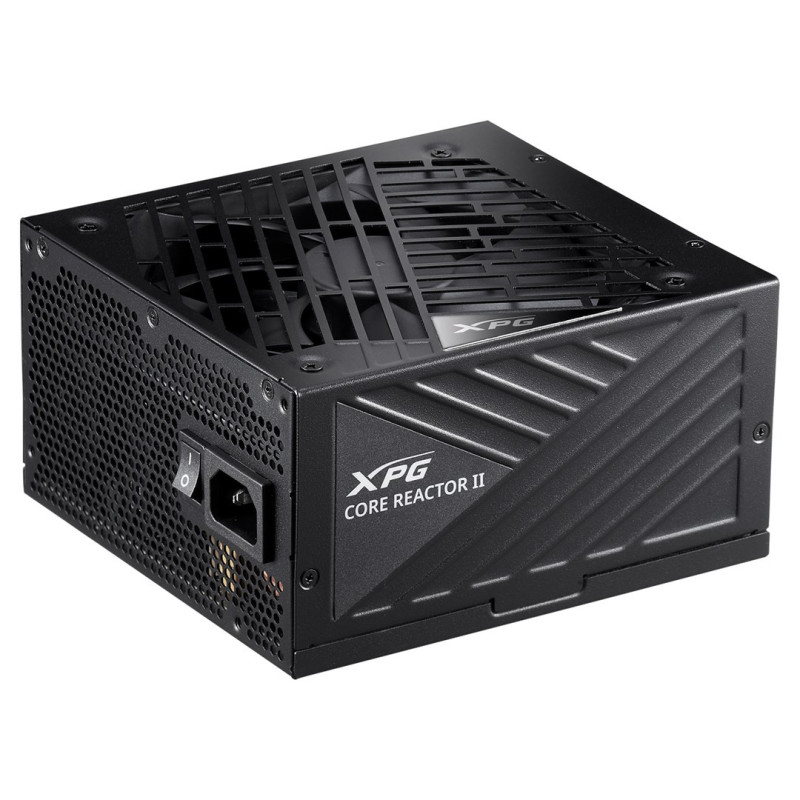

Power Supply - XPG COREREACTOR II 1000W Black
Product reference:
14-4711085942395
The XPG COREREACTOR II 1000W power supply is 80 PLUS Gold certified and provides 1000W total power with various protection features. It features fully modular cables, 8 PCI Express power connectors, and one 13.5 cm active cooling fan.
Power Supply - XPG COREREACTOR II 1000W Black
Product reference:
14-4711085942395
The XPG COREREACTOR II 1000W power supply is 80 PLUS Gold certified and provides 1000W total power with various protection features. It features fully modular cables, 8 PCI Express power connectors, and one 13.5 cm active cooling fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
XPG Corereactor II 1000W Modular Power Supply Black
The XPG COREREACTOR II 1000W power supply is 80 PLUS Gold certified and provides total 1000W power output with multiple protection features. It features fully modular cables, 8 PCI Express power connectors, and one 13.5 cm active cooling fan.
- Power Output: 1000W total power with maximum output current in 83,5A +12V circuit.
- 80 PLUS Certification: 80 PLUS Gold certified for high energy efficiency.

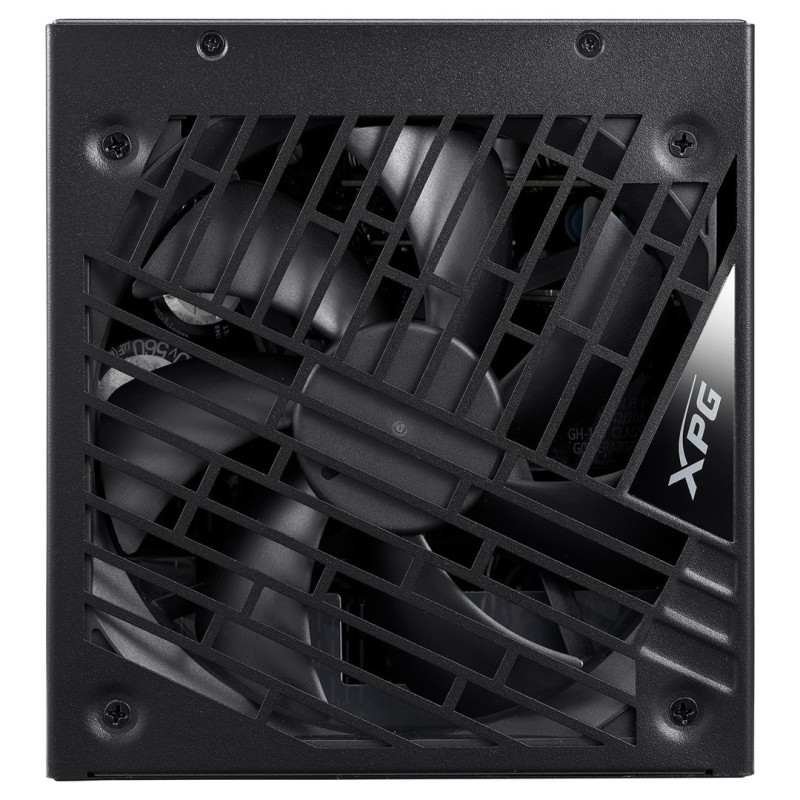

- Cooling System: Active cooling with a 13.5 cm fan for optimal thermal management.
- Modular Design: Fully modular cables for better airflow and cable management.
- Protection Features: Comprehensive power protection, including over-power, over-temperature and short circuit protection.
Technical data | |
|---|---|
| Certificates of conformity | RCM, CE, CCC, UKCA, CB, EAC, NOM, cTUVus, FCC, BSMI |
Design | |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 |
Power | |
| Power protection functions | Overpower, Overheating, Short circuit, Undervoltage, Overvoltage, Overcurrent, Overcurrent protection |
| AC input frequency | 50/60Hz |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+5Vsb) | 3 A |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+12V) | 83.5 A |
| Power factor | 0.99 |
| Total power | 1000W |
| Maximum output current (+5V) | 22 A |
| Input current | 13 A |
| AC input voltage | 100 - 240V |
Weight and dimensions | |
| Height | 86 mm |
| Weight | 1.77 kg |
| Depth | 150mm |
| Width | 160mm |
Operation | |
| EPS version | 2.92 |
| Bearing technology | FDB |
| ATX version | 3.0 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| 80 PLUS certificate | 80 PLUS Gold |
| Mean Time Between Failures (MTBF) | 100000 hours |
Packaging details | |
| Package depth | 338 mm |
| Package width | 210 mm |
| Package height | 157 mm |
| Package weight | 3.43 kg |
Ports and interfaces | |
| PCI Express power connectors (6+2 pin) | 8 |
| Number of SATA power connectors | 9 |
| Accessory (Molex) power connectors (4-pin) | 3 |
| Motherboard power connector | 24-pin ATX |
| ATX power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Wire type | Fully modular |
| ATX power connector (12+4 pin) | Yes |
Safety warning | |
| Danger symbol(s) | GHS02: Flammable, GHS07: Harmful, GHS09: Dangerous for the environment |
| Height | 150mm |
| Length | 400mm |
| Weight | 1800g |
| Width | 250mm |
