The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
| AC įėjimo įtampa | 100 - 240 V |
| Atitikties sertifikatai | RoHS/WEEE |
| ATX versija | 3.0 |
| Aukštis | 86 mm |
| Aušinimo padengimo tipas | FDB |
| Aušinimo tipas | Aktyvus |
| Bendroji galia | 750 W |
| Bruto svoris | 2.87 kg |
| CPU maitinimo jungtis (4 + 4 kaisčiai) | Taip |
| CPU P4 jungtis (4 kontaktai) | 1 |
| Didžiausia išėjimo įtampa (+12 V) | 62.5 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 3 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.3 A |
| Efektyvumas | 92 % |
| Galios koeficiento pataisos (PFC) tipas | Aktyvus |
| Ilgis | 160 mm |
| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | ATX |
| Model name | XN173 | XP750MR9.2 |
| Motininės plokštės maitinimo jungtis | 20+4 pin ATX |
| Neto svoris | 2.6 kg |
| Pakuotės tipas | "Box" |
| Paskirtis | PC |
| PCI Express maitinimo jungtis (8 kaisčiai) | 1 |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 3 |
| Perdavimo laidu tipas | Pusiau modulinis |
| Plotis | 150 mm |
| Produkto spalva | Juoda/Raudona |
| SATA elektros jungčių skaičius | 6 |
| Sertifikatas 80 PLUS | 80 PLUS Gold |
| Shipping Box Depth | 61 cm |
| Shipping Box Height | 23 cm |
| Shipping Box Weight | 17.2 kg |
| Shipping Box Width | 34 cm |

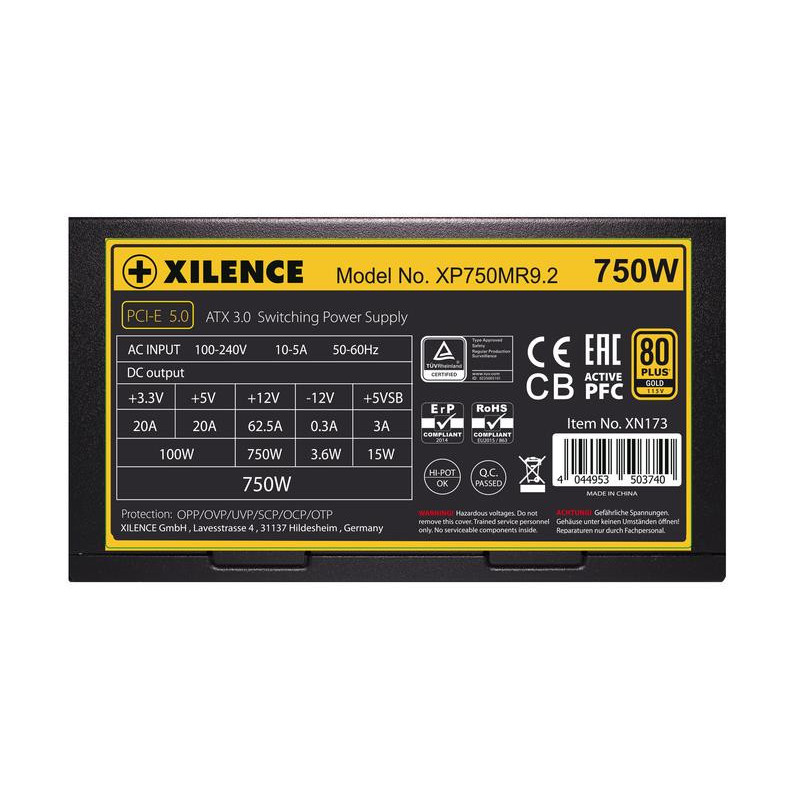

| Summary | Xilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE |
| Tvarumo reikalavimų laikymasis | Taip |
| Tvarumo sertifikatai | ErP |
| Unit Box Height | 0.195 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.095 |
| Unit Brutto Volume | 0.00795 cubm |
| Vendor Homepage | https://www.xilence.net/en/power-supplies/248 |
| Ventiliatoriaus skersmuo | 140 mm |
| Ventiliatorių skaičius | 1 ventiliatorius(iai / ių) |
| Vieneto aukštis | 19.5 cm |
| Vieneto gylis | 29 cm |
| Vieneto plotis | 9.5 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 6 |
