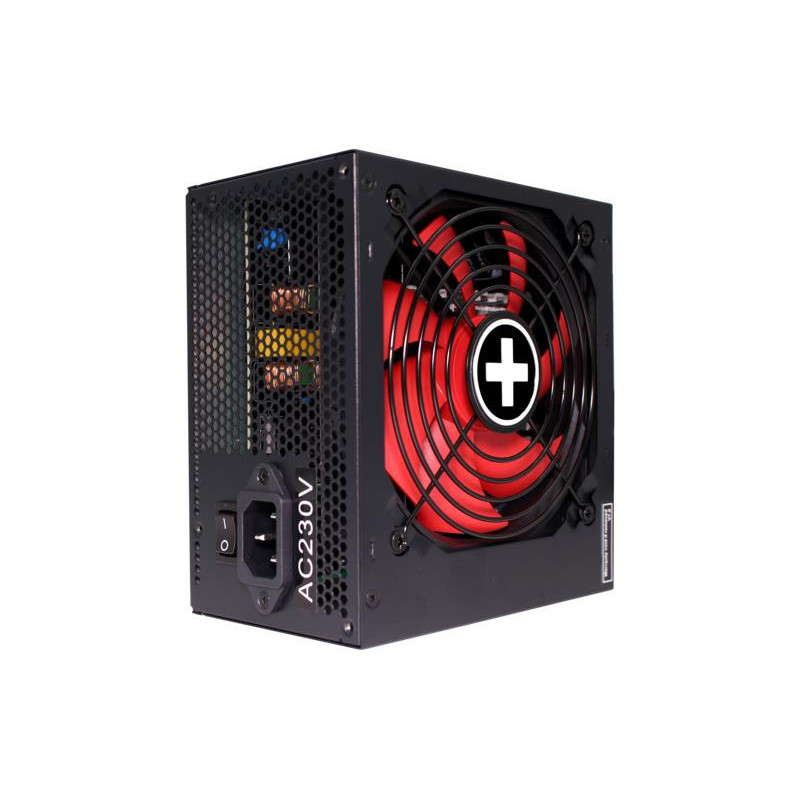

Power Supply, XILENCE, 650 Watts, Efficiency 80 PLUS BRONZE, PFC Active, XN220
Product reference: 2-4044953503436

Power Supply, XILENCE, 650 Watts, Efficiency 80 PLUS BRONZE, PFC Active, XN220

Product reference: 2-4044953503436
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
57,18 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.


AC input frequency50 Hz
AC input voltage200 - 240V
Certificates of conformityCB/CE/cTUVus/REACH/RoHS/WEEE
ATX version2.4
Cooling typeActive
Total power650 W
Gross weight1.98 kg
CPU power connector (4 + 4 pins)Yes

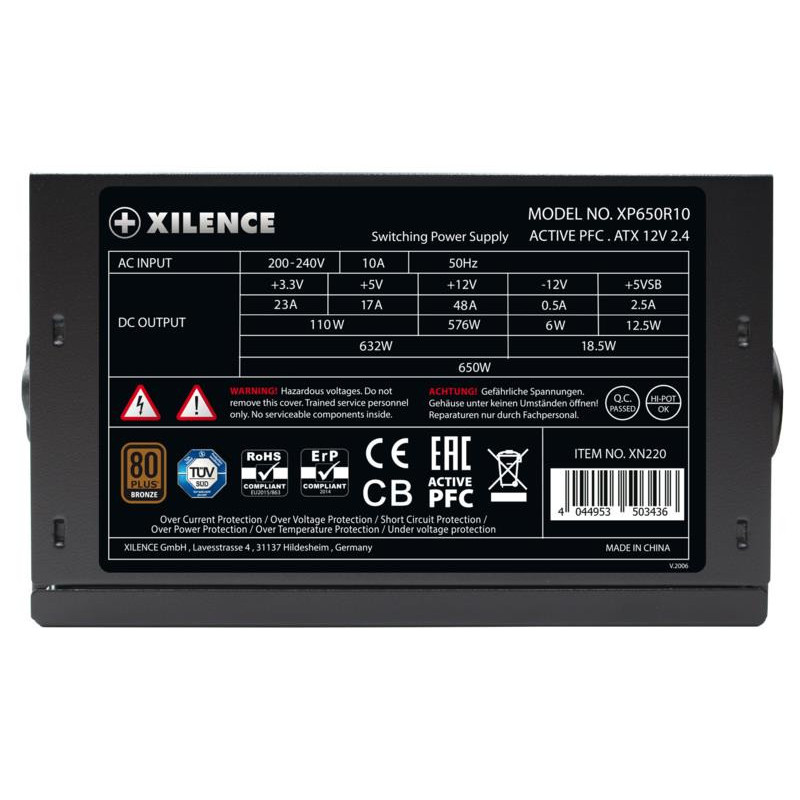

Maximum output voltage (+12 V1)48 A
Maximum output voltage (+12 VSB)2.5 A
Maximum output voltage (+3.3 V)23 A
Maximum output voltage (+5 V)17 A
Maximum output voltage (-12 V)0.5 A
Efficiency85 %
Floppy disk drive connectorYes
Floppy drive power connector1
Power Factor Correction (PFC) TypeActive
Sound level29 dB
Complex power (+12 V)576 W
Complex power (+5 VSB)12.5 W
Complex power (-12 V)6 in
Power protection featuresOvervoltage protection/Overheating protection/Overload protection/Undervoltage protection/Exceeding DC current
Power supply unit (PSU) form factorATX
Model nameXN220 | XP650R10
Motherboard power connector20+4 pin ATX
Motherboard power cable length500 mm
Net weight1.75 kg
Package weight1980 g
Package height265 mm
Package depth440 mm
Package width580 mm
PurposePC

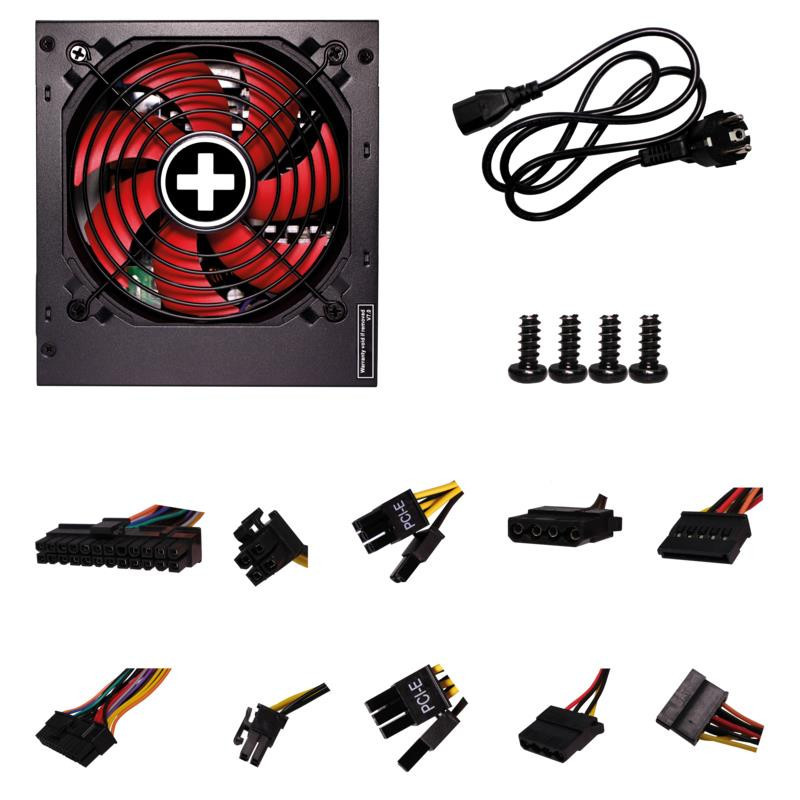

Number of PATA power connectors3
PCI Express power connectors (6 + 2 pins)2
Wired transmission typeNon-modular
Product colorBlack/Red
Number of SATA electrical connectors6
80 PLUS certificate80 PLUS Bronze
CertificationErP2014
Shipping Box Depth54 cm
Shipping Box Height24 cm
Shipping Box Weight15.8 kg
Shipping Box Width40 cm
SummaryXilence XN225. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: CB, CE, REACH, RoHS, cTUVus, WEEE, Certification: ErP2014
Compliance with sustainability requirementsYes
Sustainability certificatesErP
Unit Box Height0.185
Unit Box Length0.26
Unit Box Width0.1
Unit Ugly Volume0.00648 cubm
Vendor Homepagehttps://www.xilence.net/en/power-supplies/232
Fan diameter140 mm
Number of fans1 fan(s)
Unit height18.5 cm
Unit depth26 cm
Unit width10 cm
Number of units per shipping box8
Input current10 A
