The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| Atitikties sertifikatai | RoHS/WEEE |
| ATX versija | 3.0 |
| Aukštis | 86 mm |
| Aušinimo padengimo tipas | FDB |
| Bendroji galia | 1050 W |
| Bruto svoris | 3.34 kg |
| CPU maitinimo jungtis (4 + 4 kaisčiai) | Taip |

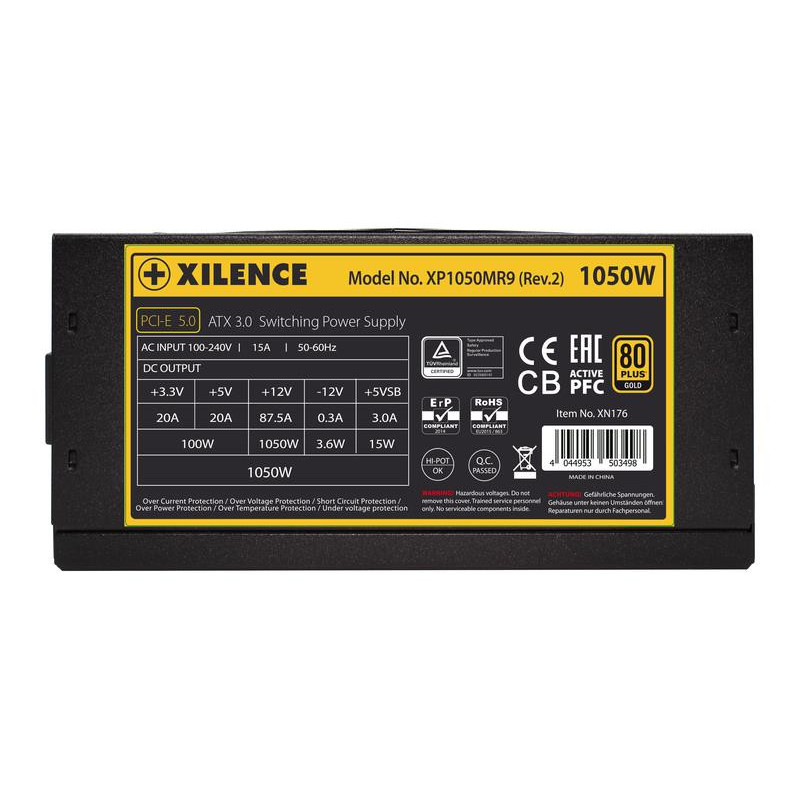

| Didžiausia išėjimo įtampa (+12 V) | 87.5 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 3 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.3 A |
| Efektyvumas | 89 % |
| Galios koeficiento pataisos (PFC) tipas | Aktyvus |
| Ilgis | 180 mm |
| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | ATX |
| Model | XN176 |
| Model name | XP1050MR9.2 |
| Motininės plokštės maitinimo jungtis | 20+4 pin ATX |
| Motininės plokštės maitinimo kabelio ilgis | 650 mm |
| Neto svoris | 1.5 kg |
| Pakuotės tipas | "Box" |
| Paskirtis | PC |
| PCI Express maitinimo jungtis (8 kaisčiai) | 1 |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 3 |

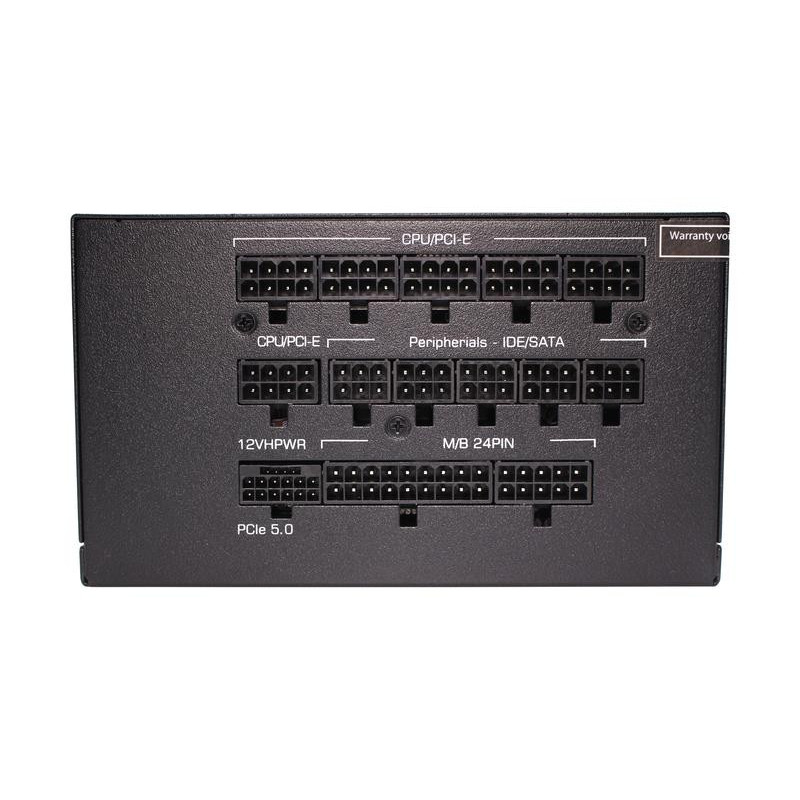

| Perdavimo laidu tipas | Visiškai modulinis |
| Plotis | 150 mm |
| SATA elektros jungčių skaičius | 12 |
| Sertifikatas 80 PLUS | 80 PLUS Gold |
| Shipping Box Depth | 33 cm |
| Shipping Box Height | 9.8 cm |
| Shipping Box Weight | 3.34 kg |
| Shipping Box Width | 18.8 cm |
| Summary | Xilence XP1050MR9.2. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Compliance certificates: RoHS, WEEE. Width: 150 mm, Depth: 180 mm, Height: 86 mm |
| Tvarumo reikalavimų laikymasis | Taip |
| Tvarumo sertifikatai | ErP |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.188 |
| Unit Brutto Volume | 0.00608 cubm |
| Vendor Homepage | https://www.xilence.net/en/power-supplies/234 |
| Vieneto aukštis | 9.8 cm |
| Vieneto gylis | 33 cm |
| Vieneto plotis | 18.8 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 1 |
| Įvesties srovė | 15 A |
