Power Supply Unit - DeepCool PN1000-M 1000W 80 PLUS Gold Fully-Modular
Product reference:
14-6933412741237
The DeepCool PN1000-M power supply delivers 1000W of power with 80 PLUS Gold certification for efficiency. It features a fully modular cable management system, a single top-mounted fan, and a wide range of power connectors, including 8 SATA and 3 PCI Express connectors.
Power Supply Unit - DeepCool PN1000-M 1000W 80 PLUS Gold Fully-Modular
Product reference:
14-6933412741237
The DeepCool PN1000-M power supply delivers 1000W of power with 80 PLUS Gold certification for efficiency. It features a fully modular cable management system, a single top-mounted fan, and a wide range of power connectors, including 8 SATA and 3 PCI Express connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
DeepCool PN1000-M Power Supply R-PNA00M-FC0B-JGEU
The DeepCool PN1000-M power supply has a total power of 1000 W with 80 PLUS Gold certification for efficiency. It features a fully modular cable management system, a single top-mounted fan, and multiple power connectors, including 8 SATA and 3 PCI Express connectors.
- High efficiency with 80 PLUS Gold certification and 90% efficiency rating.
- Powerful 1000W output with comprehensive protection features for safe operation.
- Fully modular cable system for easy installation and improved airflow.

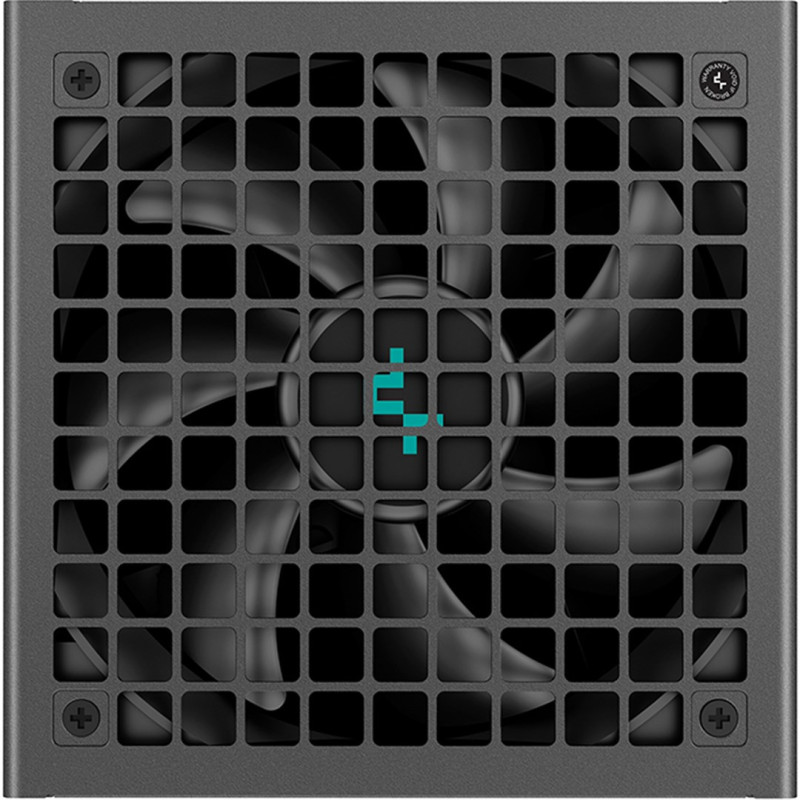

- Active cooling with a top-mounted 13.5 cm fan for optimal thermal management.
Design | |
|---|---|
| Cooling type | Active |
| Fan location | Above |
| Number of fans | 1 pc. |
| Product color | Black |
| Fan diameter | 13.5 cm |
| On/Off switch | Yes |
Power | |
| Power Good Signal Delay Range | 100 - 150ms |
| Power protection functions | Overheating, current protection, no-load operation, low voltage, overpower, current and inrush protection (SIP), short circuit, overvoltage |
| AC input voltage | 100 - 240V |
| Connected power (+5Vsb) | 15W |
| Connected power (+3.3V) | 120W |
| Connected power (+12V) | 999.6W |
| AC input frequency | 50/60Hz |
| Total power | 1000W |
| Power factor correction (PFC) type | Active |
| Efficiency | 90% |
| Shelf life | 16ms |
| Connected power (+5V) | 120W |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
Weight and dimensions | |
| Depth | 150mm |
| Height | 86 mm |
| Width | 150mm |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| 80 PLUS certificate | 80 PLUS Gold |
| Bearing technology | FDB |
| Purpose | PC |
| Mean Time Between Failures (MTBF) | 100000 hours |
Packaging details | |
| Packaging type | Box |
Package contents | |
| Cable ties included | Yes |
| Cables included | AC |

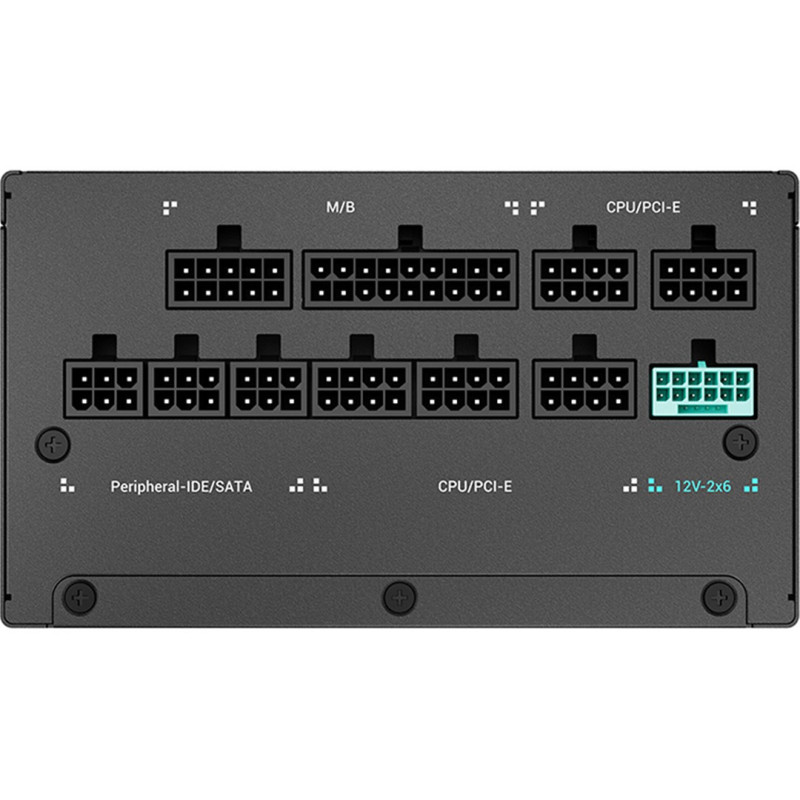

Connectors and interfaces | |
| Number of SATA power connectors | 8 |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (20+4 pin) | Yes |
| Cable type | Fully modular |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Safety warning | |
| Warnings | Avoid contact with water or other liquids. Do not open the housing - risk of electric shock. The product is not suitable for disposal with household waste - dispose of in accordance with local regulations. |
