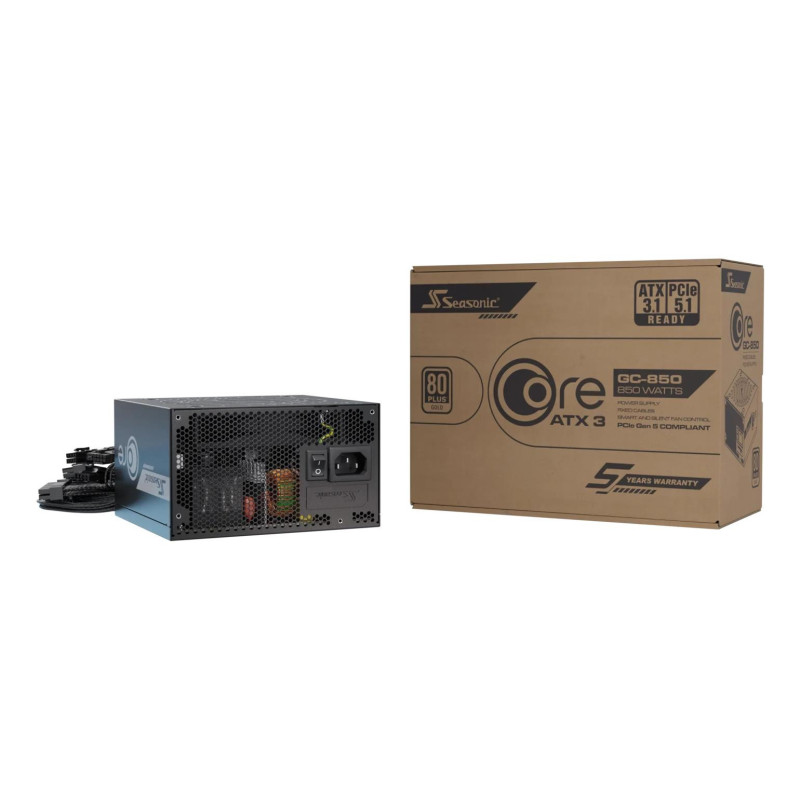

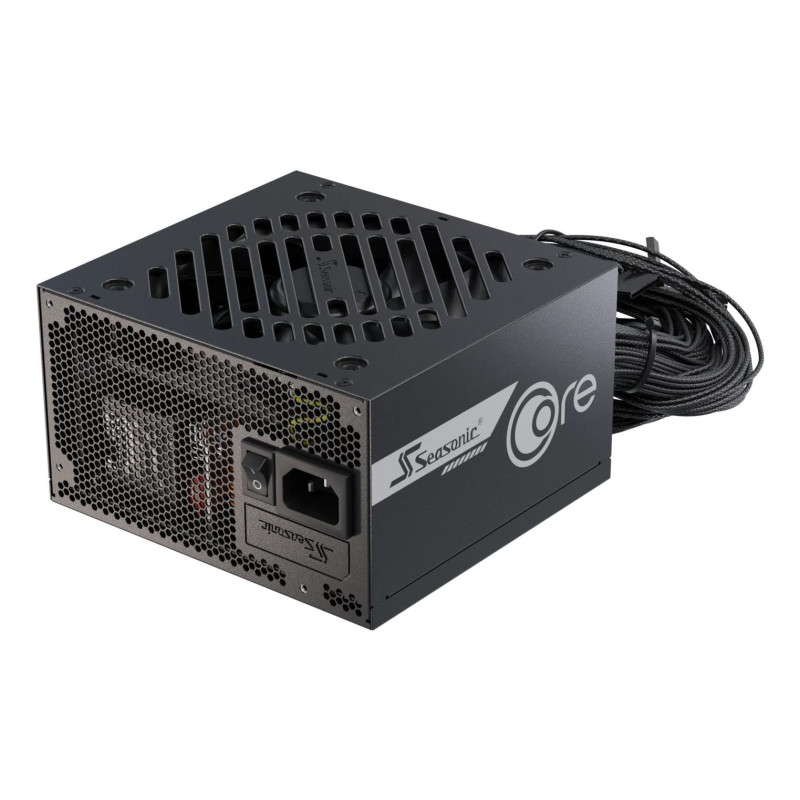

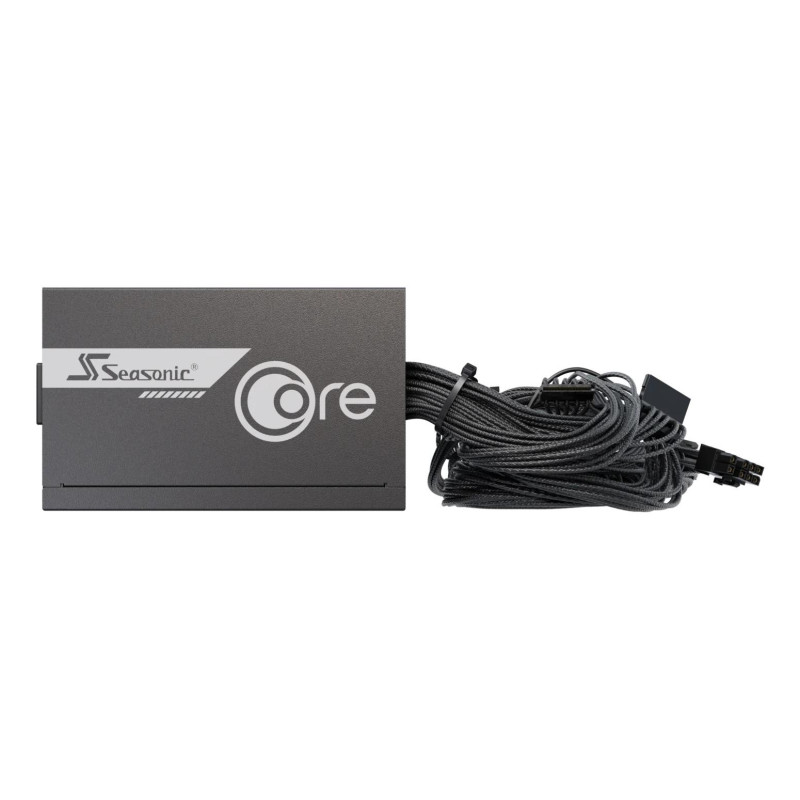

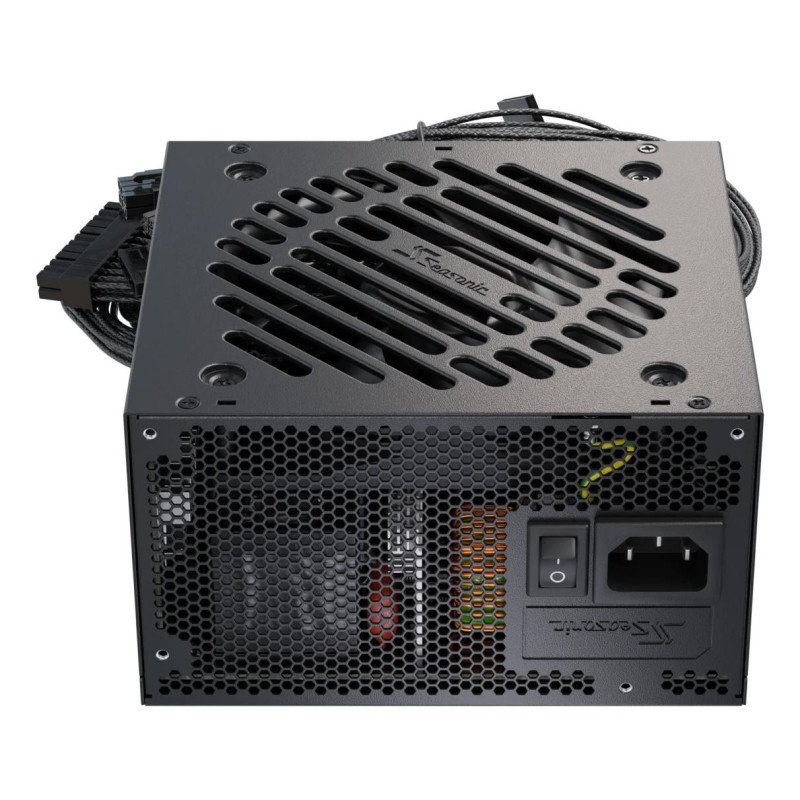

Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 850 W, SRP-CGC851-A5A32SF
Product reference:
2-4711173879114
Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 850 W, SRP-CGC851-A5A32SF
Product reference:
2-4711173879114
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
Блок живлення ATX 3.1 Seasonic CORE GC-850
CORE GC - Power Made Simple
The Seasonic CORE GC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic's trusted quality in a compact 140 mm design with a durable scratch-resistant finish.
With 80 PLUS® Gold efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE GC-750 and CORE GC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE GC-650 meets all ATX 3.1 requirements with traditional connectors.
Built on decades of engineering excellence, the CORE GC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.
Next-Gen and Legacy GPU Cable
Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility
S2FC - Intelligent Fan Control Technology
The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply's fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| Atitikties sertifikatai | BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/REACH/RoHS/UKCA/WEEE |
| ATX maitinimo jungtis (20 + 4 kaisčiai) | Taip |
| ATX versija | 3.1 |
| Aukštis | 86 mm |
| Aušinimo padengimo tipas | Rutulinis guolis |
| Aušinimo tipas | Aktyvus |
| Bendroji galia | 850 W |
| Bruto svoris | 2.69 kg |
| CPU maitinimo jungtis (4 + 4 kaisčiai) | Taip |
| CPU maitinimo laido ilgis | 600 mm |
| Darbo santykinės drėgmės diapazonas | 15 - 65 % |
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Didžiausia išėjimo įtampa (+12 V) | 70 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 2.5 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.3 A |
| EPS maitinimo jungtis (8-kaisčiai) | Taip |
| Ilgis | 140 mm |
| Kompleksinė galia (+12 V) | 840 W |
| Kompleksinė galia (+3,3 V) | 100 W |
| Kompleksinė galia (+5 VSB) | 12.5 W |
| Kompleksinė galia (+5V) | 100 W |
| Kompleksinė galia (-12 V) | 3.6 W |
| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | ATX |
| Model name | CORE GC-850 ATX 3.1 |
| Motininės plokštės maitinimo jungtis | 20+4 pin ATX |
| Motininės plokštės maitinimo kabelio ilgis | 550 mm |
| Neto svoris | 2.6 kg |
| On/off mygtukas | Taip |
| Pakuotės tipas | "Box" |
| Paskirtis | PC |
| PCI "Express" galia kabelio ilgis | 550 mm |
| PCI "Express" jungtis | Taip |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 3 |
| Perdavimo laidu tipas | Ne modulinis |
| Periferinio ("Molex") maitinimo kabelio ilgis | 600 mm |
| Periferinė (Molex) galios jungtis (4-pin) | 1 |
| Plotis | 150 mm |
| Pridėti kabeliai | AC |
| Produkto spalva | Juoda |
| SATA elektros jungčių skaičius | 2 |
| SATA maitinimo kabelio ilgis | 600 mm |
| Sertifikatas 80 PLUS | 80 PLUS Gold |
| Sertifikavimas | CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6 |
| Shipping Box Depth | 60 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 13.45 kg |
| Shipping Box Width | 20 cm |
| Summary | Seasonic CORE GC-850 ATX 3.1. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC |
| Tvarumo sertifikatai | ENERGY STAR/ErP |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.24 |
| Unit Brutto Volume | 0.00648 cubm |
| Vendor Homepage | https://seasonic.com/core-gc-atx-3-1/ |
| Ventiliatoriaus skersmuo | 120 mm |
| Ventiliatorių skaičius | 1 ventiliatorius(iai / ių) |
| Vidutinis laikas tarp trikčių (MTBF) | 100000 h |
| Vieneto aukštis | 18.5 cm |
| Vieneto gylis | 11.5 cm |
| Vieneto plotis | 24 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 5 |
| Įvesties srovė | 11 - 5.5 A |
