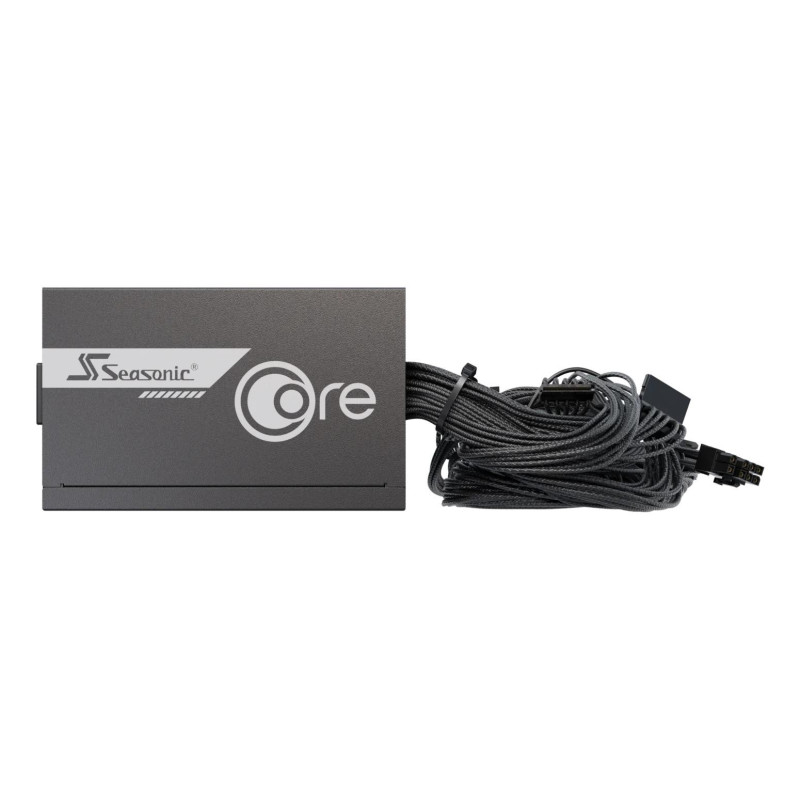

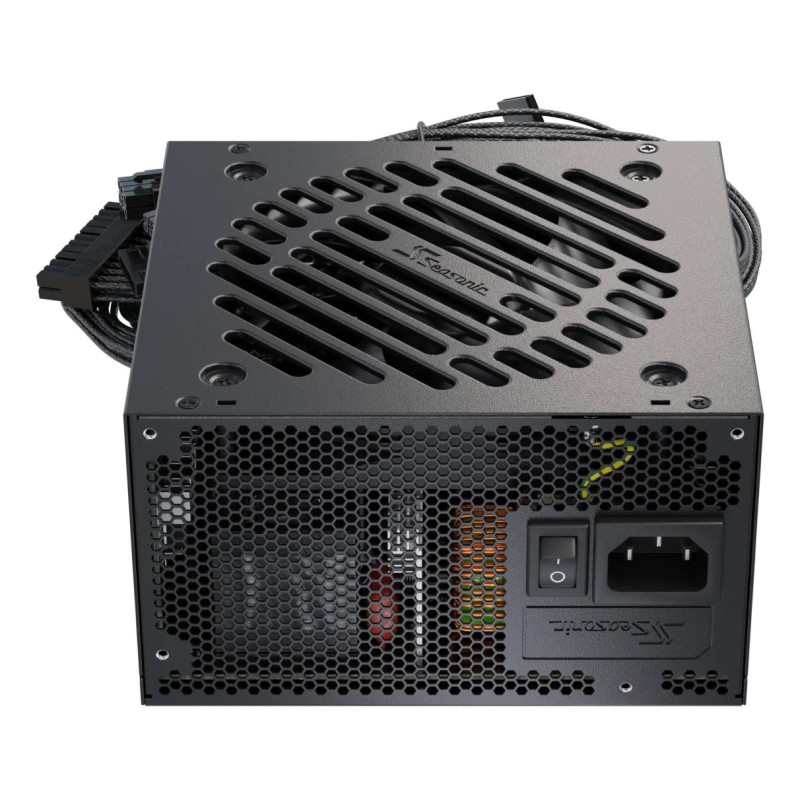

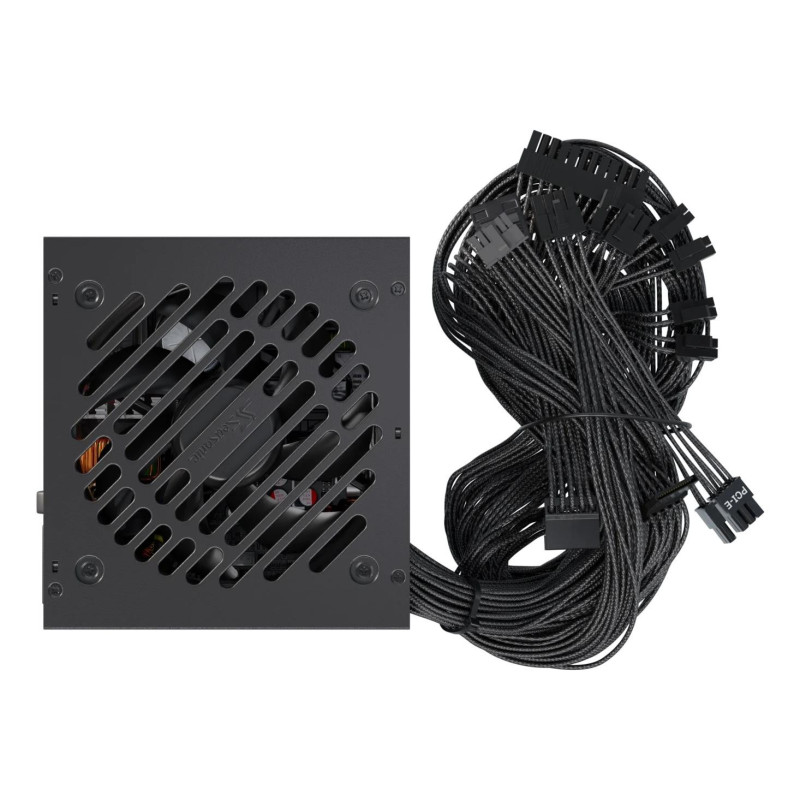

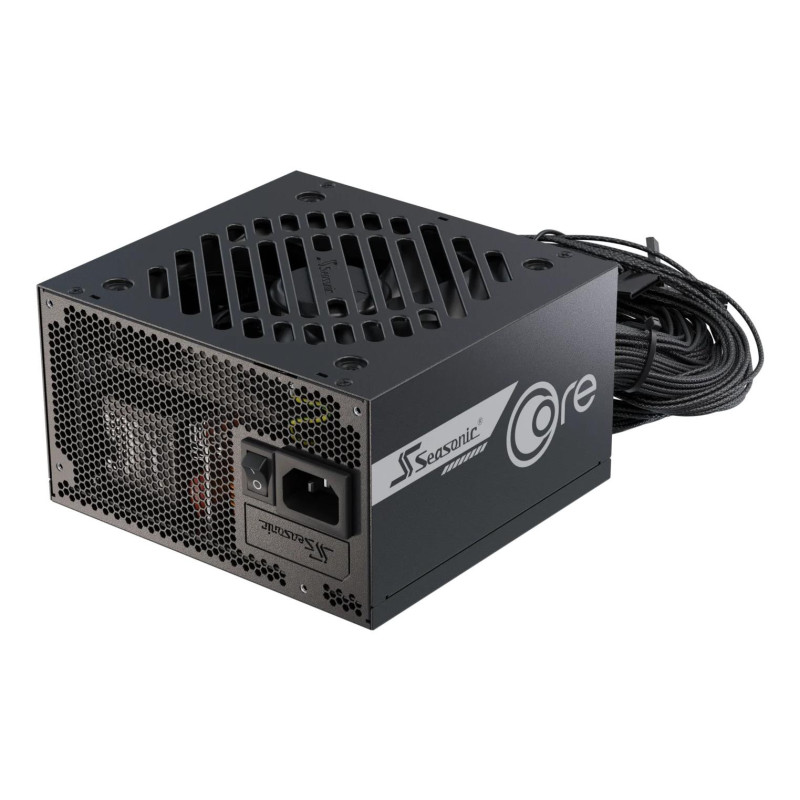

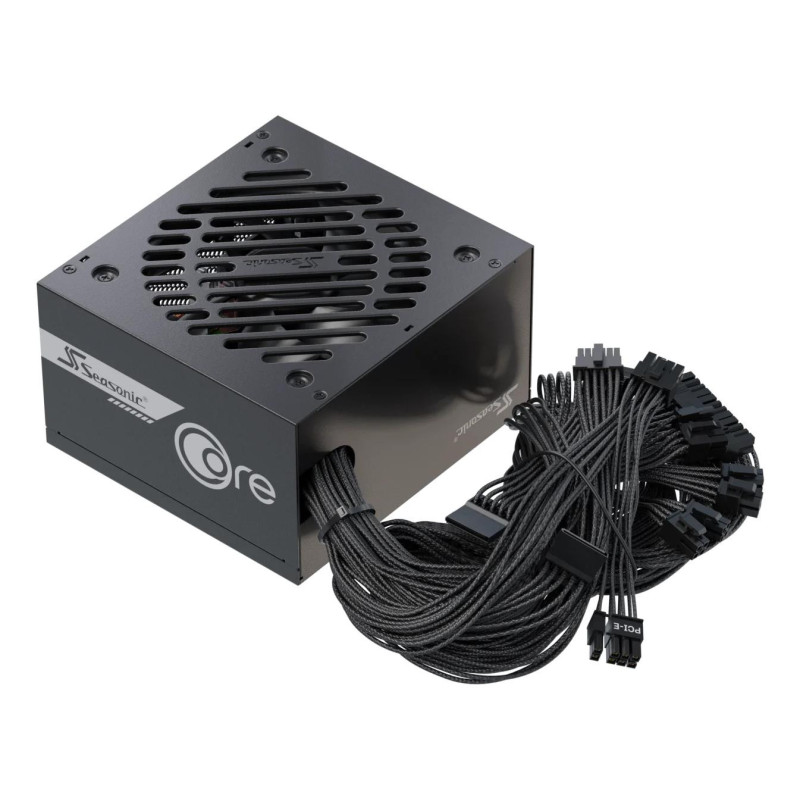

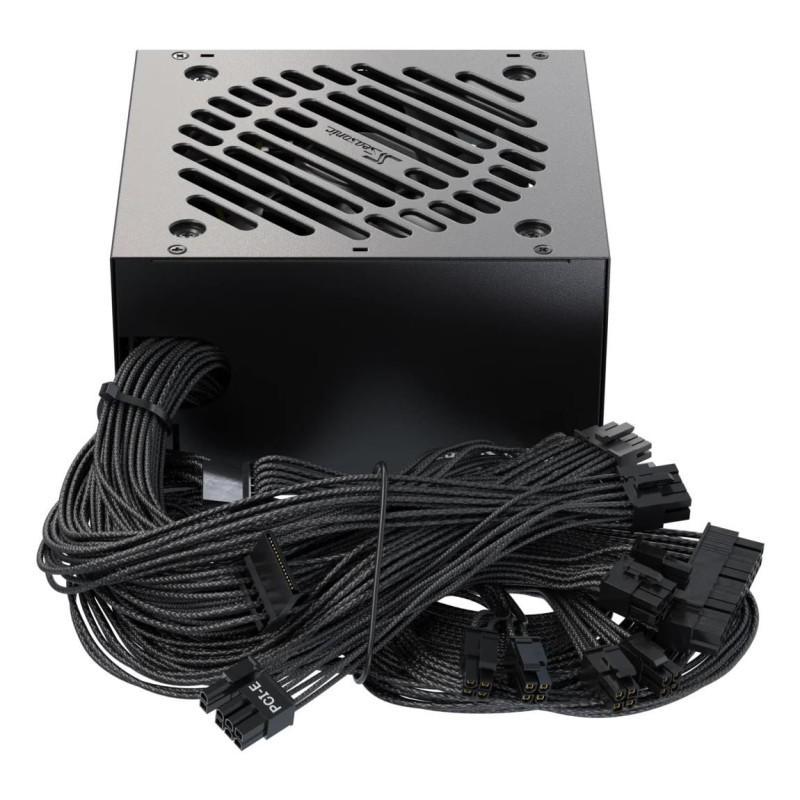

Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 750 W, SRP-CBC751-A5A51JF
Product reference:
2-4711173879442
Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 750 W, SRP-CBC751-A5A51JF
Product reference:
2-4711173879442
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
CORE BC - Power Made Simple
The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic's trusted quality in a compact 140 mm design with a durable scratch-resistant finish.
With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.
Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.

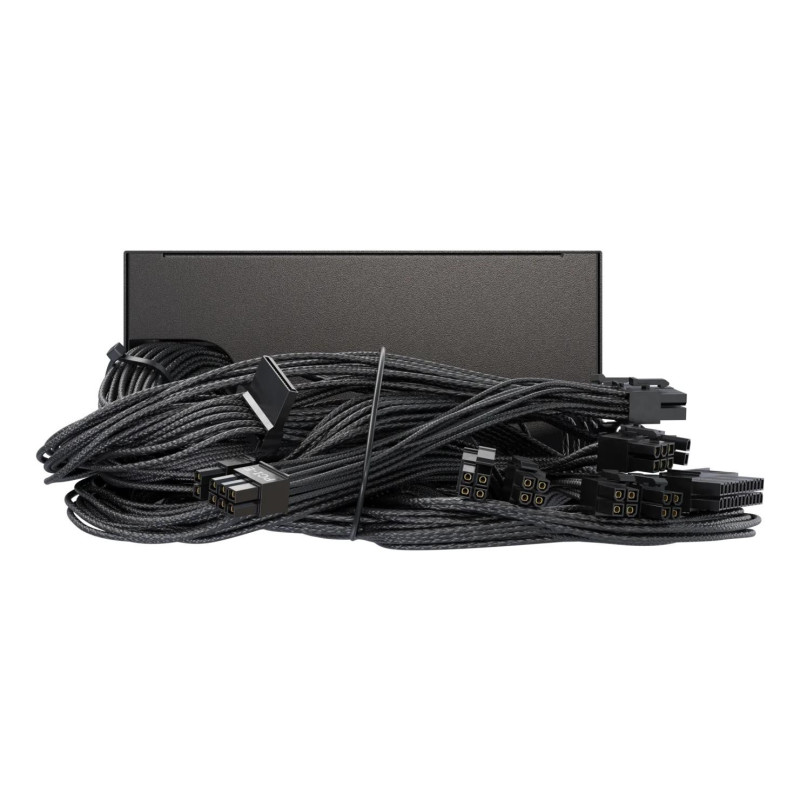

Next-Gen and Legacy GPU Cable
Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility
S2FC - Intelligent Fan Control Technology
The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply's fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| Bearing technology | Sleeve |
| Cabling type | Non-Modular |
| Certification | CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6 |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | BSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/UKCA/WEEE |
| Cooling type | Active |
| CPU power cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 140 mm |
| EPS power connector (4+4 pin) | Yes |
| Fan diameter | 120 mm |
| Fan location | Top |
| Height | 86 mm |
| Input current | 11 - 5.5 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Parameter Level | 3 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power protection features | Over current/Over power/Over voltage/Short circuit |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Product Net Weight | 2.26 kg |
| Purpose | PC |
| Shipping Box Depth | 60 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 12.1499996185 kg |
| Shipping Box Width | 20 cm |
| Summary | Seasonic CORE BC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BSMI, CB, CCC, CE, EAC, REACH, RoHS, UKCA, WEEE, cTUVus, Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6 |
| Sustainability certificates | ENERGY STAR |
| Total power | 750 W |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.114 |
| Unit Box Width | 0.24 |
| Unit Calculated Volume | 0.00648 cubm |
| Unit Calculated Weight | 2.43 kg |
| Units per Shipping Box | 5 |
| Vendor Homepage | https://seasonic.com/core-bc/ |
| Width | 150 mm |
