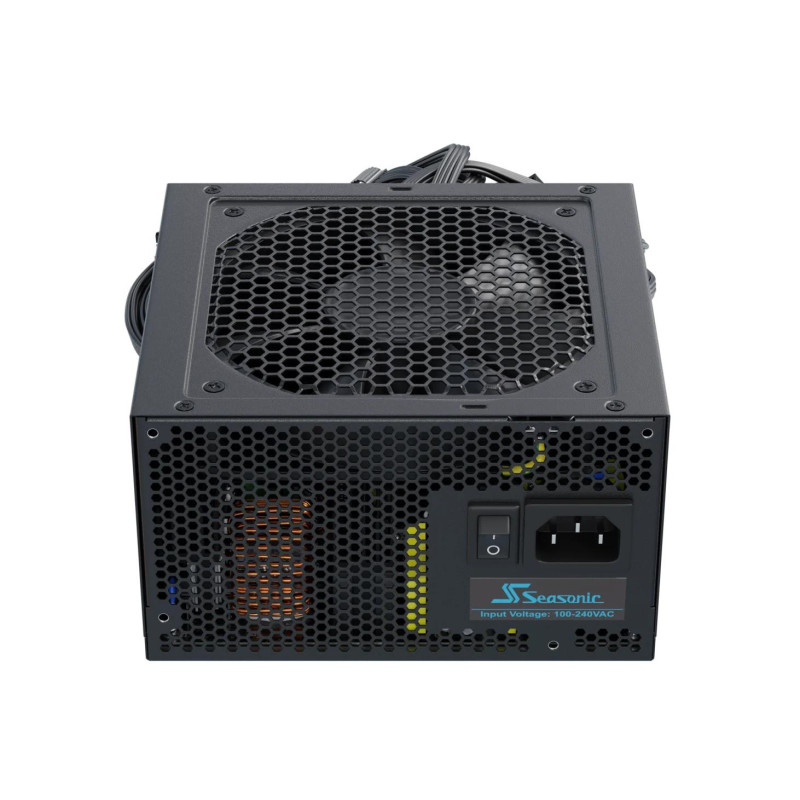

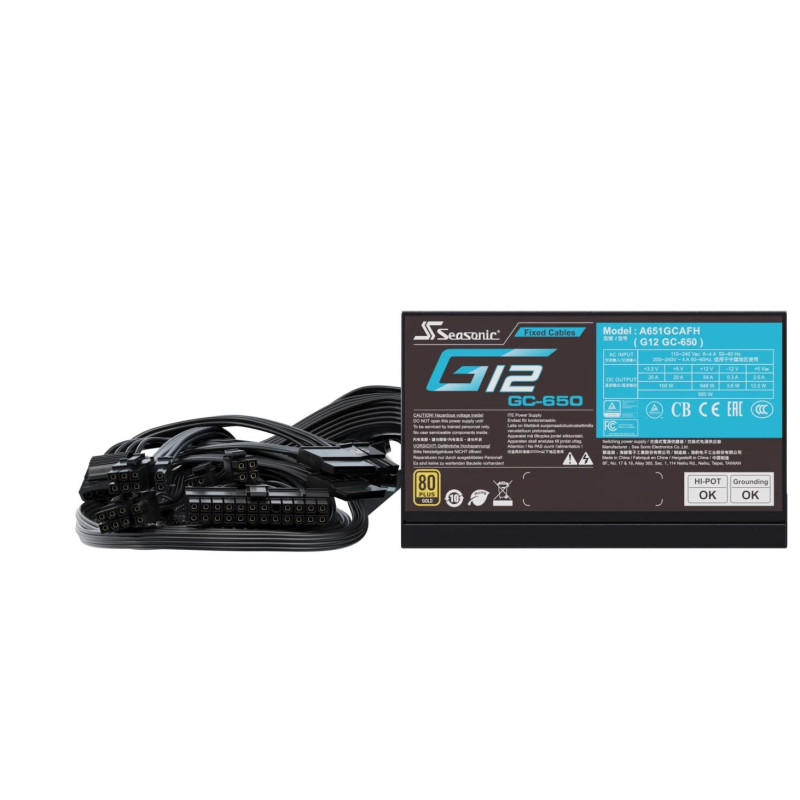

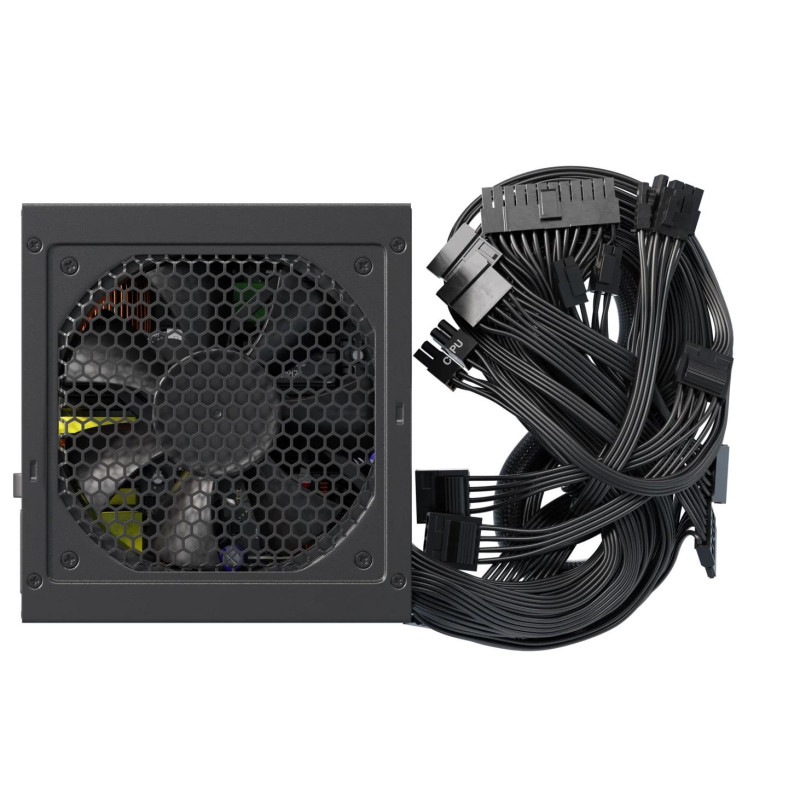

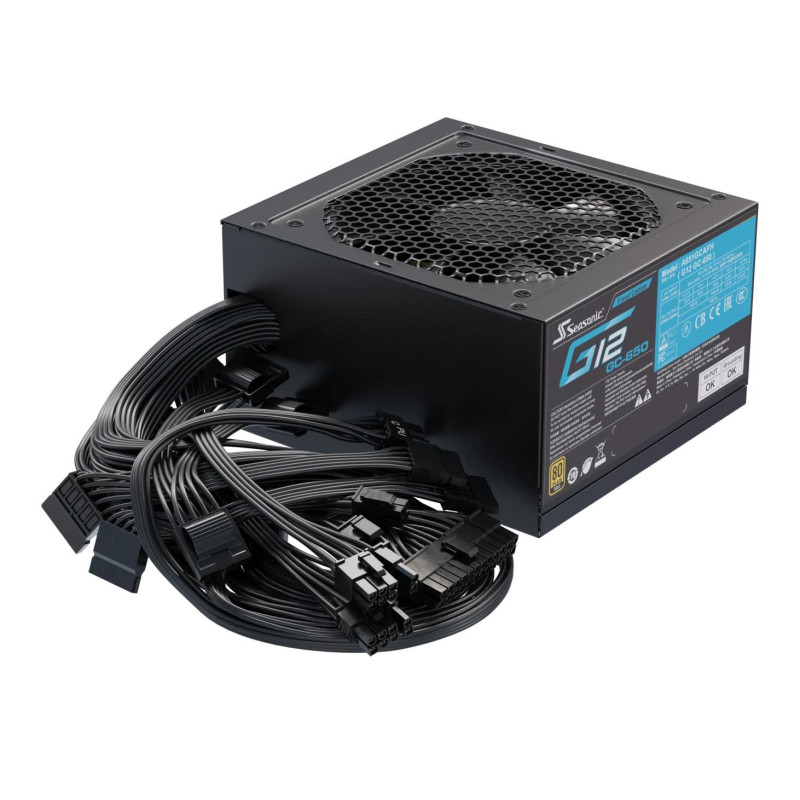

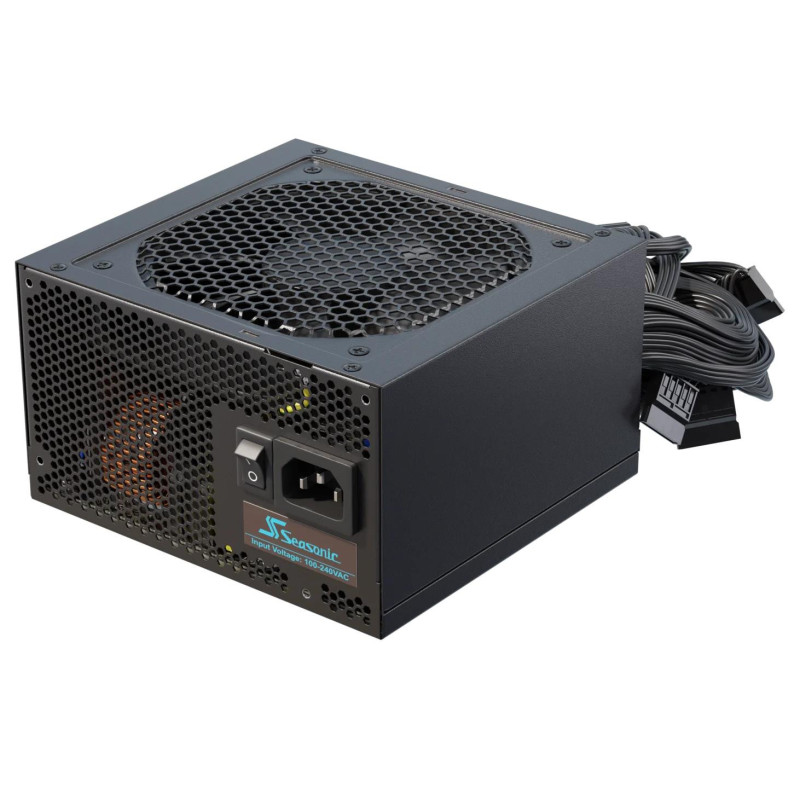

Seasonic Netzteil 650W G12 (GC-650)



The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry's leading Smart and Silent Fan Control (S2FC).


Summary Seasonic Netzteil 650W G12 GC-650 80+Gold. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, SATA
Vendor Homepage https://seasonic.com/g12-gc/
Unit Box Height 0.19
Unit Box Length 0.275
Unit Box Width 0.12
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Combined power (+12V) 648 W
Combined power (+3.3V) 100 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Efficiency 90 %
Input current 8 A
Max output current (+12V) 54 A
Max output current (+3.3V) 20 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Power protection features Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage
Total power 650 W
Cabling type Non-Modular
80 PLUS certification 80 PLUS Gold
Mean time between failures (MTBF) 100000 h
Power supply unit (PSU) form factor ATX
Purpose PC
Cooling type Active
Fan diameter 120 mm
Number of fans 1 fan(s)
On/off switch Yes
Product colour Black
Operating temperature (T-T) 0 - 50 °C
Cables included AC,CPU,PCIe,SATA
Certification cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Compliance certificates REACH/RoHS/WEEE
Depth 140 mm
Height 86 mm
Width 150 mm
Package type Box
Units per Shipping Box 5
Unit Calculated Volume 0.007812 cubm
Unit Calculated Weight 2.58 kg
