Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

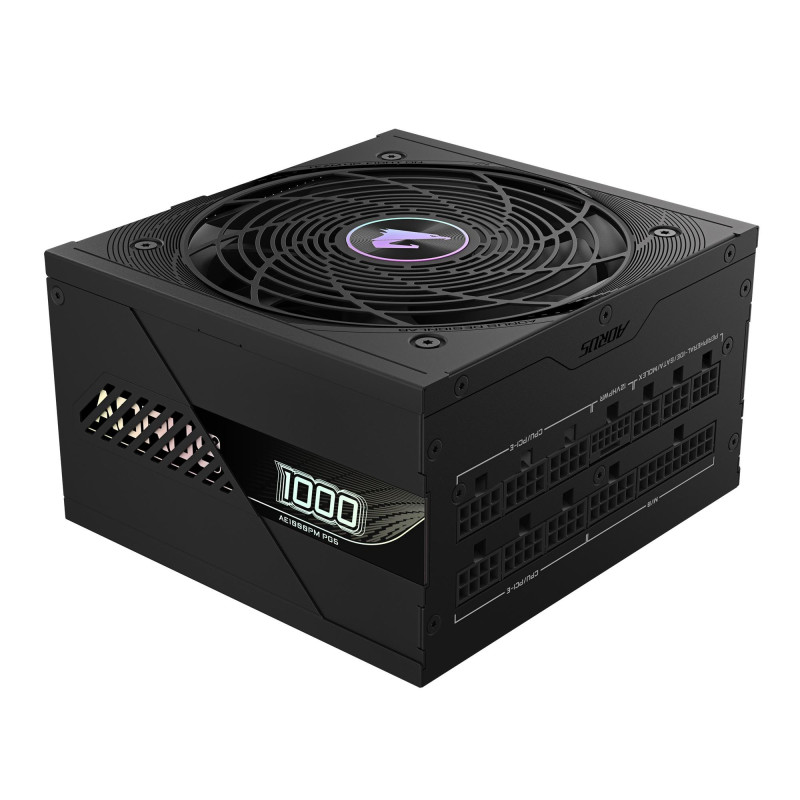

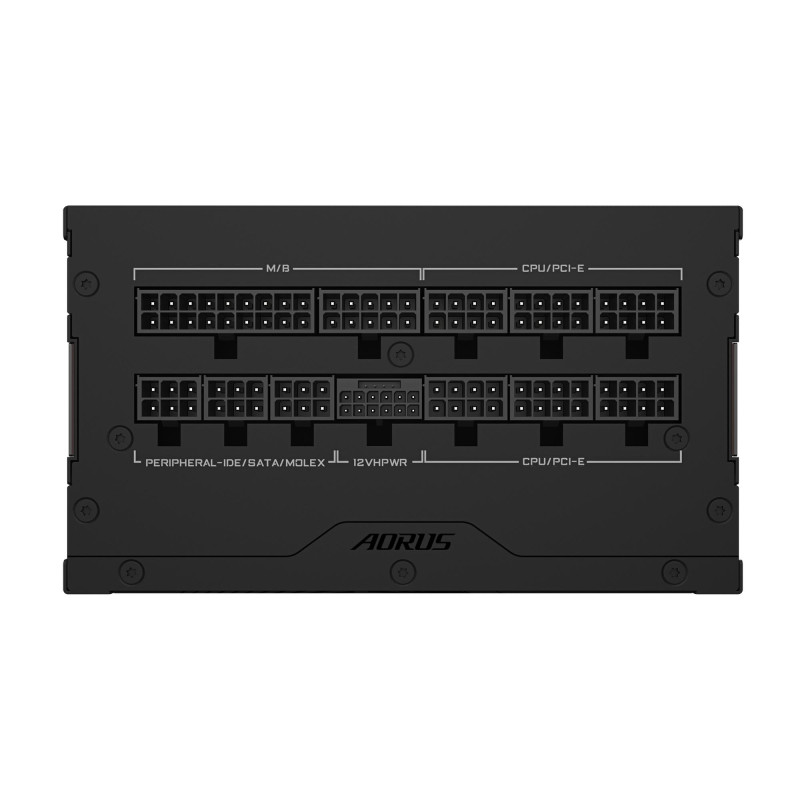

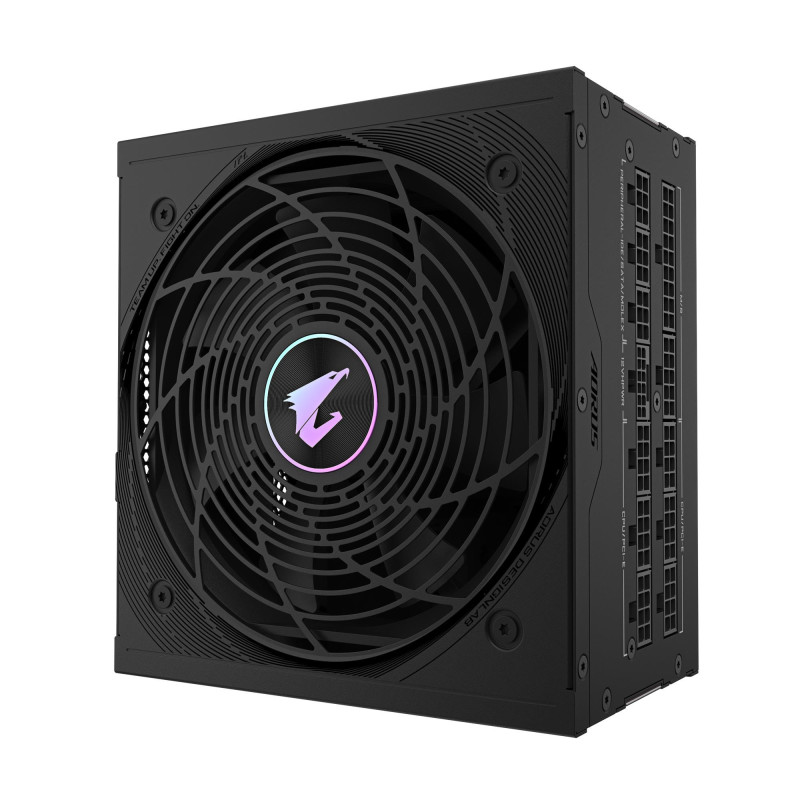

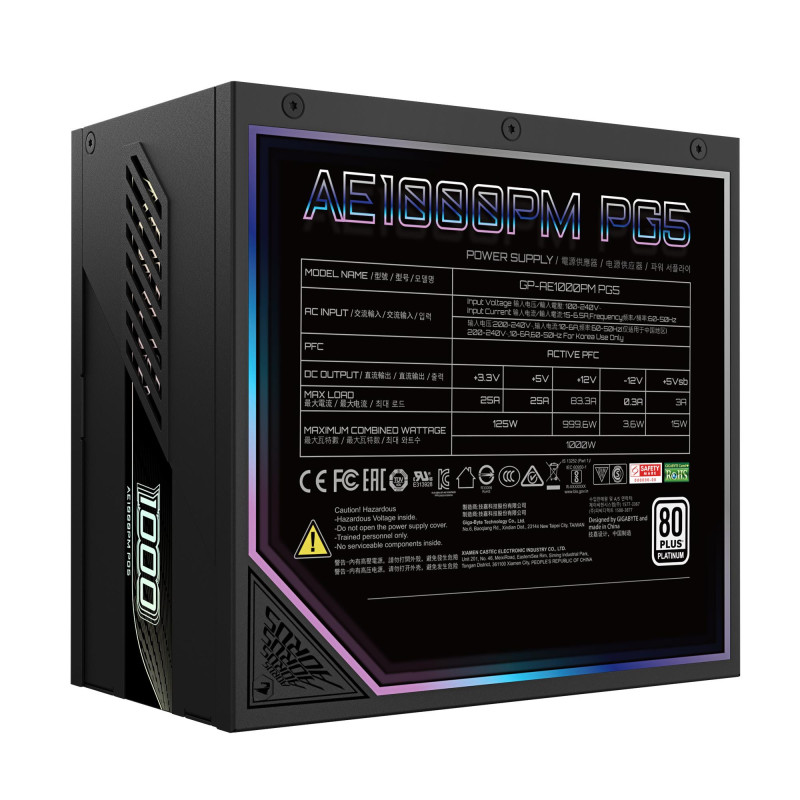

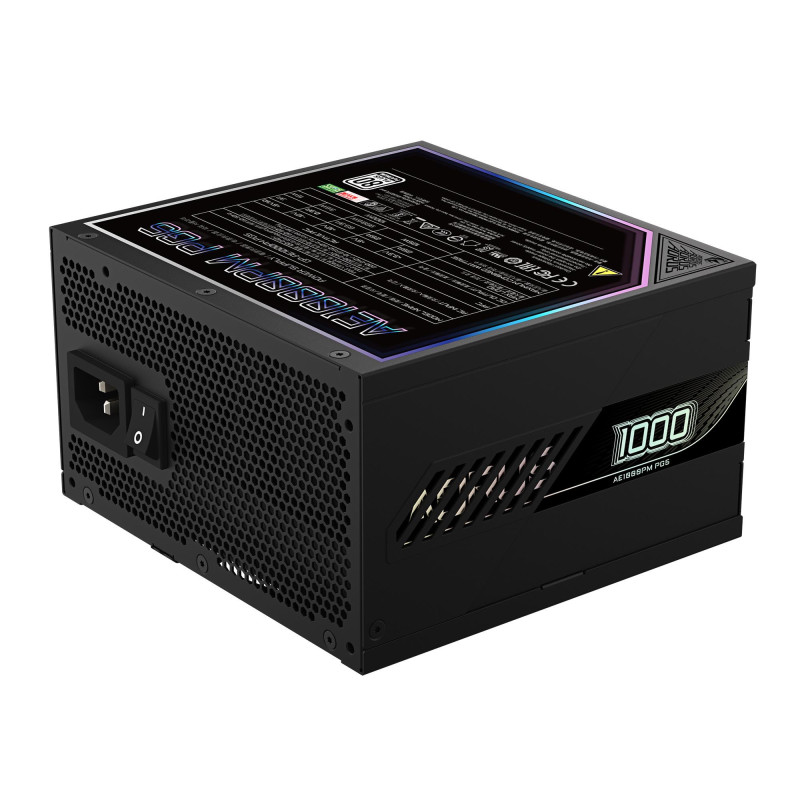

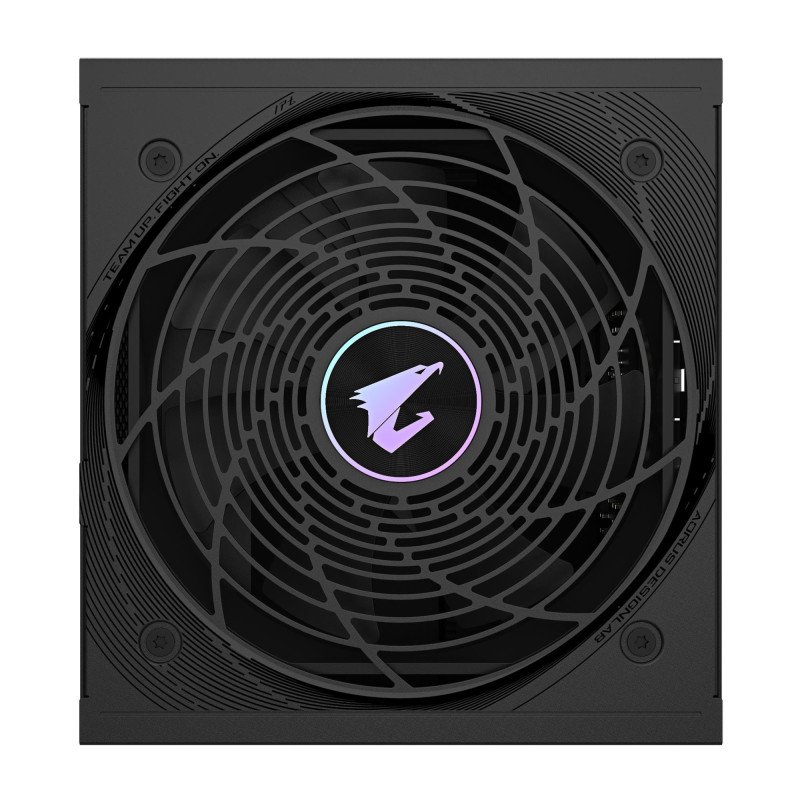

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240V |
| ATX power connector (20 + 4 pins) | Yes |
| ATX version | 3.1 |
| Height | 86 mm |
| Cooling coating type | Ball bearing |
| Cooling type | Active |
| Total power | 1000 W |
| Gross weight | 3.76 kg |
| CPU power connector (4 + 4 pins) | Yes |
| Maximum output voltage (+12 V) | 83.3 A |
| Maximum output voltage (+12 VSB) | 3 A |
| Maximum output voltage (+3.3 V) | 25 A |
| Maximum output voltage (+5 V) | 25 A |
| Maximum output voltage (-12 V) | 0.3 A |
| Efficiency | 92 % |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) Type | Active |
| Warranty period | 10 years |
| Length | 140 mm |
| Complex power (+12 V) | 999.6 W |
| Complex power (+3.3 V) | 125 W |
| Complex power (+5 VSB) | 15 W |
| Complex power (+5V) | 125 W |
| Complex power (-12 V) | 3.6 W |
| Shelf life | 16 ms |
| Power protection features | Overvoltage protection/Overheating protection/Undervoltage protection/Short circuit/Over power/Over DC current |
| Power supply unit (PSU) form factor | ATX |
| Model name | GP-AE1000PM PG5 |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 650 mm |
| Net weight | 3 kg |
| On/off button | Yes |
| Package weight | 3724 g |
| Package height | 120 mm |
| Package depth | 206 mm |
| Package width | 340 mm |
| Packaging type | "Box" |
| Purpose | PC |
| PCI Express connector | Yes |
| PCI Express power connectors (6 + 2 pins) | 6 |
| Wired transmission type | Fully modular |
| Peripheral (Molex) power connector (4-pin) | 4 |
| Width | 150 mm |
| Product color | Black |
| Number of SATA electrical connectors | 6 |
| 80 PLUS certificate | 80 PLUS Platinum |
| Shipping Box Depth | 63.5 cm |
| Shipping Box Height | 23.5 cm |
| Shipping Box Weight | 18.8 kg |
| Shipping Box Width | 38 cm |
| Summary | GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Weight | 3080 g |
| Correct signal delay range | 100 - 150 ms |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.21 |
| Unit Ugly Volume | 0.01134 cubm |
| Vendor Homepage | https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-rev-10#kf |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 100000 h |
| Unit height | 12.5 cm |
| Unit depth | 34 cm |
| Unit width | 21 cm |
| Number of units per shipping box | 5 |
| Input current | 15 - 6.5 A |
