Power Supply, MSI, MAG A750GL PCIE5 II, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MAGA750GLPCIE5II
Product reference: 2-4711377246705

Power Supply, MSI, MAG A750GL PCIE5 II, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MAGA750GLPCIE5II

Product reference: 2-4711377246705
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
104,02
106,14 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

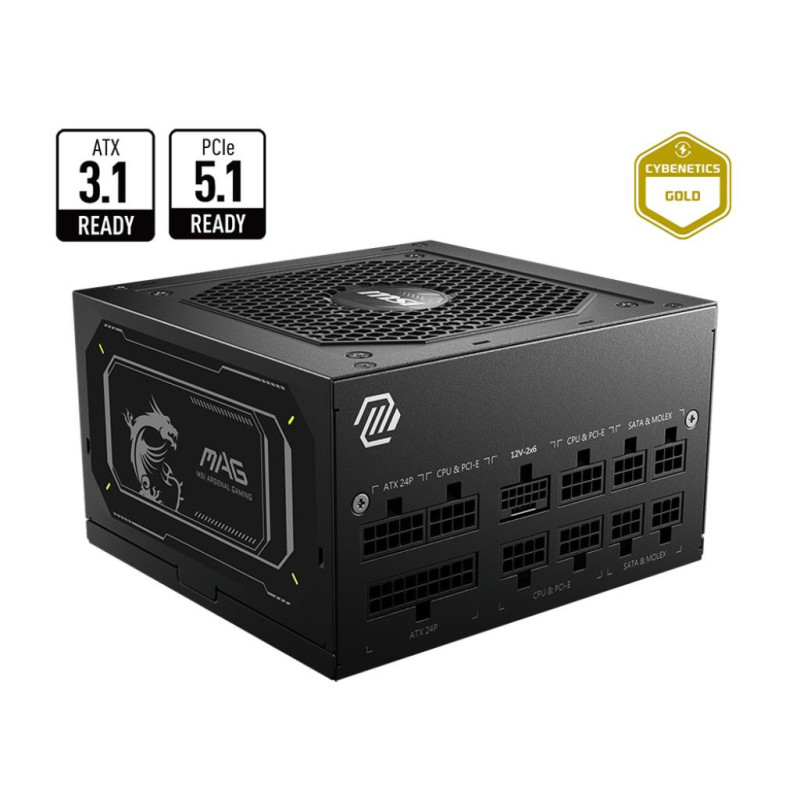

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

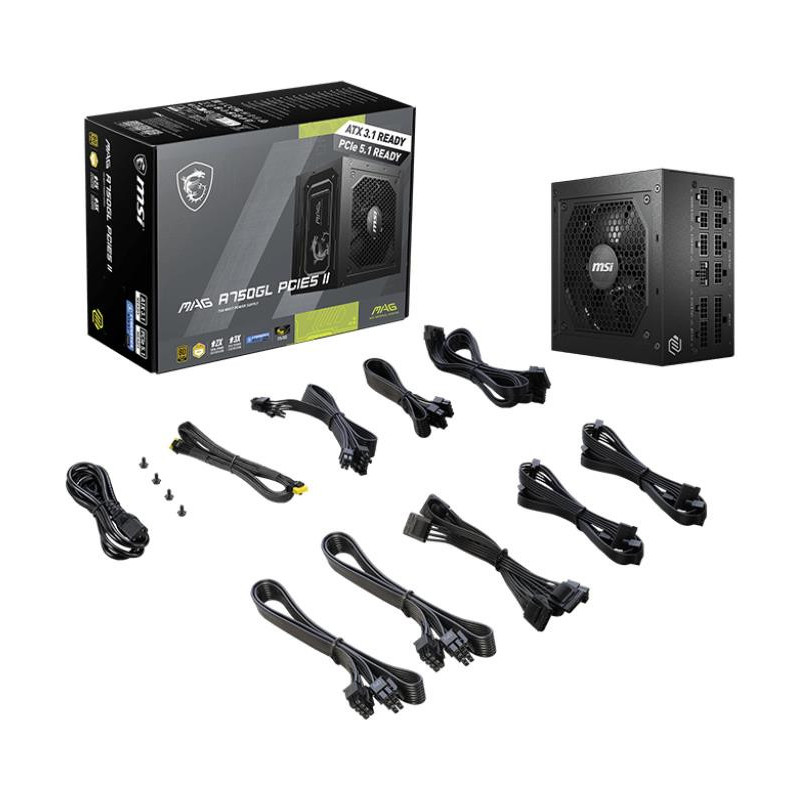

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

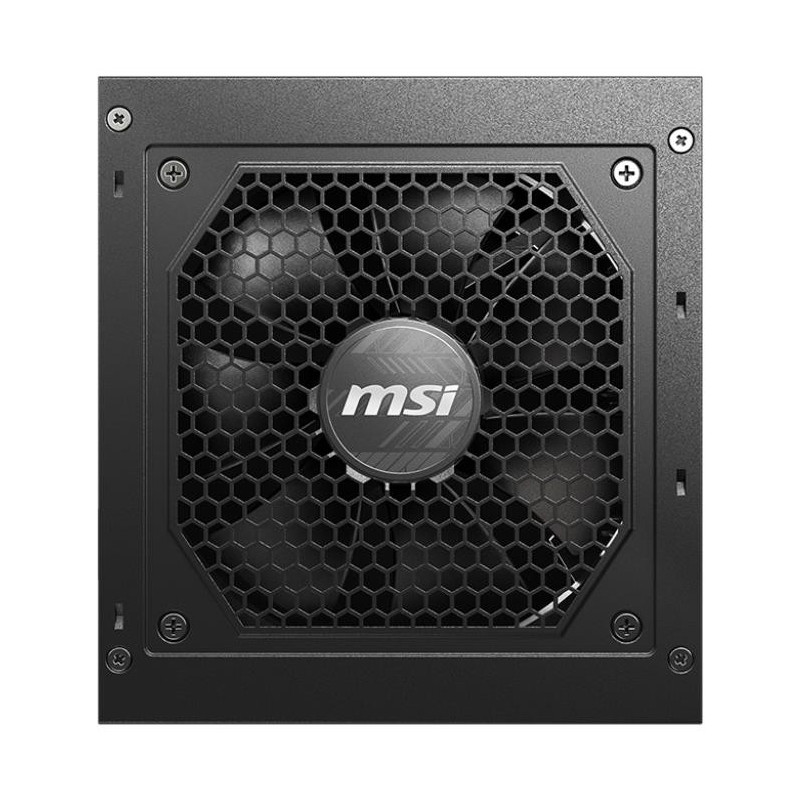

FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

  • ATX 3.1 ready, native PCIe 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • Full modular design,Flat cables
  • 80 Plus Gold certified for high efficiency with Active PFC design
  • Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
  • 120 mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design

Summary MSI MAG A750GL PCIE5 II. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Vendor Homepage https://www.msi.com/Power-Supply/MAG-A750GL-PCIE5-II/Overview
Unit Box Height 0.3
Unit Box Length 0.298
Unit Box Width 0.123
AC input frequency 47 - 63 Hz
AC input voltage 100 - 240 V
Combined power (+12V) 744 W
Combined power (+3.3V) 110 W
Combined power (+5V) 110 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Efficiency 90 %
Max output current (+12V) 62 A
Max output current (+3.3V) 20 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Number of +12V rail(s) 1
Power Factor Correction (PFC) type Active
Power protection features Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power 750 W

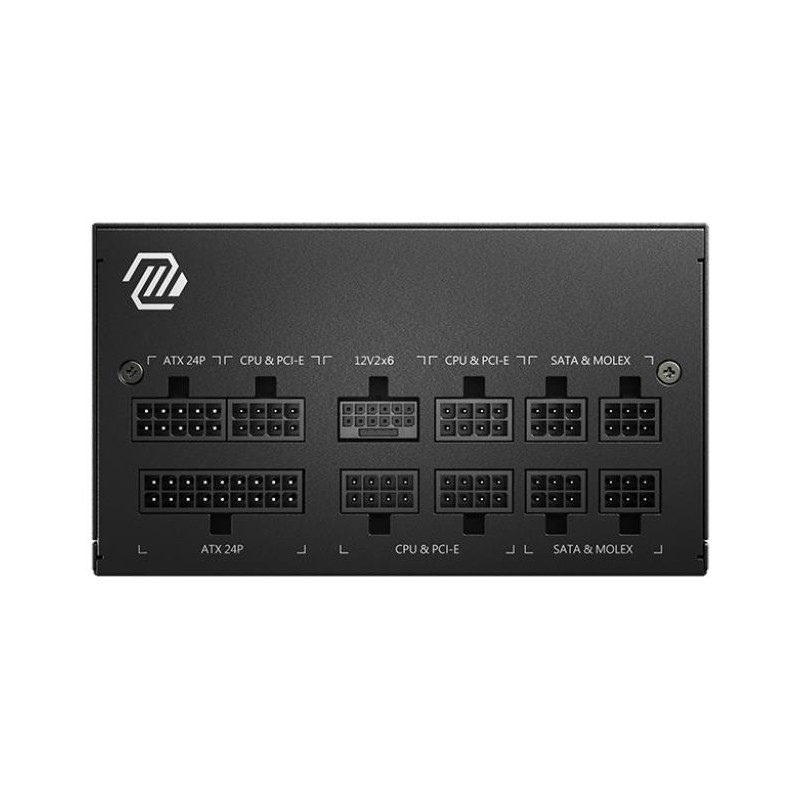

Cabling type Fully-Modular
CPU power connector (4+4 pin) Yes
EPS power connector (4+4 pin) Yes
Motherboard power cable length 600 mm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 8
PCI Express power connectors (16-pin) 1
PCI Express power connectors (6+2 pin) 3
Peripheral (Molex) power cable length 500 mm
Peripheral (Molex) power connectors (4-pin) 4
SATA power cable length 150/500 mm
80 PLUS certification 80 PLUS Gold
ATX version 3.1
Bearing technology FDB
Power supply unit (PSU) form factor ATX
Purpose PC
Cooling type Active
Fan diameter 120 mm
Number of fans 1 fan(s)
On/off switch Yes
Product colour Black
Depth 140 mm
Height 86 mm
Width 150 mm
Package type Box
Model name MAG A750GL PCIE5 II
Units per Shipping Box 6
Unit Calculated Volume 0.01012 cubm
Unit Calculated Weight 1.92 kg
