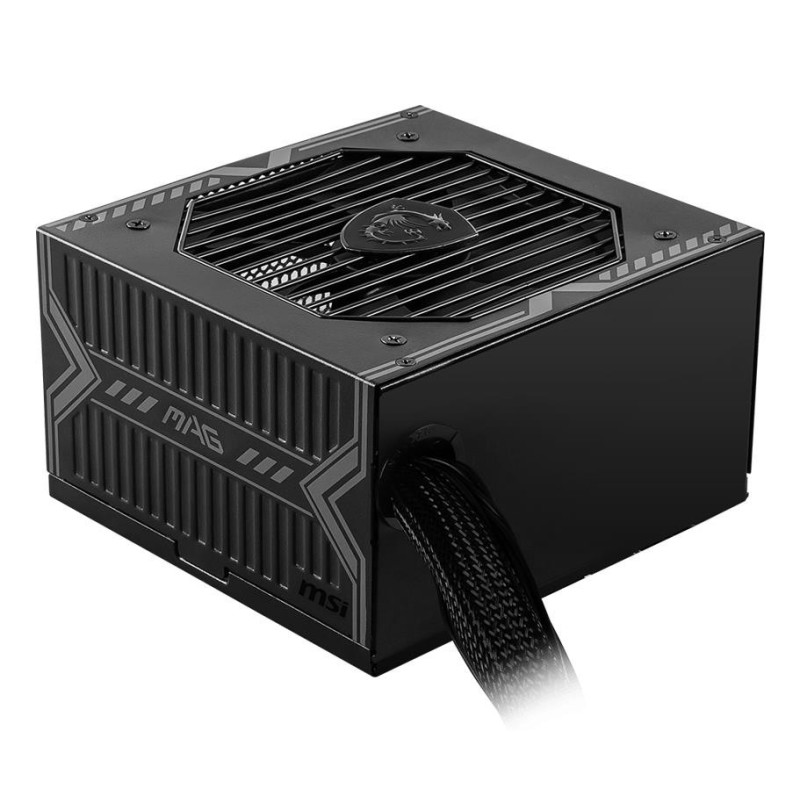

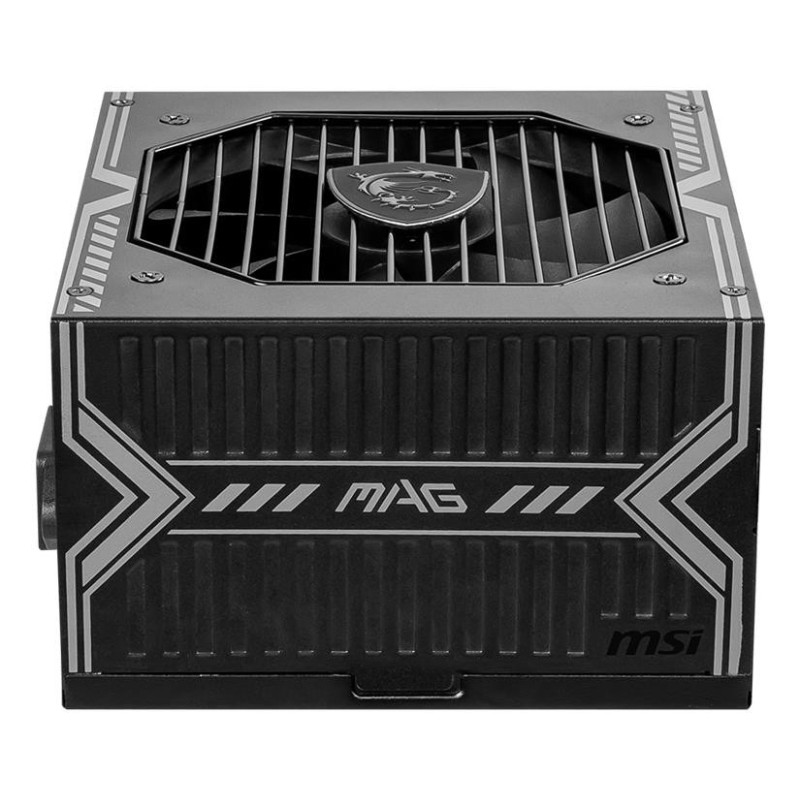

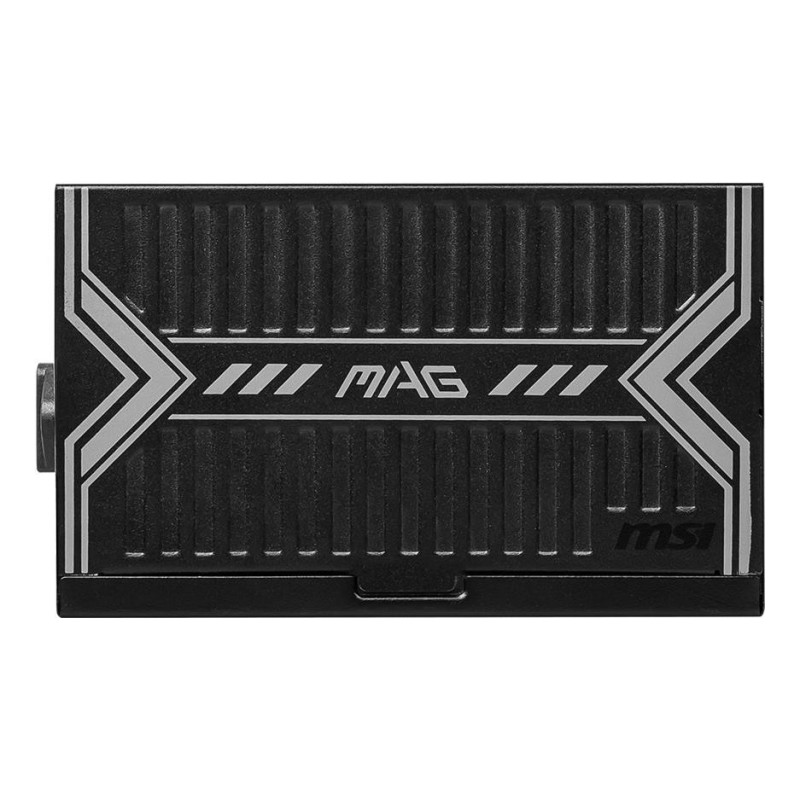

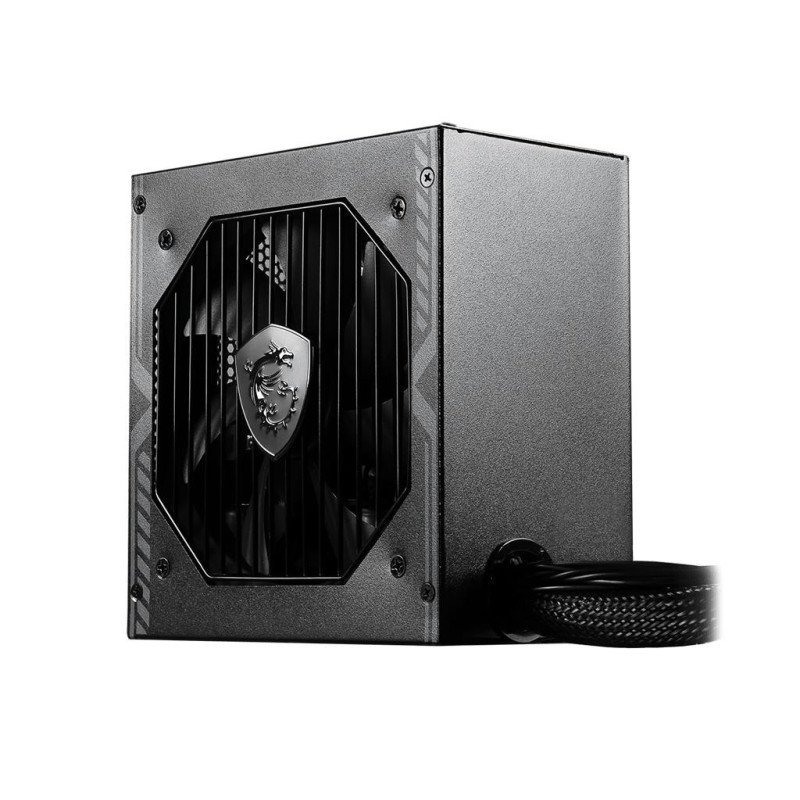

Power Supply, MSI, 650 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MAGA650BN
Product reference: 2-4719072849627

Power Supply, MSI, 650 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MAGA650BN

Product reference: 2-4719072849627
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
58,75
59,95 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

120MM LOW NOISE FAN
The fan's sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.

5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.

  • 80 Plus Bronze certified for high efficiency
  • 120mm Low Noise Fan
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP
  • DC-DC Circuit Design
  • Active PFC design

80 PLUS certification 80 PLUS Bronze
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
ATX power connector (20+4 pin) Yes
ATX Power connector (24-pin) No
Cabling type Non-Modular
Combined power (+12V) 648 W
Combined power (+3.3V) 110 W
Combined power (+5V) 110 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Cooling type Active
CPU power connector (4+4 pin) Yes
Depth 140 mm
Efficiency 85 %
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) No
Fan diameter 120 mm
Floppy disk drive connector No
Harmonized System (HS) code 84733020
Height 86 mm
Max output current (+12V) 54 A
Max output current (+3.3V) 20 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 20 A
Max output current (-12V) 0.3 A
Maximum input current (@110V) 10 A
Maximum input current (@220V) 5 A
Model name MAG A650BN
Motherboard power cable length 600 mm
Motherboard power connector 20+4 pin ATX
Number of fans 1 fan(s)
Number of SATA power connectors 5
On/off switch Yes
PCI Express power connectors (6+2 pin) 2
Peripheral (Molex) power connectors (4-pin) 2
Power Factor Correction (PFC) type Active
Power protection features Over current/Over power/Over voltage/Short circuit
Power supply unit (PSU) form factor ATX
Product colour Black
Purpose PC
Summary MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Total power 650 W
Unit Box Height 0.19
Unit Box Length 0.246
Unit Box Width 0.106
Unit Calculated Volume 0.006598 cubm
Unit Calculated Weight 2.27 kg
Units per Shipping Box 6
Vendor Homepage https://www.msi.com/Power-Supply/MAG-A650BN/Overview
Width 150 mm
