Power Supply, MONTECH, APX 750W, ATX, PC, 100 - 240 V, 750 W, APX750
Product reference: 2-4710562741094

Power Supply, MONTECH, APX 750W, ATX, PC, 100 - 240 V, 750 W, APX750

Product reference: 2-4710562741094
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
54,39
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

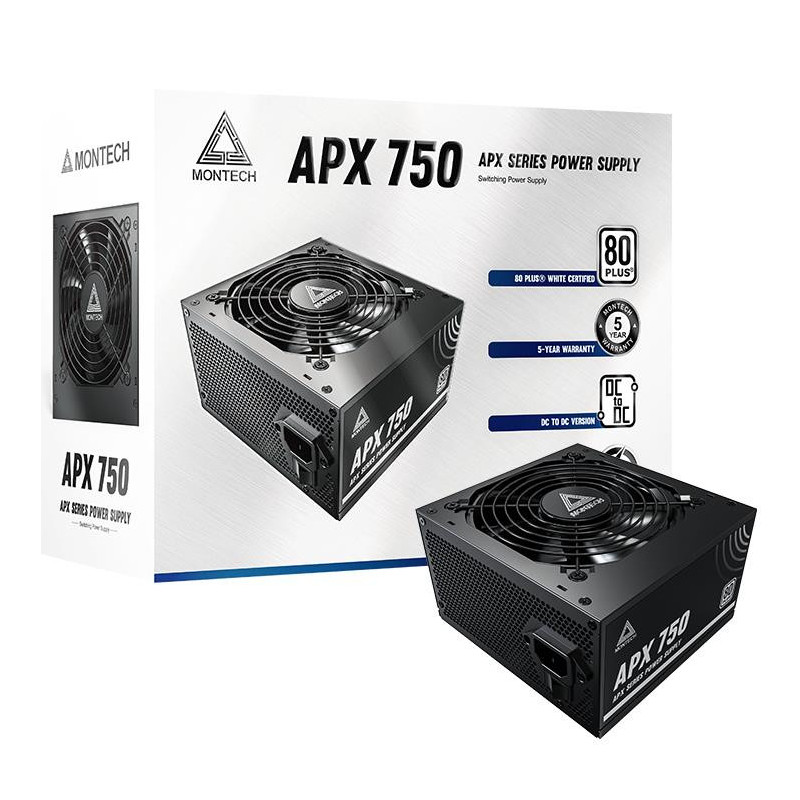

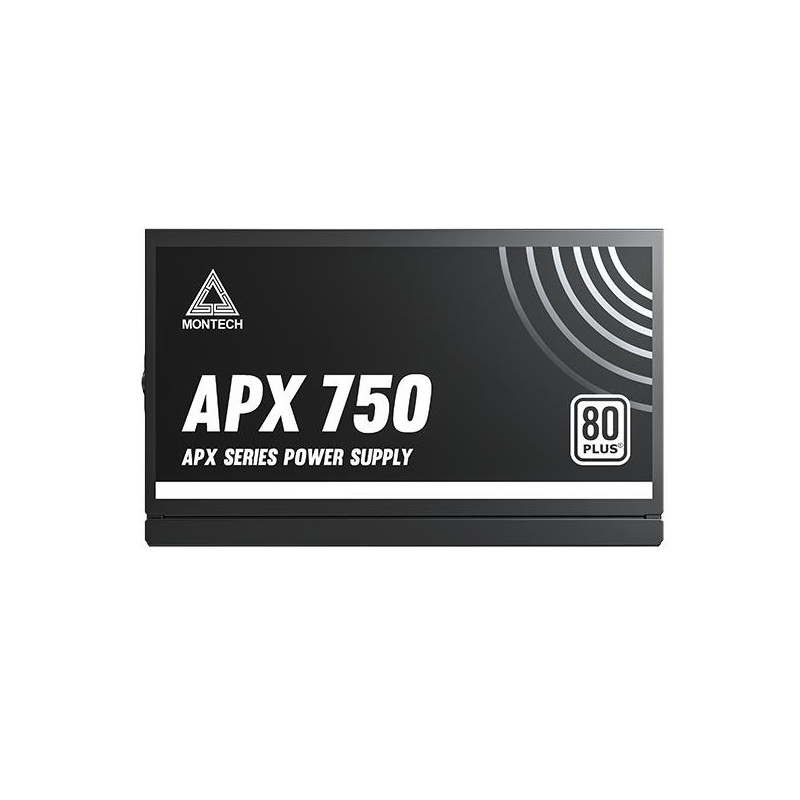

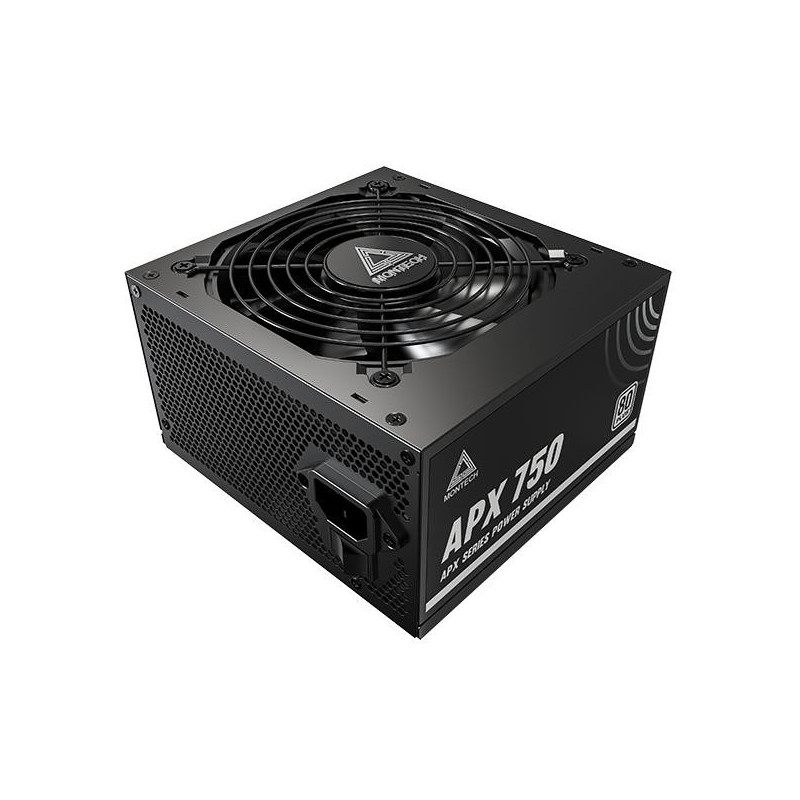

APX 750W



Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX.

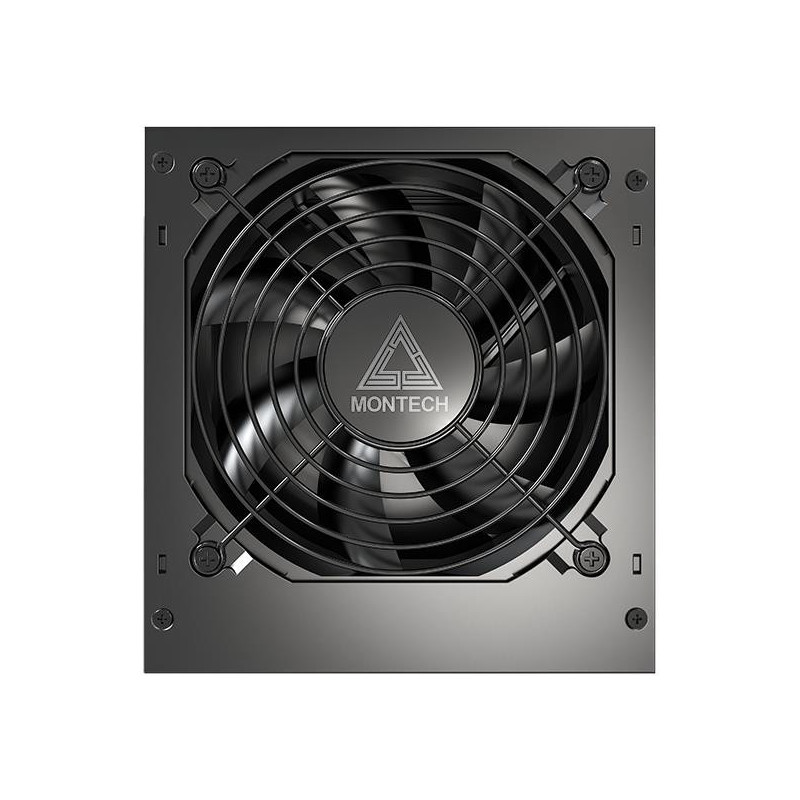

Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.

APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.

APX power supply is engineered to deliver consistent power across diverse electrical systems.

Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.

Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.


80 PLUS certification 80 PLUS White
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Bearing technology HDB
Combined power (+12V) 750 W
Combined power (+3.3V) 100 W
Combined power (+5V) 100 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Compliance certificates CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA
Cooling type Active
CPU power connector (4+4 pin) Yes
Depth 140 mm
Fan diameter 120 mm
Height 86 mm
Input current 12 A

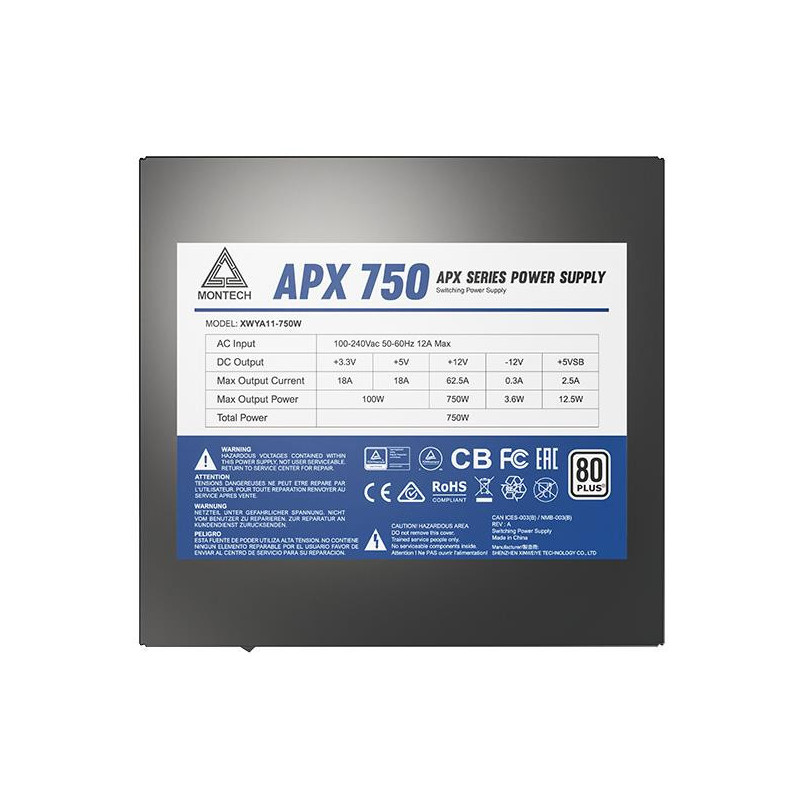

Max output current (+12V) 62.5 A
Max output current (+3.3V) 18 A
Max output current (+5V) 18 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Model name APX 750W
Motherboard power connector 20+4 pin ATX
Number of fans 1 fan(s)
Number of SATA power connectors 6
On/off switch Yes
Operating temperature (T-T) 0 - 40 °C
PCI Express power connectors (6+2 pin) 4
Peripheral (Molex) power connectors (4-pin) 3
Power protection features Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor ATX
Product colour Black
Product Net Weight 2 kg
Purpose PC
Shipping Box Depth 52.5 cm
Shipping Box Height 22 cm
Shipping Box Weight 16.7999992371 kg
Shipping Box Width 42.5 cm
Summary Montech APX750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA, cTUVus
Total power 750 W
Unit Box Height 0.095
Unit Box Length 0.25
Unit Box Width 0.2
Unit Calculated Volume 0.006136 cubm
Unit Calculated Weight 2.1 kg
Unit Depth 25 cm
Unit Height 9.5 cm
Unit Width 20 cm
Units per Shipping Box 8
Vendor Homepage https://www.montechpc.com/apx-750w
Width 150 mm
