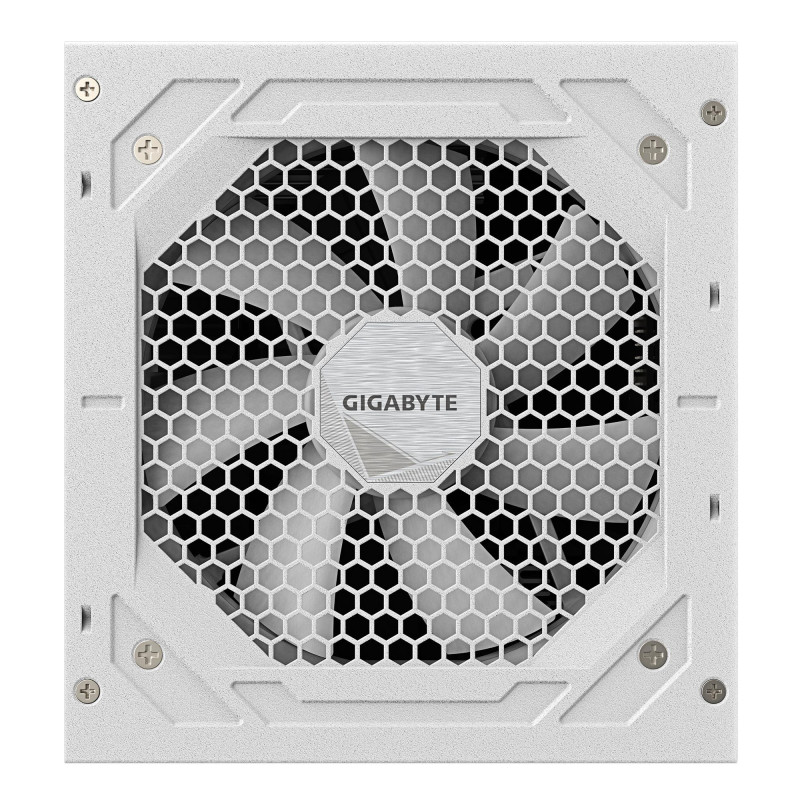

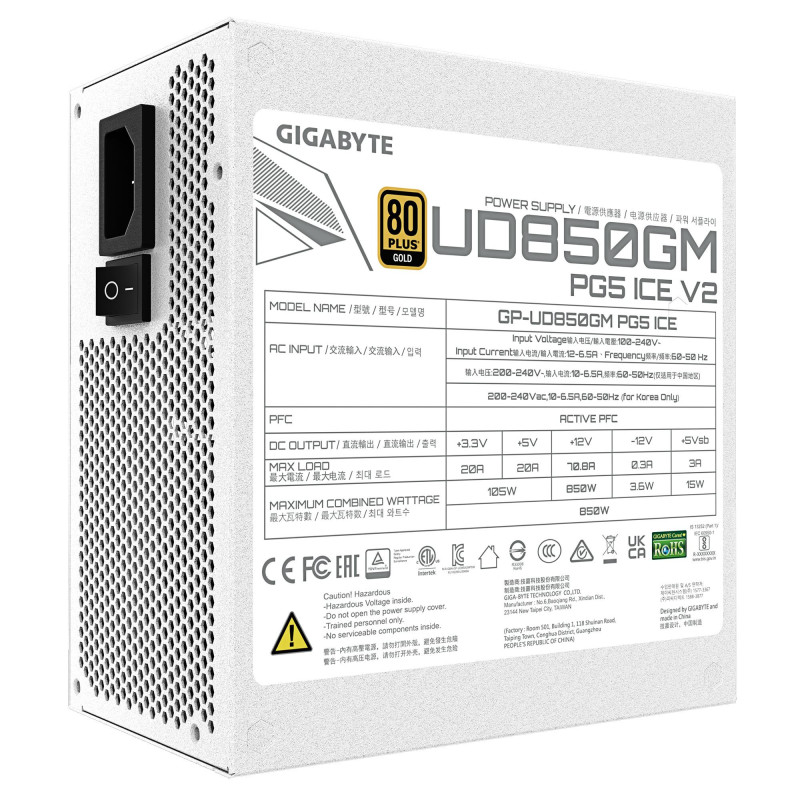

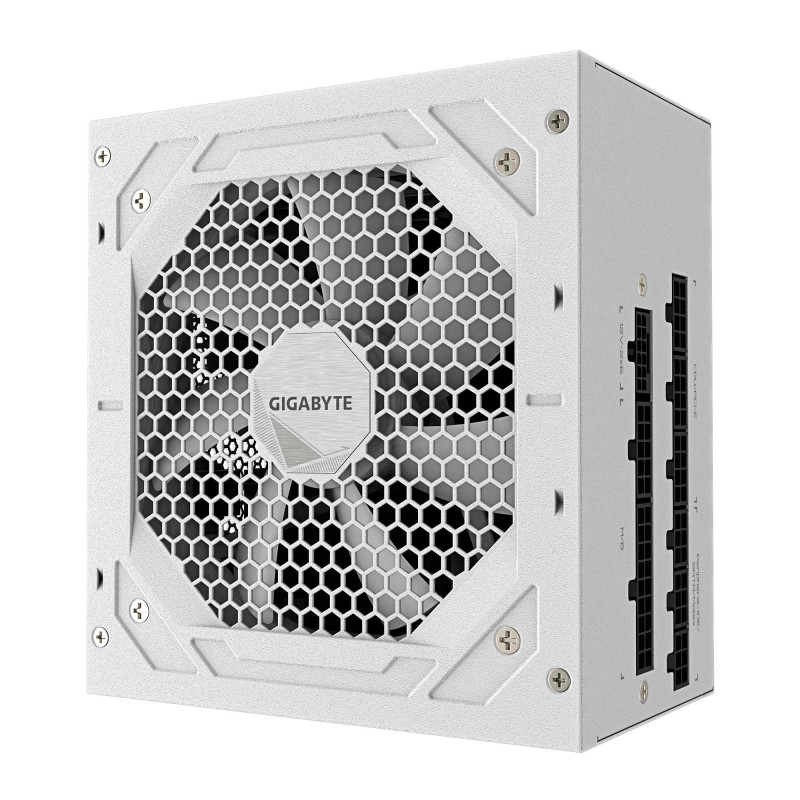

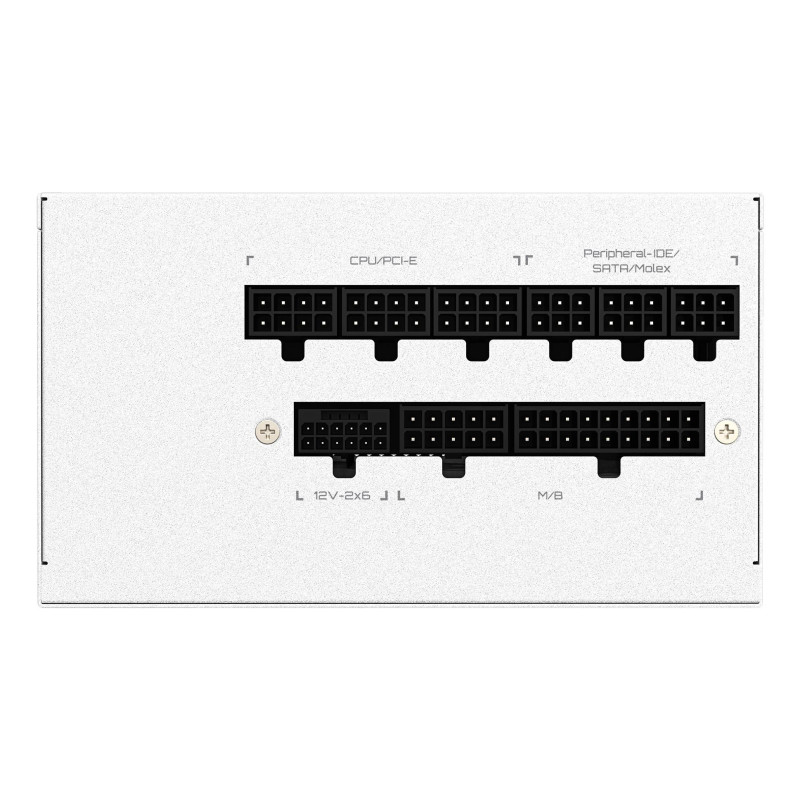

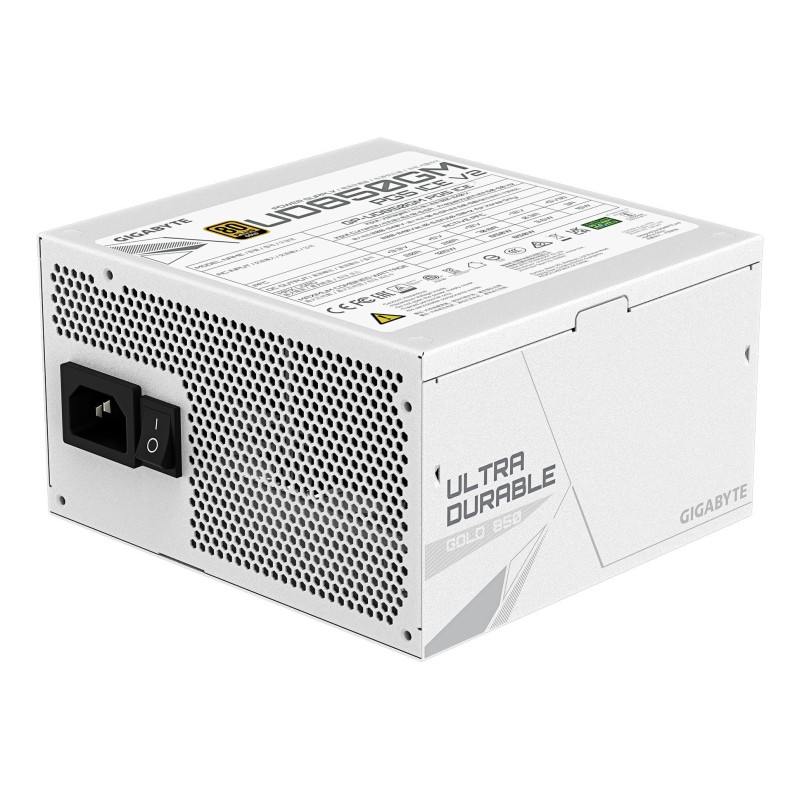

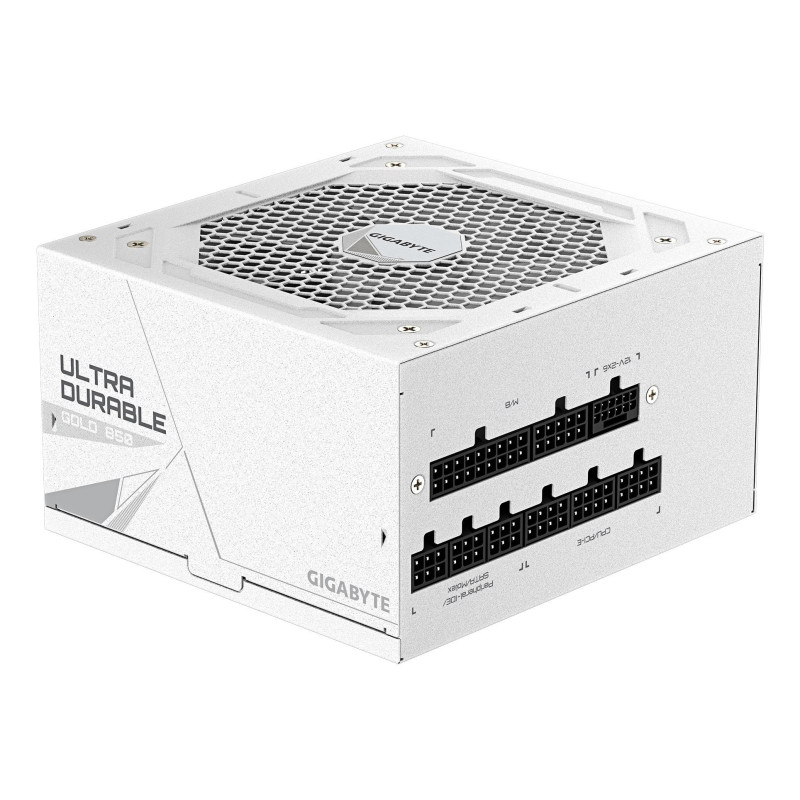

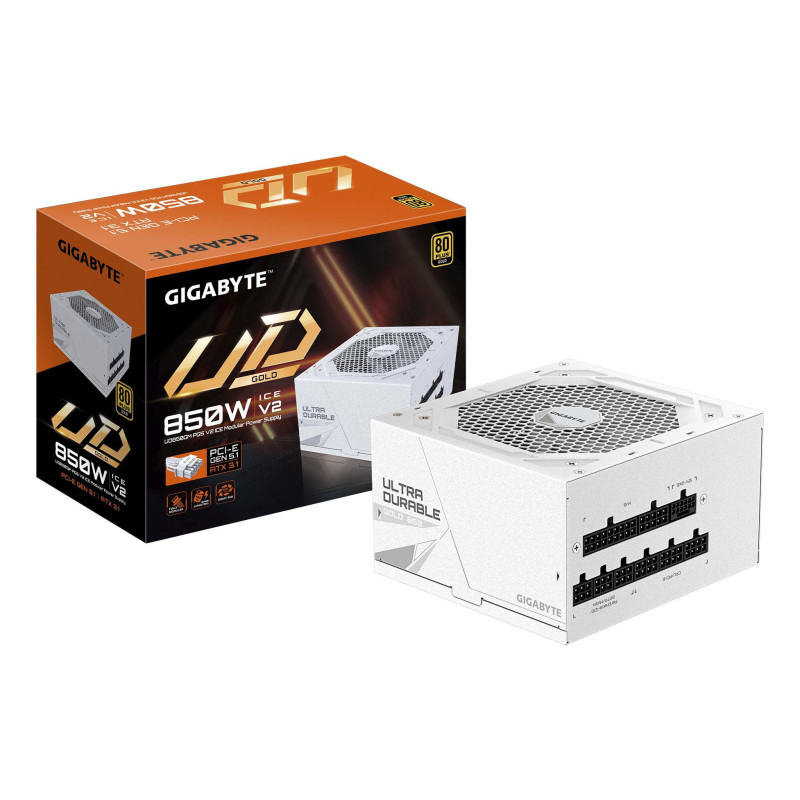

Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE
Product reference: 2-4719331556495

Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE

Product reference: 2-4719331556495
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
91,25 €
103,69 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Fully modular design
  • Powerful single +12V rail
  • Compact size
  • 100% Japanese capacitors
  • 120mm smart hydraulic bearing (HYB) van
  • Optimized thermal solution
  • OVP/OPP/SCP/UVP/OCP/OTP protection

AC input frequency50/60 Hz
AC input voltage100 - 240V
ATX version3.1
Height86 mm
Cooling coating typeHUB
Cooling typeActive
Total power850 W
Gross weight2.62 kg
CPU power connector (4 + 4 pins)Yes
CPU power cable length650 mm
Maximum output voltage (+12 V)70.8 A
Maximum output voltage (+12 VSB)3 A
Maximum output voltage (+3.3 V)20 A
Maximum output voltage (+5 V)20 A
Maximum output voltage (-12 V)0.3 A
Efficiency90 %
Number of EPS connections2
Floppy drive power connector1
Power factor0.9
Power Factor Correction (PFC) TypeActive
Warranty period10 years
Length140 mm
Complex power (+12 V)850 W
Complex power (+3.3 V)105 W
Complex power (+5 VSB)15 W
Complex power (+5V)105 W
Complex power (-12 V)3.6 W
Shelf life16 ms
Power protection featuresOvervoltage protection/Overheating protection/Undervoltage protection/Short circuit/Over power/Over DC current
Power supply unit (PSU) form factorATX
ModelGP-UD850GM PG5 ICE
Model nameUD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug
Motherboard power connector20+4 pin ATX
Motherboard power cable length610 mm
Net weight2.4 kg
On/off buttonYes
Package weight2560 g
Package height211 mm
Package depth269 mm
Package width618 mm
Packaging type"Box"
PurposePC
PCI Express power cable length600 mm
PCI Express connectorYes
PCI Express power connectors (6 + 2 pins)4
Wired transmission typeFully modular
Peripheral (Molex) power connector (4-pin)3
Width150 mm
Product colorWhite
Number of SATA electrical connectors8
80 PLUS certificate80 PLUS Gold
Shipping Box Depth61.5 cm
Shipping Box Height27.8 cm
Shipping Box Weight13.1 kg
Shipping Box Width23 cm
SummaryGIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Weight2400 g
Unit Box Height0.118
Unit Box Length0.254
Unit Box Width0.212
Unit Ugly Volume0.007865 cubm
Vendor Homepagehttps://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-ICE#kf
Fan diameter120 mm
Number of fans1 fan(s)
Mean time between failures (MTBF)100000 h
Unit height11.8 cm
Unit depth25.4 cm
Unit width21.2 cm
Number of units per shipping box5
Input current12 - 6.5 A
PCI Express power connectors (12 + 4 pin)1
PCI Express power connector (12 + 4 pin) cable length700 mm
