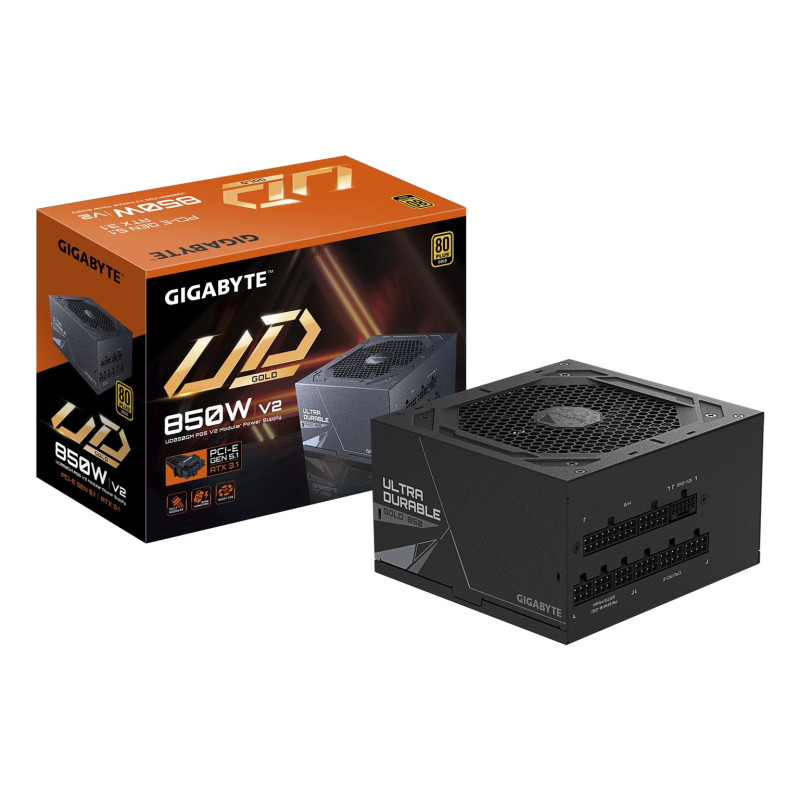

Power Supply - Gigabyte UD850GM 850W 90% Efficiency Fully Modular Black
Product reference:
14-4719331555993
The Gigabyte UD850GM power supply delivers 850W of total power with 90% efficiency and active PFC. It features a fully modular design, a 12cm fan for cooling, and plenty of connectors for various components.
Power Supply - Gigabyte UD850GM 850W 90% Efficiency Fully Modular Black
Product reference:
14-4719331555993
The Gigabyte UD850GM power supply delivers 850W of total power with 90% efficiency and active PFC. It features a fully modular design, a 12cm fan for cooling, and plenty of connectors for various components.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Gigabyte UD850GM 850W PG5 V2 Black
The Gigabyte UD850GM power supply offers 850W of total power with 90% efficiency and active PFC. It features a fully modular design, a 12cm fan for cooling, and multiple headers for various components.
- Powerful 850W output with 90% efficiency for optimal performance.

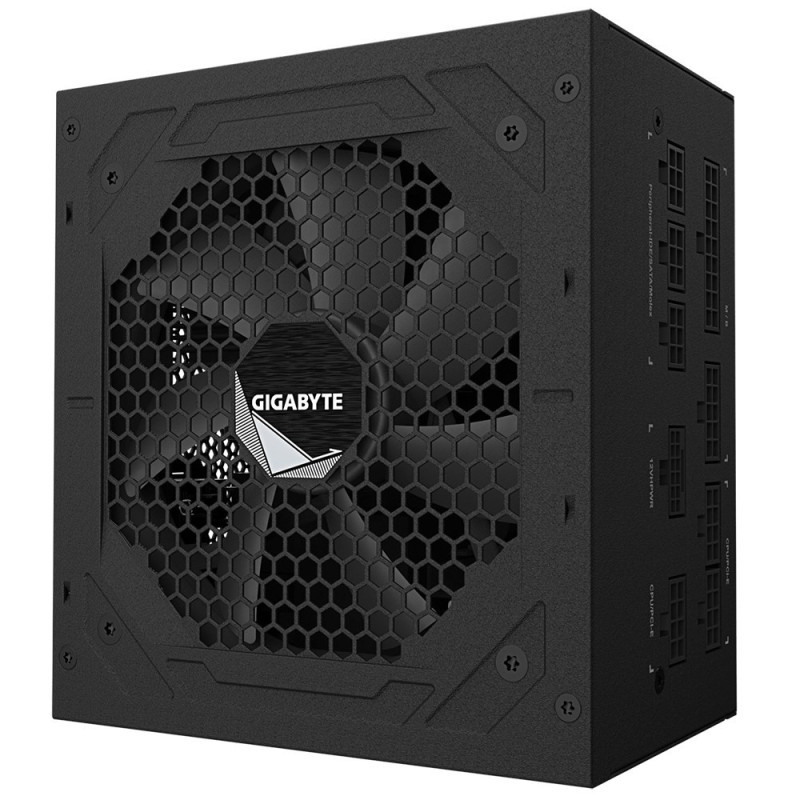

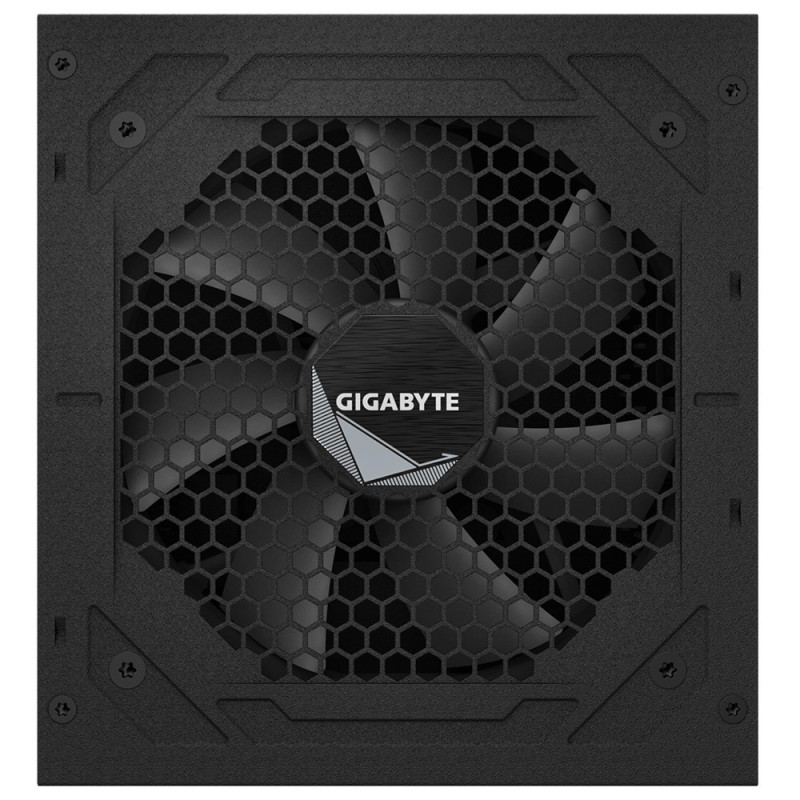

- Active cooling with a 12 cm fan for better thermal management.
- Fully modular cables for easy installation and improved airflow.
- 80 PLUS Gold certification ensures energy efficiency and reliability.
Design | |
|---|---|
| Product color | Black |
| On/Off switch | Yes |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Number of fans | 1 pc. |

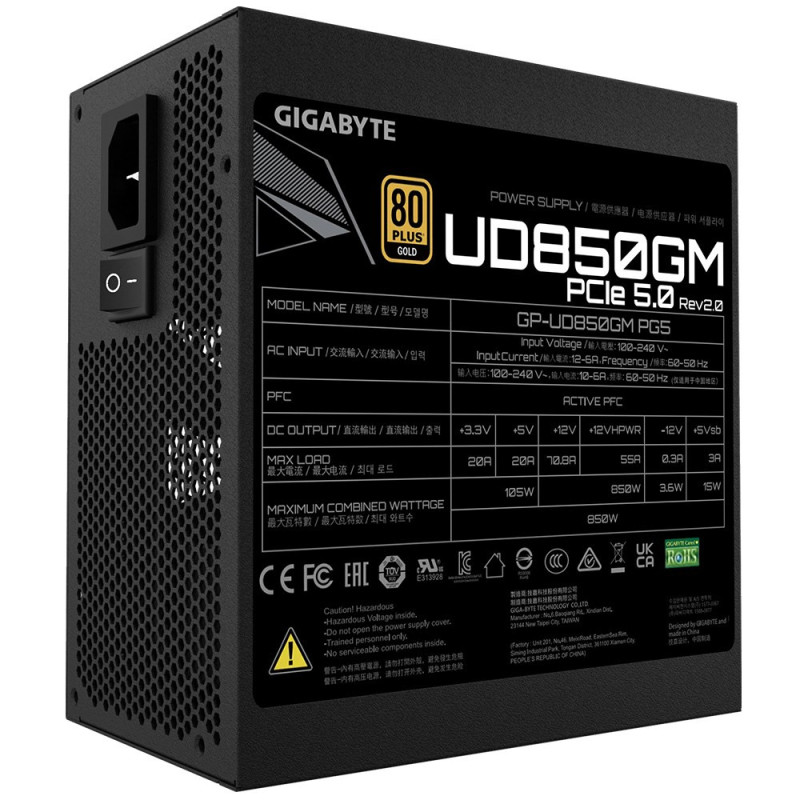

Power | |
| Total power | 850W |
| Power protection functions | Short circuit, Overvoltage, Overpower, Overheating, Undervoltage, Overcurrent |
| Power Factor Correction (PFC) Type | Active |
| Maximum output current (+12V) | 70.8 A |
| Efficiency | 90% |
| Shelf life | 16ms |
| Total power (+5V) | 105W |
| Total power (+12V) | 850W |
| Total power (-12V) | 3.6W |
| Maximum output current (+5Vsb) | 3 A |
| Maximum output current (+3.3V) | 20 A |
| Power factor | 0.9 |
| Total power (+5Vsb) | 15W |
| Total power (+3.3V) | 105W |
| AC input frequency | 50/60Hz |
| AC input voltage | 100 - 240V |
| Input current | 12 - 6A |
| Maximum output current (+5V) | 20 A |
| Maximum output current (-12V) | 0.3A |
Weight and dimensions | |
| Height | 86 mm |
| Weight | 2.4 kg |
| Width | 150mm |
| Depth | 140mm |
Performance | |
| Bearing technology | HYB |
| ATX version | 3.1 |
| 80 PLUS certificate | 80 PLUS Gold |
| Mean Time Between Failures (MTBF) | 100000 hours |
| Power supply unit (PSU) shape | ATX |
| Purpose | PC |

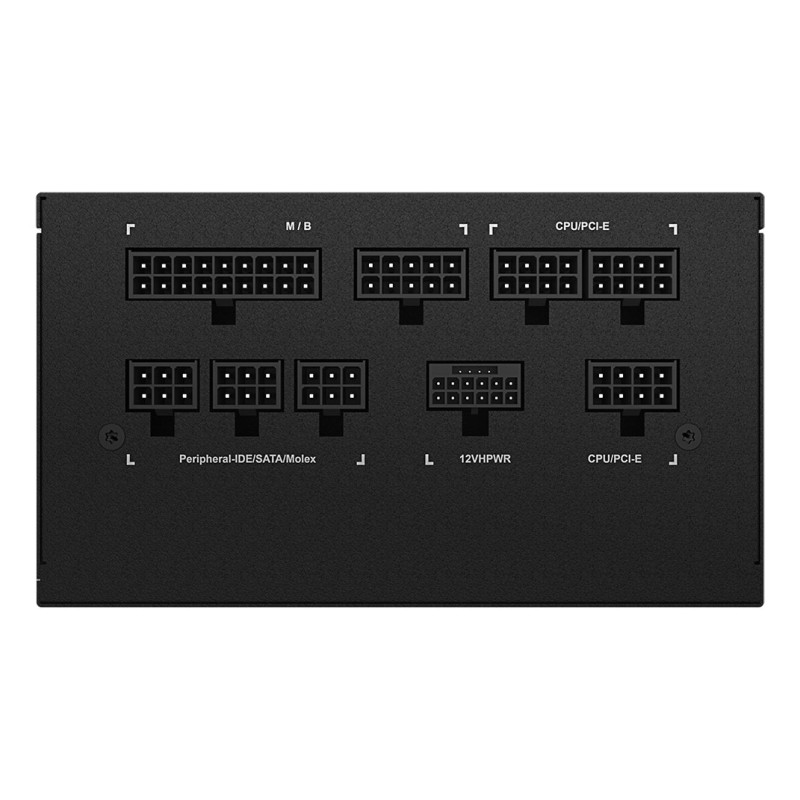

Ports and interfaces | |
| SATA power cable length | 150, 600mm |
| Motherboard power cable length | 61 cm |
| Peripheral (Molex) power cable length | 150, 500mm |
| CPU power cable length | 60cm |
| Floppy disk power switch | 1 |
| Cable type | Fully modular |
| Motherboard power switch | 20+4 pin ATX |
| PCI Express switch | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power switches | 8 |
| PCI Express power cable length | 70cm |
| CPU power switch (4+4 pin) | Yes |
| Number of EPS switches | 2 |
