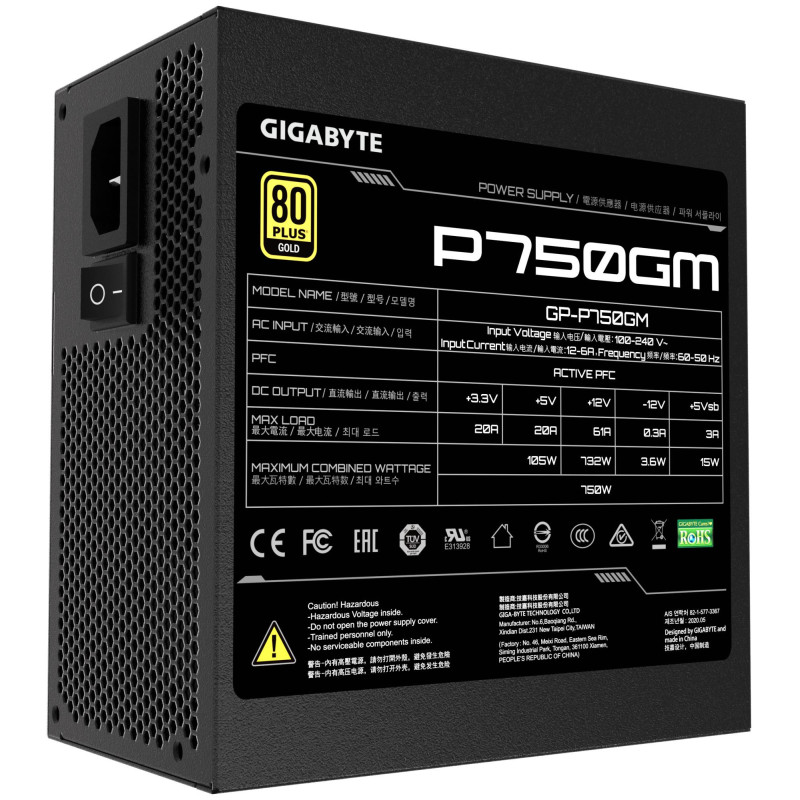

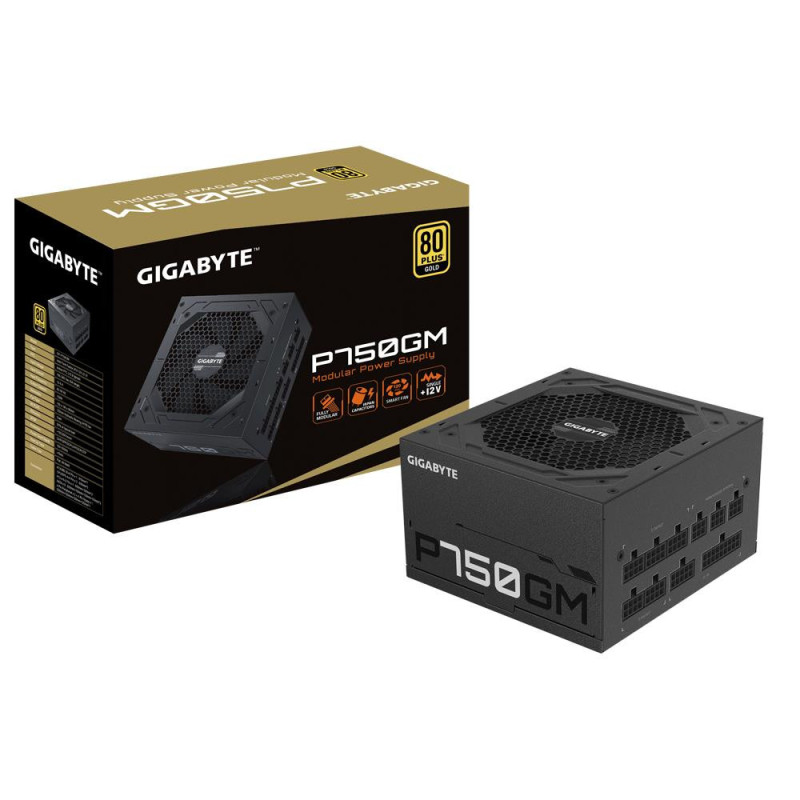

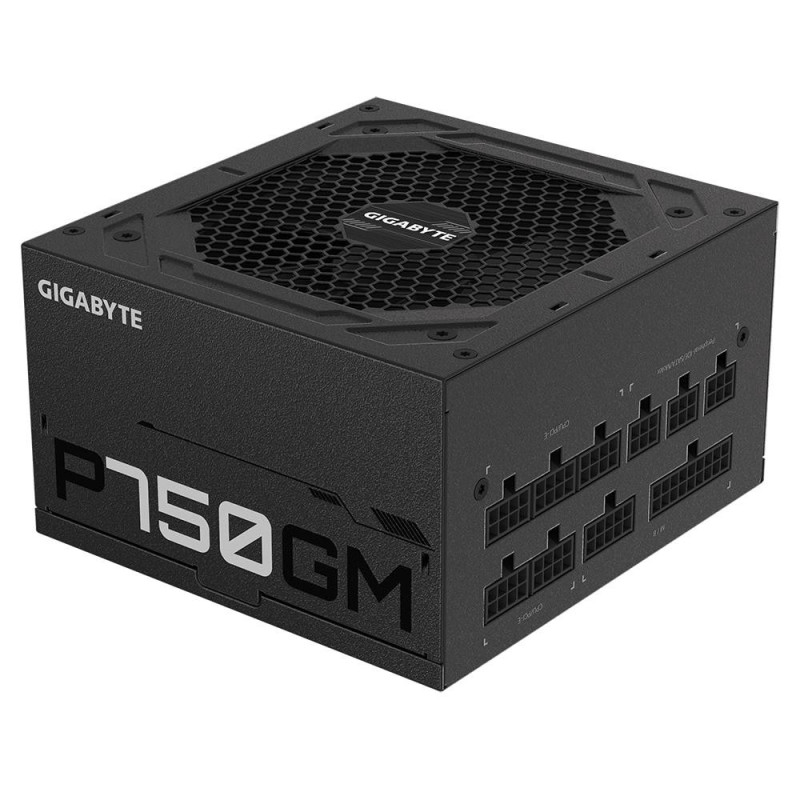

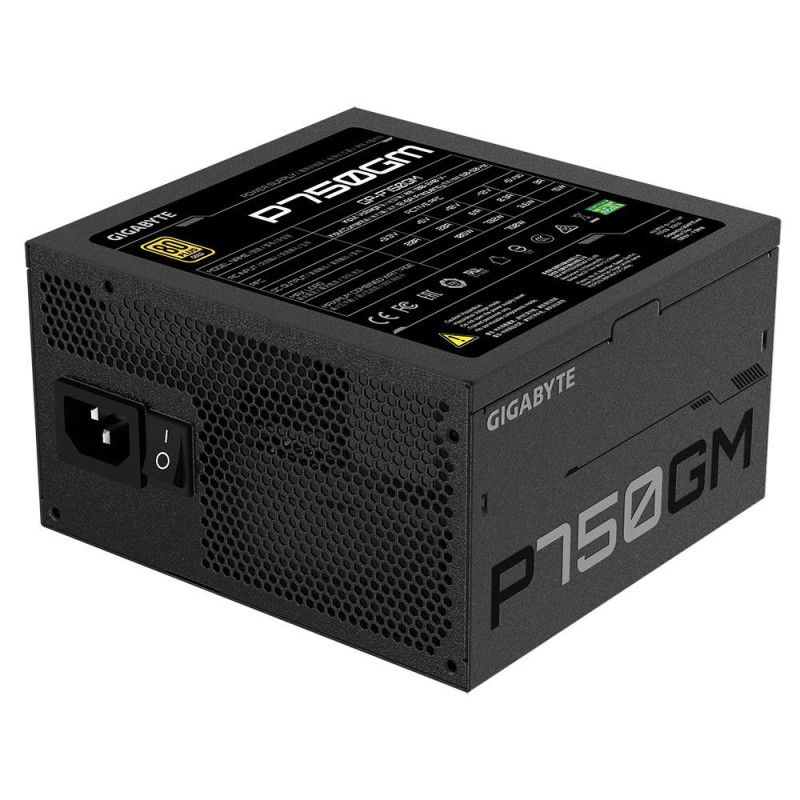

Power Supply, GIGABYTE, GP-P750GM, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-P750GM
Product reference: 2-4719331551759

Power Supply, GIGABYTE, GP-P750GM, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-P750GM

Product reference: 2-4719331551759
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
74,19 €
82,44 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

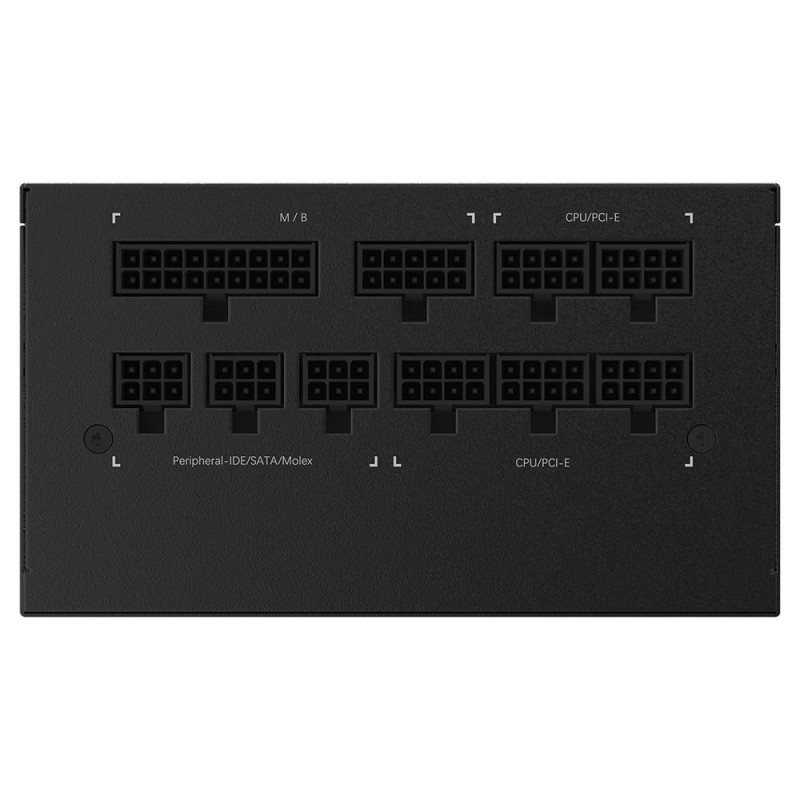

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

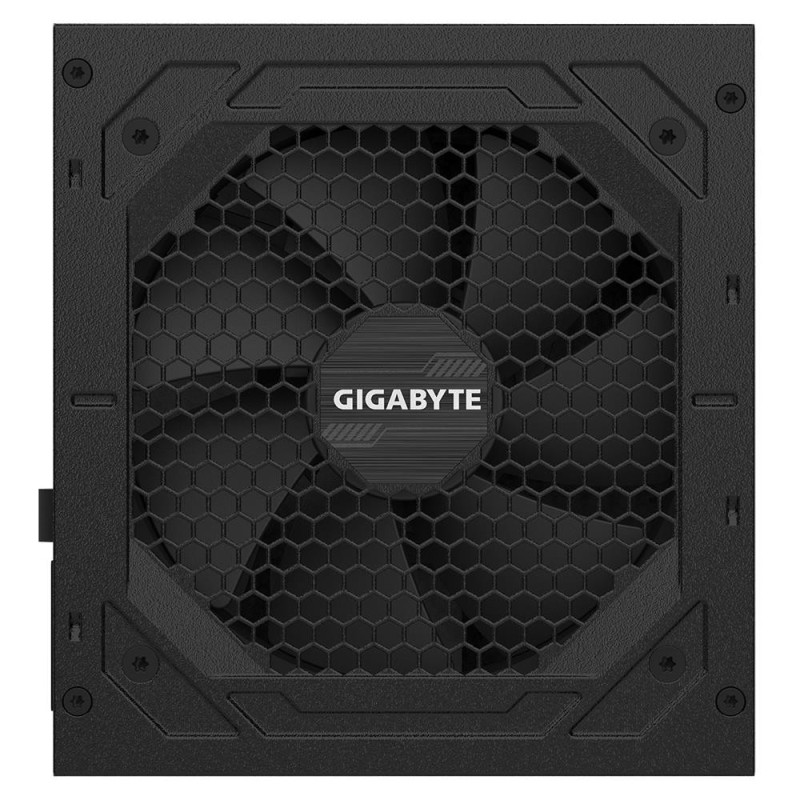

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 5 years warranty (Adjusted according to different regions)

AC įėjimo dažnis 50 - 60 Hz
AC įėjimo įtampa 100 - 240 V
ATX maitinimo jungtis (20 + 4 kaisčiai) Taip
ATX versija 2.31
Aukštis 86 mm
Aušinimo tipas Aktyvus
Bendroji galia 750 W
Bruto svoris 2.63 kg
CPU maitinimo jungtis (4 + 4 kaisčiai) Taip
CPU maitinimo laido ilgis 600 mm
Darniosios sistemos (DS) kodas 84733020
Diskelio įtaiso tvarkyklės laido ilgis 120 mm
Efektyvumas 90 %
EPS maitinimo jungtis (4 + 4 kontaktai) Taip
Floppy įrenginio maitinimo jungtis 1
Galios koeficiento pataisos (PFC) tipas Aktyvus
Ilgis 140 mm
Laikymo laikas 16 ms
Maitinimo apsaugos ypatybės Apsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę
Maitinimo bloko (PSU) formos koeficientas ATX
Model name GP-P750GM
Motininės plokštės maitinimo jungtis 20+4 pin ATX
Motininės plokštės maitinimo kabelio ilgis 610 mm
Neto svoris 2 kg
Paskirtis PC
PCI "Express" galia kabelio ilgis 600 mm
PCI "Express" jungtis Taip
PCI "Express" maitinimo jungtys (6 + 2 kontaktai) 4
Perdavimo laidu tipas Visiškai modulinis
Periferinio ("Molex") maitinimo kabelio ilgis 120/500 mm
Periferinė (Molex) galios jungtis (4-pin) 4
Plotis 150 mm
Pridėti kabeliai CPU,PCIe,Peripheral (Molex),SATA
Produkto spalva Juoda
SATA elektros jungčių skaičius 8
SATA maitinimo kabelio ilgis 150/600 mm
Sertifikatas 80 PLUS 80 PLUS Gold
Shipping Box Depth 61 cm
Shipping Box Height 29 cm
Shipping Box Weight 13.16 kg
Shipping Box Width 23 cm
Summary GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Unit Box Height 0.21
Unit Box Length 0.255
Unit Box Width 0.12
Unit Brutto Volume 0.008137 cubm
Vendor Homepage https://www.gigabyte.com/Power-Supply/GP-P750GM#kf
Ventiliatoriaus skersmuo 120 mm
Ventiliatoriaus vieta Viršus
Ventiliatorių skaičius 1 ventiliatorius(iai / ių)
Vidutinis laikas tarp trikčių (MTBF) 100000 h
Vieneto aukštis 21 cm
Vieneto gylis 25.5 cm
Vieneto plotis 12 cm
Vienetų skaičius vienoje siuntimo dėžėje 5
Įvesties srovė 12-6 A
