Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it's a reliable solution for avid gamers and professionals alike.

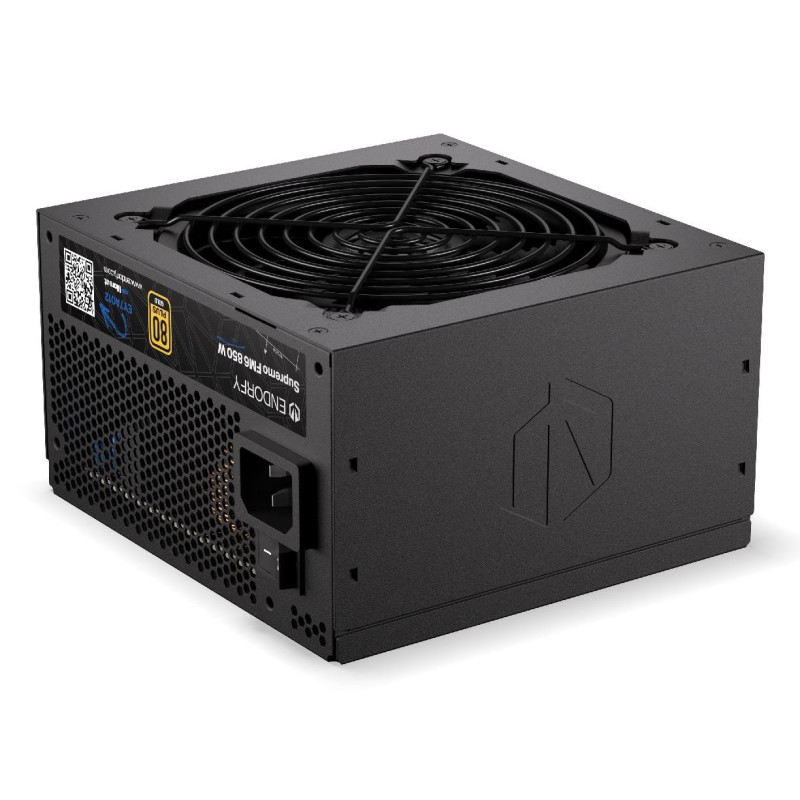

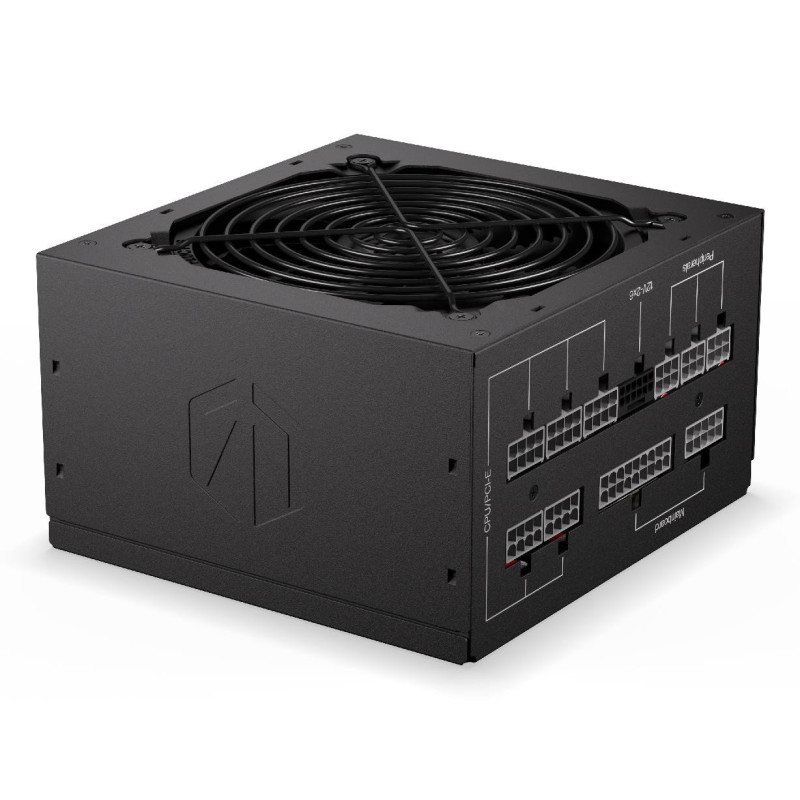

Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply's design utilizes only the Japanese capacitors that guarantee its long service life.

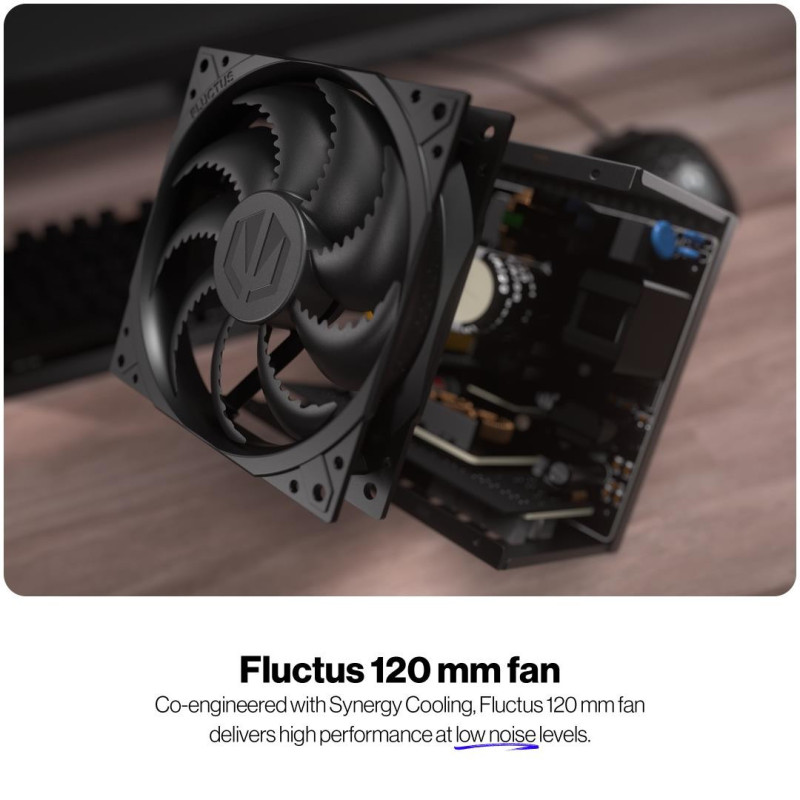

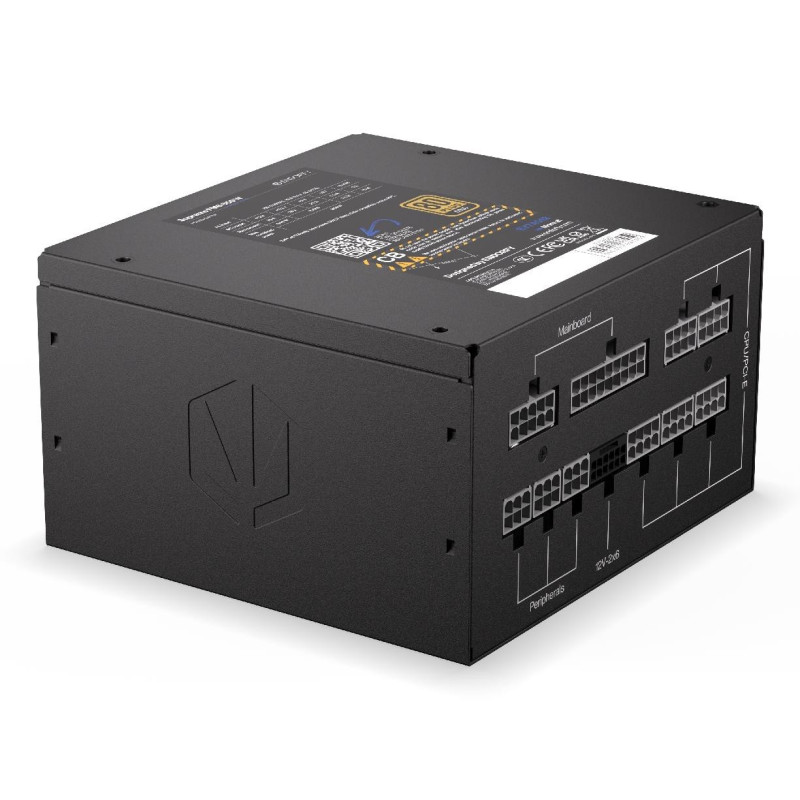

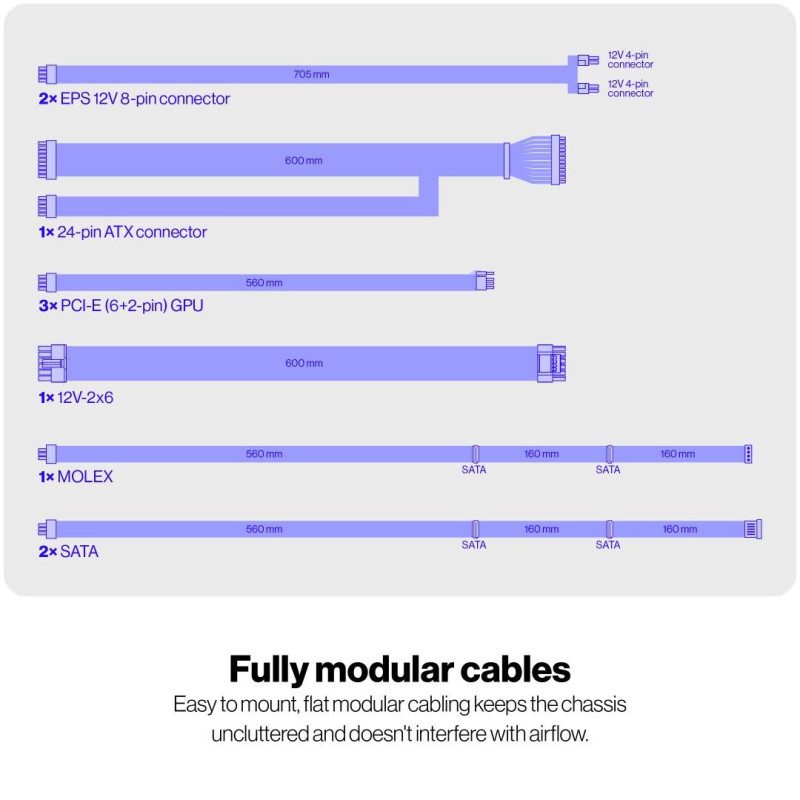

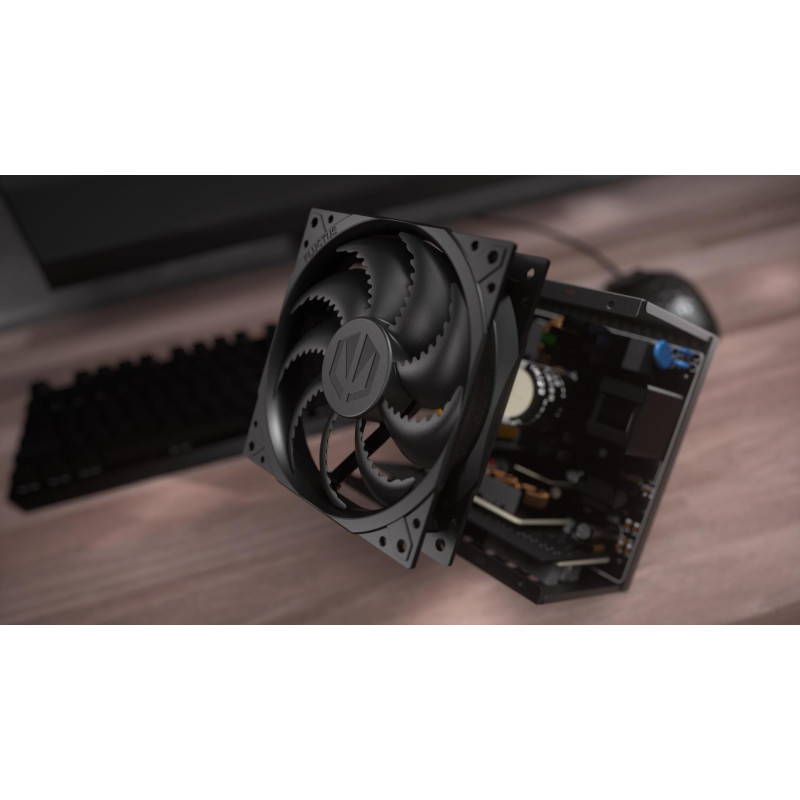

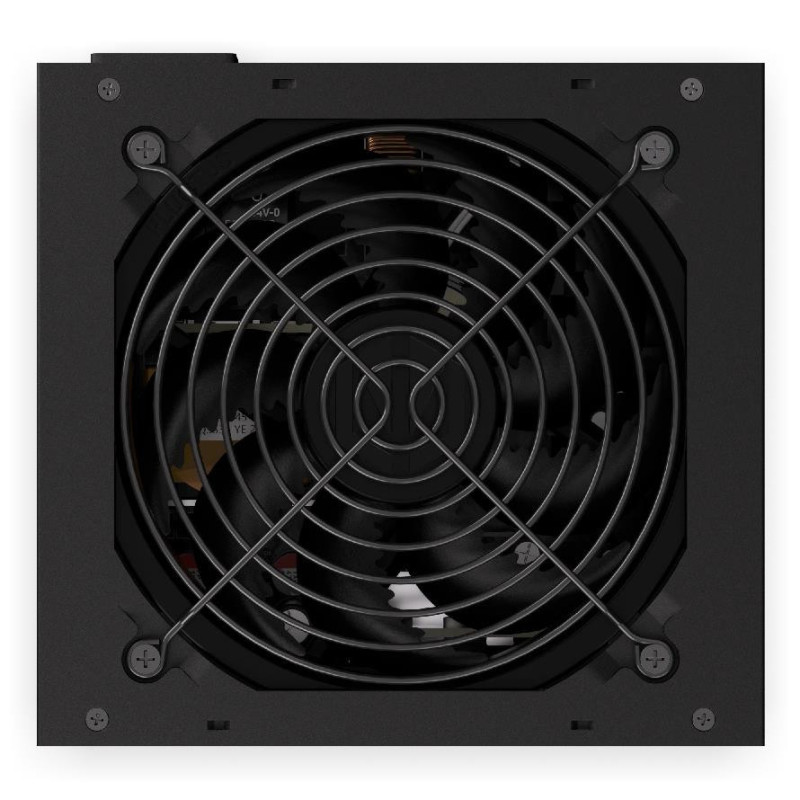

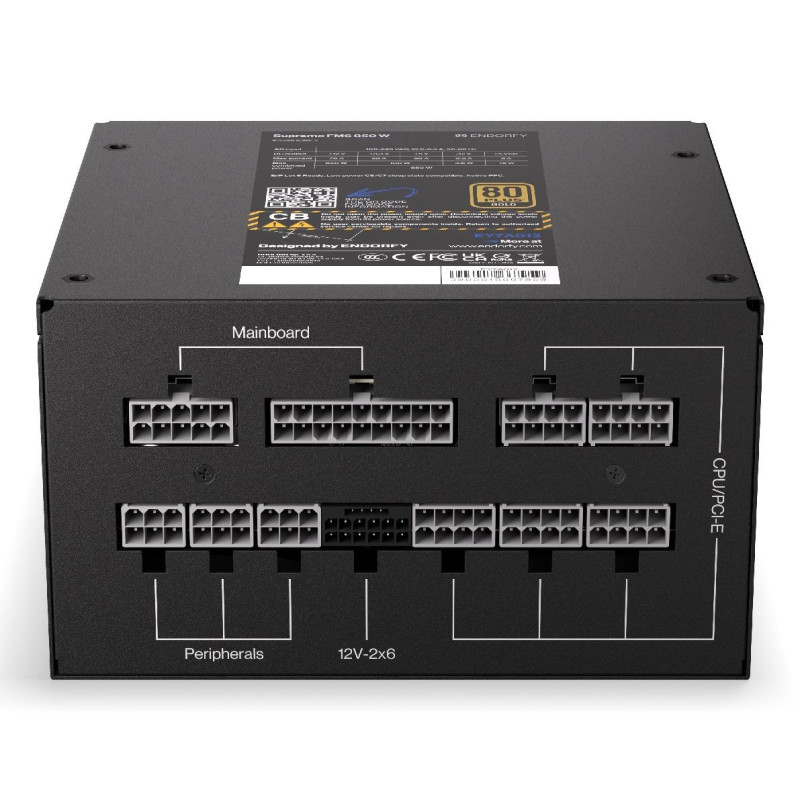

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

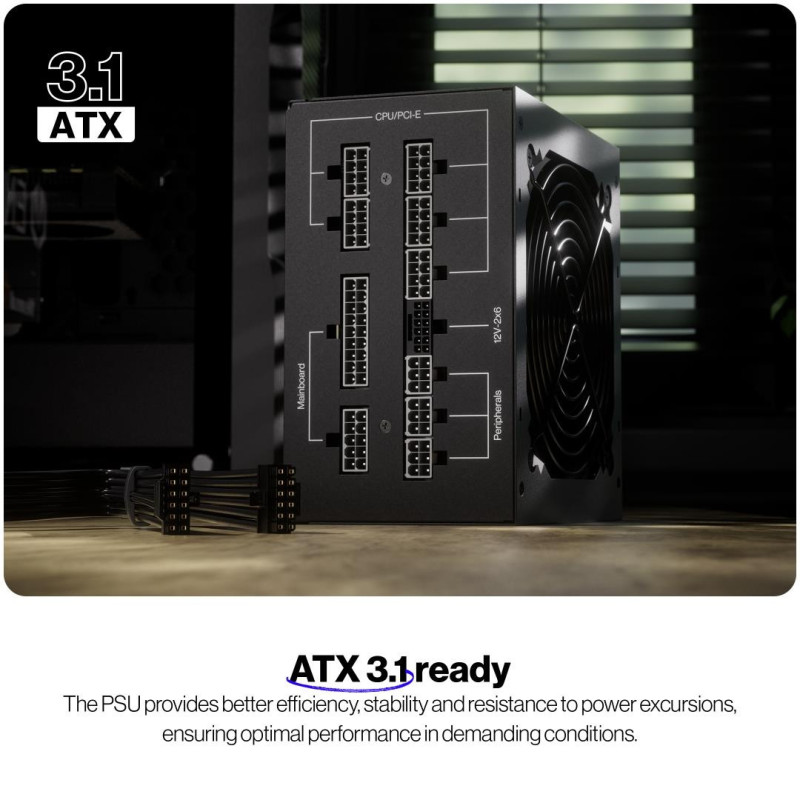

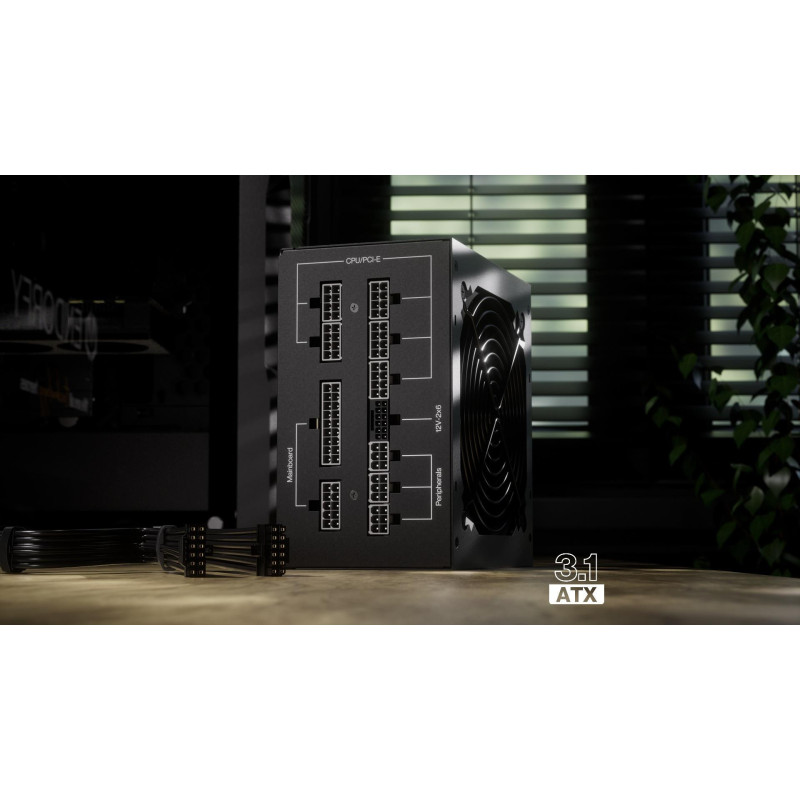

Ready for latest ATX 3.1 standards

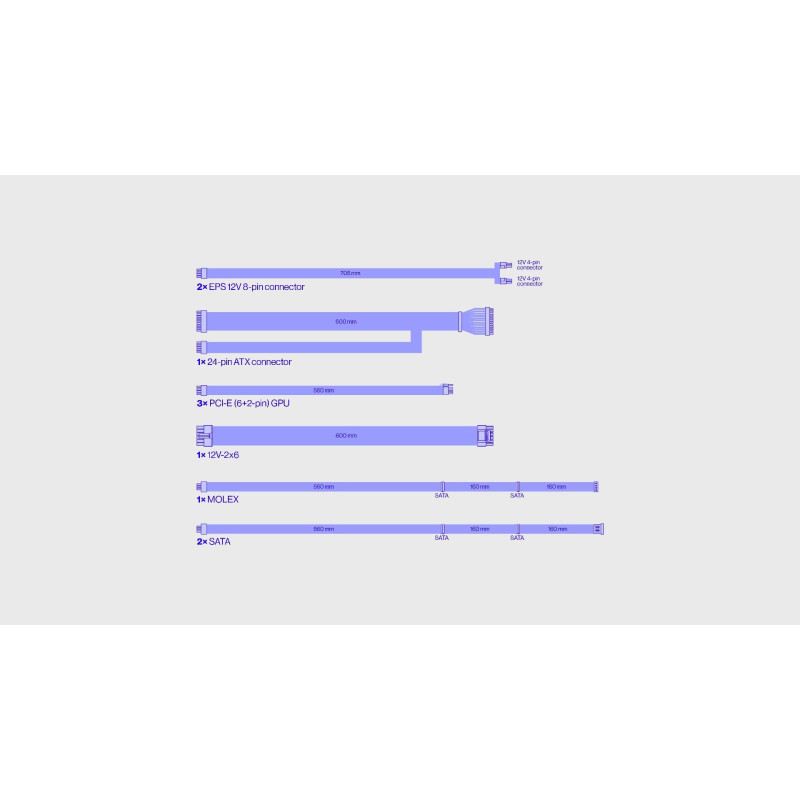

Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

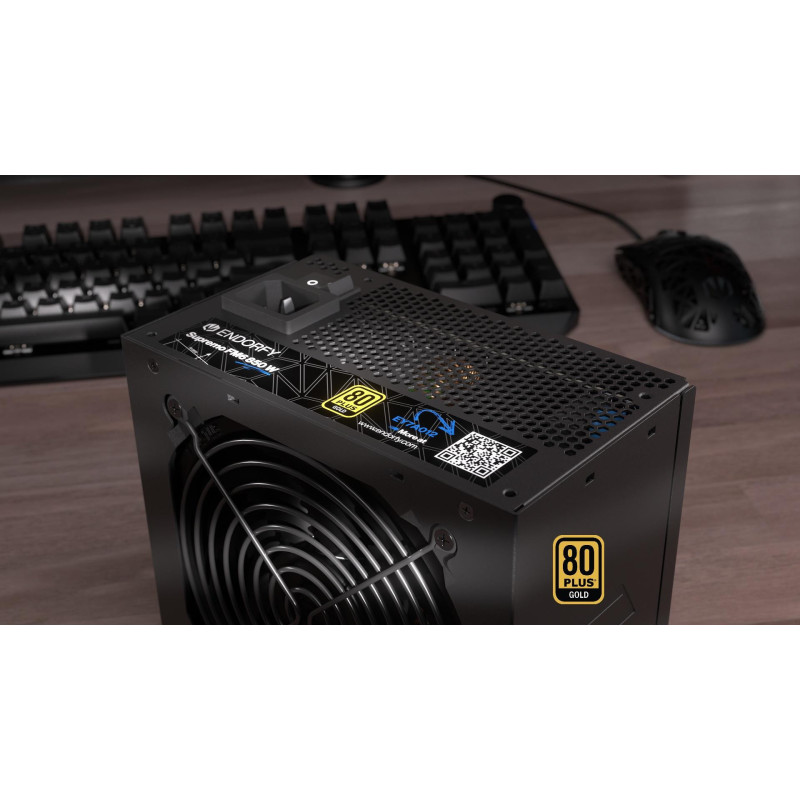

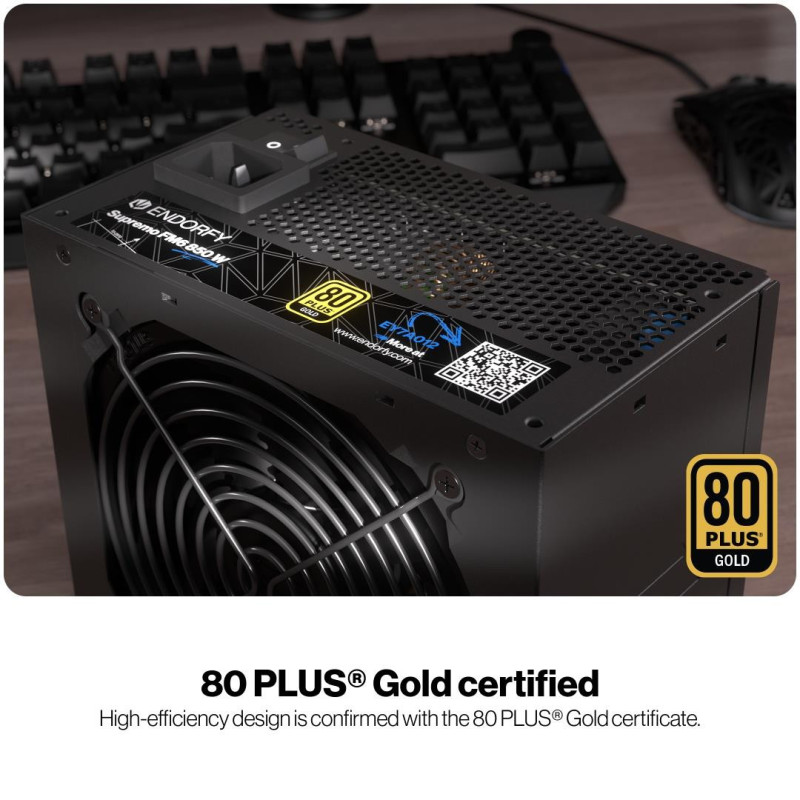

80 PLUS® Gold - supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.

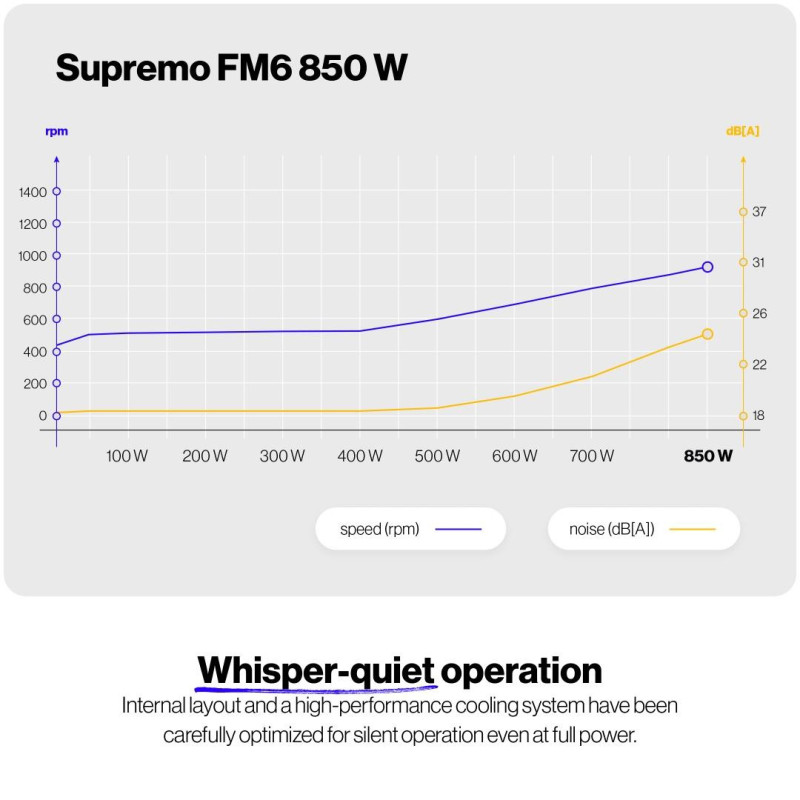

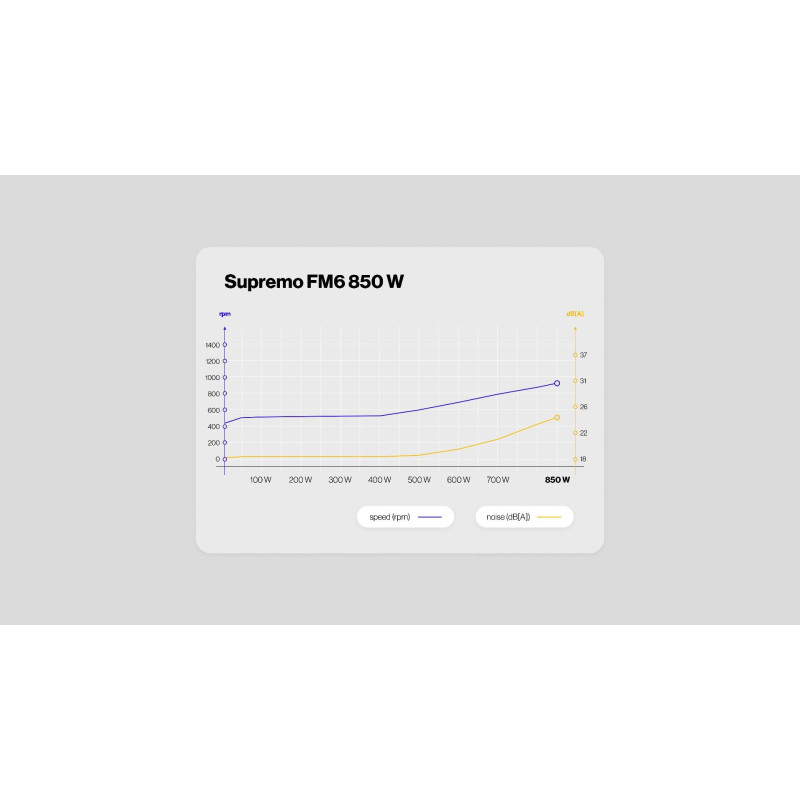

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

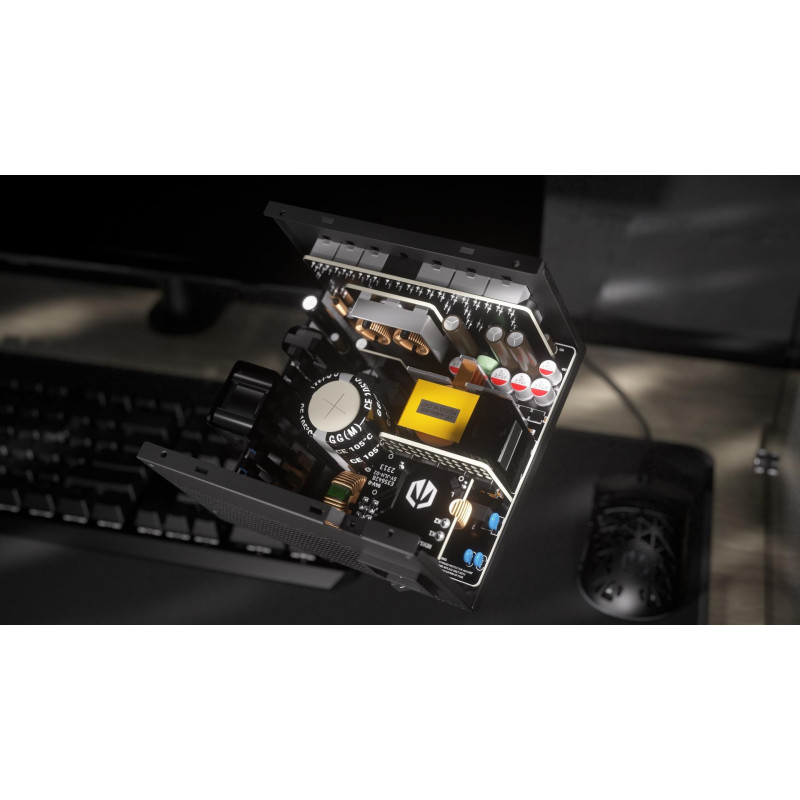

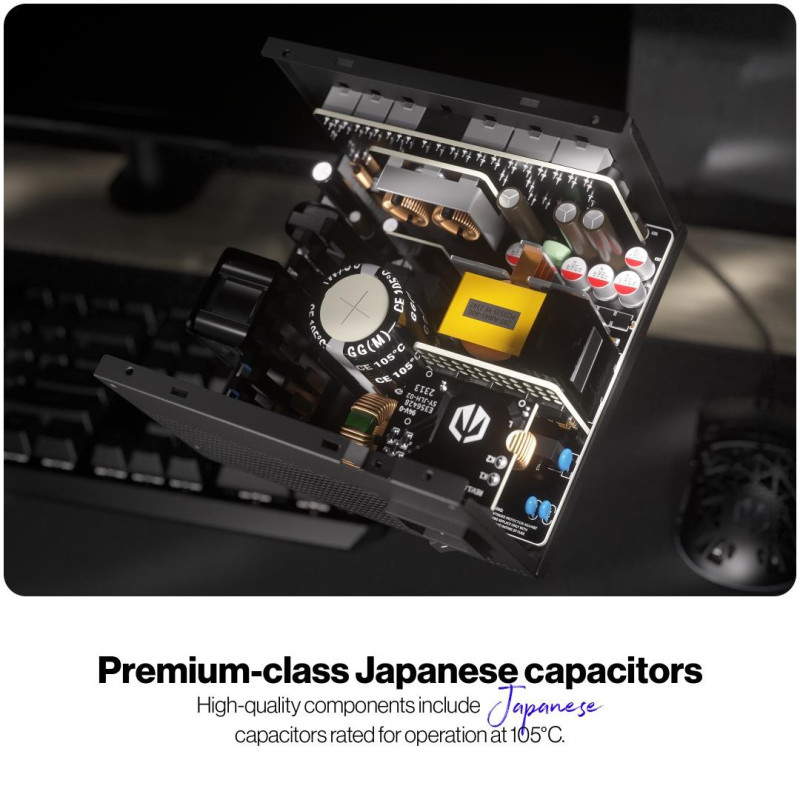

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| Atitikties sertifikatai | CB/CCC/CE/Federalinė ryšių komisija (FCC)/RoHS/UKCA |
| ATX versija | 3.1 |
| Aukštis | 87 mm |
| Aušinimo padengimo tipas | FDB |
| Aušinimo tipas | Aktyvus |
| Bendroji galia | 850 W |
| Bruto svoris | 2.85 kg |

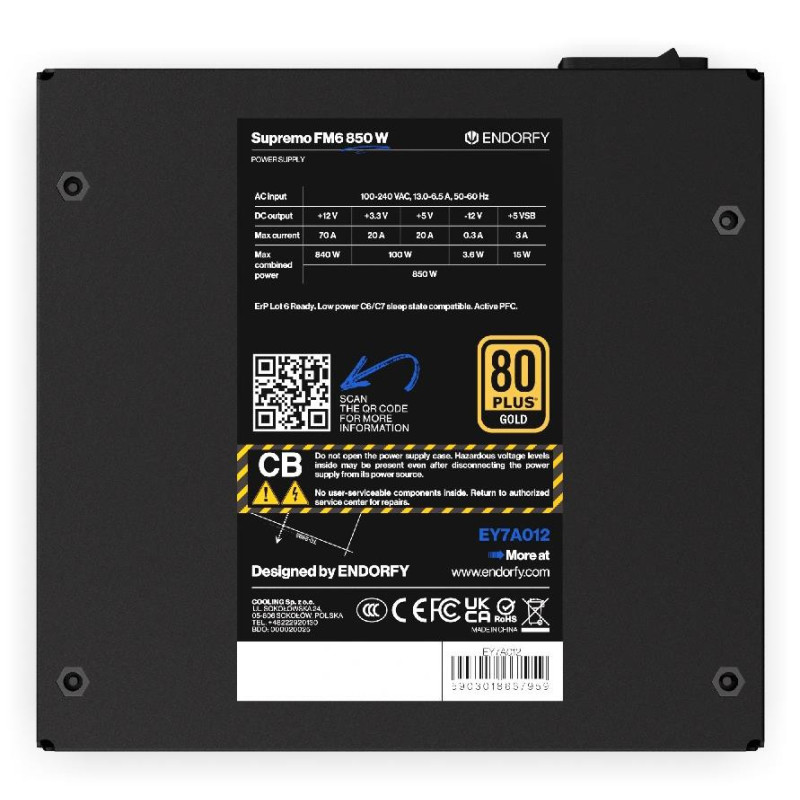

| Didžiausia išėjimo įtampa (+12 V) | 70 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 3 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.3 A |
| Dėklo arba meistro dėžės matmenys (PxGxA) | 600 x 235 x 290 mm |
| Dėklo arba meistro dėžės svoris | 17000 kg |
| EPS maitinimo jungtis (4 + 4 kontaktai) | Taip |
| Galios koeficiento pataisos (PFC) tipas | Aktyvus |
| Garantinis laikotarpis | 10 metai |
| Ilgis | 150 mm |
| Iliuminacija | Ne |
| Instrukcija | Taip |
| Kilmės šalis | Kinija |
| Kompleksinė galia (+12 V) | 840 W |
| Kompleksinė galia (+3,3 V) | 66 W |
| Kompleksinė galia (+5 VSB) | 15 W |
| Kompleksinė galia (+5V) | 100 W |
| Kompleksinė galia (-12 V) | 3.6 W |
| LED indikatoriai | Ne |

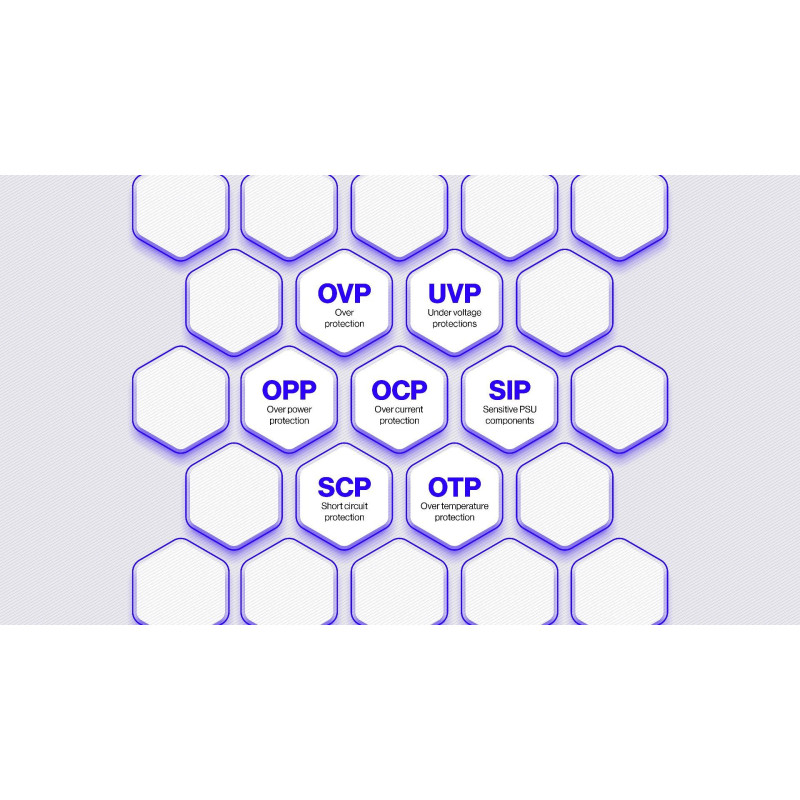

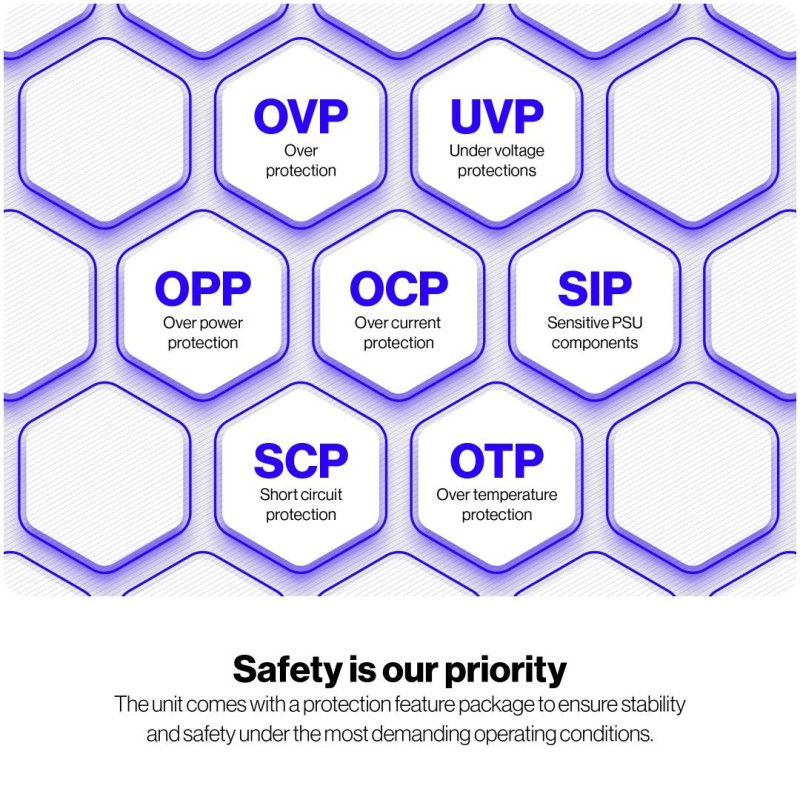

| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Minimaliosios įtampos apsauga/Per žema temperatūra/Surge & inrush protection (SIP)/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | ATX |
| Model name | SUPREMO FM6 |
| Motininės plokštės maitinimo jungtis | 24-pin ATX |
| Neto svoris | 1.46 kg |
| On/off mygtukas | Taip |
| Paketo svoris | 2740 g |
| Pakuotės aukštis | 95 mm |
| Pakuotės gylis | 270 mm |
| Pakuotės plotis | 220 mm |
| Pakuotės tipas | "Box" |
| Paskirtis | PC |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 3 |
| Perdavimo laidu tipas | Visiškai modulinis |
| Periferinė (Molex) galios jungtis (4-pin) | 1 |
| Plotis | 140 mm |
| Pridėti kabeliai | AC |
| Produkto spalva | Juoda |
| SATA elektros jungčių skaičius | 8 |
| SATA maitinimo kabelio ilgis | 560 mm |
| Sertifikatas 80 PLUS | 80 PLUS Gold |
| Shipping Box Depth | 60 cm |
| Shipping Box Height | 29 cm |
| Shipping Box Weight | 17.1 kg |
| Shipping Box Width | 23.5 cm |
| Sudėtyje nėra | Gyvsidabris/Kadmis/Švinas |
| Summary | ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC |
| Svoris | 1460 g |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.27 |
| Unit Brutto Volume | 0.006815 cubm |
| Vendor Homepage | https://endorfy.com/en/product/supremo-fm6-850-w/ |
| Ventiliatoriaus greitis | 1260 - 1540 RPM |
| Ventiliatoriaus skersmuo | 120 mm |
| Ventiliatoriaus vieta | Viršus |
| Ventiliatoriaus įjungimo ir išjungimo jungiklis | Ne |
| Ventiliatorių skaičius | 1 ventiliatorius(iai / ių) |
| Vidutinis laikas tarp trikčių (MTBF) | 100000 h |
| Vieneto aukštis | 22 cm |
| Vieneto gylis | 10 cm |
| Vieneto plotis | 27 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 6 |
| Įvesties srovė | 13 - 6.5 A |
| "PCI Express" maitinimo jungtys (12 + 4 kaištinių kontaktų) | 1 |
