Power Supply, ENDORFY, ATX, PC, 100 - 240 V, 750 W, EY7A013
Product reference: 2-5903018668499

Power Supply, ENDORFY, ATX, PC, 100 - 240 V, 750 W, EY7A013

Product reference: 2-5903018668499
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
107,62 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

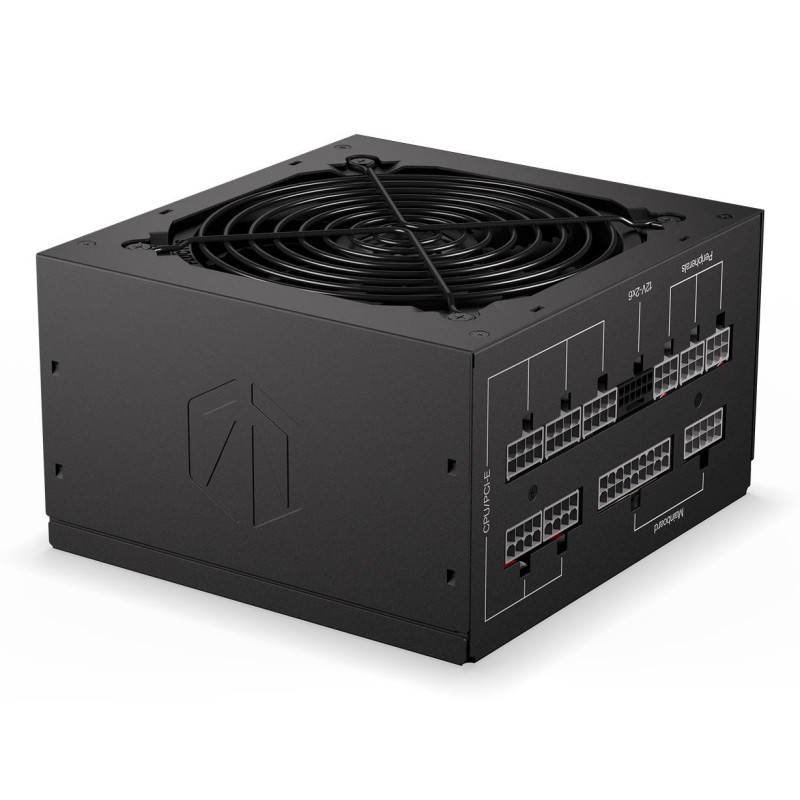

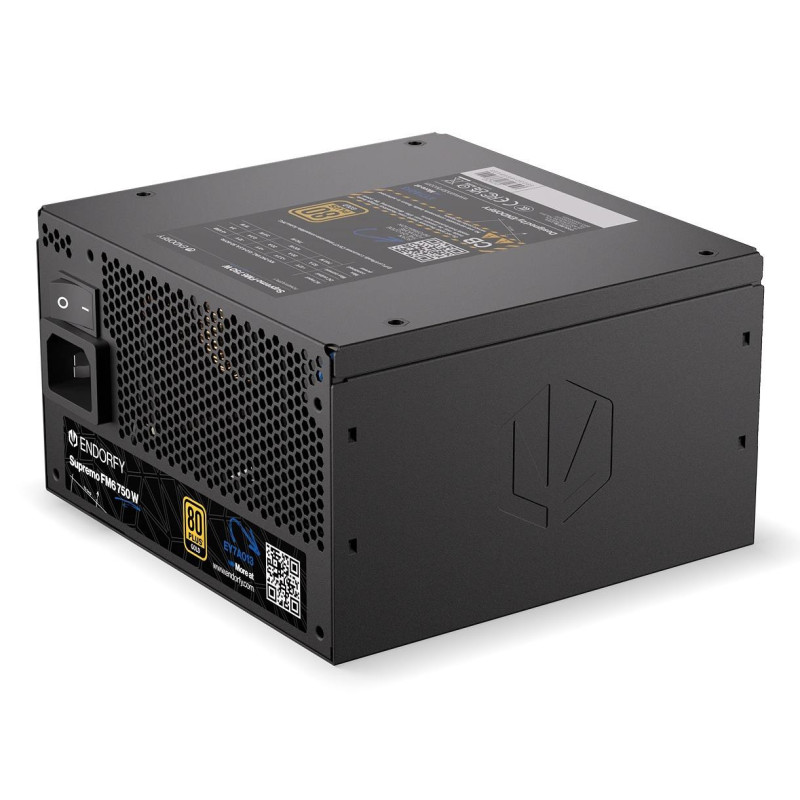

Supremo FM6 750 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it's a reliable solution for avid gamers and professionals alike.

Ready for latest ATX 3.1 standards
Supremo FM6 750 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold - supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 750 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.

Silence first
Supremo FM6 750 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium-class capacitors made in Japan
All capacitors installed in the Supremo FM6 750 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.

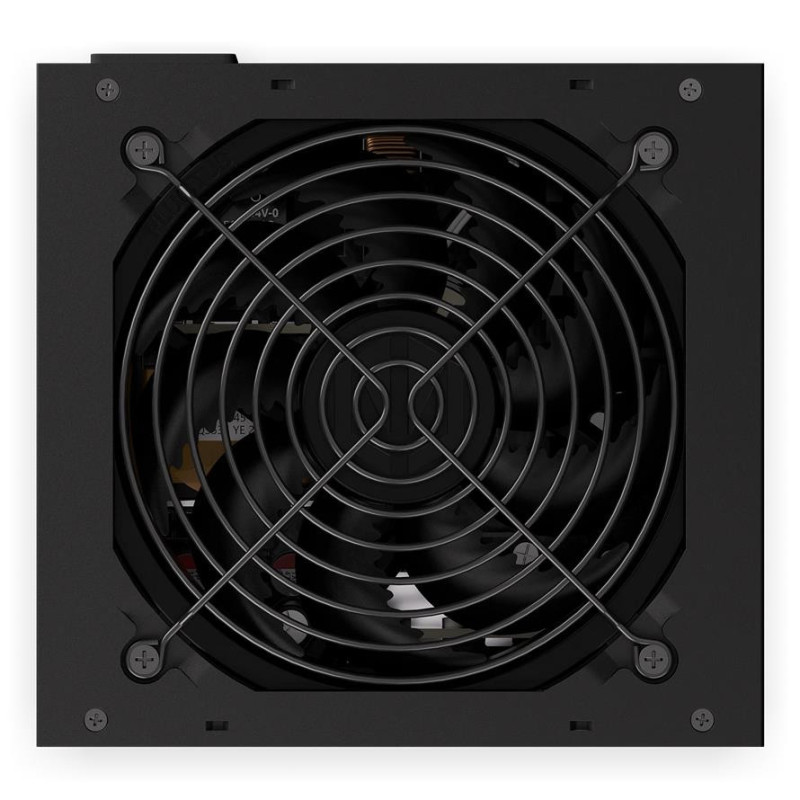

Reliable 120 mm Fluctus fan
The award-winning Fluctus series fan co-engineered with Synergy Cooling and equipped with the FDB bearing maintains the correct temperature inside the power supply unit. Psychoacoustic optimization guarantees that the noise generated by the fan is less audible to ensure comfort of operation, even in non-muffled chassis.

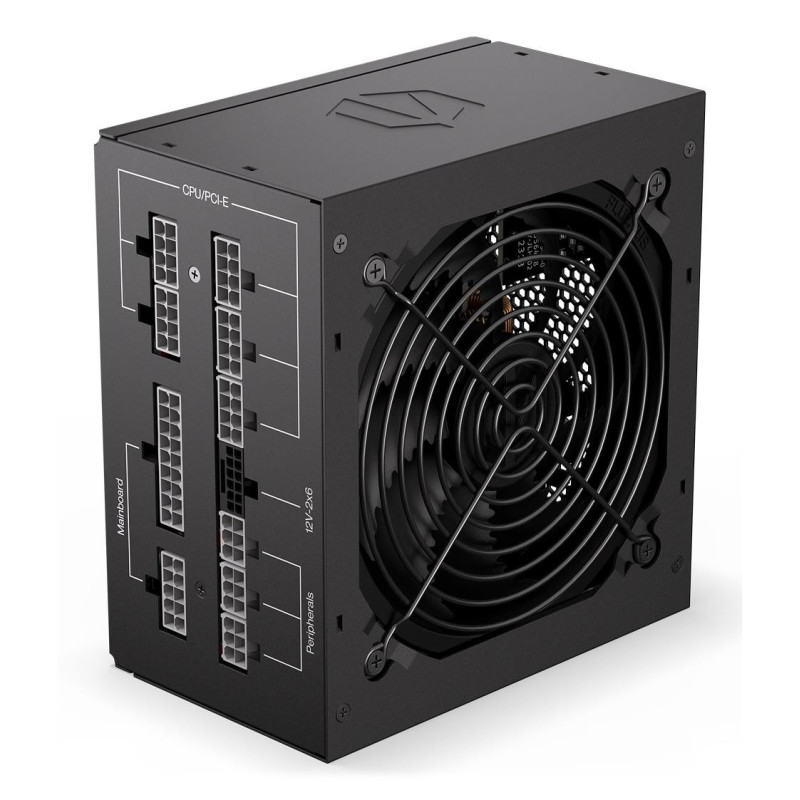

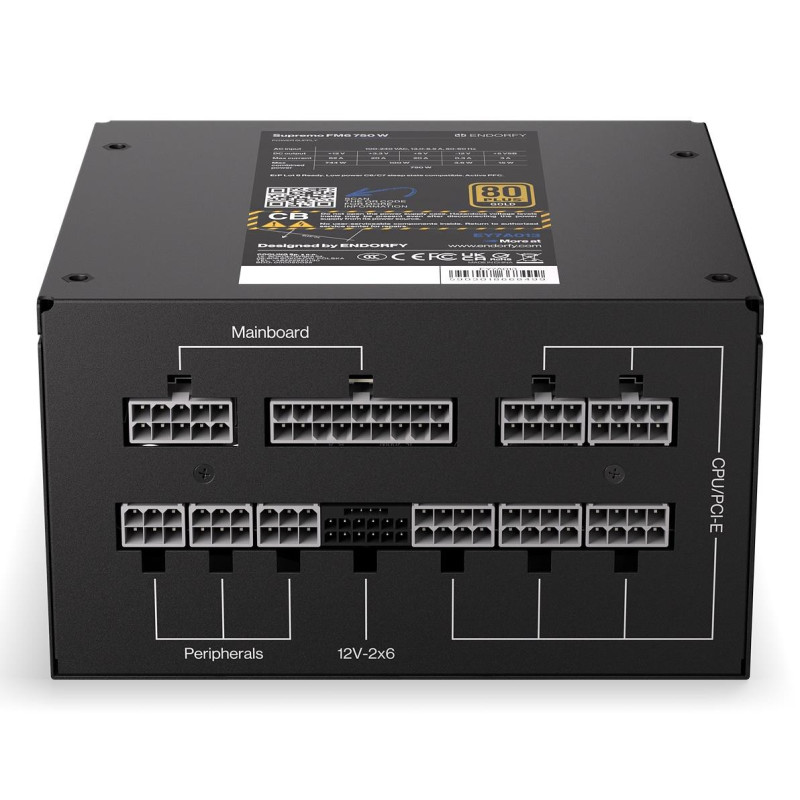

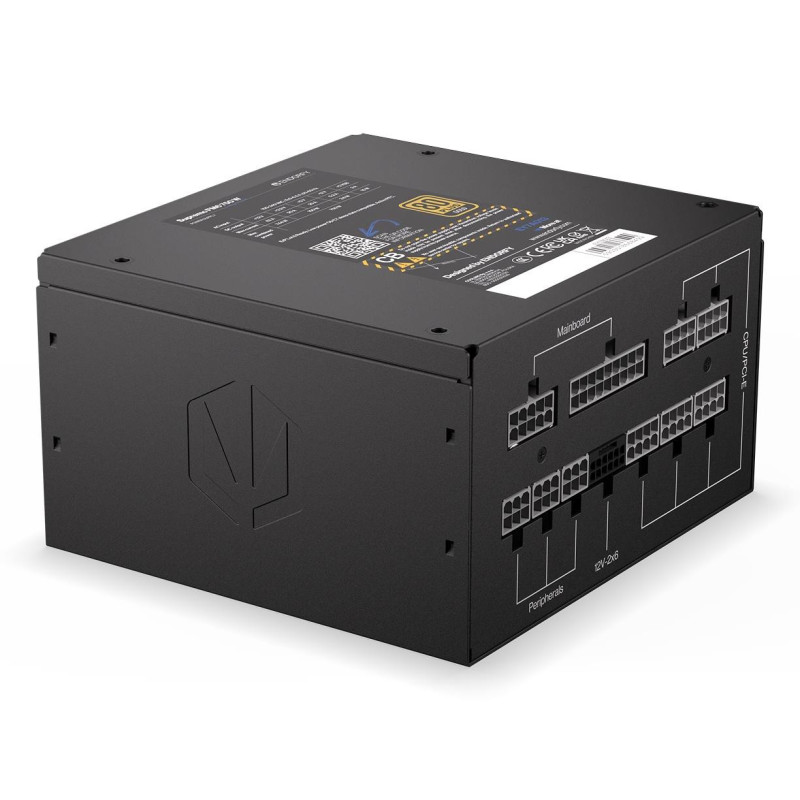

Fully modular cabling
Forget about unused wire harnesses. This fully modular cabling enables you to connect only the necessary wires. This results in streamlining the cable routing process and enhances the space management in a PC case to improve the airflow and temperature control.

10-year warranty
We are sure of the high quality and reliability of ENDORFY equipment. Therefore, the Supremo FM6 750 W power supply unit comes with a 10-warranty ensuring its long life and trouble-free operation.

Protection feature package
Supremo FM6 750 W comes with a comprehensive package of electric and thermal protection features. Your computer is protected against overloads, voltage spikes, short-circuits, and power supply unit overheating, which guarantees its stability and safety under the most demanding operating conditions.

  • Ready for latest ATX 3.1 standards
  • 80 PLUS Gold - supreme performance and reliability
  • Silence first
  • Premium-class capacitors made in Japan
  • Reliable 120 mm Fluctus fan
  • Fully modular cabling
  • Protection feature package

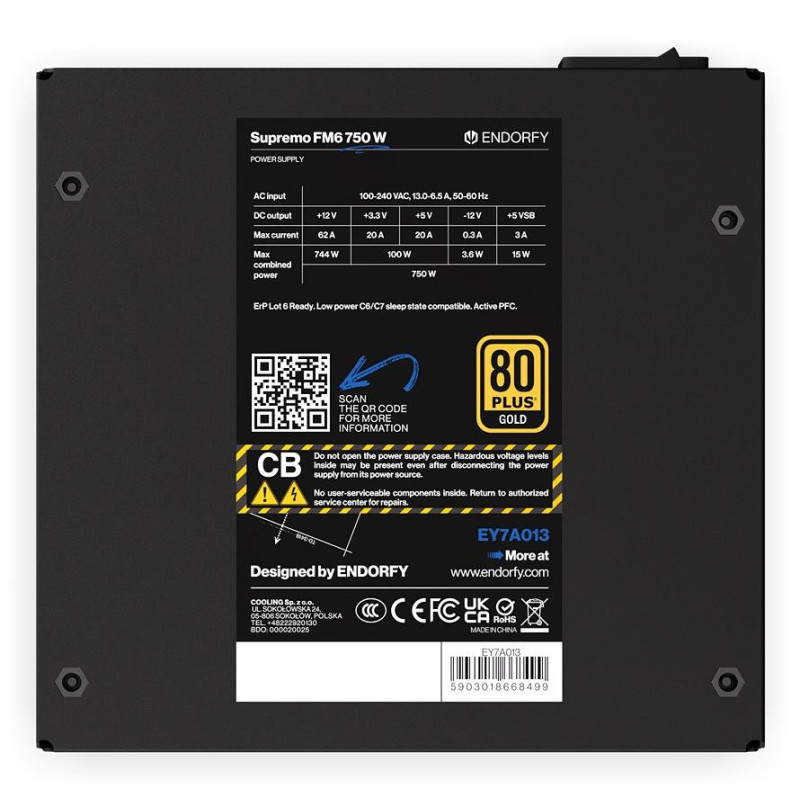

AC įėjimo įtampa 100 - 240 V
Atitikties sertifikatai CE/Federalinė ryšių komisija (FCC)/RoHS/UKCA/WEEE
ATX versija 3.1
Aukštis 87 mm
Aušinimo tipas Aktyvus
Bendroji galia 750 W
Bruto svoris 2.8 kg
Didžiausia išėjimo įtampa (+12 V) 62 A
Didžiausia išėjimo įtampa (+12 VSB) 3 A
Didžiausia išėjimo įtampa (+3,3 V) 20 A
Didžiausia išėjimo įtampa (+5 V) 20 A
Didžiausia išėjimo įtampa (-12 V) 0.3 A
EPS jungčių skaičius 2
EPS maitinimo jungtis (4 + 4 kontaktai) Taip
Galios koeficiento pataisos (PFC) tipas Aktyvus
Ilgis 150 mm
Iliuminacija Ne
Instrukcija Taip
Kilmės šalis Kinija
Kompleksinė galia (+12 V) 744 W
Kompleksinė galia (+3,3 V) 100 W
Kompleksinė galia (+5 VSB) 15 W
Kompleksinė galia (+5V) 20 W
Kompleksinė galia (-12 V) 3.6 W
Maitinimo apsaugos ypatybės Apsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Surge & inrush protection (SIP)/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę
Maitinimo bloko (PSU) formos koeficientas ATX
Model name Supremo FM6 750 W
Motininės plokštės maitinimo jungtis 24-pin ATX
Motininės plokštės maitinimo kabelio ilgis 600 mm
Neto svoris 2.5 kg
On/off mygtukas Taip
Paskirtis PC
PCI "Express" maitinimo jungtys (6 + 2 kontaktai) 3
Perdavimo laidu tipas Visiškai modulinis
Periferinio ("Molex") maitinimo kabelio ilgis 560/720/880 mm
Periferinė (Molex) galios jungtis (4-pin) 1
Plotis 140 mm
Produkto spalva Juoda
SATA maitinimo kabelio ilgis 560/720/880 mm
SATA maitinimo kabelių skaičius 2
Sertifikatas 80 PLUS 80 PLUS Gold
Shipping Box Depth 60 cm
Shipping Box Height 29 cm
Shipping Box Weight 16.8 kg
Shipping Box Width 23.5 cm
Sudėtyje nėra Gyvsidabris/Kadmis/Švinas
Summary ENDORFY Supremo FM6 750 W. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 13 - 65 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560,880,720 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Unit Box Height 0.095
Unit Box Length 0.27
Unit Box Width 0.22
Unit Brutto Volume 0.006815 cubm
Vendor Homepage https://endorfy.com/en/product/supremo-fm6-750-w/
Ventiliatoriaus skersmuo 120 mm
Ventiliatorių skaičius 1 ventiliatorius(iai / ių)
Vidutinis laikas tarp trikčių (MTBF) 100000 h
Vieneto aukštis 9.5 cm
Vieneto gylis 27 cm
Vieneto plotis 22 cm
Vienetų skaičius vienoje siuntimo dėžėje 6
Įvesties srovė 13 - 65 A
