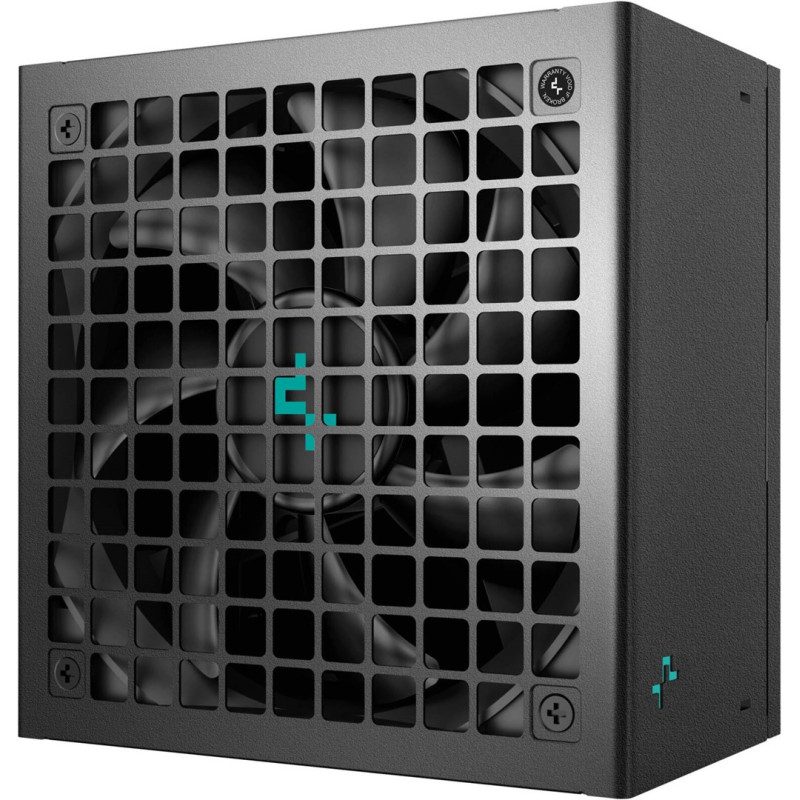

Power Supply - DeepCool PN1000-D 1000W 90% Efficiency Modular Cooling
Product reference:
14-6933412742210
The DeepCool PN1000-D power supply has a total power of 1000 W and an efficiency rating of 90%. It is equipped with active cooling with a 12 cm fan, modular cables and a number of protection features.
Power Supply - DeepCool PN1000-D 1000W 90% Efficiency Modular Cooling
Product reference:
14-6933412742210
The DeepCool PN1000-D power supply has a total power of 1000 W and an efficiency rating of 90%. It is equipped with active cooling with a 12 cm fan, modular cables and a number of protection features.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
DeepCool PN1000-D Power supply R-PNA00D-FC0B-JGEU-V2
The DeepCool PN1000-D power supply has a total power of 1000 W and an efficiency rating of 90%. It features active cooling with a 12 cm fan, modular cables, and multiple power protection features.
- High efficiency with 90% efficiency and 80 PLUS Gold certification.
- Strong power of 1000 W, suitable for demanding PC configurations.
- Active cooling system with 12 cm fan for optimal thermal management.
- Modular cable design for easy installation and improved airflow.
Design | |
|---|---|
| Cooling type | Active |
| Product color | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 pc. |
| On/Off button | Yes |
| Fan location | Above |
Power | |
| Power protection functions | Overpower, Overheating, Current protection, Non-use operation, Undervoltage, Overcurrent, Overcurrent and Inrush Protection (SIP), Overvoltage |
| AC input voltage | 100 - 240V |
| Connected power (+3.3V) | 120W |
| AC input frequency | 50/60Hz |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+3.3V) | 22 A |
| Maximum output current (+12V) | 83.3 A |
| Shelf life | 16ms |
| Connected power (+12V) | 999.6W |
| Connected power (-12V) | 3.6W |
| Maximum output current (+5V) | 22 A |
| Maximum output current (+5Vsb) | 3 A |
| Connected power (+5V) | 120W |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
Weight and dimensions | |
| Width | 150mm |
| Height | 85 mm |
| Depth | 150mm |
Operation | |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean Time Between Failures (MTBF) | 100000 hours |
Certificates | |
| Certificates of conformity | RoHS, WEEE |
Ports and interfaces | |
| Cable type | Modular |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 54 cm |
| Height | 120mm |
| Length | 200mm |
| Weight | 2600g |
| Width | 200mm |
