Power Supply, CHIEFTEC, PPG-750-S, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, PPG-750-S
Product reference:
2-753263078780
Power Supply, CHIEFTEC, PPG-750-S, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, PPG-750-S
Product reference:
2-753263078780
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
The CHIEFTEC VEGA Series power supply is built to Intel's ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.

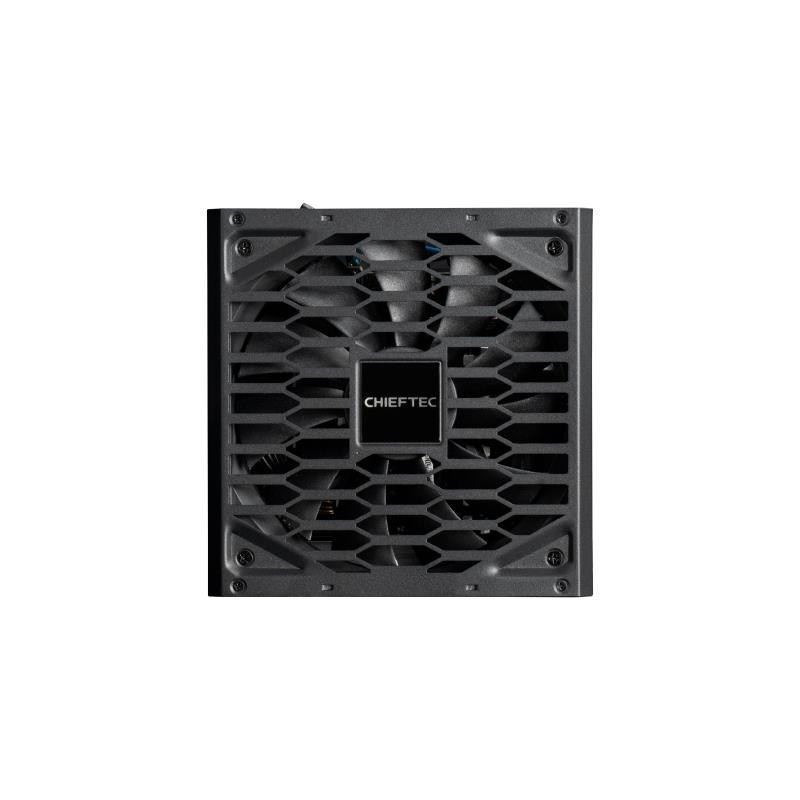

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
- Compliant with ATX 12V 3.1
- Support PCIe GEN5
- 80PLUS Gold certified efficiency
- LLC Half-Bridge converter with DC to DC technology
| 80 PLUS certification | 80 PLUS Gold |
| AC input voltage | 100 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Cabling type | Non-Modular |
| Certification | 80PLUS Gold |
| Cooling type | Active |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Fan diameter | 135 mm |
| Illumination | No |
| Model name | PPG-750-S |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Package weight | 2460 g |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Product Net Weight | 1.96 kg |
| Purpose | PC |
| SATA power cable length | 400 mm |
| Shipping Box Depth | 55 cm |
| Shipping Box Height | 24 cm |
| Shipping Box Weight | 12.3000001907349 kg |
| Shipping Box Width | 30 cm |
| Summary | Chieftec Vega 750W Series PPG-750-S. Total power: 750 W, AC input voltage: 100 - 240 V. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold |
| Total power | 750 W |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.105 |
| Unit Calculated Volume | 0.00792 cubm |
| Unit Calculated Weight | 2.46 kg |
| Units per Shipping Box | 5 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/591/VEGA_Series/592/PPG-750-S |
| Weight | 1960 g |
