Power Supply, CHIEFTEC, GPS-700A8, PS / 2, PC, 230 V, 700 W, GPS-700A8
Product reference:
2-4710713239579
Power Supply, CHIEFTEC, GPS-700A8, PS / 2, PC, 230 V, 700 W, GPS-700A8
Product reference:
2-4710713239579
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

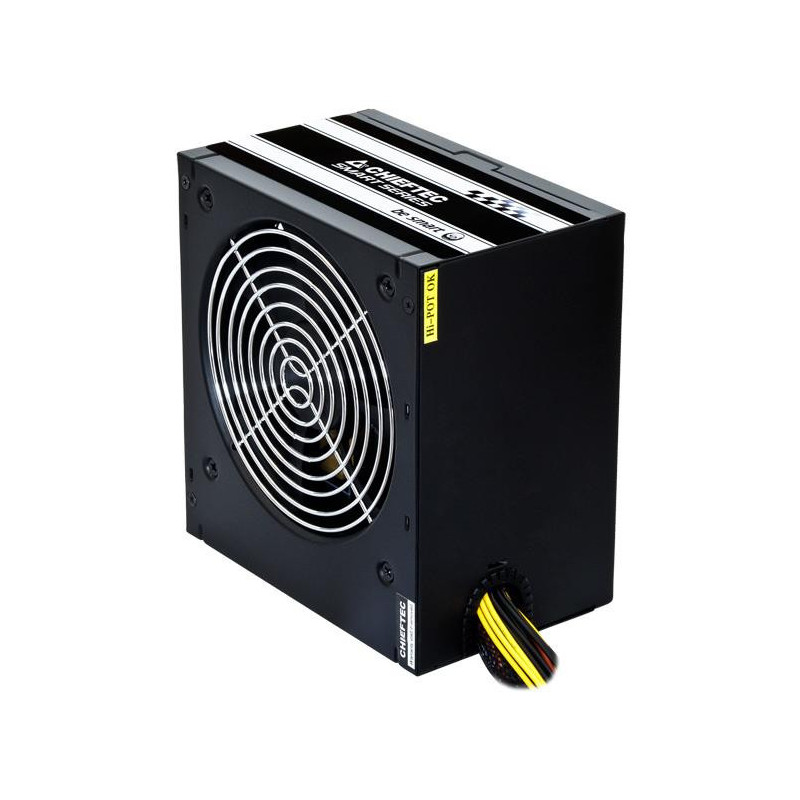

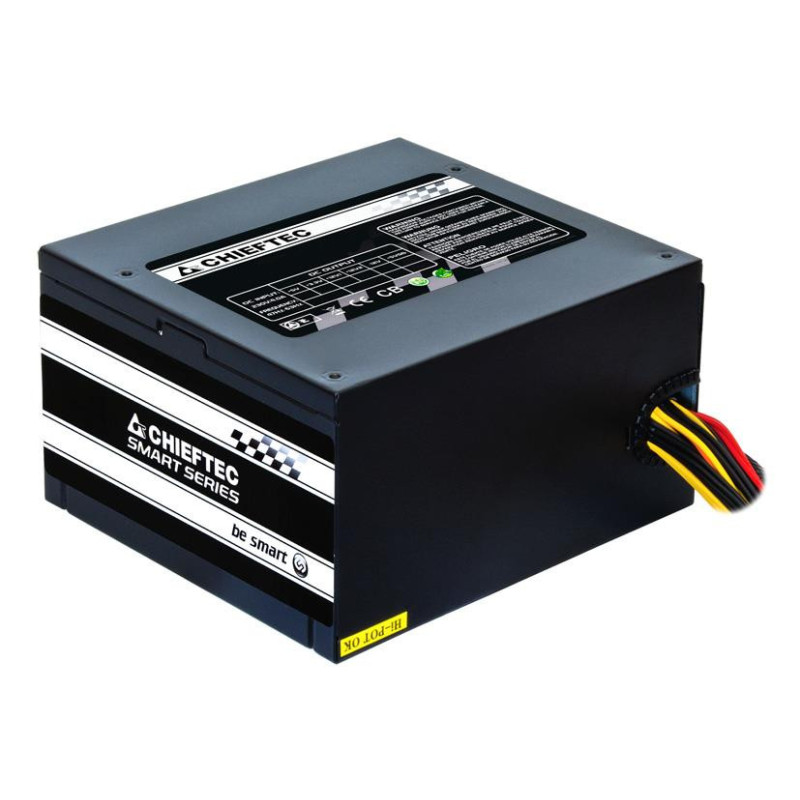

Power supply unit ATX 2.3 Chieftec Smart 700W 80 PLUS Black (GPS-700A8)
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
| AC input voltage | 230 V |
| ATX version | 2.3 |
| Height | 87 mm |
| Cooling type | Active |
| Total power | 700 W |
| Gross weight | 1.83 kg |
| Maximum output voltage (+12 V1) | 54 A |
| Maximum output voltage (+12 VSB) | 2.5 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 22 A |
| Maximum output voltage (-12 V) | 0.3 A |
| Efficiency | 80 % |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 1 |
| Power factor | 0.9 |
| Power factor correction (PFC) type | Active |
| Length | 140 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 2 SATA 6 MOLEX/FLOPPY 2/1 |
| Complex Power (+5 VSB) | 12.5 W |
| Complex Power (-12 V) | 3.6 W |
| Power Protection Features | Overvoltage Protection/Overload Protection/Undervoltage Protection/Short Circuit |
| Power Supply Unit (PSU) Form Factor | PS/2 |
| Model name | GPS-700A8 |
| Motherboard power connector | 20+4 pin ATX |
| Net weight | 1.62 kg |
| Purpose | PC |
| PCI "Express" power connectors (6 + 2 pins) | 2 |
| Cable type | Non-modular |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connector (4-pin) | 2 |
| Width | 150 mm |
| Product color | Black |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150/500 mm |
| Certificate 80 PLUS | No |
| Shipping Box Depth | 51 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 18.3 kg |
| Shipping Box Width | 38 cm |
| Summary | Chieftec Smart GPS-700A8. Total power: 700 W, AC input voltage: 230 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm |
| Weight | 1620 g |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.1 |
| Unit Gross Volume | 0.004845 cubicm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/178/SMART_SERIES/243/GPS-700A8 |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Unit height | 16.5 cm |
| Unit depth | 22.5 cm |
| Unit width | 10 cm |
| Number of units per shipping box | 10 |
