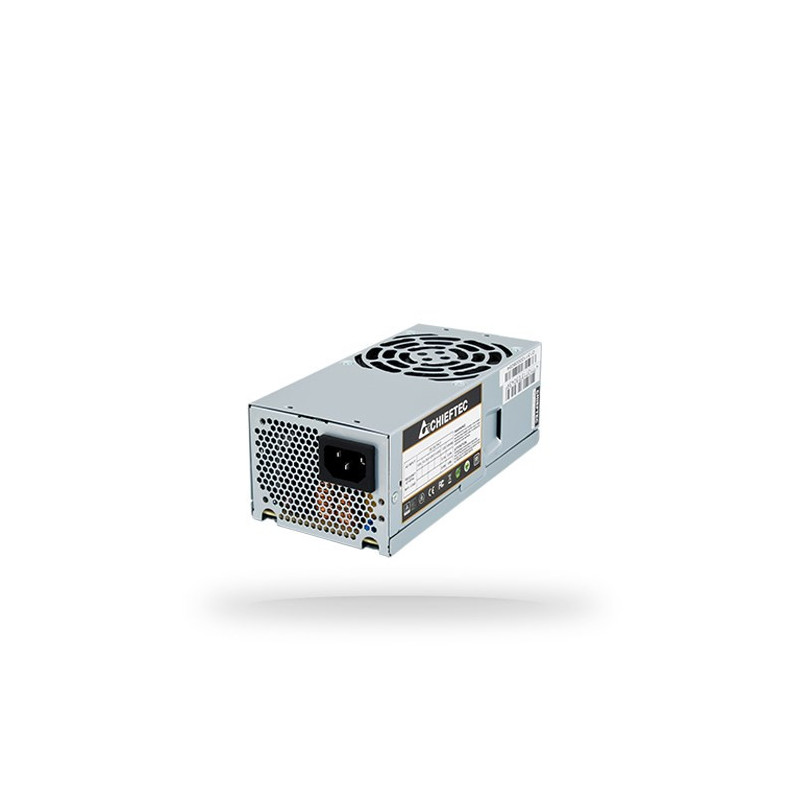

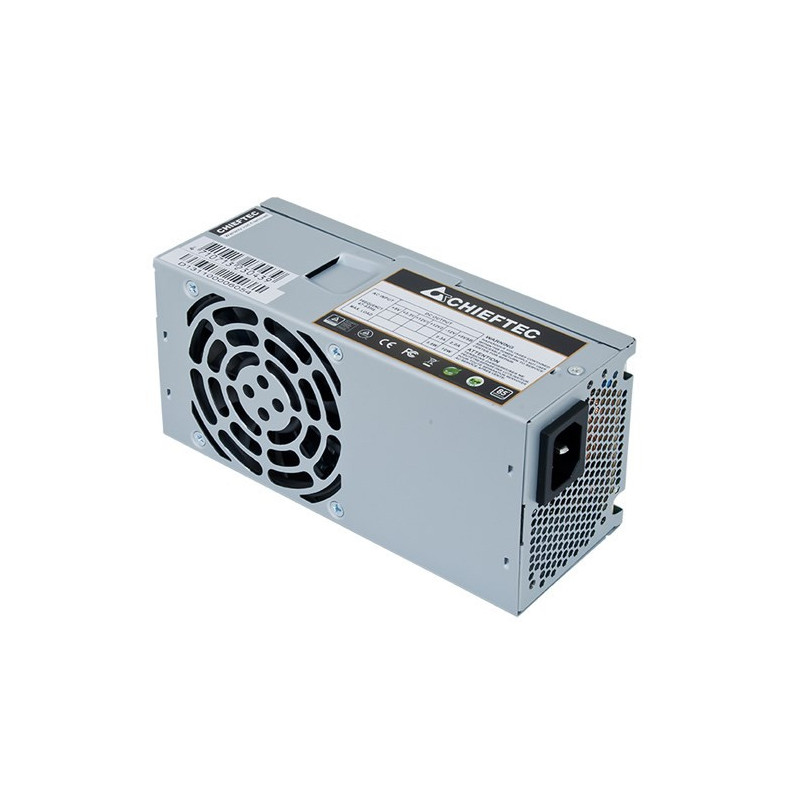

Power Supply - Chieftec GPF-350P 350W 20+4 pin ATX TFX Silver
Product reference:
14-4710713234673
The Chieftec GPF-350P power supply has a total power of 350 W and a 20+4 pin ATX motherboard connector. It has two SATA power connectors, two Molex connectors, as well as active power factor correction with 85% efficiency.
Power Supply - Chieftec GPF-350P 350W 20+4 pin ATX TFX Silver
Product reference:
14-4710713234673
The Chieftec GPF-350P power supply has a total power of 350 W and a 20+4 pin ATX motherboard connector. It has two SATA power connectors, two Molex connectors, as well as active power factor correction with 85% efficiency.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Chieftec GPF-350P Power Supply 350 W 20+4 Pin ATX TFX Silver
The Chieftec GPF-350P power supply has a total power of 350 W and a 20+4 pin ATX motherboard connector. It has two SATA power connectors, two Molex connectors, as well as active power factor correction with 85% efficiency.
- Efficient 350W power supply with 85% efficiency and active PFC for reliable operation.
- Compact TFX format design, ideal for saving space in PC builds.
- Essential power protection features are included: short circuit, overvoltage, and overload protection.
- Equipped with multiple switches, including 20+4 pin ATX and 2 SATA power switches, ensuring universal compatibility.
Technical Data | |
|---|---|
| Sustainability Certificates | RoHS |
| Certificates of Conformity | RoHS |
Design | |
| Number of Fans | 1 fan |
| Fan Diameter | 8cm |
| On/Off Switch | No |
| Product Color | Silver |
Power | |
| Power Factor Correction (PFC) Type | Active |
| Maximum Output Current (+12V1) | 15 A |
| Maximum Output Current (+3.3V) | 16 A |
| Combined Power (+12V) | 300W |
| Maximum Output Current (+5Vsb) | 2 A |
| AC Input Voltage | 115 - 230V |
| Maximum Output Current (-12V) | 0.3A |
| Combined Power (-12V) | 3.6W |
| Maximum Output Current (+12V2) | 15 A |
| Combined Power (+5Vsb) | 10W |
| Power Factor | 0.9 |
| Maximum Output Current (+5V) | 16 A |
| AC Input Frequency | 47 - 63 Hz |
| Input Current | 6.3 A |
| Combined Power (+5V) | 100W |
| Combined Power (+3.3V) | 100W |
Weight and Dimensions | |
| Height | 65 mm |
| Depth | 175 mm |
| Width | 86 mm |
Operation | |
| ATX Version | 2.3 |
| Usage | PC |
| Bearing Technology | Sleeve |
| Power Supply Unit (PSU) Format | TFX |
Ports and Interfaces | |
| Accessory (Molex) Power Connectors (4-pin) | 2 |
| Number of SATA Power Connectors | 2 |
| Motherboard Power Connector | 20+4 pin ATX |
| Cable Type | Incompatible |
| Floppy Disk Connector | Yes |
| CPU P4 Connector (4-pin) | 1 |
| Height | 100mm |
| Length | 300mm |
| Weight | 1950 years |
| Width | 200mm |
