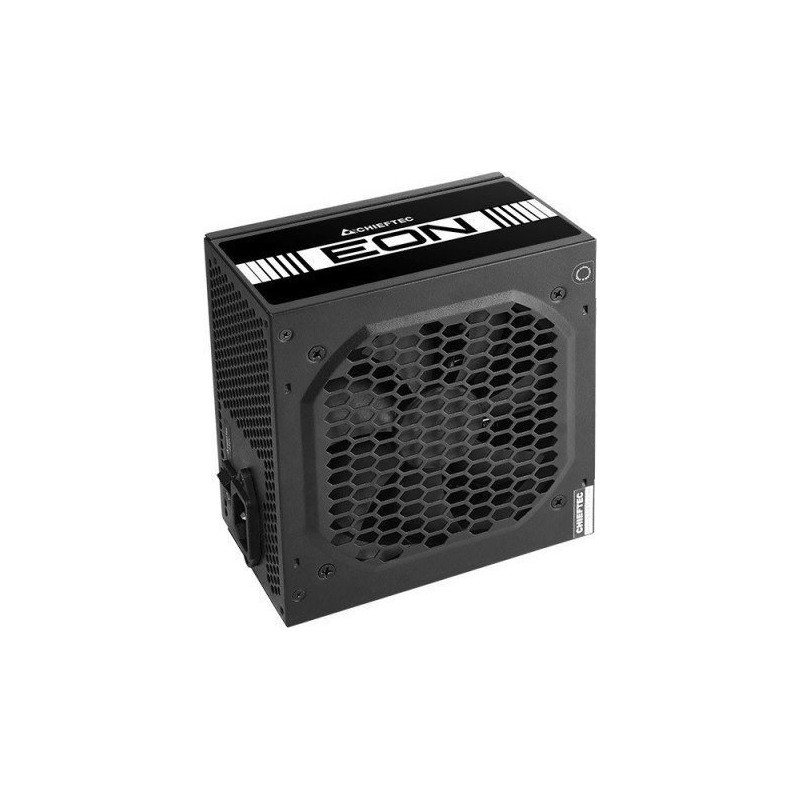

Power supply Chieftec EON ZPU-700S 700W

Product reference: 6-ZPU-700S

You have 3 products in compare list, please remove someone and try again

Add to compare

57,23 €

59,00 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
9 - 13
business days

Your message has been successfully sent!

Fill in the required fields*

Backlight	No
Product colour	Black
Modular cabling	No
Number of fans	1 fan(s)
Fan diameter	12 cm
Cooling type	Active

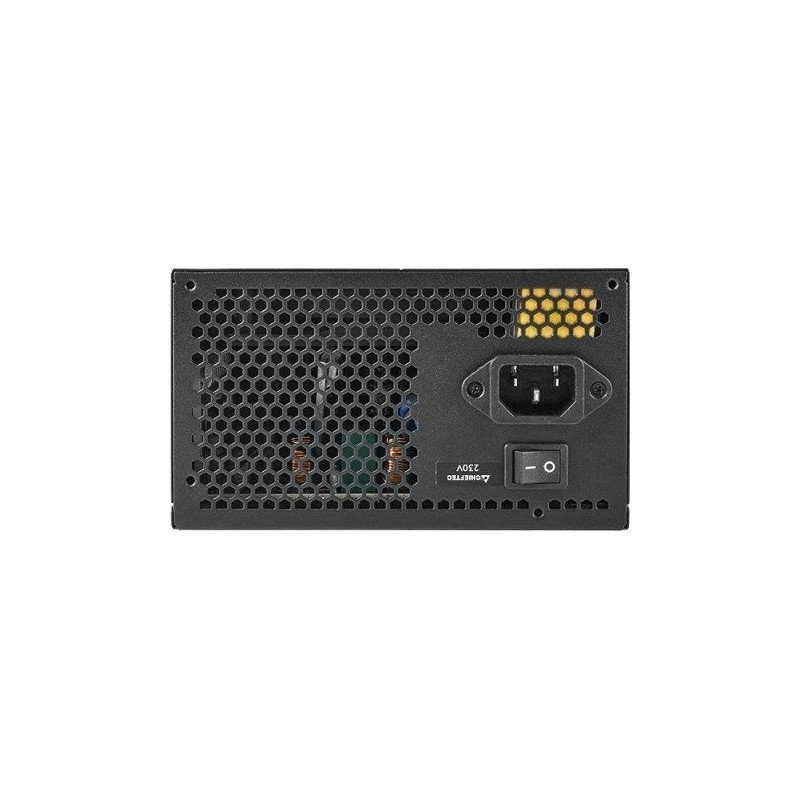

On/off switch	Yes

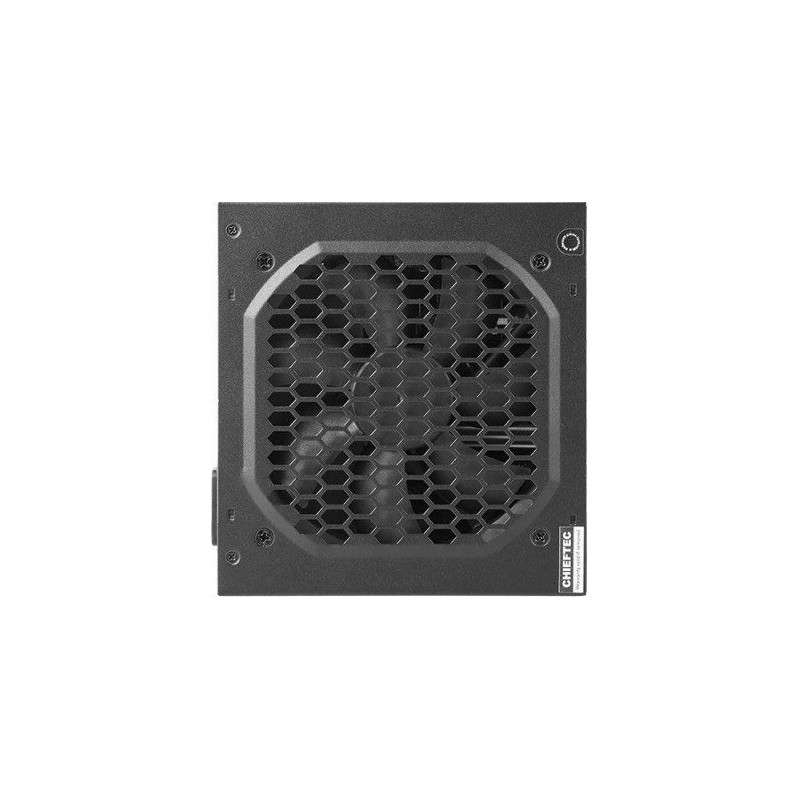

Fan location	Top
Power protection features	OVP (overvoltage protection), UVP (undervoltage protection), AFC (automatic fan speed control), OPP (overload protection), SIP (surge and shock protection), SCP (short circuit protection)
Max output current (-12V)	0.4 A
Max output current (+12V)	53 A
Max output current (+5V)	20 A
AC input voltage	200 - 240 V
Max output current (+5Vsb)	2.5 A
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	20 A
AC input frequency	50 - 60 Hz
Total power	700 W
Height	86 mm
Width	150 mm
Depth	140 mm
Weight	1.4 kg
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
ATX version	2.3
Peripheral (Molex) power cable length	150, 450 mm
Motherboard power cable length	65 cm
Number of SATA power connectors	4
PCI Express power cable length	55 cm
SATA power cable length	150, 450 mm
Length of EPS power connectors (4+4 pin)	70 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	4
Motherboard power connector	20+4 pin ATX
EPS power connector (4+4 pin)	2
Hazard pictogram(s)	GHS02: Flammable, GHS07: Harmful, GHS09: Environmental hazard
