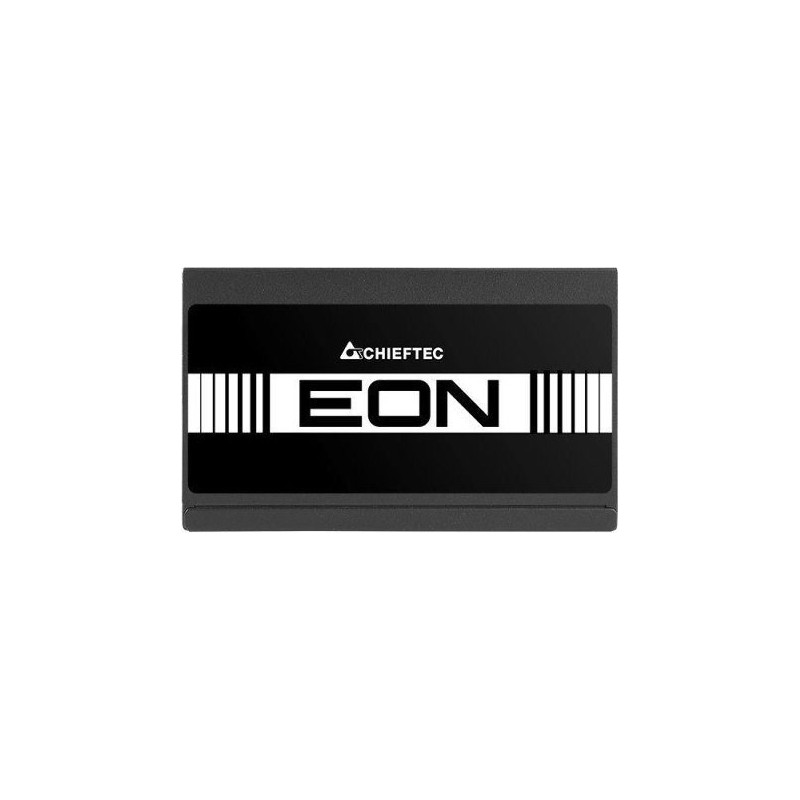

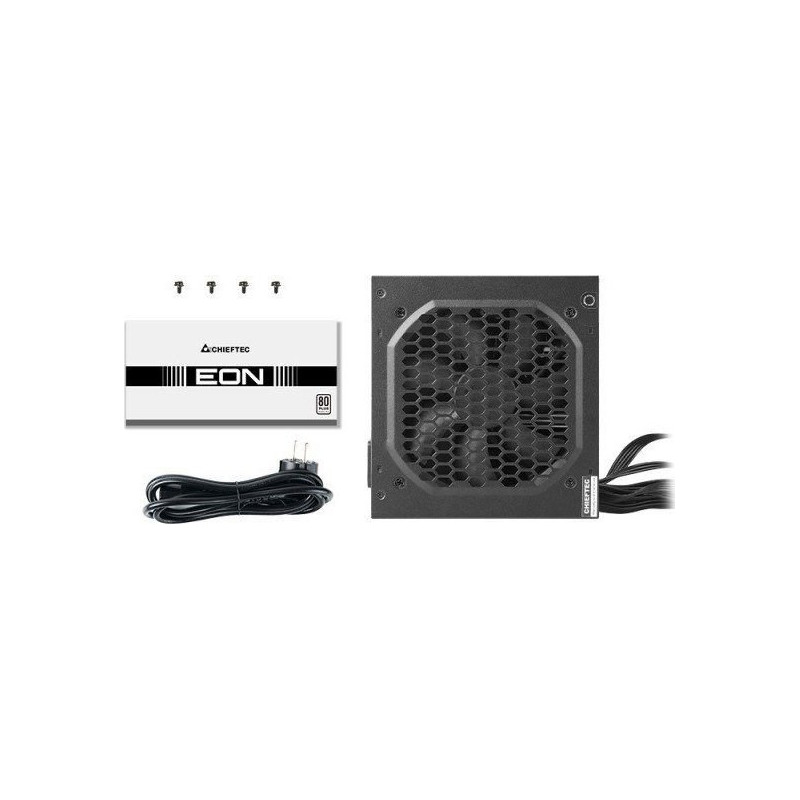

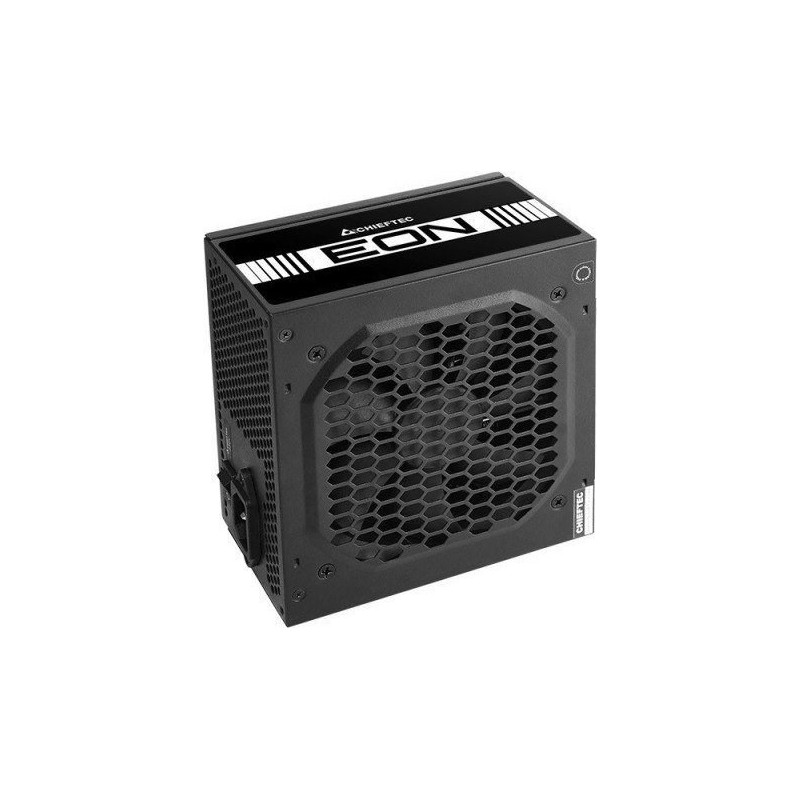

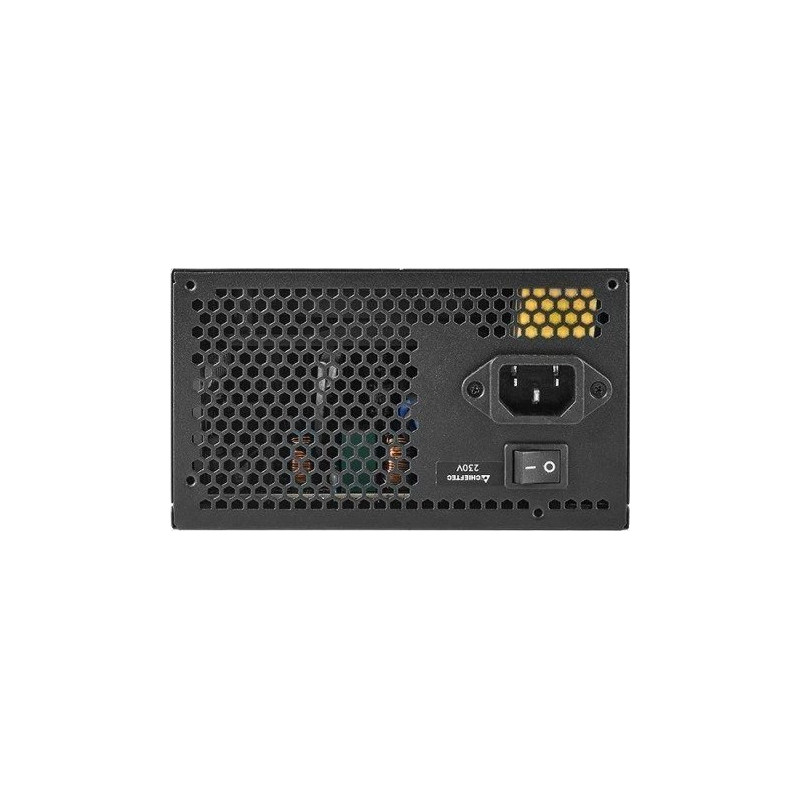

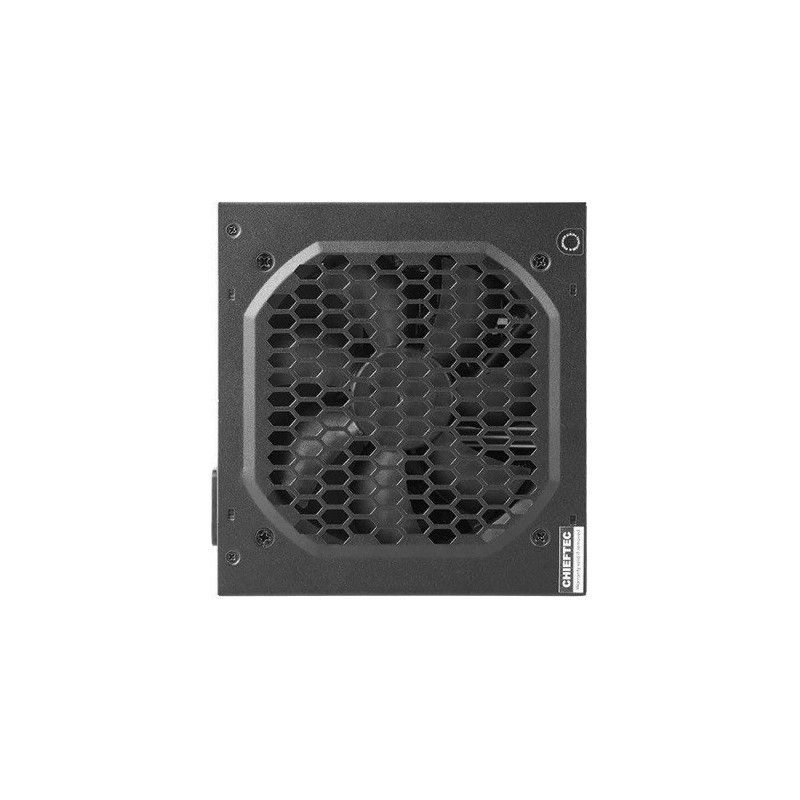

Power supply Chieftec EON ZPU-600S 600W
Product reference:
6-ZPU-600S
Power supply Chieftec EON ZPU-600S 600W
Power supply Chieftec EON ZPU-600S 600W
Product reference:
6-ZPU-600S
Power supply Chieftec EON ZPU-600S 600W
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 13
business days
| Product colour | Black |
| Fan location | Top |
| Backlight | No |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Modular cabling | No |
| Max output current (-12V) | 0.4 A |
| AC input frequency | 50 - 60 Hz |
| Max output current (+5V) | 20 A |
| AC input voltage | 200 - 240 V |
| Power protection features | UVP (undervoltage protection), AFC (automatic fan speed control), OVP (overvoltage protection), SCP (short circuit protection), OPP (overload protection), SIP (surge and shock protection) |
| Max output current (+5Vsb) | 2.5 A |
| Total power | 600 W |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45 A |
| Weight | 1.34 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| EPS power connector (4+4 pin) | 2 |
| SATA power cable length | 150, 450 mm |
| Length of EPS power connectors (4+4 pin) | 70 cm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150, 450 mm |
| Motherboard power cable length | 65 cm |
| PCI Express power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Hazard pictogram(s) | GHS07: Harmful, GHS02: Flammable, GHS09: Environmental hazard |
