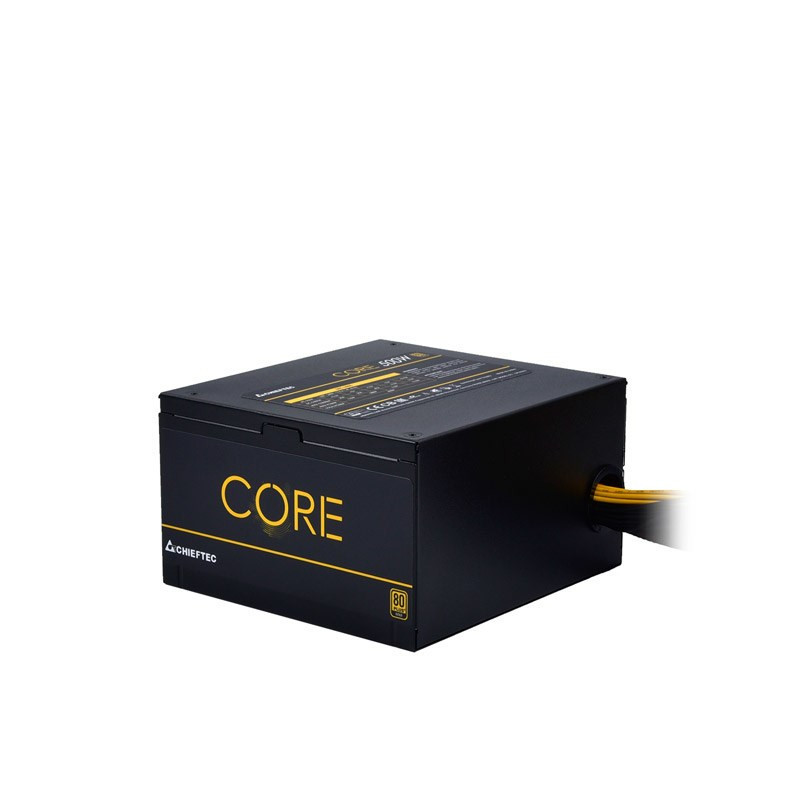

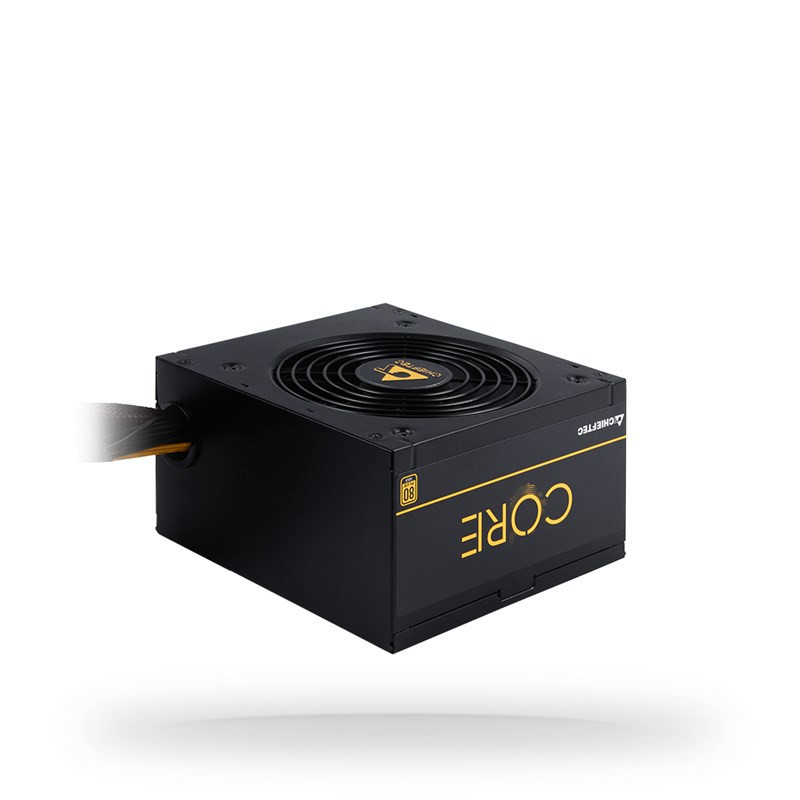

Power Supply - Chieftec Core Bbs-500s 500w 24pin Atx PS2 Black
Product reference:
14-753263076120
500 W power supply with 80 PLUS Gold certification. Output currents: +5V: 18 A, +3.3V: 18 A, +12V1: 41 A, with active fan cooling.
Power Supply - Chieftec Core Bbs-500s 500w 24pin Atx PS2 Black
Product reference:
14-753263076120
500 W power supply with 80 PLUS Gold certification. Output currents: +5V: 18 A, +3.3V: 18 A, +12V1: 41 A, with active fan cooling.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Chieftec Core BBS-500S 500W ATX PS2 Black
The Chieftec Core BBS-500S is a reliable 500W power supply unit with 80 PLUS Gold certification, ensuring high efficiency and active power factor correction (PFC). It supports a wide voltage range from 100 to 240 V and operates at a frequency of 47 - 63 Hz.
Main features
- 500 W Gold certified power supply
- Active power factor correction (PFC)
- 4 x SATA power connectors
- 1 x PCI Express power connector
Design | |
|---|---|
| Product color | Black |
| Number of fans | 1 fan |
| Cooling type | Active |
| Fan diameter | 12 cm |
Power | |
| Total power | 500W |
| Maximum output current (+12V1) | 41 A |
| Maximum output current (+5V) | 18 A |
| Maximum output current (+3.3V) | 18 A |
| Rear protection functions | Overload, Short circuit, Overvoltage |
Weight and dimensions | |
| Depth | 150mm |
| Height | 86 mm |
| Width | 140mm |
| Weight | 1.65 kg |
Operation | |
| 80 PLUS certificate | 80 PLUS Gold |
| Power supply unit (PSU) shape | PS/2 |
Ports and interfaces | |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power connector | 24-pin ATX |
| Height | 190 mm |
| Length | 245 mm |
| Weight | 1995 |
| Width | 110 mm |
