Power supply ATX 3.1 Chieftec VEGA M 750W 80 PLUS Gold Black (PPG-750-C)
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX power connector | Yes |
| ATX power connector (20 + 4 pins) | Yes |
| ATX version | 3.1 |
| Height | 85 mm |
| Cooling cover type | FDB |
| Cooling type | Active |
| Total power | 750 W |
| Gross weight | 2.5 kg |
| CPU power connector (4 + 4 pins) | Yes |
| CPU power cable length | 650 mm |
| Maximum output voltage (+12 V1) | 62.5 A |
| Maximum output voltage (+3.3 V) | 20 A |
| Maximum output voltage (+5 V) | 20 A |
| Maximum output voltage (-12 V) | 0.3 A |
| EPS power connector (4 + 4 contacts) | Yes |
| EPS power connector (8-pin) | Yes |
| Power Factor Correction (PFC) type | Active |
| Length | 150 mm |
| Illumination | No |

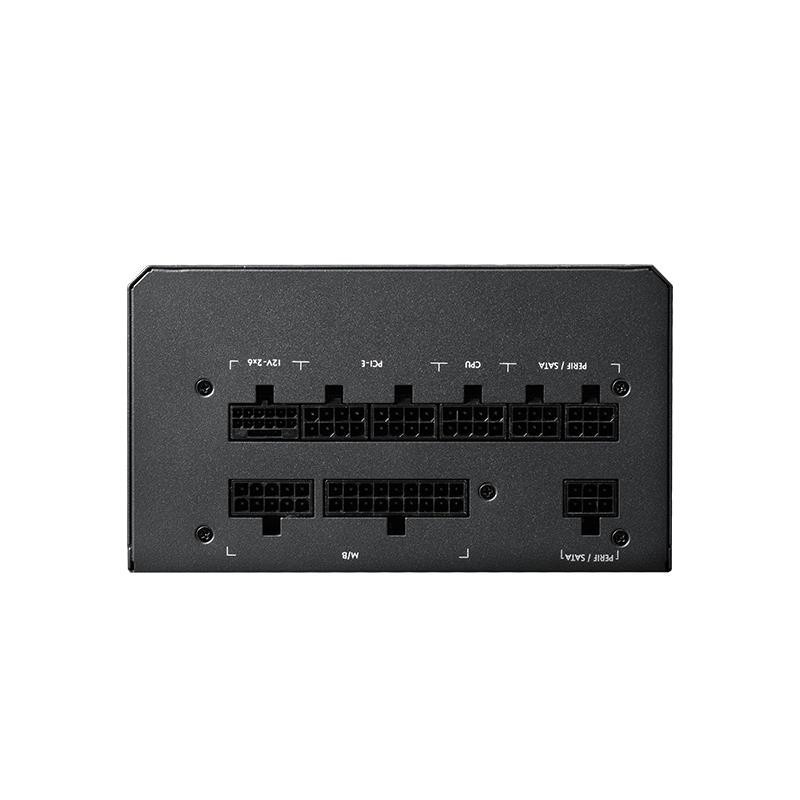

| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS (8/4+4) 1/1 8 PIN PCIe (6+2) 4 16 PIN 12V - 2 x 6 1 SATA 6 MOLEX 3 |
| Complex power (+3.3 V) | 100 W |
| Complex power (+5V) | 100 W |
| Power supply unit (PSU) form factor | ATX |
| Model name | ATX 750W |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 600 mm |
| Net weight | 1.96 kg |
| Package weight | 2430 g |
| Purpose | PC |
| PCI Express power connectors (6 + 2 pins) | 4 |
| Cable type | Full modular |
| Peripheral (Molex) power cable length | 150/400 mm |
| Peripheral (Molex) power connector (4-pin) | 3 |
| Width | 150 mm |
| Product color | Black |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150/400 mm |
| Certificate 80 PLUS | 80 PLUS Gold |
| Certification | 80PLUS Gold |
| Shipping Box Depth | 55 cm |
| Shipping Box Height | 23 cm |
| Shipping Box Weight | 12.52 kg |
| Shipping Box Width | 30 cm |
| Summary | Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold |
| Weight | 1960 g |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.105 |
| Unit Gross Volume | 0.00759 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/626/VEGA_M |
| Fan diameter | 135 mm |
| Unit height | 21 cm |
| Unit depth | 28 cm |
| Unit width | 10.5 cm |
| Number of units per shipping box | 5 |
| PCI Express power connectors (12 + 4 pin contacts) | 1 |
| PCI Express power connectors (12 + 4 pin contacts) cable length | 600 mm |
