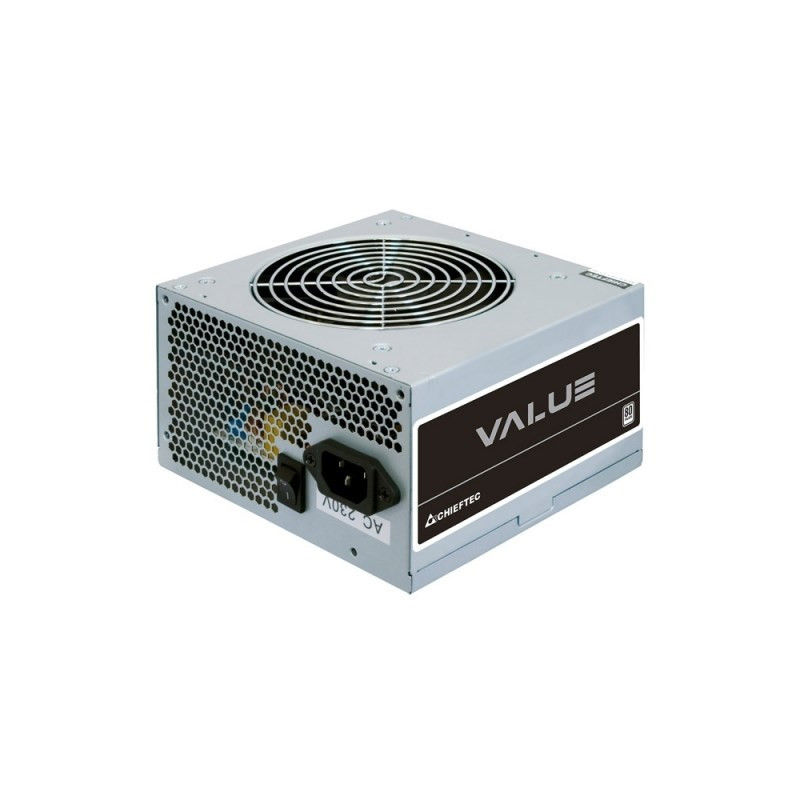

Power Supply - Chieftec Apb-600b8 600w 20+4 Pin Atx steel
Product reference:
14-753263077813
The Chieftec Value APB-600B8 power supply has a 20+4-pin ATX connector and provides 600 W of total power. It has a maximum input current of 220V - 4.5 A, and also supports EPS, PCI Express, +5V, -12V and +3.3V connectors.
Power Supply - Chieftec Apb-600b8 600w 20+4 Pin Atx steel
Product reference:
14-753263077813
The Chieftec Value APB-600B8 power supply has a 20+4-pin ATX connector and provides 600 W of total power. It has a maximum input current of 220V - 4.5 A, and also supports EPS, PCI Express, +5V, -12V and +3.3V connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Chieftec Apb-600B8 600W Power Source
Chieftec APB-600B8 is a reliable 600W power supply designed for PC systems. It features a 20+4 pin ATX connector and supports a variety of power connectors to ensure greater compatibility.
Main features
- Total power: 600 W
- Maximum input current: 4.5 A at 220V
- EPS and PCI Express power connectors
- Incompatible cable connections
Technical data | |
|---|---|
| Sustainability certificates | RoHS, CE |
Design | |
| On/Off switch | Yes |
| Product color | Steel |
| Cooling type | Active |
| Fan location | Above |
| Number of fans | 1 |
Power | |
| AC input voltage | 200 - 240V |
| Maximum output current (+12V) | 46 A |
| Maximum output current (+5V) | 20 A |
| Maximum output current (+3.3V) | 20 A |
| Connected capacity (+12V) | 552 W |
| Total power | 600W |
Weight and dimensions | |
| Weight | 1.42 kg |
| Height | 87 mm |
| Depth | 140mm |
| Width | 150mm |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certificate | 80 PLUS |
| Purpose | PC |
Ports and interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cable type | Incompatible |
| Height | 120mm |
| Length | 305mm |
| Weight | 1422 grams |
| Width | 190 mm |
