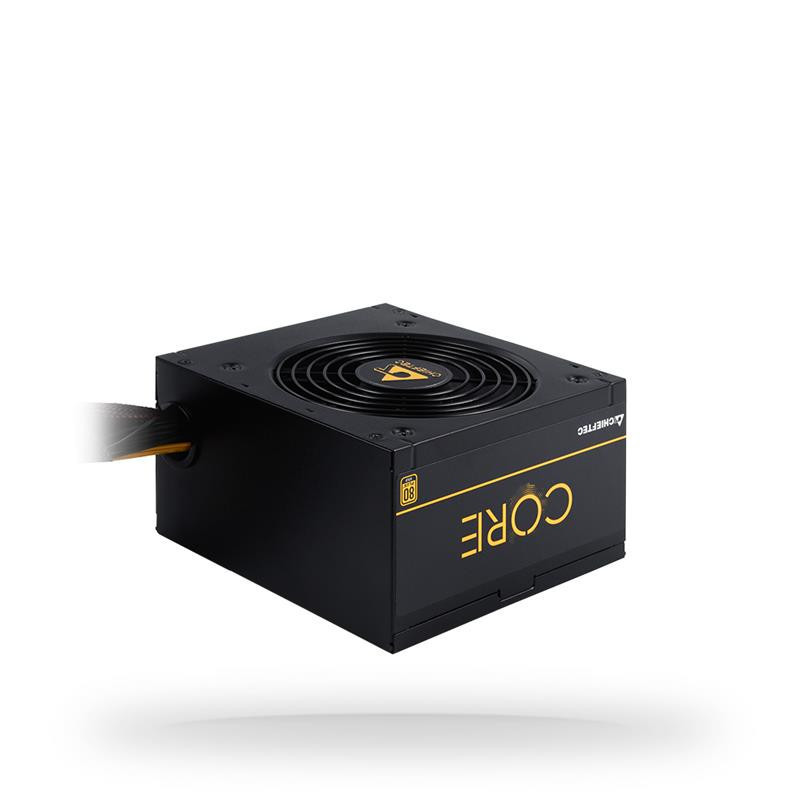

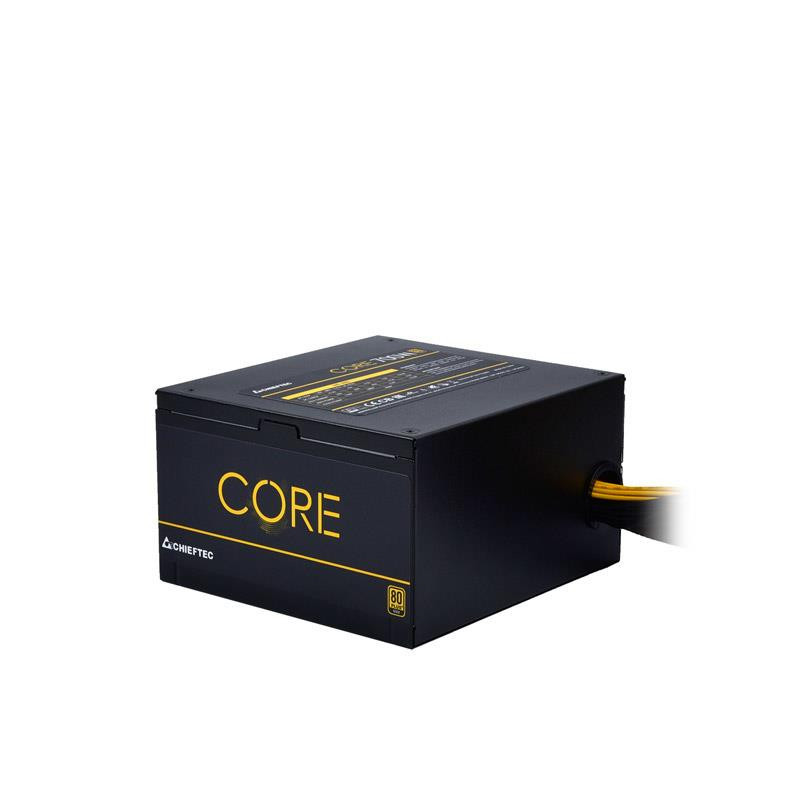

ATX 2.3 power supply Chieftec CORE 700W 80 PLUS Gold Black (BBS-700S)
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240V |
| Height | 86 mm |
| Cooling type | Active |
| Total power | 700 W |
| Gross weight | 2.17 kg |
| CPU power connector (4 + 4 pins) | Yes |
| CPU power cable length | 650 mm |
| Harmonized System (HS) code | 84733020 |
| Maximum output voltage (+12 V1) | 58 A |
| Maximum output voltage (+12 VSB) | 2.5 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 22 A |
| Maximum output voltage (-12 V) | 0.3 A |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Power Factor Correction (PFC) Type | Active |
| Length | 150 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 4 6 HOURS MOLEX/FLOPPY 3/1 |
| Complex power (+5 VSB) | 12.5 W |
| Complex power (-12 V) | 3.6 W |
| Power protection features | Overvoltage protection/Overload protection/Short circuit |
| Power supply unit (PSU) form factor | PS/2 |
| Model name | BBS-700S |
| Motherboard power connector | 24-pin ATX |
| Net weight | 1.72 kg |
| Package weight | 2130 g |
| Purpose | PC |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6 + 2 pins) | 4 |
| Wired transmission type | Non-modular |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connector (4-pin) | 3 |
| Width | 140 mm |
| Product color | Black |
| Number of SATA electrical connectors | 6 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certificate | 80 PLUS Gold |
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 22 cm |
| Shipping Box Weight | 8.7 kg |
| Shipping Box Width | 23.5 cm |
| Summary | Chieftec Core BBS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| Weight | 1720 g |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.11 |
| Unit Ugly Volume | 0.006398 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/113/CORE_SERIES/116/BBS-700S |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Unit height | 19 cm |
| Unit depth | 24 cm |
| Unit width | 11 cm |
| Number of units per shipping box | 4 |
| Input current | 10 A |
