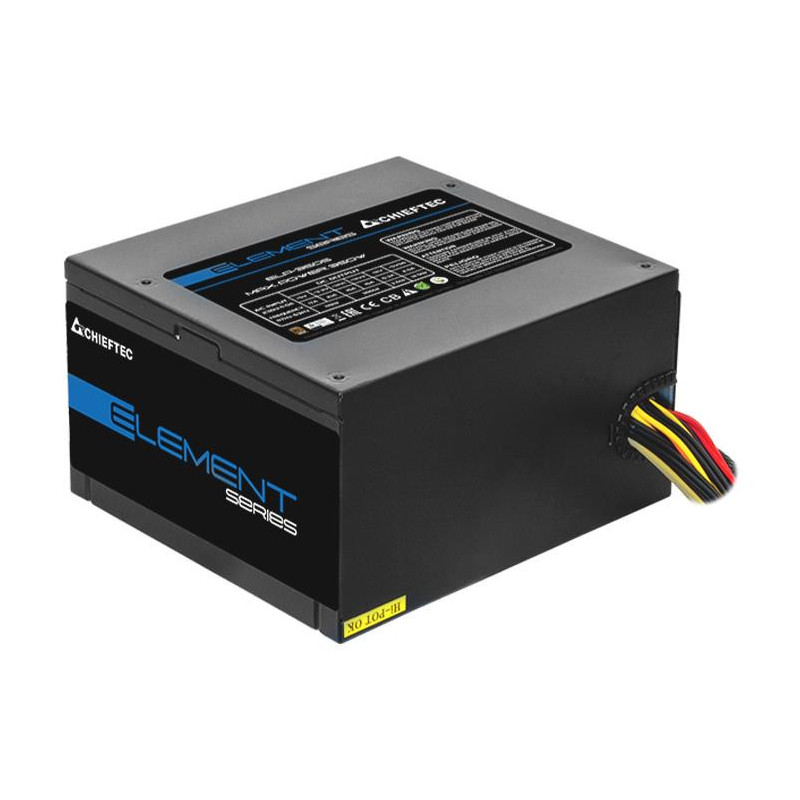

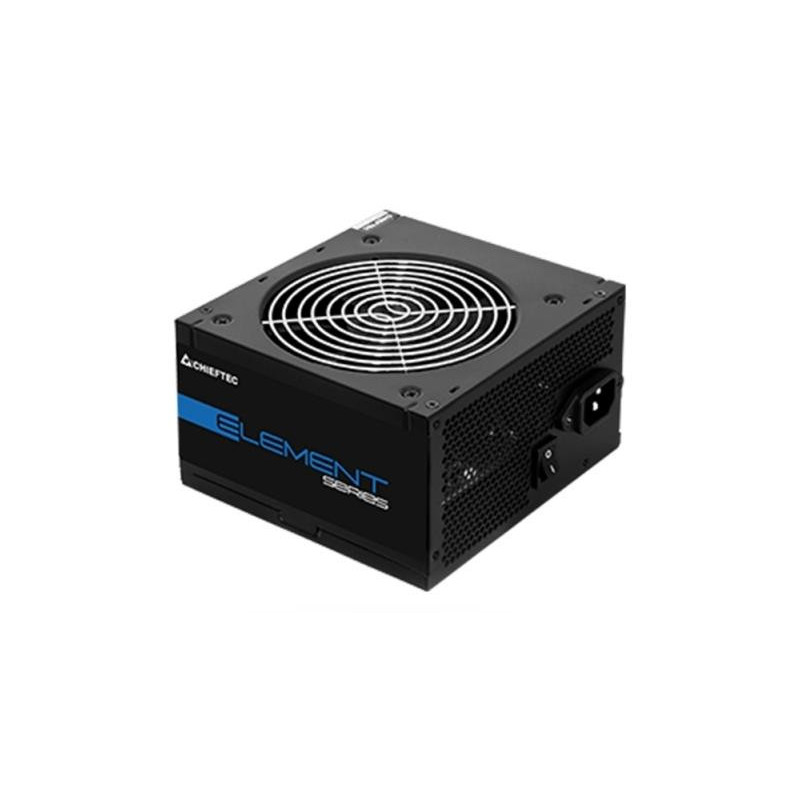

Chieftec ELEMENT ELP-700S
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240V |
| Certificates of conformity | CB/CE/EAC/RoHS |
| ATX version | 2.3 |
| Height | 86 mm |
| Cooling type | Active |
| Total power | 700 W |
| Gross weight | 1.83 kg |
| Maximum output voltage (+12 V) | 54 A |
| Maximum output voltage (+12 VSB) | 2.5 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 22 A |
| Efficiency | 85 % |
| EPS power connector (4 + 4 pins) | Yes |
| Floppy disk drive connector | Yes |
| Power factor | 0.9 |
| Power Factor Correction (PFC) Type | Active |
| Length | 150 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 2 6 HOURS MOLEX/FLOPPY 2/1 |
| Complex power (+12 V) | 648 W |
| Complex power (+3.3 V) | 130 W |
| Complex power (+5 VSB) | 12.5 W |
| Complex power (+5V) | 130 W |
| Complex power (-12 V) | 3.6 W |
| Power protection features | Overvoltage protection/Undervoltage protection/Short circuit/Overpower |
| Power supply unit (PSU) form factor | PS/2 |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 650 mm |
| Net weight | 1.65 kg |
| On/off button | Yes |
| Package weight | 1900 g |
| Packaging type | "Box" |
| Supported motherboard form factor | ATX |
| Purpose | PC |
| PCI Express connector | Yes |
| PCI Express power connectors (6 + 2 pins) | 1 |
| Wired transmission type | Non-modular |
| Peripheral (Molex) power cable length | 150/500 mm |
| Width | 140 mm |
| Product color | Black |
| Number of SATA electrical connectors | 6 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certificate | 80 PLUS Bronze |
| Shipping Box Depth | 23 cm |
| Shipping Box Height | 9.8 cm |
| Shipping Box Weight | 1.831 kg |
| Shipping Box Width | 17 cm |
| Summary | Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS |
| Weight | 1650 g |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.17 |
| Unit Ugly Volume | 0.003832 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/128/ELP-700S |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Unit height | 9.8 cm |
| Unit depth | 23 cm |
| Unit width | 17 cm |
| Number of units per shipping box | 1 |
| Input current | 5 A |
