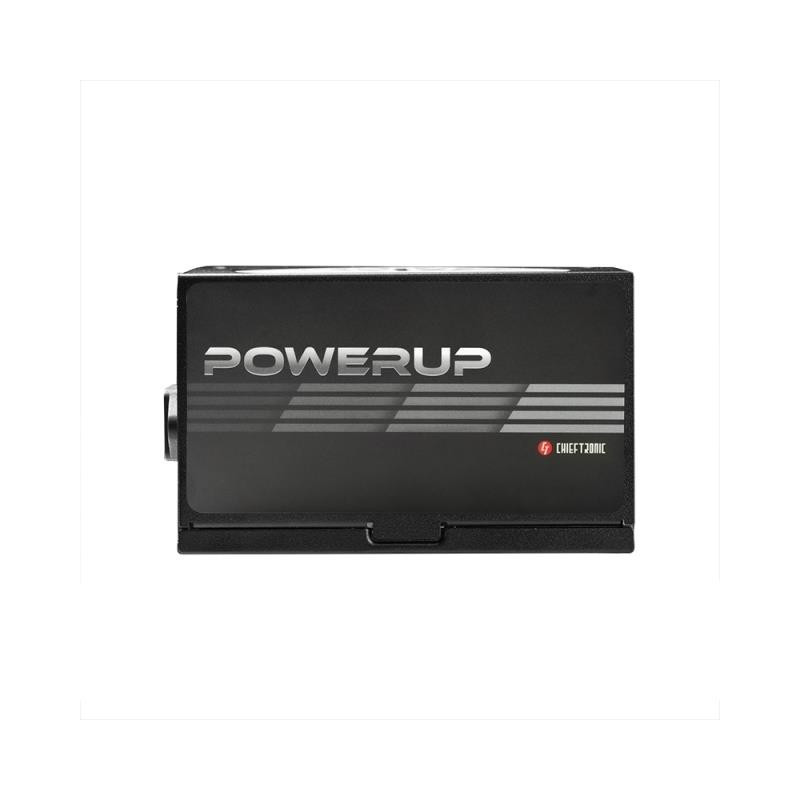

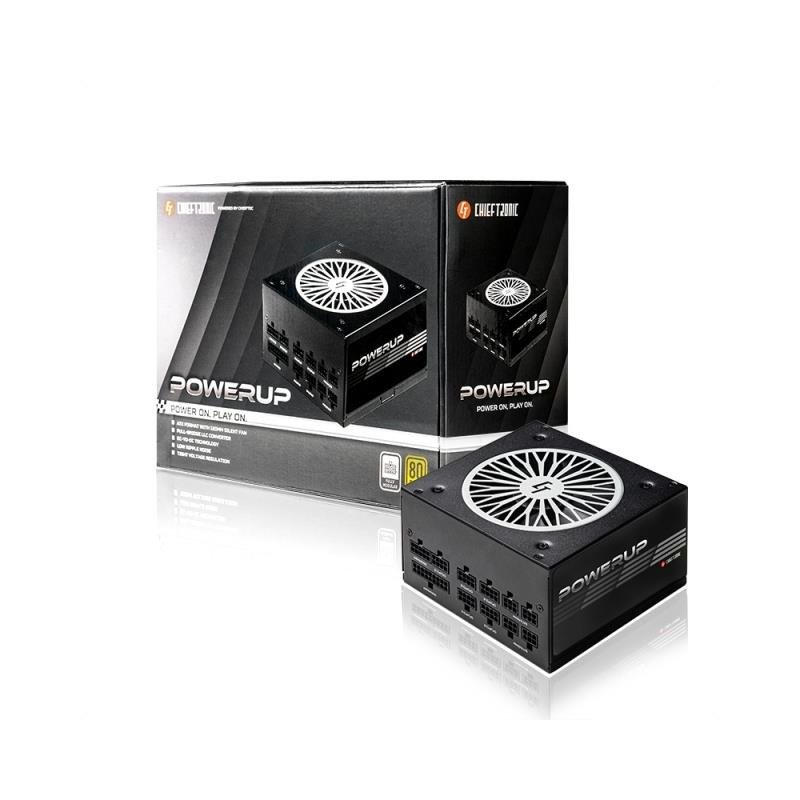

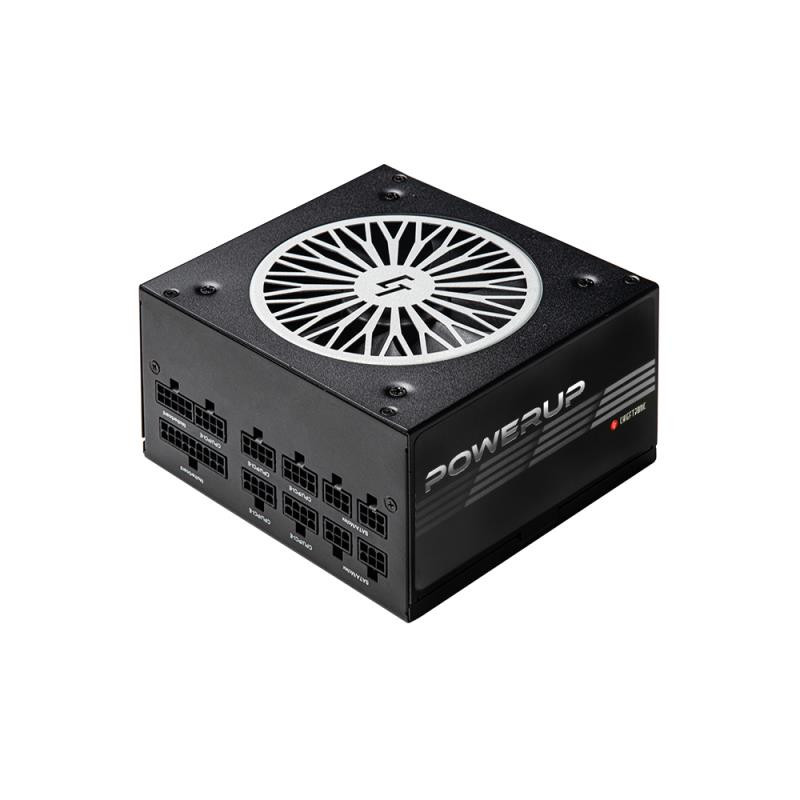

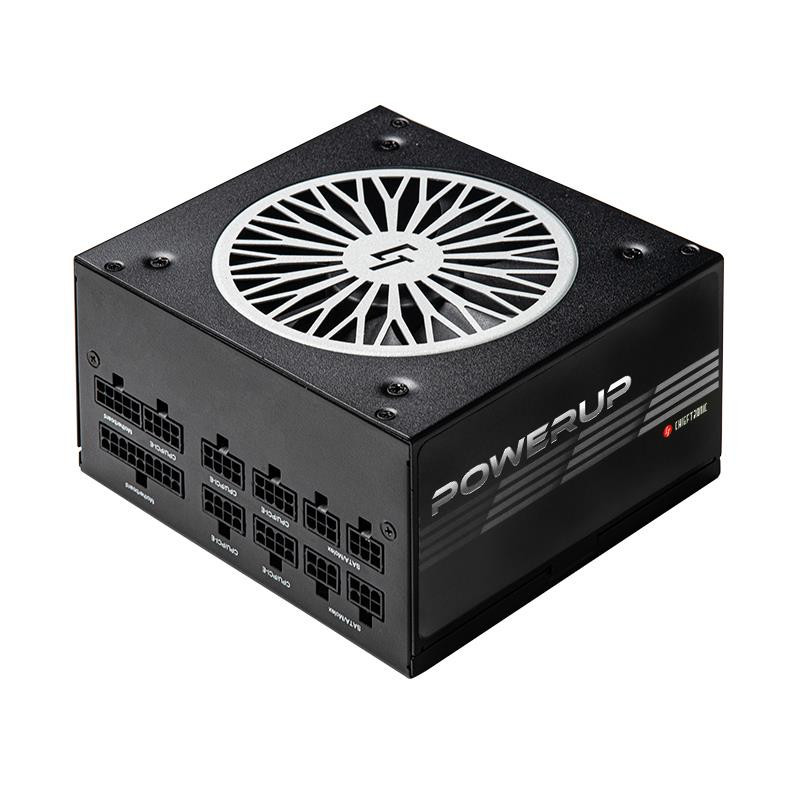

Блок живлення ATX 2.53 Chieftec PowerUP 650W 80 PLUS Gold Black (GPX-650FC)
With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer's market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very large gaming cases.
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 47 - 63 Hz |

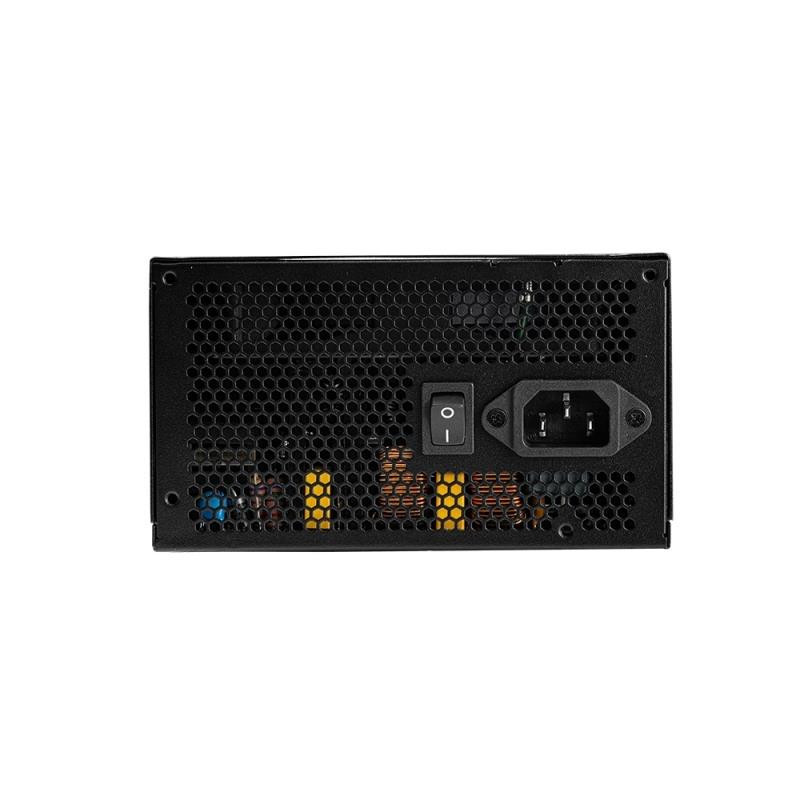

| AC input voltage | 100 - 240 V |
| ATX version | 2.53 |

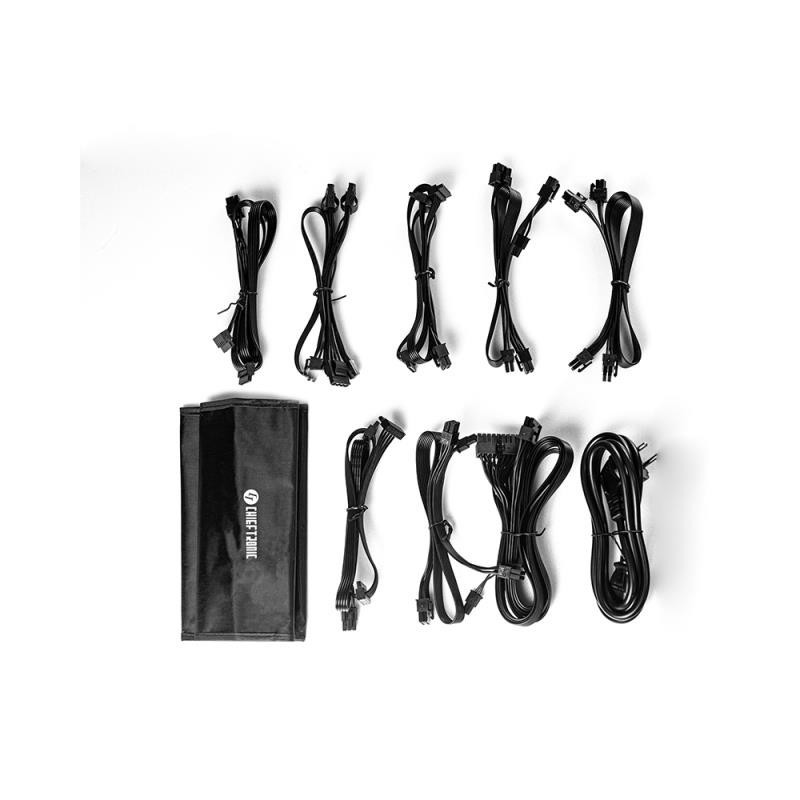

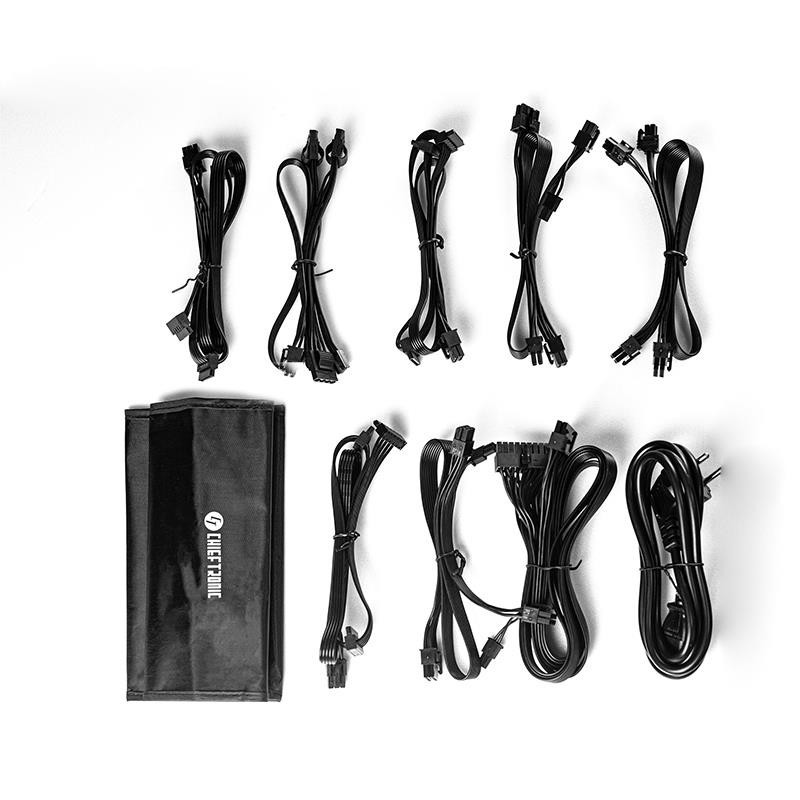

| Cabling type | Fully-Modular |
| Certification | 80PLUS Gold |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |

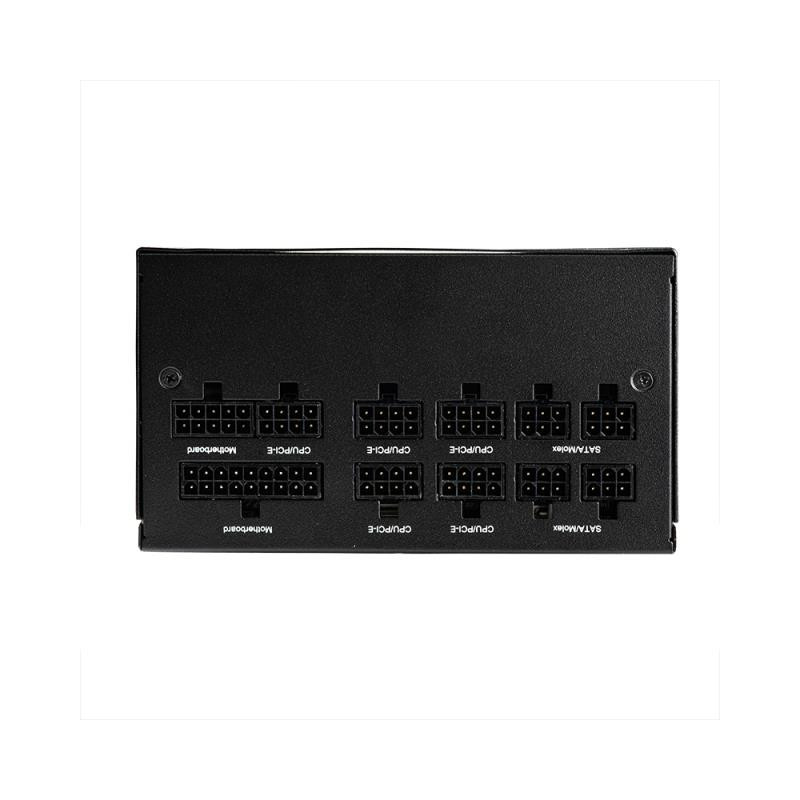

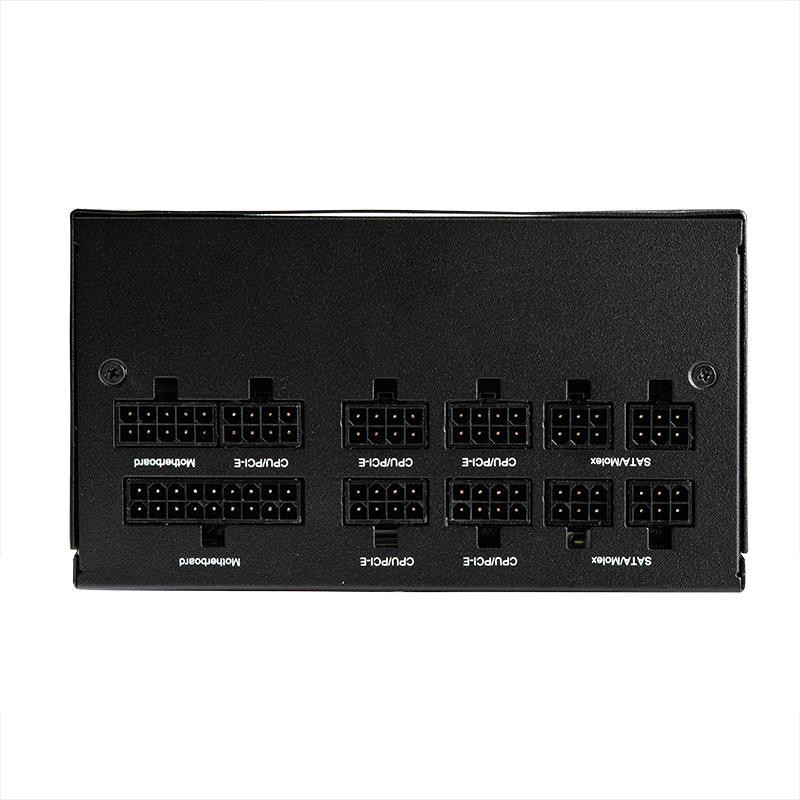

| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 2 SATA 9 MOLEX/FLOPPY 3/1 |
| Cooling type | Active |
| CPU power cable length | 800 mm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 140 mm |

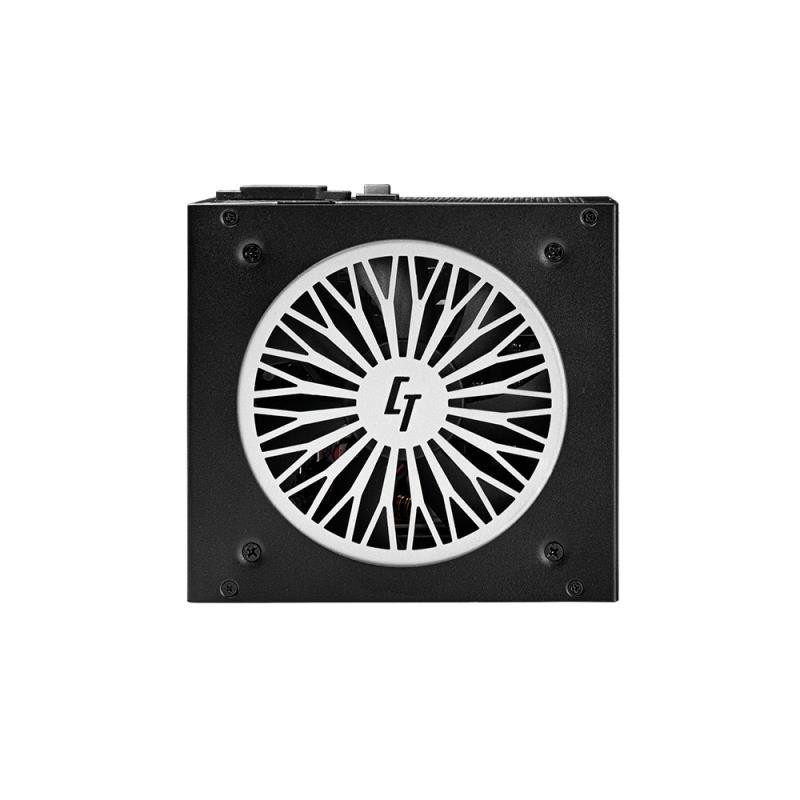

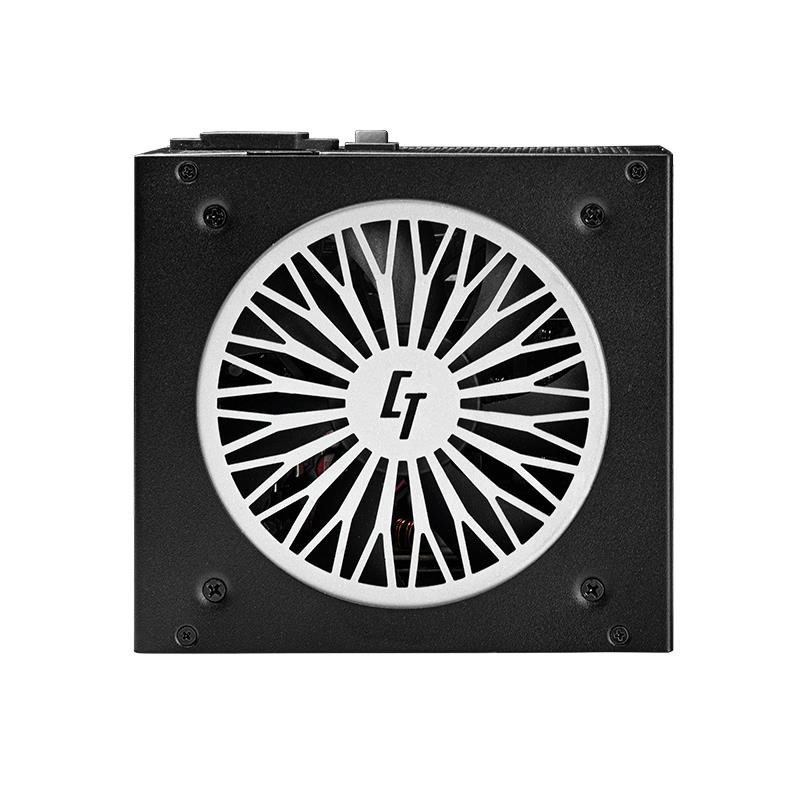

| Fan diameter | 120 mm |
| Floppy drive power connector | 1 |
| Harmonized System (HS) code | 84733020 |
| Height | 86 mm |
| Input current | 10 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Model name | Chieftronic PowerUp |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 9 |
| Package weight | 2750 g |
| PCI Express connector | Yes |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Product Net Weight | 2.2 kg |
| Purpose | PC |
| SATA power cable length | 150/500 mm |
| Shipping Box Depth | 52.5 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 11.3000001907 kg |
| Shipping Box Width | 32 cm |
| Summary | Chieftec PowerUp Chieftronic. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS Gold |
| Total power | 650 W |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.31 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.0105 cubm |
| Unit Calculated Weight | 2.83 kg |
| Unit Depth | 31 cm |
| Unit Height | 22 cm |
| Unit Width | 12.5 cm |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/326/PowerUP_SERIES/328/GPX-650FC |
| Weight | 2200 g |
| Width | 150 mm |
