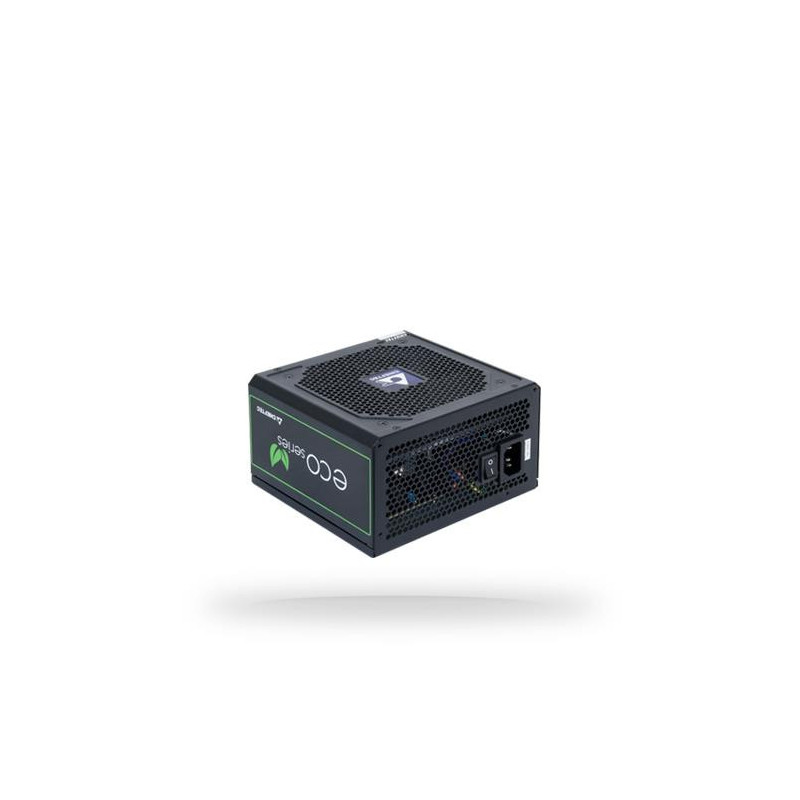

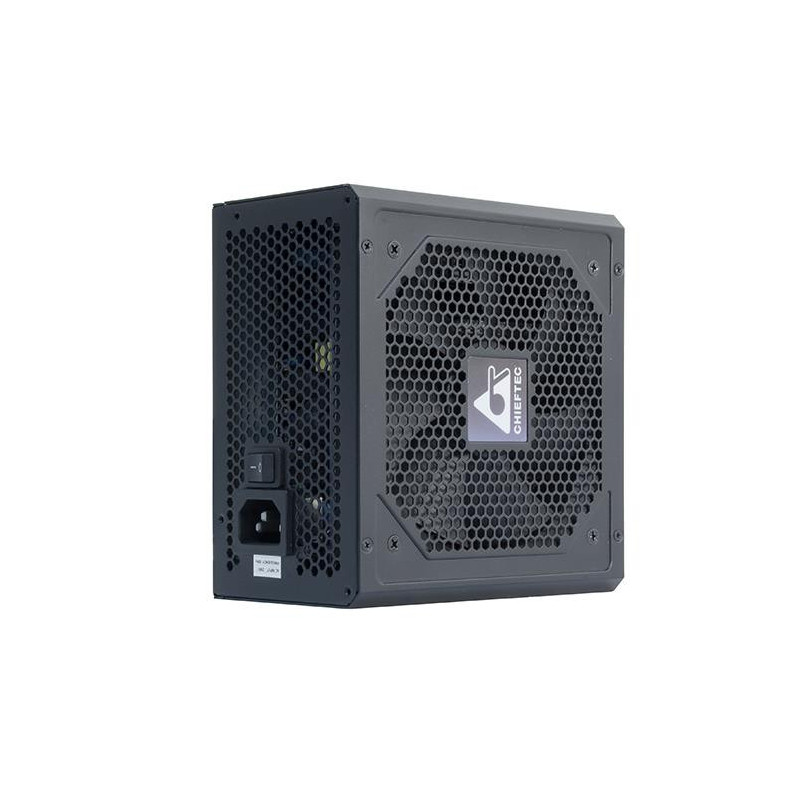

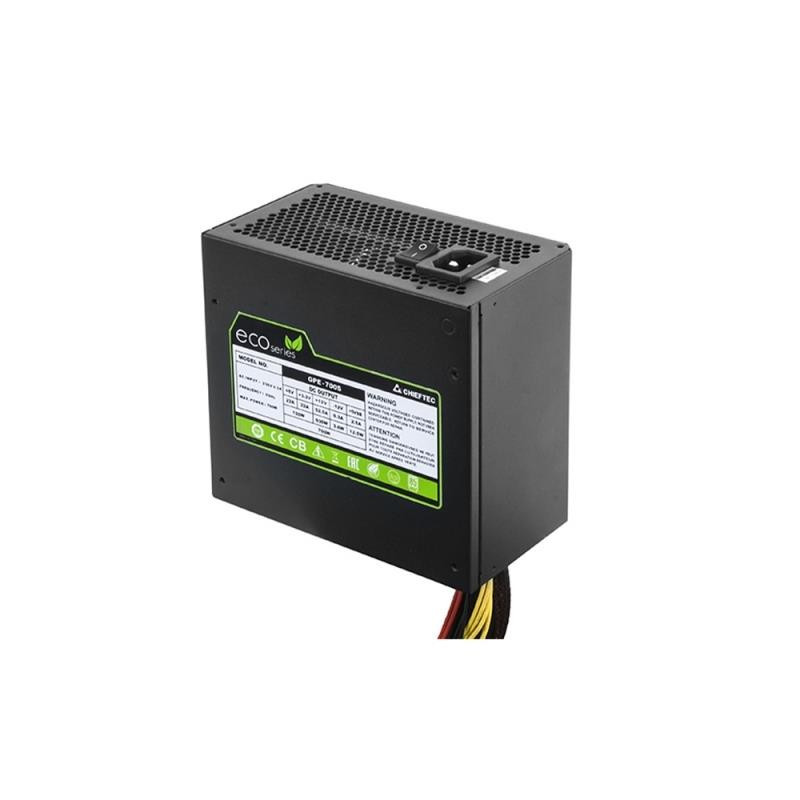

Power supply unit ATX 2.3 Chieftec ECO 600W Black (GPE-600S)
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV among many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| ATX version | 2.3 |
| Height | 87 mm |
| Total power | 600 W |
| Gross weight | 2.01 kg |
| Harmonized System (DS) Code | 84733020 |
| Maximum Output Voltage (+12 V1) | 45 A |
| Maximum Output Voltage (+3.3 V) | 22 A |
| Maximum Output Voltage (+5 V) | 22 A |
| Power Factor | 0.9 |
| Power Factor Correction (PFC) Type | Active |
| Length | 150 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 2 SATA 6 MOLEX/FLOPPY 2 |
| Complex power (+3.3 V) | 120 W |
| Complex power (+5V) | 120 W |
| Power supply unit (PSU) Form Factor | PS/2 |
| Model Name | GPE-600S |
| Motherboard Power Connector | 20+4 pin ATX |
| Net Weight | 1.32 kg |
| Supported Motherboard Form Factor | ATX |
| Purpose | PC |
| Transmission Cable Type | Non-modular |
| Peripheral (Molex) power cable length | 150 mm |
| Peripheral (Molex) power connector (4-pin) | 2 |
| Width | 140 mm |
| Product color | Black |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150/350 mm |
| Shipping Box Depth | 51 cm |
| Shipping Box Height | 18 cm |
| Shipping Box Weight | 20.1 kg |
| Shipping Box Width | 48 cm |
| Summary | Chieftec GPE-600S. Total power: 600 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 87 mm |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.18 |
| Unit Gross Volume | 0.004406 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/118/ECO_SERIES |
| Fan diameter | 120 mm |
| Unit height | 10 cm |
| Unit depth | 23 cm |
| Unit width | 18 cm |
| Number of units per shipping box | 10 |
| Input current | 6.3 A |
