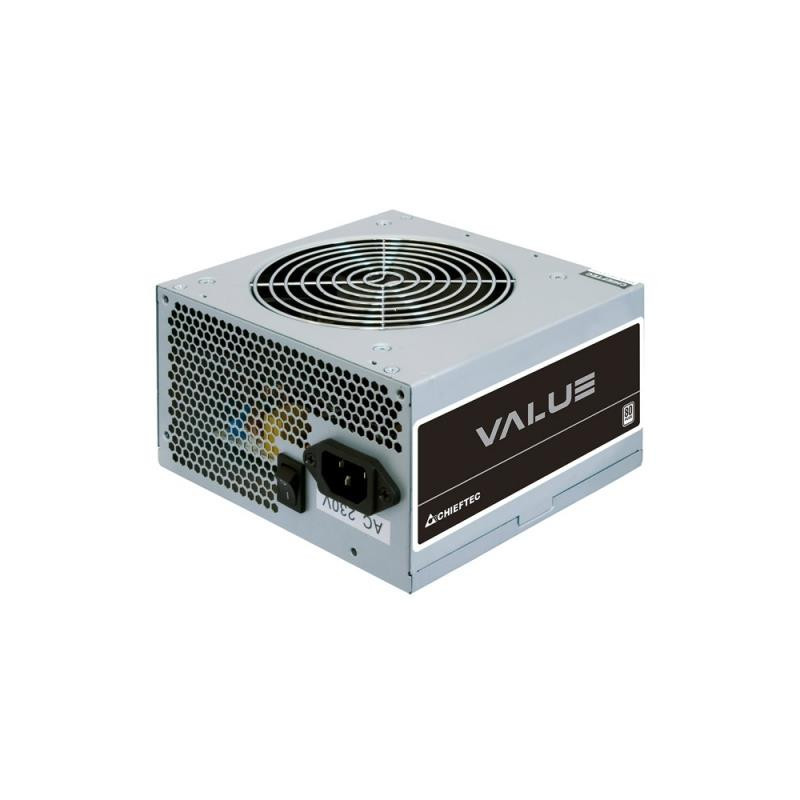

Power Supply, CHIEFTEC, ATX, PC, 200 - 240 V, 600 W, APB-600B8
Product reference: 2-753263077813
  • −8%
Power Supply, CHIEFTEC, 600 Watts, Efficiency 80 PLUS, PFC Active, APB-600B8

Power Supply, CHIEFTEC, ATX, PC, 200 - 240 V, 600 W, APB-600B8

Product reference: 2-753263077813
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
38,13 €
41,45 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it's the VALUE choice!


80 PLUS certification 80 PLUS
AC input frequency 47 - 63 Hz
AC input voltage 200 - 240 V
ATX version 2.3
Cabling type Non-Modular
Combined power (+12V) 552 W
Combined power (+3.3V) 120 W
Combined power (+5V) 120 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Compliance certificates CE/RoHS
Cooling type Active
Depth 140 mm
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) No
Fan diameter 120 mm
Fan location Top
Floppy disk drive cable length 150 mm
Floppy disk drive connector Yes
Harmonized System (HS) code 84733020
Height 87 mm
Max output current (+12V1) 46 A
Max output current (+3.3V) 20 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Maximum input current (@220V) 4.5 A
Motherboard power cable length 550 mm
Motherboard power connector 20+4 pin ATX
Number of fans 1 fan(s)
Number of SATA power connectors 4
On/off switch Yes
Package weight 1560 g
PCI Express power connectors (6+2 pin) 2
Peak power 600 W
Peripheral (Molex) power cable length 150/500 mm
Peripheral (Molex) power connectors (4-pin) 2
Power supply unit (PSU) form factor ATX
Product colour Steel
Purpose PC
SATA power cable length 150/500 mm
Summary Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
Total power 600 W
Unit Box Height 0.09
Unit Box Length 0.22
Unit Box Width 0.15
Unit Calculated Volume 0.004455 cubm
Unit Calculated Weight 1.58 kg
Units per Shipping Box 10
Vendor Homepage https://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8
Weight 1420 g
Width 150 mm
