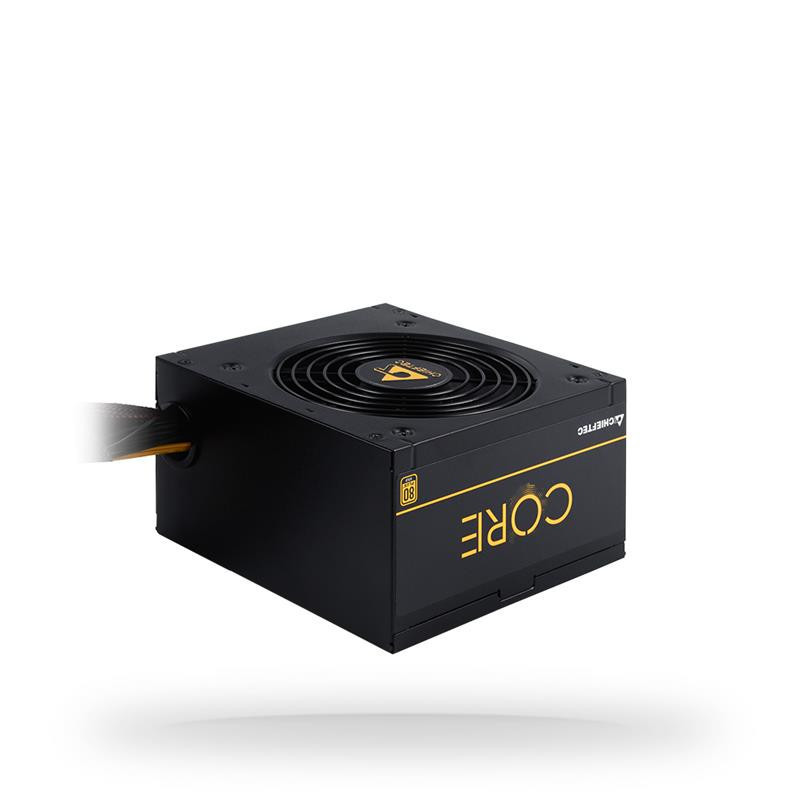

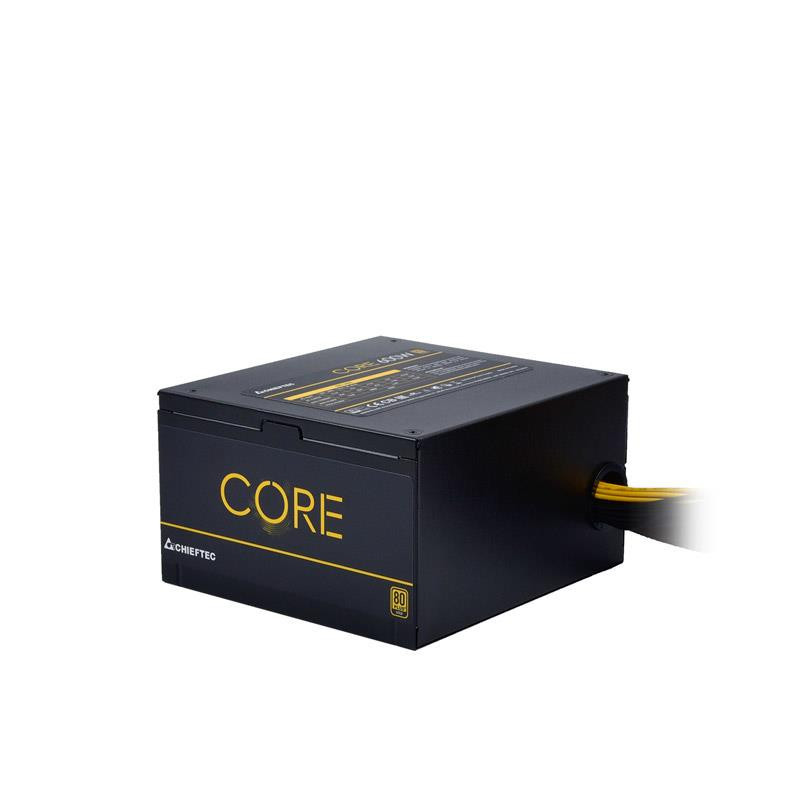

Chieftec Core BBS-600S
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.


  • 80 PLUS Gold Efficiency

  • Compact size with only 140mm depth

  • Motherboard, CPU and PCI-E cable lengths of 650mm


AC input frequency47 - 63 Hz
AC input voltage100 - 240V
Height86 mm
Cooling typeActive
Total power600 W
Gross weight2.09 kg
CPU power connector (4 + 4 pins)Yes
CPU power cable length650 mm
Harmonized System (HS) code84733020
Maximum output voltage (+12 V1)49 A
Maximum output voltage (+12 VSB)2.5 A
Maximum output voltage (+3.3 V)20 A
Maximum output voltage (+5 V)20 A
Maximum output voltage (-12 V)0.3 A
Floppy drive power connector1
Power Factor Correction (PFC) TypeActive
Length150 mm
Complex power (+5 VSB)12.5 W
Complex power (-12 V)3.6 W
Power protection featuresOvervoltage protection/Overload protection/Short circuit
Power supply unit (PSU) form factorPS/2
Model nameCore 600W
Motherboard power connector24-pin ATX
Motherboard power cable length650 mm
Net weight1.67 kg
Package weight2080 g
PurposePC
PCI Express power cable length500 mm
PCI Express power connectors (6 + 2 pins)2
Wired transmission typeNon-modular
Peripheral (Molex) power cable length150/500 mm
Peripheral (Molex) power connector (4-pin)3
Width140 mm
Product colorBlack
Number of SATA electrical connectors6
SATA power cable length150/500 mm
80 PLUS certificate80 PLUS Gold
Shipping Box Depth50 cm
Shipping Box Height21 cm
Shipping Box Weight8.34 kg
Shipping Box Width23.5 cm
SummaryChieftec Core BBS-600S. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Weight1670 g
Unit Box Height0.105
Unit Box Length0.24
Unit Box Width0.185
Unit Ugly Volume0.006169 cubm
Vendor Homepagehttps://www.chieftec.eu/products-detail/113/CORE_SERIES/115/BBS-600S
Fan diameter120 mm
Number of fans1 fan(s)
Unit height10.5 cm
Unit depth24 cm
Unit width18.5 cm
Number of units per shipping box4
Input current9 A
