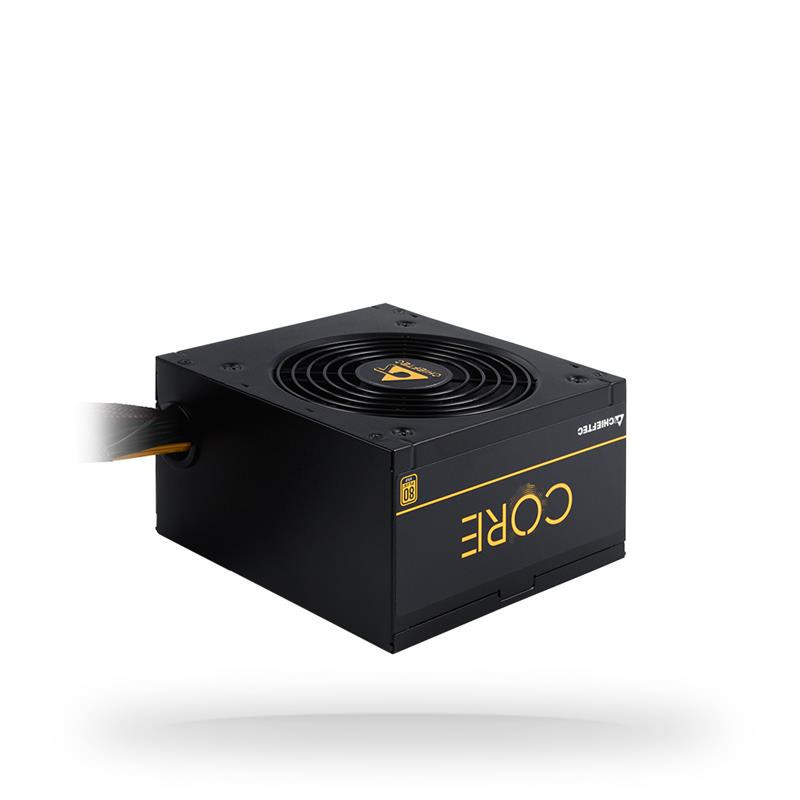

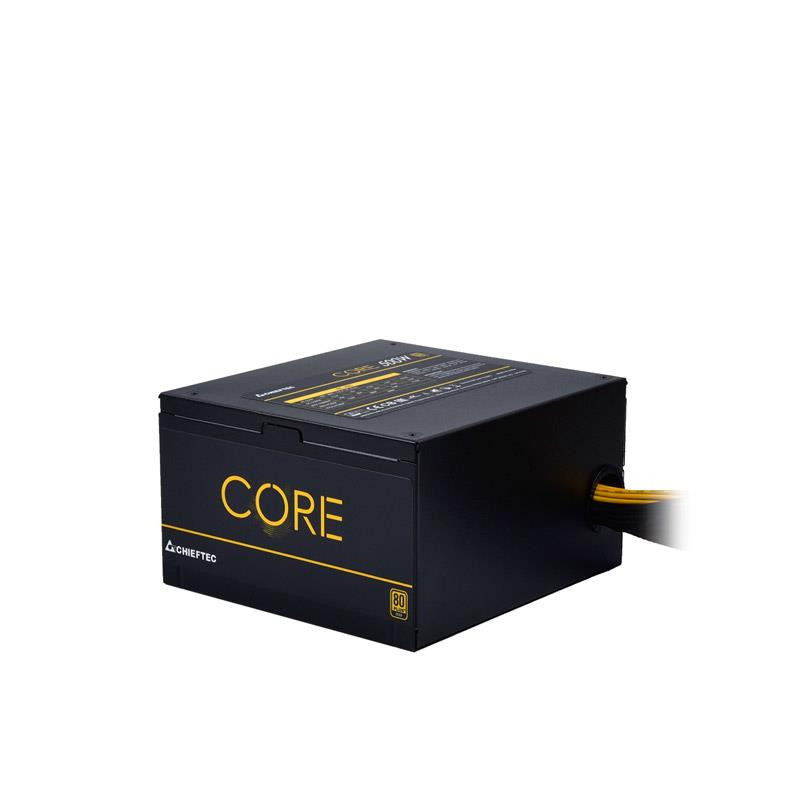

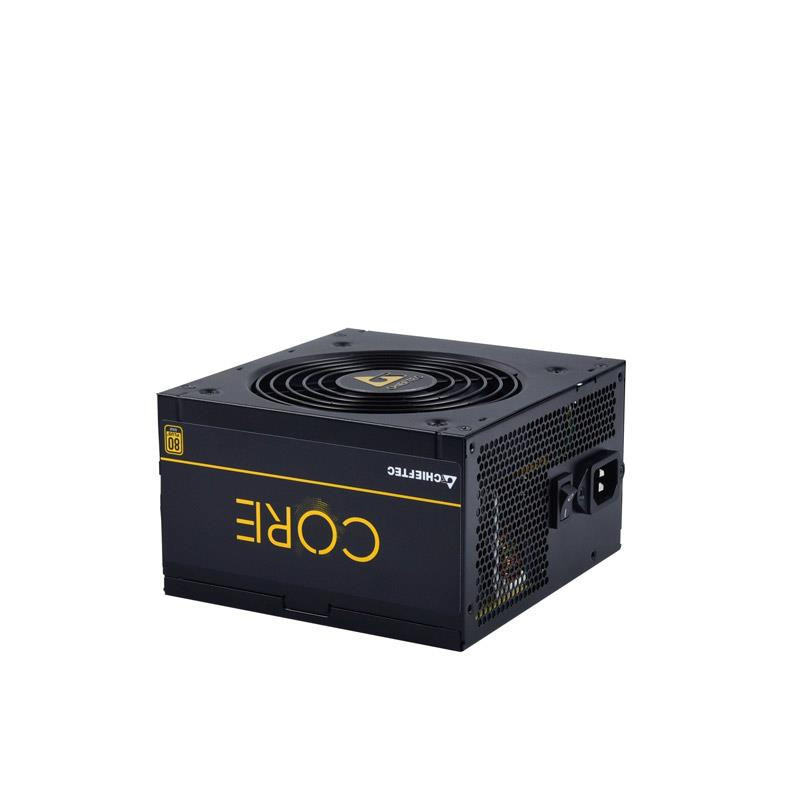

Power Supply, CHIEFTEC, 500 Watts, Efficiency 80 PLUS GOLD, PFC Active, BBS-500S
Product reference:
2-753263076120
Power Supply, CHIEFTEC, 500 Watts, Efficiency 80 PLUS GOLD, PFC Active, BBS-500S
Product reference:
2-753263076120
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
- 80 PLUS Gold Efficiency
- Compact size with only 140mm depth
- 500-700W power output
- Motherboard, CPU and PCI-E cable lengths of 650mm
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 2.3 |
| Cabling type | Non-Modular |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Cooling type | Active |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 150 mm |
| Fan diameter | 120 mm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Harmonized System (HS) code | 84733020 |
| Height | 86 mm |
| Input current | 8 A |
| Max output current (+12V1) | 41 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Model name | BBS-500S |
| Motherboard power connector | 24-pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 4 |
| Package weight | 2060 g |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Product Net Weight | 1.65 kg |
| Purpose | PC |
| SATA power cable length | 150/500 mm |
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 21 cm |
| Shipping Box Weight | 8.38000011444092 kg |
| Shipping Box Width | 23.5 cm |
| Summary | Chieftec Core BBS-500S. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| Total power | 500 W |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.185 |
| Unit Calculated Volume | 0.006107 cubm |
| Unit Calculated Weight | 2.1 kg |
| Unit Depth | 24 cm |
| Unit Height | 10.5 cm |
| Unit Width | 18.5 cm |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/113/CORE_SERIES |
| Weight | 1650 g |
| Width | 140 mm |
